Description

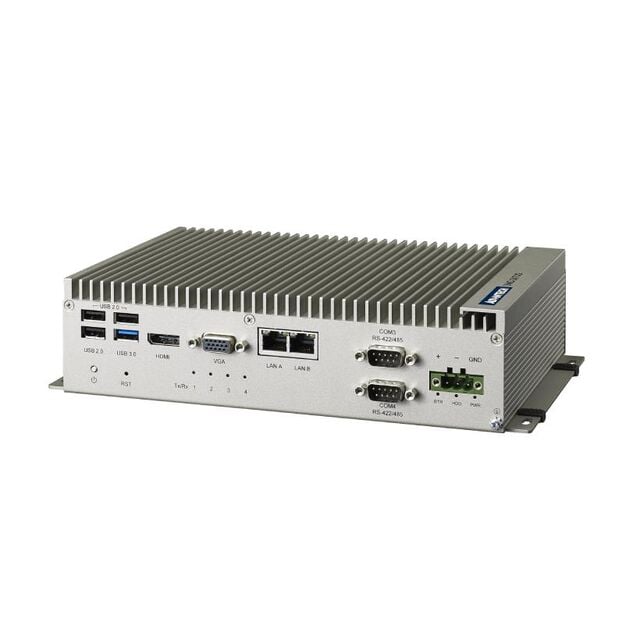

The Advantech ESRP-CMS-UNO2473 is a ThinManager Ready industrial automation thin client engineered for reliable plant-floor visualization and distributed control environments. Powered by an Intel® Celeron® J1900 quad-core processor, this compact fanless system supports dual independent displays via HDMI and VGA, enabling efficient multi-monitor operation in control rooms, production lines, and industrial workstations.
Designed for harsh industrial conditions, it features an IP40-rated aluminum enclosure, wide operating temperature support, and robust shock/vibration protection. With multiple serial communication interfaces including RS-232/422/485, dual Gigabit Ethernet, and USB connectivity, the ESRP-CMS-UNO2473 provides flexible integration into automation networks while keeping all computing centrally managed through a ThinManager server.
| Specification Category | Details |
|---|---|
| Product Type | Industrial Automation Thin Client |
| Model / SKU | ESRP-CMS-UNO2473 |
| Platform Compatibility | ThinManager Ready (BIOS Enabled) |
| Processor | Intel® Celeron® J1900 Quad Core, 2.42 GHz |
| Memory | 4GB DDR3L 1333 MHz |
| Graphics | Intel® HD Graphics Gen7 (4EU) |
| Display Outputs | 1× HDMI (1920×1080 @60Hz), 1× VGA (2048×1536 @60Hz) |
| Multi-Monitor Support | Dual simultaneous independent displays |
| Ethernet Ports | 2× RJ45 Gigabit LAN (10/100/1000 Mbps) |
| USB Ports | 4× USB 2.0, 1× USB 3.0 |
| Serial Ports | 2× RS-232, 2× RS-232/422/485 (DB9) |
| Audio | Line-In |
| Power Requirements | 24VDC ±20% |
| Power Consumption | 10W Typical, 14W Max |
| Enclosure | Aluminum Housing |
| Mounting Options | Stand, Wall, Optional VESA or DIN-Rail |
| Operating Temperature | -10°C to 60°C |
| Ingress Protection | IP40 |
| Certifications | CE, FCC, UL, CCC, BSMI |
| Dimensions (W×D×H) | 252 × 149 × 62 mm |
| Weight | 1.6 kg |
