Description
The Eaton Tripp Lite N28H-01M-AQ is a high-performance QSFP28 to QSFP28 Active Optical Cable (AOC) designed for ultra-fast 100Gb Ethernet connections in data centers and enterprise environments. This 1-meter multimode cable combines four full-duplex 25 Gbps lanes into a single compact assembly, delivering an aggregated bandwidth of up to 100 Gbps.

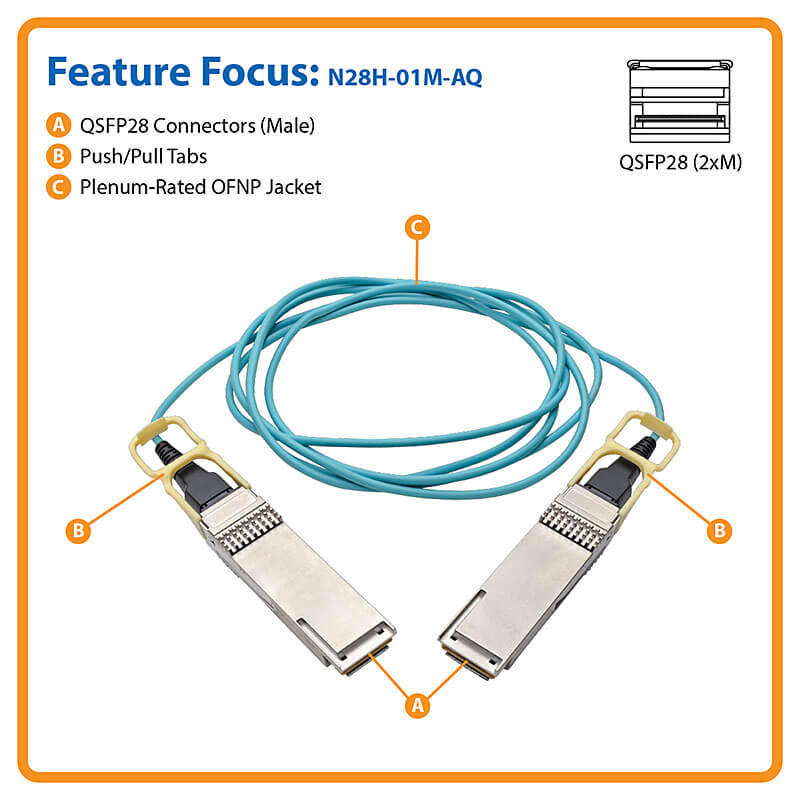

Engineered for bandwidth-intensive applications, the cable features precision zinc-alloy QSFP28 connectors with ergonomic push/pull tabs for effortless one-handed installation in high-density racks. Its active optical design reduces signal loss and electromagnetic interference while supporting short-reach, high-speed interconnects between switches, servers, routers, and storage equipment.
Fully compliant with QSFP28 MSA and IEEE 802.3bm standards, the N28H-01M-AQ ensures broad compatibility across modern networking platforms, making it an ideal solution for 100GBASE-SR4 Ethernet, InfiniBand, Fibre Channel, PCIe, and high-performance computing environments.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model Number | N28H-01M-AQ |
| Cable Type | QSFP28 to QSFP28 Active Optical Cable |
| Maximum Data Rate | 100 Gbps |
| Lane Configuration | 4 × 25 Gbps full-duplex |
| Fiber Type | Multimode (OM3) |
| Optical Mode | Multimode |
| Wavelength | 850 nm / 1300 nm |
| Connector Type (End A) | QSFP28 Male |
| Connector Type (End B) | QSFP28 Male |
| Connector Material | Zinc Alloy |
| Cable Jacket Color | Aqua |
| Jacket Rating | OFNP (Plenum-Rated) |
| Number of Fibers | 8 |
| Cable Length | 1 m (3.3 ft) |
| Outer Diameter | 2.9 mm |
| Minimum Bend Radius | 30 mm |
| Network Compatibility | 100Gb Ethernet |
| Supported Standards | IEEE 802.3bm |
| Compliance | RoHS, REACH |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Warranty | 1-Year Limited Warranty |
