Description

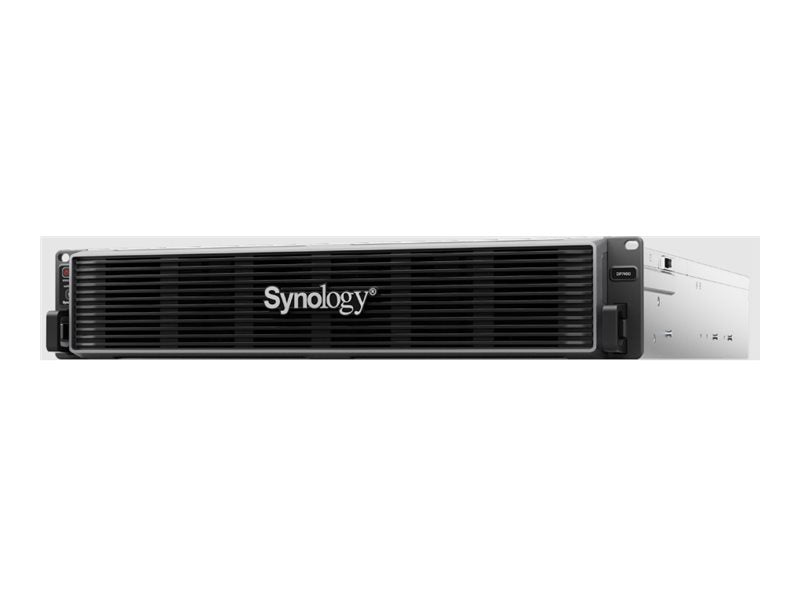

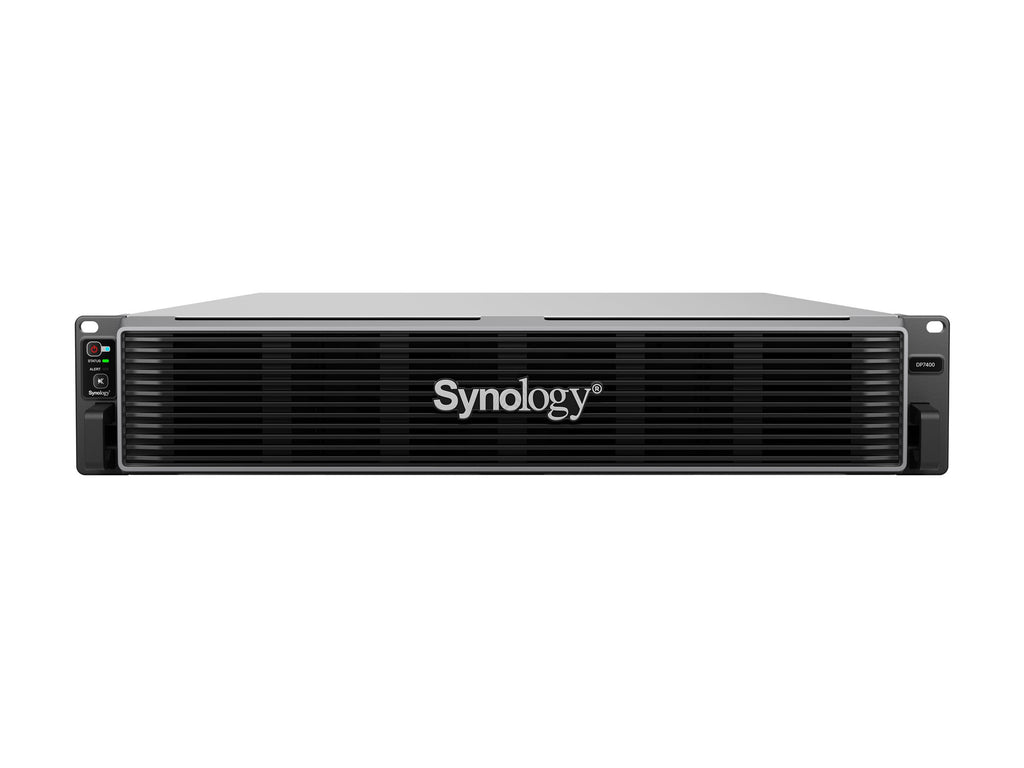

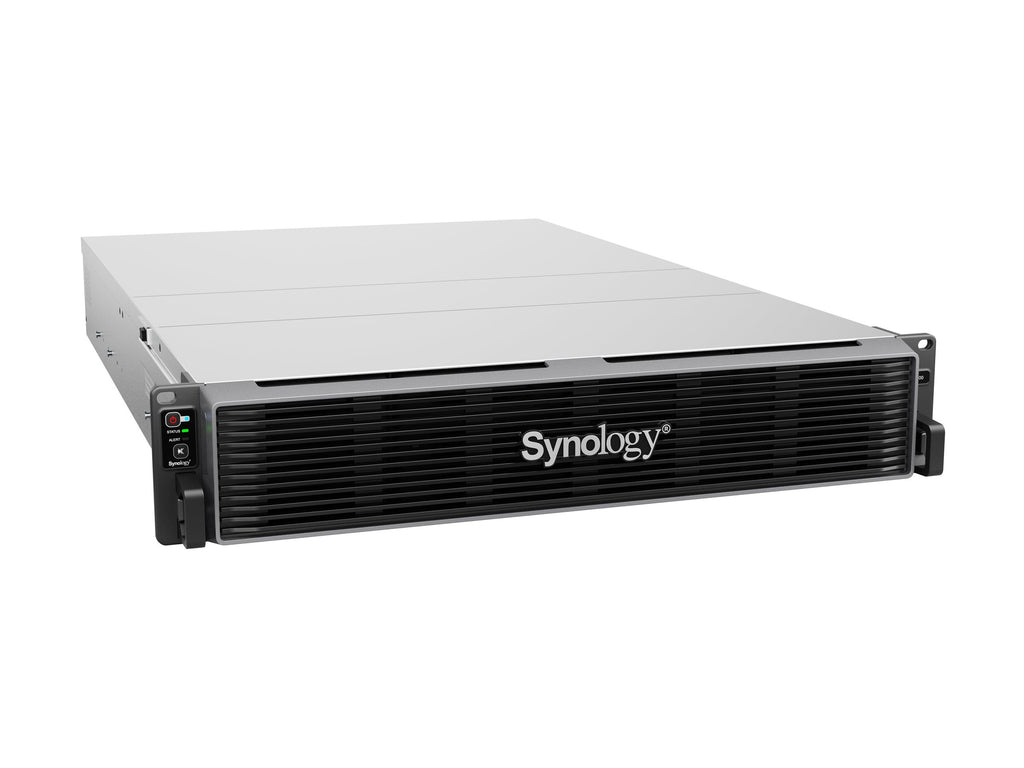

The Synology ActiveProtect DP7400 is a high-performance, cyber-resilient data protection appliance purpose-built for enterprise backup and disaster recovery. Pre-configured with ActiveProtect Manager OS, it integrates hardware and software for seamless management of physical, virtual, SaaS, and database workloads across multiple sites.
With support for up to 150,000 workloads and 2,500 servers per cluster, the DP7400 enables centralized control, efficient deduplication, and rapid recovery—whether at the file, VM, or bare-metal level. Built-in immutability, WORM storage, and air-gapped isolation provide robust ransomware defense, while Btrfs self-healing and RAID 6 redundancy ensure data integrity.
Ideal for corporate data centers, the DP7400 simplifies deployment with automated configuration and RAID setup. Its comprehensive access control—integrated with Active Directory, LDAP, and SAML 2.0—strengthens security through MFA and network isolation. From instant recovery and sandboxed DR testing to source-side deduplication, the DP7400 delivers complete, scalable protection for mission-critical environments.
| Category | Specification |
|---|---|
| Form Factor | 2U Rackmount |
| Processor | AMD EPYC 7272, 12 Cores |
| Memory | 64 GB DDR4 (Expandable to 512 GB) |
| Storage Configuration | 10 × 20 TB HDD (RAID 6 + 1 Spare), 2 × 3.84 TB SSD (RAID 1) |
| Suggested Backup Source Capacity | 83.5 TB¹ |
| Built-in Restored VMs (Suggested) | 9 (Expandable to 17 with 128 GB memory) |
| Cluster Capability | Supports up to 2,500 servers / 150,000 workloads³ |

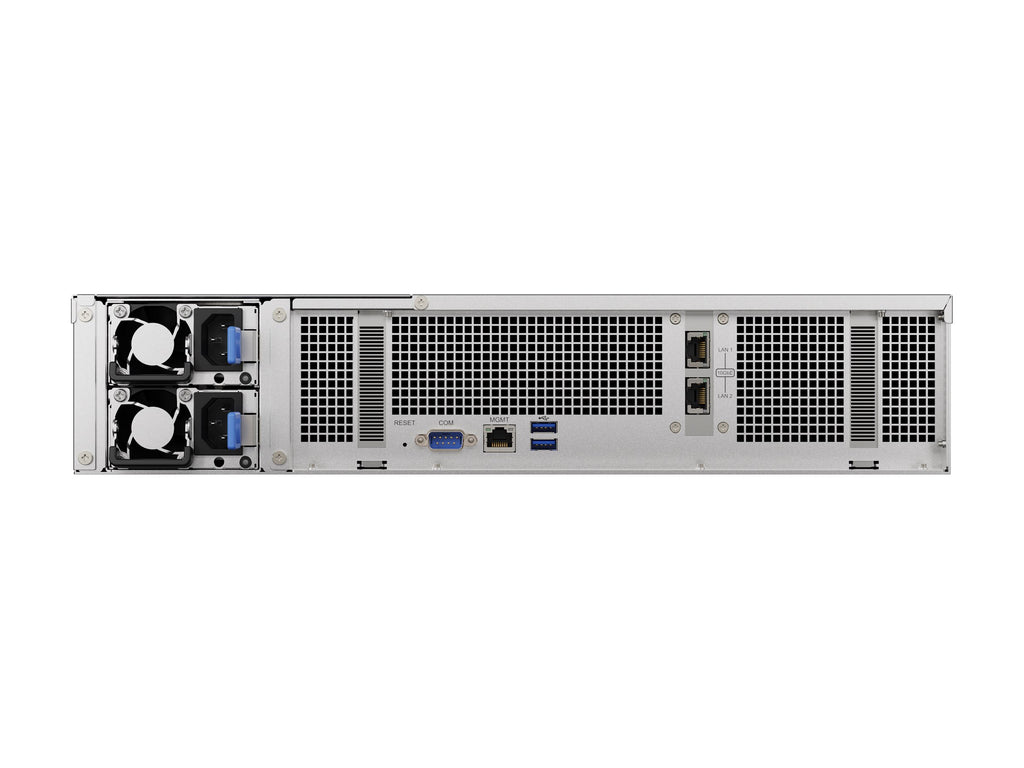

| Network Interfaces | 1 × 1GbE RJ-45 (Management), 2 × 10GbE RJ-45 (Data), Optional 2 × 10GbE RJ-45 / 25GbE SFP28 |
| I/O Ports | 2 × USB 3.2 Gen 1, 1 × Console Port, PCIe Expansion Slots |
| Dimensions (HxWxD) | 88 × 430.5 × 692 mm (chassis only); 88 × 482 × 724 mm (with handles) |
| Weight | 23.4 kg |
| Power Input | 100–240 V AC, 50/60 Hz, Single Phase |
| Power Consumption | 163.17 W (Access) |
| Cooling | Dual PSU Fans |
| Operating Environment | 0°C–35°C (32°F–95°F), 8%–80% RH |
| Storage Environment | –20°C–60°C (–5°F–140°F), 5%–95% RH |
| Certifications | FCC, CE, UKCA, BSMI, RCM, NCC, VCCI, KC, BIS, EAC |
| Environmental Compliance | RoHS Compliant |
| Package Contents | DP7400 Main Unit, 10 × 3.5” SATA HDD, 2 × 2.5” SATA SSD, 2 × Power Cords, Front Cover, Accessory Pack, Quick Installation Guide |
| Warranty | 5 Years⁴ |
| Security Features | Active Directory/LDAP/SAML 2.0 Integration, MFA, IP/Subnet Firewall Rules, Isolated Management Port, Air-Gapped Backup Support |
| Backup & Recovery Features | Source-Side Global Deduplication, Self-Healing Btrfs Filesystem, Sandboxed DR Drills, Bare-Metal/File-Level/P2V/V2V Recovery |
| Ransomware Protection | Immutable Backups, WORM Storage, Encryption, Air-Gap Isolation |
| Scalability & Visibility | Real-Time Monitoring, Custom Alerts, Centralized Dashboard |
