Description

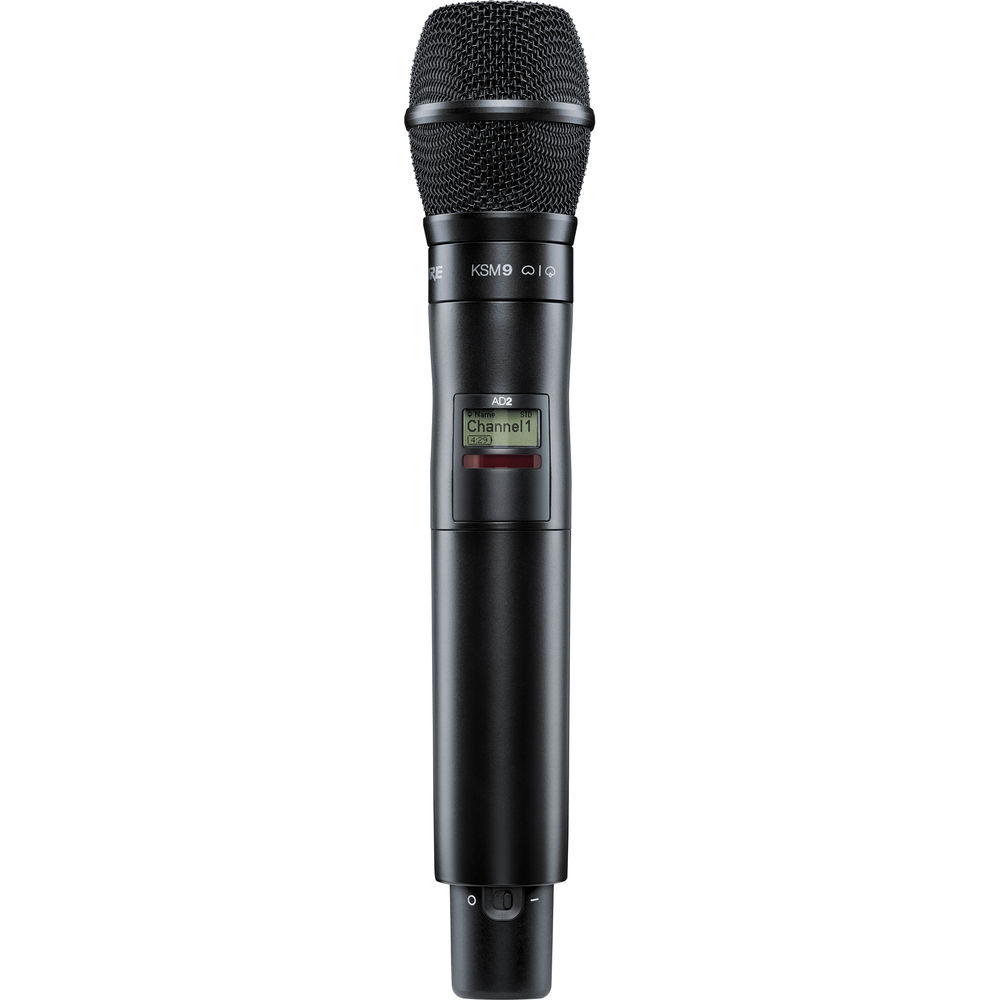

The Shure AD2/KSM9B is a premium digital handheld wireless microphone transmitter designed for professional live sound environments using the Axient Digital platform. Engineered for exceptional vocal clarity and RF stability, this transmitter features the renowned KSM9 dual-diaphragm condenser capsule, delivering studio-quality sound with precise articulation and natural tonal balance.
With switchable cardioid and supercardioid polar patterns, the KSM9 capsule adapts seamlessly to different stage environments, offering flexibility for performers and front-of-house engineers. The transmitter operates across a wide UHF tuning range with selectable RF output power levels, ensuring reliable performance in both standard and high-density RF environments.
Built for demanding applications, the AD2/KSM9B combines rugged aluminum construction with advanced features such as AES 256-bit encryption for secure transmission, automatic gain adjustment, and intuitive controls via a backlit LCD. Its interchangeable capsule design allows compatibility with a wide range of Shure microphone heads, making it a versatile solution for touring professionals, broadcast, and high-end installations.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| RF Frequency Band | G57: 470 to 616 MHz |
| RF Bandwidth | 146 MHz |
| Max Operating Range | Up to 328 ft (100 m) line of sight |
| RF Output Power | Selectable: 2 mW / 10 mW / 35 mW |
| Audio Latency | 2 to 2.9 ms (selectable) |
| Encryption | AES 256-bit |
| Capsule Type | KSM9 Dual-Diaphragm Condenser |
| Polar Patterns | Cardioid, Supercardioid |
| Frequency Response | 50 Hz to 20 kHz |
| Maximum SPL | 152 dB |
| Sensitivity | -51 dBV/Pa (1 kHz) |
| Gain Adjustment Range | -12 to +21 dB |
| Sync Method | Infrared (IR) |
| Display | Backlit LCD |
| Controls | Power/Mute Switch, Lock Functions |
| Battery Type | 2x AA or SB900A Rechargeable Battery |
| Battery Life | Up to 8 hours (AA), up to 9 hours (SB900A) |
| Charging Capability | External charging contacts for docked charging |
| Housing Material | Aluminum |
| Dimensions | 10.1 x 2 in (256 x 51 mm) |
| Weight | 12 oz (340 g) without batteries |
| Antenna | Internal Single-Band Helical |
| Compatibility | Shure Axient Digital Receivers |
| Included Accessories | 2 AA batteries, zipper bag, threaded adapter, swivel adapter, battery contact cover |
