Description

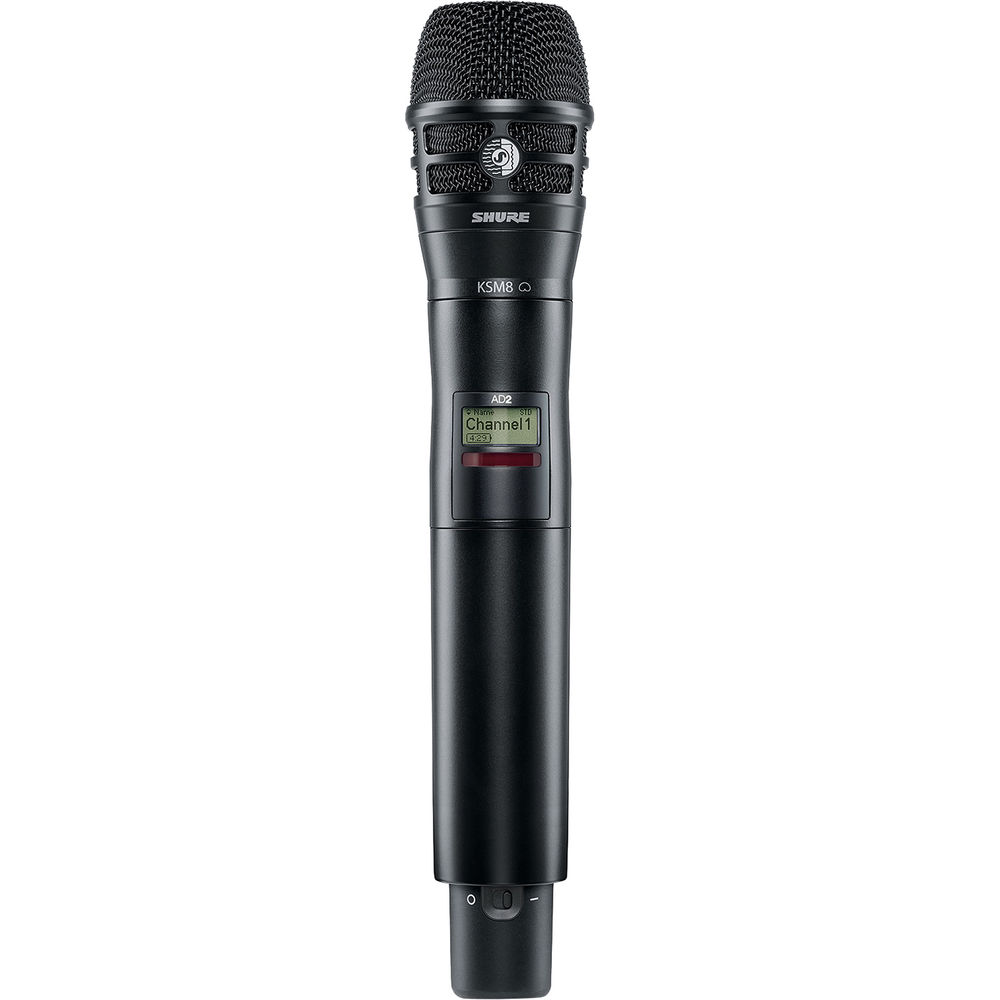

The Shure AD2/KSM8B Digital Handheld Wireless Microphone Transmitter delivers exceptional vocal clarity and consistent performance for professional live sound, broadcast, and enterprise environments. Built for compatibility with Shure Axient Digital systems, this transmitter combines advanced RF stability with pristine 24-bit digital audio to ensure reliable, interference-free operation in demanding applications.
Equipped with the KSM8 dual-diaphragm dynamic capsule, the AD2/KSM8B minimizes proximity effect and maintains tonal consistency, even with varying microphone distances. Its cardioid polar pattern provides focused pickup and excellent off-axis rejection, making it ideal for vocals, presentations, and high-SPL environments.
Designed for flexibility and control, the transmitter features selectable RF output power levels, AES-256 encryption for secure transmission, and automatic gain adjustment for optimized audio levels. The rugged aluminum construction ensures durability, while the backlit LCD and intuitive controls provide easy access to critical settings during live operation.
With interchangeable capsule compatibility and advanced battery management options, the AD2/KSM8B is engineered to meet the demands of high-profile productions, houses of worship, corporate AV, and touring professionals.
| Category | Specification |
|---|---|
| Wireless Technology | Digital UHF |
| RF Frequency Band | G57: 470 to 616 MHz |
| Operating Range | Up to 328 ft (100 m) line of sight |
| RF Output Power | Selectable: 2 mW, 10 mW, 35 mW |
| Audio Quality | 24-bit digital audio |
| Latency | 2 to 2.9 ms (selectable) |
| Encryption | AES 256-bit |
| Capsule Type | KSM8 Dual-Diaphragm Dynamic |
| Polar Pattern | Cardioid |
| Frequency Response | 40 Hz to 16 kHz |
| Maximum SPL | 145 dB |
| Gain Adjustment | -12 to +21 dB (3 dB steps) with automatic gain |
| Sync Method | Infrared (IR) |
| Display | Backlit LCD |
| Controls | Power/Mute switch, menu navigation, lock functions |
| Interchangeable Capsule | Yes (compatible with multiple Shure capsules) |
| Battery Type | 2x AA or Shure SB900A rechargeable (optional) |
| Battery Life | Up to 8 hours (AA), up to 9 hours (SB900A) |
| Charging Capability | External dock charging supported |
| Mobile App Compatibility | ShurePlus Channels (iOS) |
| Housing Material | Aluminum |
| Dimensions | 10.1 x 2 inches |
| Weight | 12 oz (without batteries) |
| Color | Black |
| Included Accessories | AA batteries, zipper bag, threaded adapter, swivel adapter, battery contact cover |
