Description

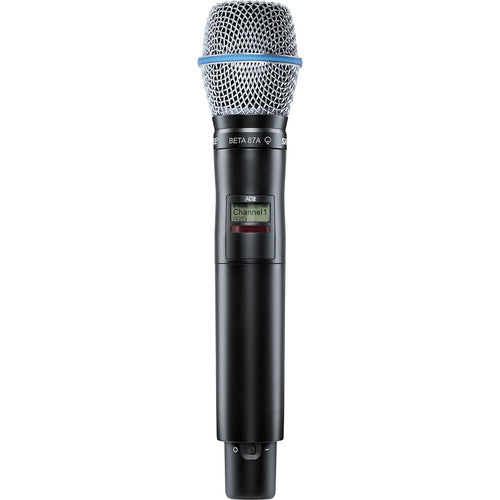

The Shure AD2/B87A Digital Handheld Wireless Microphone Transmitter is engineered for professional audio environments that demand consistent RF performance, pristine vocal clarity, and secure signal transmission. Designed for use with Axient Digital systems, this handheld transmitter delivers reliable operation in congested RF environments while maintaining ultra-low latency and exceptional audio fidelity.
Equipped with the renowned Beta 87A condenser capsule, the AD2/B87A provides a supercardioid pickup pattern for focused vocal capture, minimizing background noise and feedback. Automatic gain adjustment ensures consistent output levels, while selectable RF power settings allow you to optimize performance based on range and environment.
Built with a durable aluminum housing and featuring a backlit LCD for easy monitoring, this transmitter is ideal for live performances, broadcast, and enterprise AV applications. With AES-256 encryption, your audio remains secure, making it suitable for high-level corporate and government use cases.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| RF Frequency Band | G57: 470 to 616 MHz |
| Operating Range | Up to 328 ft (100 m), line of sight |
| RF Output Power | 2 / 10 / 35 mW selectable |
| Encryption | AES-256 |
| Latency | 2 to 2.9 ms (selectable) |
| RF Channel Scanning | Automatic |
| Sync Method | Infrared (IR) |
| Microphone Type | Handheld with interchangeable capsule |
| Included Capsule | Beta 87A condenser |
| Polar Pattern | Supercardioid |
| Frequency Response | 50 Hz to 20 kHz |
| Maximum SPL | 140.5 dB |
| Sensitivity | -52.5 dBV/Pa (1 kHz) |
| Gain Range | -12 to +21 dB (3 dB steps) |
| Auto Gain Control | Supported |
| Muting | Mute switch |
| Display | Backlit LCD |
| Antenna | Internal single-band helical |
| Battery Type | 2x AA or Shure SB900A rechargeable |
| Battery Life | Up to 9 hours (SB900A), up to 8 hours (AA) |
| Charging Support | Networked intelligent charging (optional accessories) |
| Housing Material | Aluminum |
| Dimensions | 10.1 x 2 inches (256 x 51 mm) |
| Weight | 12 oz (340 g) without batteries |
| Included Charging Case | Not included |
| Environmental Resistance | Not specified |
