Description

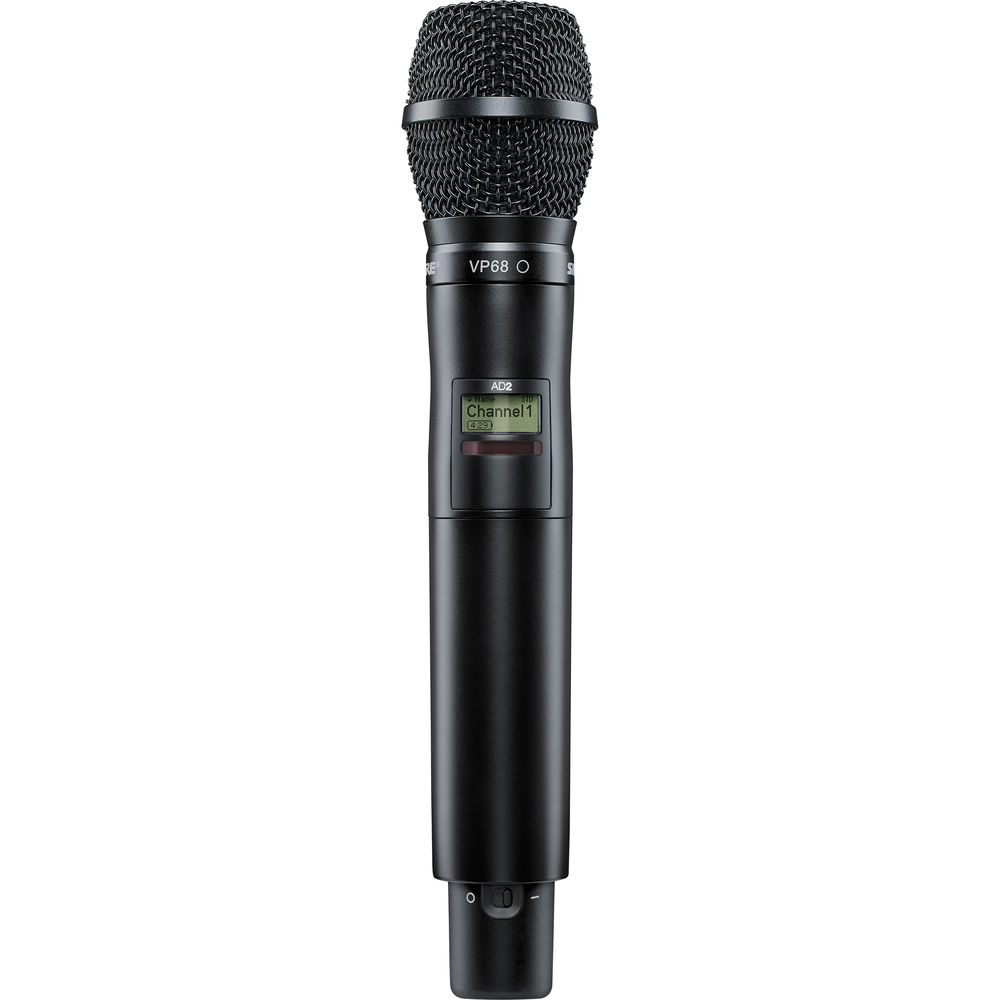

The Shure AD2/VP68 Digital Handheld Wireless Microphone Transmitter delivers professional-grade RF stability and pristine audio performance for demanding live sound, broadcast, and corporate environments. Designed for seamless integration with Axient Digital systems, this handheld transmitter ensures consistent, interference-resistant operation across a wide 470 to 616 MHz frequency range.
Equipped with the VP68 omnidirectional condenser capsule, the AD2/VP68 provides natural, intelligible speech reproduction with minimal sensitivity to mic positioning. Its omnidirectional pickup pattern makes it ideal for interviews, panel discussions, and multi-speaker scenarios where consistent audio capture is critical.
Engineered for reliability, the transmitter features AES-256 encryption for secure transmission, selectable RF output power for optimized performance, and automatic gain adjustment for effortless setup. The rugged aluminum housing, backlit LCD, and intuitive controls ensure ease of use in fast-paced professional environments.
With flexible power options including AA batteries or the optional SB900A rechargeable battery, along with networked intelligent charging compatibility, the AD2/VP68 is built for extended operation and efficient system management. Its interchangeable capsule design also allows users to adapt to different applications with a wide range of Shure microphone capsules.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| RF Frequency Range | 470 to 616 MHz (G57 Band) |
| Operating Range | Up to 328 ft (100 m), line of sight |
| RF Output Power | Selectable: 2 mW / 10 mW / 35 mW |
| Encryption | AES-256 secure transmission |
| Latency | Selectable: 2 to 2.9 ms |
| Microphone Type | Handheld with interchangeable capsule |
| Included Capsule | Shure VP68 condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 40 Hz to 20 kHz |
| Maximum SPL | 145 dB |
| Gain Range | -12 to +21 dB (3 dB steps) |
| Automatic Gain Control | Yes |
| Sync Method | Infrared (IR) |
| Display | Backlit LCD |
| Controls | Power/Mute switch, menu navigation |
| Battery Type | 2x AA batteries (included) or SB900A rechargeable (optional) |
| Battery Life | Up to 8 hours (AA), up to 9 hours (SB900A) |
| Charging Options | External dock charging contacts (compatible with SBC chargers) |
| Housing Material | Aluminum |
| Dimensions | 10.1 x 2 in (256 x 51 mm) |
| Weight | 12 oz (340 g) without batteries |
| Included Accessories | AA batteries, zipper bag, threaded adapter, swivel adapter, battery contact cover |
