Description

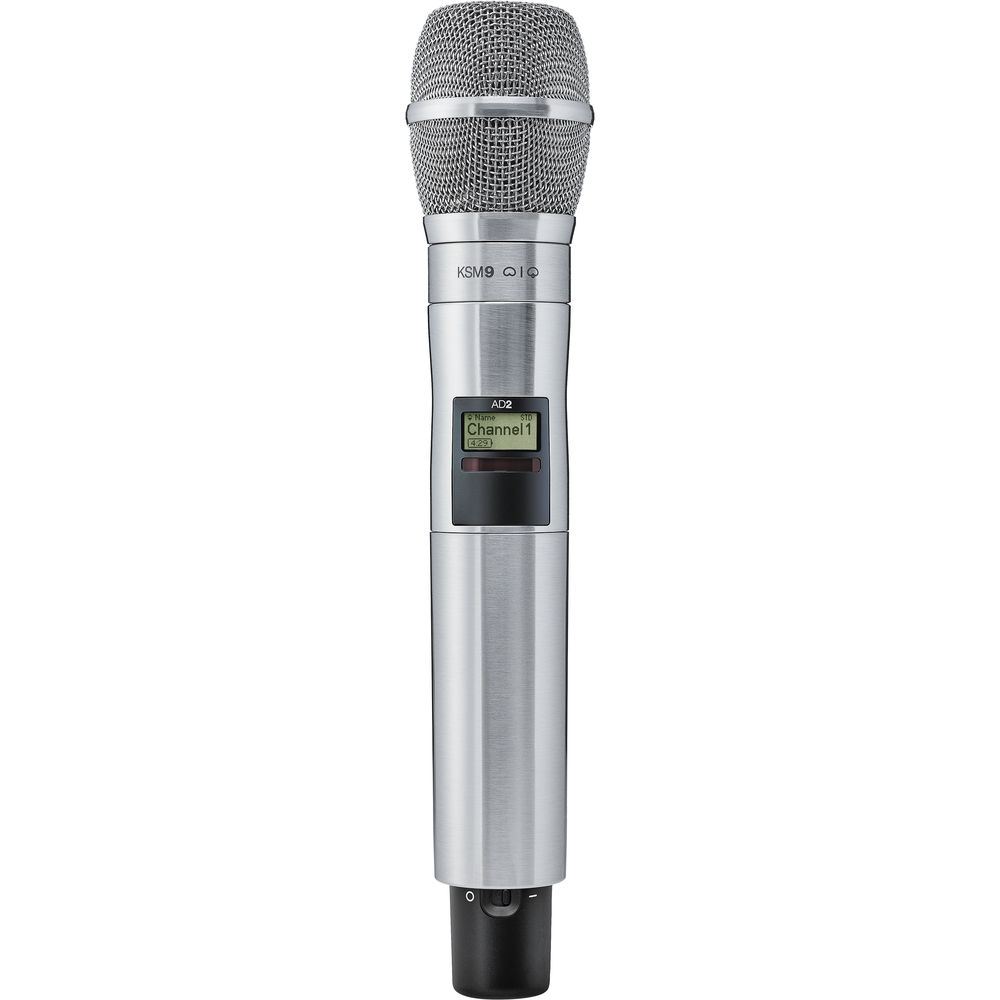

The Shure AD2 handheld wireless transmitter with KSM9 capsule is engineered for elite vocal performance in demanding live environments. Built for compatibility with Axient Digital systems, this transmitter delivers exceptional RF stability, pristine audio clarity, and secure transmission for professional touring, broadcast, and installed sound applications.
Equipped with the KSM9 dual-diaphragm condenser capsule, the microphone captures vocals with remarkable detail and transparency. Its switchable cardioid and supercardioid polar patterns provide flexibility for different stage conditions, allowing engineers to optimize gain before feedback while maintaining natural tonal balance.
The AD2 transmitter features wideband UHF operation with selectable RF output power, enabling reliable performance across complex RF environments. Automatic gain adjustment simplifies setup, while AES 256-bit encryption ensures secure audio transmission for high-profile events.
Designed for durability and ease of use, the lightweight aluminum housing includes a backlit LCD for real-time monitoring of key parameters. Flexible power options, including AA batteries or Shure’s SB900A rechargeable system, make it suitable for extended use in professional workflows.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| Frequency Band | G57: 470 to 616 MHz |
| Operating Range | Up to 328 ft (100 m) line of sight |
| RF Output Power | Selectable 2 / 10 / 35 mW |
| Encryption | AES 256-bit secure transmission |
| Latency | 2 to 2.9 ms (selectable) |
| Microphone Capsule | KSM9 condenser (interchangeable) |
| Polar Patterns | Cardioid, Supercardioid |
| Frequency Response | 50 Hz to 20 kHz |
| Maximum SPL | 152 dB |
| Sensitivity | -51 dBV/Pa |
| Gain Adjustment Range | -12 to +21 dB |
| Auto Gain Control | Automatic gain adjustment supported |
| Sync Method | Infrared (IR) |
| Display | Backlit LCD |
| Muting | Integrated mute switch with RF lock |
| Battery Type | 2x AA or SB900A rechargeable battery |
| Battery Life | Up to 8 hours (AA), up to 9 hours (SB900A) |
| Charging Capability | External contacts for dock charging |
| Housing Material | Lightweight aluminum |
| Dimensions | 10.1 x 2 in (256 x 51 mm) |
| Weight | 12 oz (340 g) without batteries |
| Color | Nickel finish |
| Compatibility | Shure Axient Digital wireless systems |
| Included Accessories | 2 AA batteries, zipper bag, threaded adapter, swivel adapter, battery contact cover |
