Description

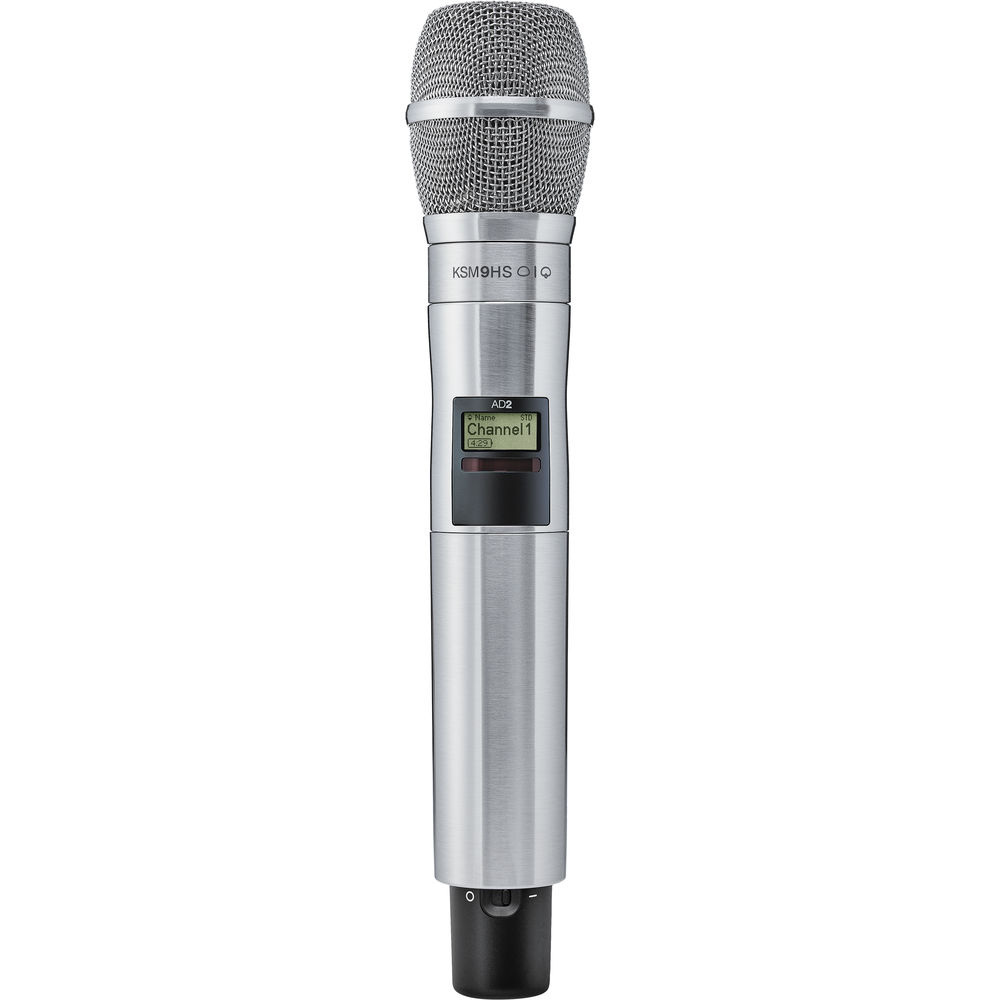

The Shure AD2/KSM9HSN is a premium digital handheld wireless microphone transmitter designed for Axient Digital systems, delivering exceptional RF stability and pristine audio clarity for professional live sound environments. Equipped with the KSM9HS dual-diaphragm condenser capsule, this transmitter offers switchable hypercardioid and subcardioid polar patterns, allowing sound engineers to adapt seamlessly to varying stage conditions while maintaining superior vocal detail and control.
Built for demanding performances, the AD2 transmitter operates across a wide UHF spectrum with selectable RF output power levels, ensuring reliable transmission and optimal system scalability. AES 256-bit encryption safeguards audio signals, while automatic gain adjustment simplifies setup and maintains consistent performance.
The rugged aluminum construction provides durability in touring and broadcast settings, complemented by a backlit LCD for intuitive navigation and real-time monitoring. With flexible power options, including AA batteries or Shure SB900A rechargeable systems, this transmitter ensures dependable operation for extended performances. Ideal for high-profile productions, the AD2/KSM9HSN delivers precision, flexibility, and reliability in every application.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| Frequency Range | G57: 470 to 616 MHz |
| Operating Range | Up to 100 m (328 ft) line of sight |
| RF Output Power | Selectable: 2 mW, 10 mW, 35 mW |
| Encryption | AES 256-bit secure transmission |
| Latency | 2 to 2.9 ms (selectable) |
| Capsule Type | KSM9HS dual-diaphragm condenser |
| Polar Patterns | Hypercardioid, Subcardioid |
| Frequency Response | 50 Hz to 20 kHz |
| Maximum SPL | 150 dB (Hypercardioid), 153 dB (Subcardioid) |
| Sensitivity | -50.5 dBV/Pa (Hypercardioid at 1 kHz) |
| Gain Adjustment | -12 to +21 dB (3 dB steps) |
| Auto Gain Control | Automatic gain adjustment supported |
| Sync Method | Infrared (IR) |
| Display | Backlit LCD with menu navigation |
| Muting | Power button doubles as mute switch |
| Battery Type | 2x AA or optional SB900A rechargeable |
| Battery Life | Up to 8 hours (AA), up to 9 hours (SB900A) |
| Housing Material | Lightweight aluminum |
| Dimensions | 256 x 51 mm (10.1 x 2 in) |
| Weight | 340 g (12 oz) without batteries |
| Color Finish | Nickel |
| Included Accessories | 2x AA batteries, zipper bag, threaded adapter, swivel adapter, battery contact cover |
