Description

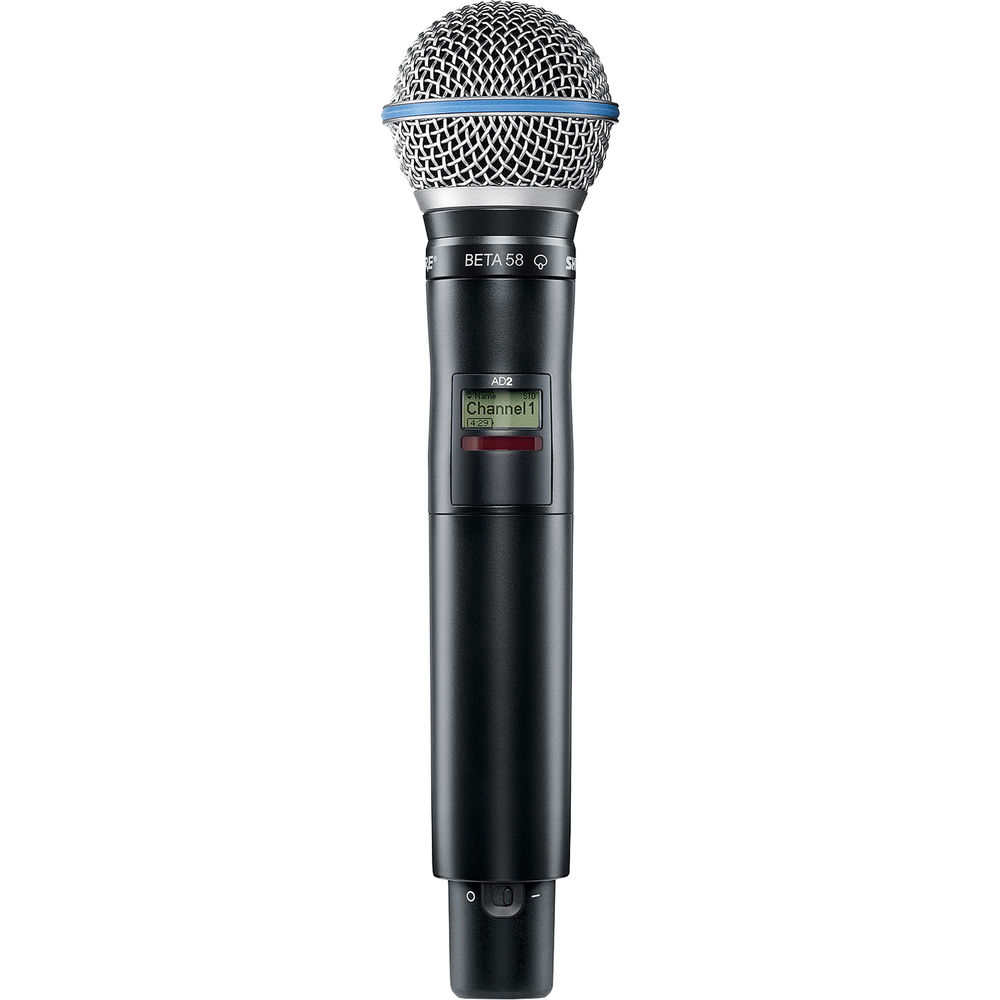

The Shure AD2/B58 Axient Digital handheld wireless transmitter delivers exceptional RF stability, pristine audio clarity, and secure performance for demanding live sound environments. Designed for compatibility with Axient Digital systems, this transmitter is equipped with the renowned Beta 58A dynamic capsule, engineered for close-up vocal applications with a brightened midrange and controlled bass response.
Built for professional stages, broadcast, and corporate events, the supercardioid polar pattern ensures maximum isolation and high gain before feedback. The AD2 transmitter operates within a wide UHF tuning range and offers selectable RF output power levels to optimize performance in both standard and high-density environments.
Advanced features such as automatic gain adjustment, AES 256-bit encryption, and networked intelligent charging provide reliability and control at every level. Its rugged aluminum construction, backlit LCD interface, and interchangeable capsule design make it a versatile and durable solution for high-profile productions.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| Frequency Band | G57: 470 to 616 MHz |
| RF Tuning Bandwidth | 146 MHz |
| RF Output Power | Selectable 2 / 10 / 35 mW |
| Operating Range | Up to 100 m (328 ft) line of sight |
| Latency | Selectable 2 to 2.9 ms |
| Encryption | AES 256-bit secure transmission |
| Microphone Capsule | Beta 58A dynamic |
| Polar Pattern | Supercardioid |
| Frequency Response | 50 Hz to 16 kHz |
| Maximum SPL | 147 dB |
| Sensitivity | -51.5 dBV/Pa at 1 kHz |
| Gain Adjustment Range | -12 to +21 dB |
| Auto Gain Control | Automatic input level adjustment |
| Sync Method | Infrared (IR) |
| Display | Backlit LCD with menu navigation |
| Controls | Power, mute, lock, frequency/group/channel |
| Transmission Modes | Standard and High-Density |
| Antenna Type | Internal single-band helical |
| Battery Type | 2 AA batteries or optional SB900A rechargeable |
| Battery Life | Up to 8 hours (AA), up to 9 hours (SB900A) |
| Charging Support | External dock charging via optional chargers |
| Housing Material | Lightweight aluminum |
| Dimensions | 256 x 51 mm (10.1 x 2") |
| Weight | 340 g (12 oz) without batteries |
| Included Accessories | 2 AA batteries, zipper bag, threaded adapter, swivel adapter, battery contact cover |
| Compatibility | Shure Axient Digital wireless systems |
| Capsule Interchangeability | Compatible with Shure interchangeable capsules |
