Description
The Shure Axient Digital AD4Q-DC Quad-Channel Wireless Receiver delivers industry-leading RF stability, audio clarity, and scalable performance for mission-critical wireless audio environments. Engineered for professional productions, broadcast, touring, and enterprise AV deployments, this receiver combines advanced digital processing with robust networked control for seamless operation in even the most congested RF conditions.
Equipped with a DC power module, the AD4Q-DC supports redundant power options for enhanced reliability in live and installed systems. Quadversity technology improves RF signal integrity by expanding antenna coverage, while High Density (HD) mode maximizes channel count without compromising performance. Integrated Dante, AES3, and AES67 networking ensures flexible audio routing and system-wide control.
Designed for demanding workflows, this receiver enables centralized management through Wireless Workbench and ShurePlus Channels, providing real-time monitoring, frequency coordination, and remote control. With TAA compliance, it is ideal for government, enterprise, and regulated deployments requiring secure and dependable wireless infrastructure.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| Receiver Type | Quad-Channel Rackmount (19") |
| RF Frequency Band | 470–636 MHz |
| Diversity | True Digital Diversity per Channel |
| RF Tuning Range | Up to 184 MHz |
| Quadversity Mode | Yes, enhanced antenna coverage and RF stability |
| Max Operating Range | Up to 100 m (328 ft), environment dependent |
| Audio Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | Up to 130 dB (digital output) |
| Latency | As low as ~2 ms (mode dependent) |

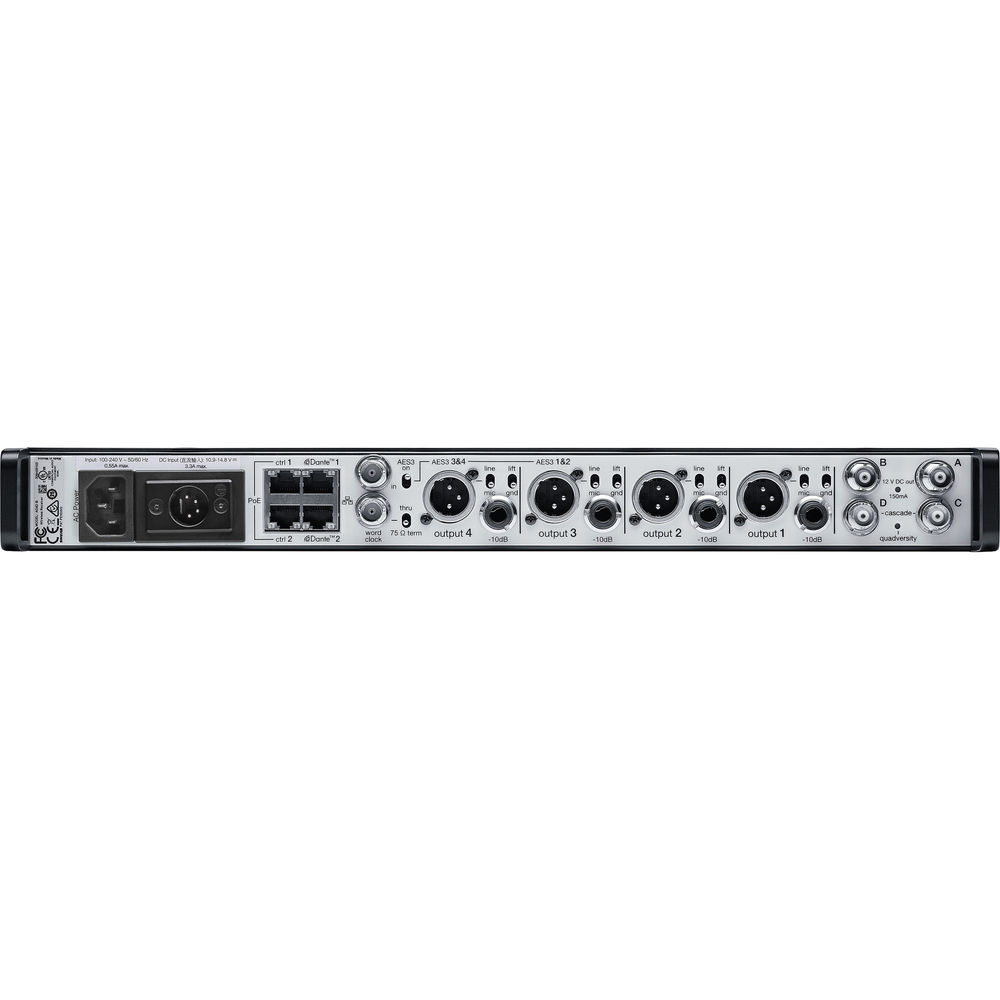

| Audio Outputs | XLR (balanced), 1/4" (balanced), AES3 digital |
| Network Audio | Dante, AES67 |
| Network Interface | 10/100/1000 Mbps Ethernet |
| Control Software | Wireless Workbench, ShurePlus Channels |
| Gain Adjustment Range | -18 to +42 dB |
| RF Input Connectors | BNC |
| Cascade Output | BNC for additional receivers |
| Power Supply | 100–240 VAC, 50–60 Hz |

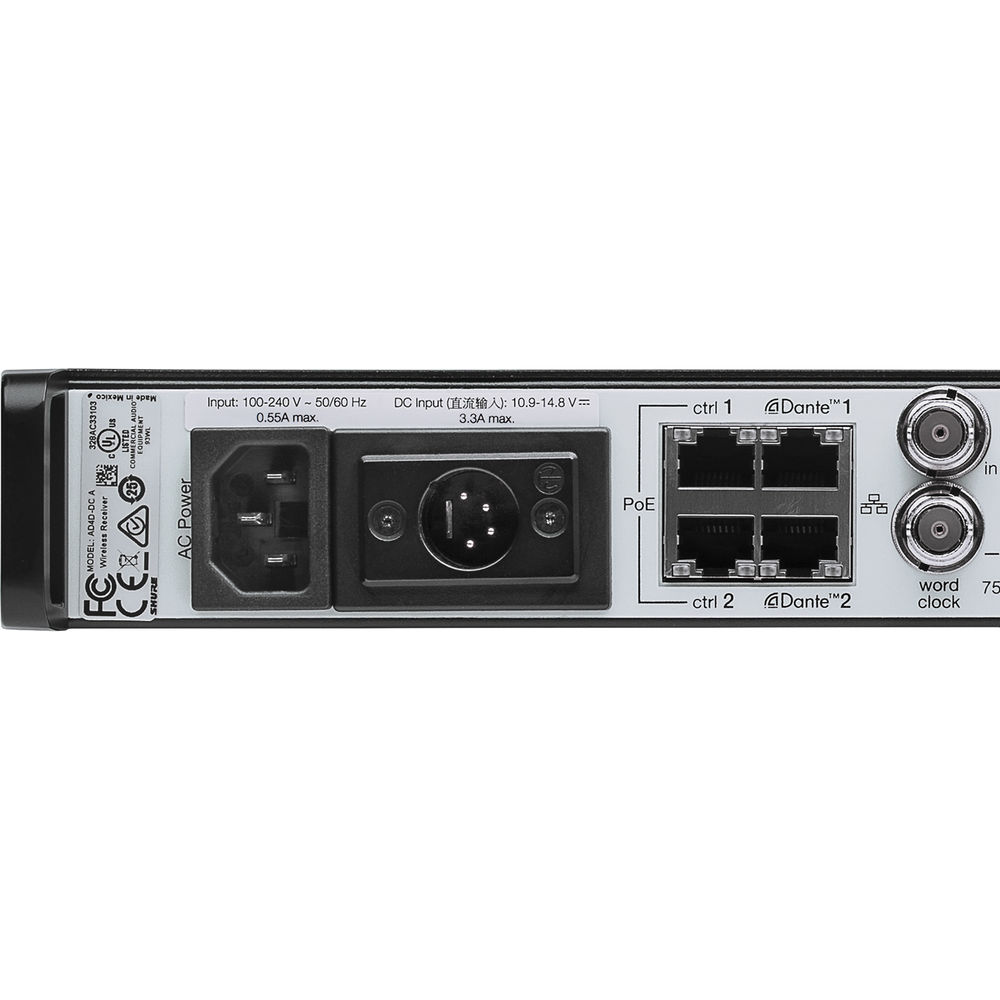

| DC Power Input | 10.9–14.8 V DC via 4-pin XLR |
| Redundant Power Support | Yes, via DC module |
| Power Consumption | Up to 31 W |
| Dimensions (H x W x D) | 1.7 x 19.0 x 13.1 in |
| Weight | 10.6 lb (4.8 kg) |
| Construction | Steel chassis with extruded aluminum |
| Compliance | TAA Compliant |
