Description

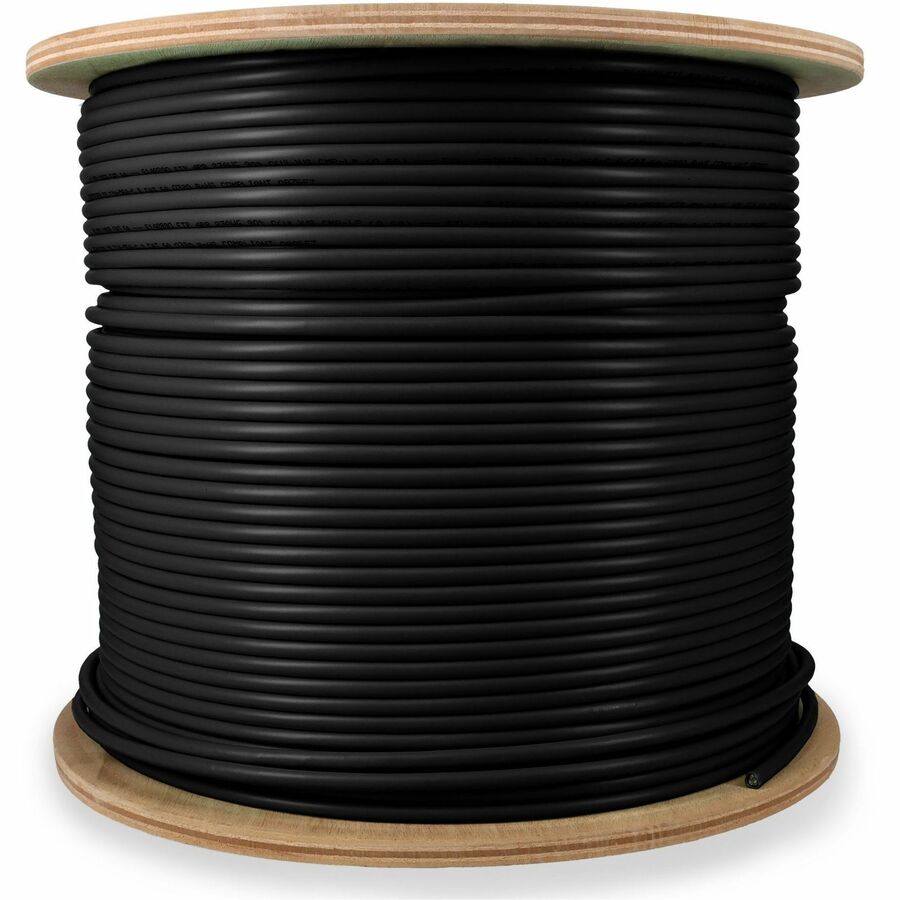

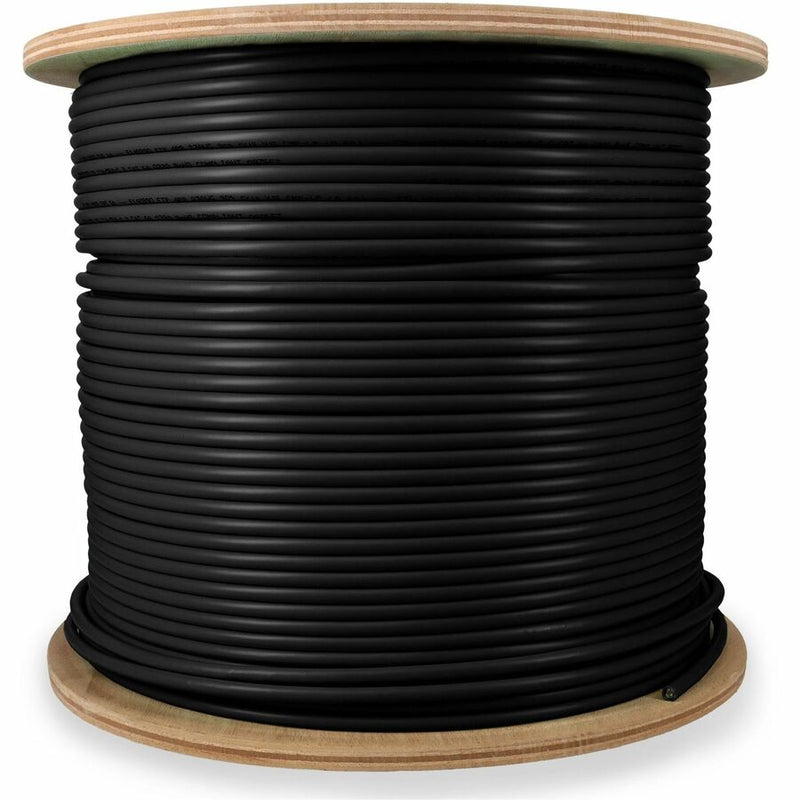

The AddOn ADD-CAT6A1KSP-BK is a 1000ft non-terminated black CAT 6A shielded twisted pair (STP) plenum-rated copper patch cable engineered for high-performance Ethernet applications. Designed to deliver up to 10Gbps data transfer speeds over the full 100-meter range, this cable meets Cat6A standards with a bandwidth of up to 500MHz, making it ideal for demanding network environments such as enterprise data centers, server rooms, and structured cabling systems.
Its plenum-rated CMP jacket ensures superior fire resistance and low smoke emission, meeting strict safety requirements for use in air-handling spaces like raised flooring systems and HVAC plenums. The shielded design minimizes EMI and crosstalk, providing more reliable connectivity and improved signal integrity compared to unshielded cables. Built with 23AWG solid bare copper conductors and durable construction materials, this bulk cable offers outstanding performance, durability, and compliance — guaranteed not to void OEM warranties.
| Parameter | Specification |
|---|---|
| SKU | ADD-CAT6A1KSP-BK |
| Cable Type | CAT6A Shielded Twisted Pair (STP) |
| Length | 1000 ft (304.8 m) |
| Color | Black |
| Connector Type | Non-Terminated |
| Jacket Type | CMP Plenum-Rated LSFR-PVC |
| Conductor | 23 AWG Solid Bare Annealed Copper |
| Insulation | FEP |
| Bandwidth | Up to 500 MHz |
| Supported Standards | 100Base-TX, 1000Base-T, 10GBase-T |
| DC Resistance | 9.38 Ω/100m @ 20°C |
| Impedance | 100 ± 15 Ω |
| Nominal Velocity of Propagation | 70% speed of light |
| Nominal Diameter | 6.9 mm |
| Cable Weight | 17.59 kg/1000 ft |
| Minimum Bend Radius | ≥ 8 × O.D. |
| Max Pulling Force | ≤ 110 N |
| Temperature Rating (Operation) | -20°C to 60°C |
| Temperature Rating (Installation) | 0°C to 60°C |
| Temperature Rating (Storage/Shipping) | -20°C to 75°C |
