Description

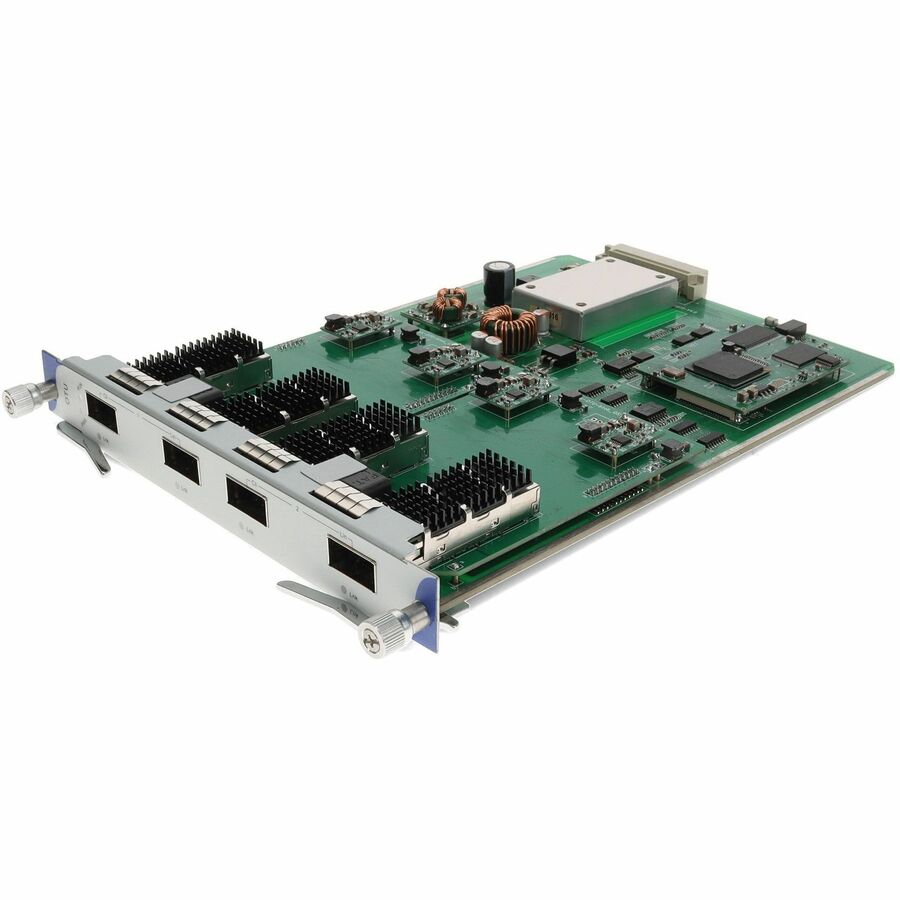

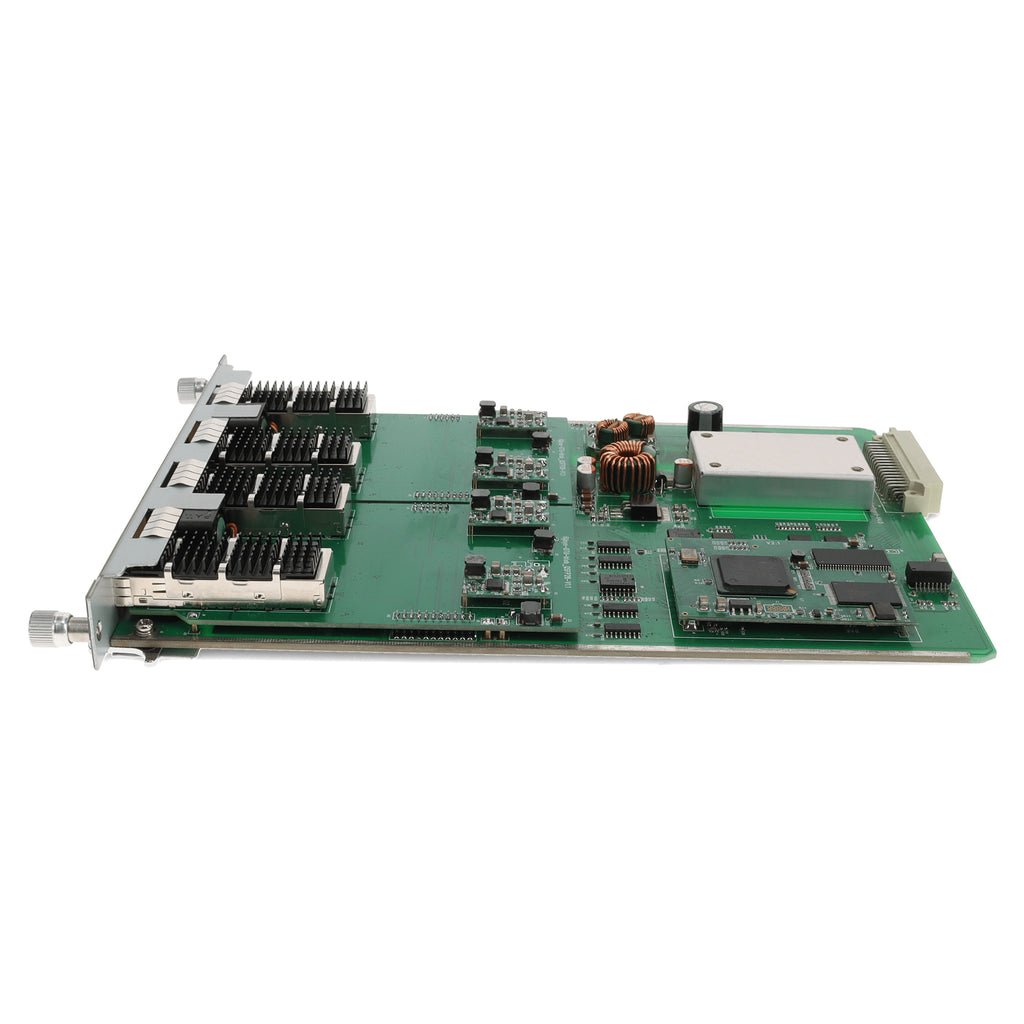

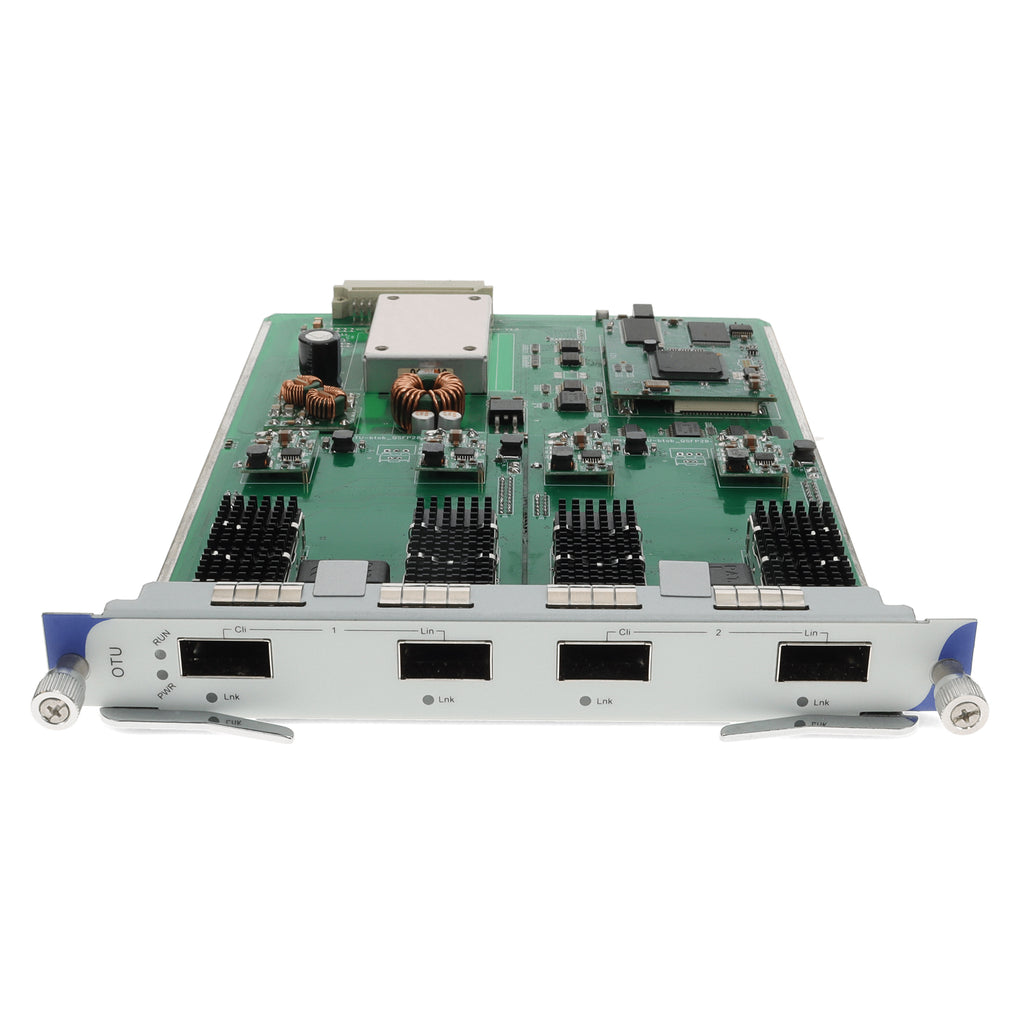

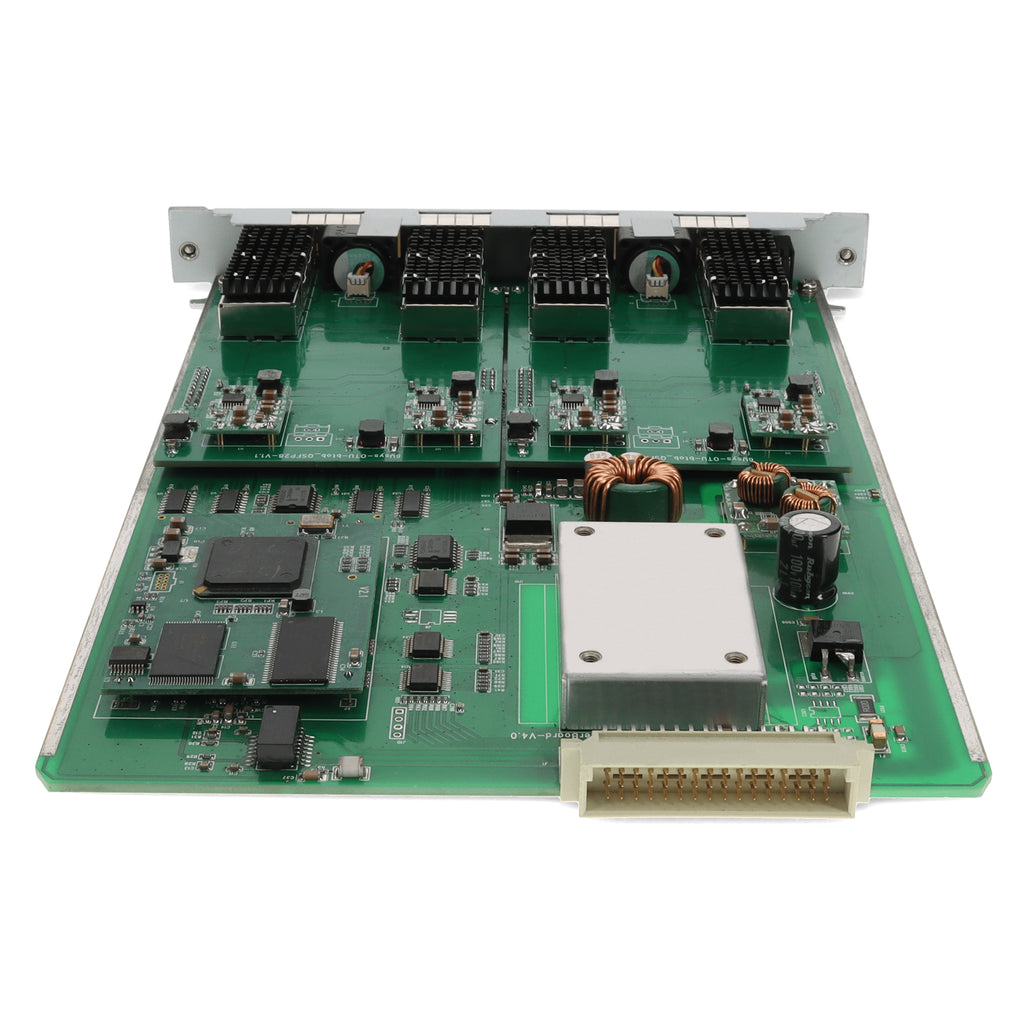

The AddOn ADD-LMCC100G4QSFP28 is a high-performance dual OEO (Optical-Electrical-Optical) line card designed for seamless 100G data transmission in modern optical networks. Featuring two independent 100G QSFP28 interfaces on both the client and line sides, this card enables bidirectional 100GE service access and supports a wide range of transceiver modules, including LR4, ZR4, and PAM4.
Ideal for long-haul and high-capacity network deployments, this solution offers robust network management with SNMP, CLI, WEB GUI, and Telnet support. It fits seamlessly into a 1U rack-mounted chassis and provides real-time monitoring of key port parameters such as transmit/receive optical power and temperature. With a maximum power consumption of 45W and compatibility with 1-slot powered chassis, this OEO line card delivers both scalability and efficiency for next-generation optical networks.
| Parameter | Specification |
|---|---|
| Access Service Type | 100GE |
| Form Factor | Dual OEO Line Card |
| Interface Configuration | 2x QSFP28 (Client) to 2x QSFP28 (Line) |
| Client Side Interface | Supports 2 QSFP28 modules, LC/UPC interface |
| Line Side Interface | Supports 2 QSFP28 modules, LC/UPC interface |
| Supported Modules | LR4, ZR4, PAM4 |
| Bidirectional Service Access | 2xQSFP28 to 2xQSFP28 100GE |
| Network Management | SNMP, CLI, WEB GUI, TELNET |
| Monitoring Functions | Tx/Rx optical power, temperature, port status, port on/off |
| Management Compatibility | 1U rack management, 1-slot powered chassis |
| Power Consumption | Max. 10W per QSFP28, Max. 45W total |
| Occupies Business Slots | 2 Slots |
