Description

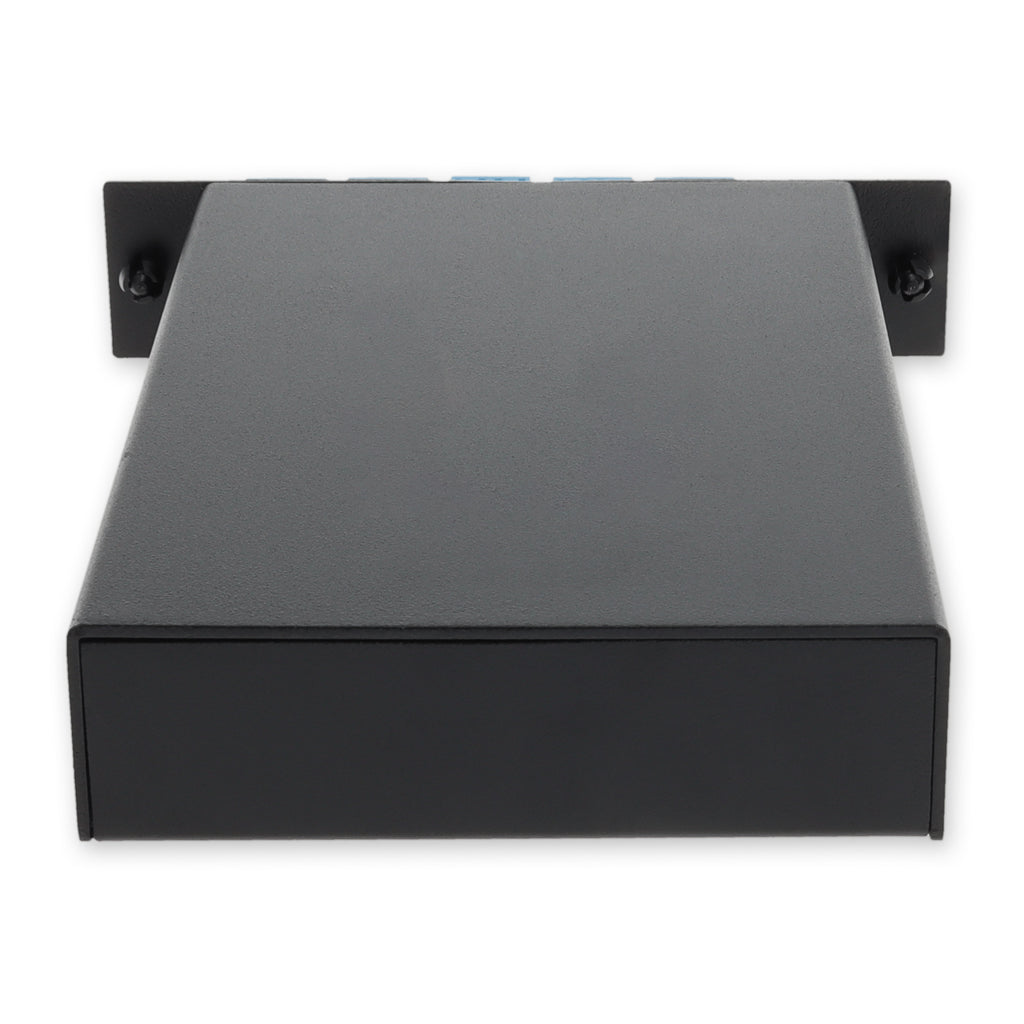

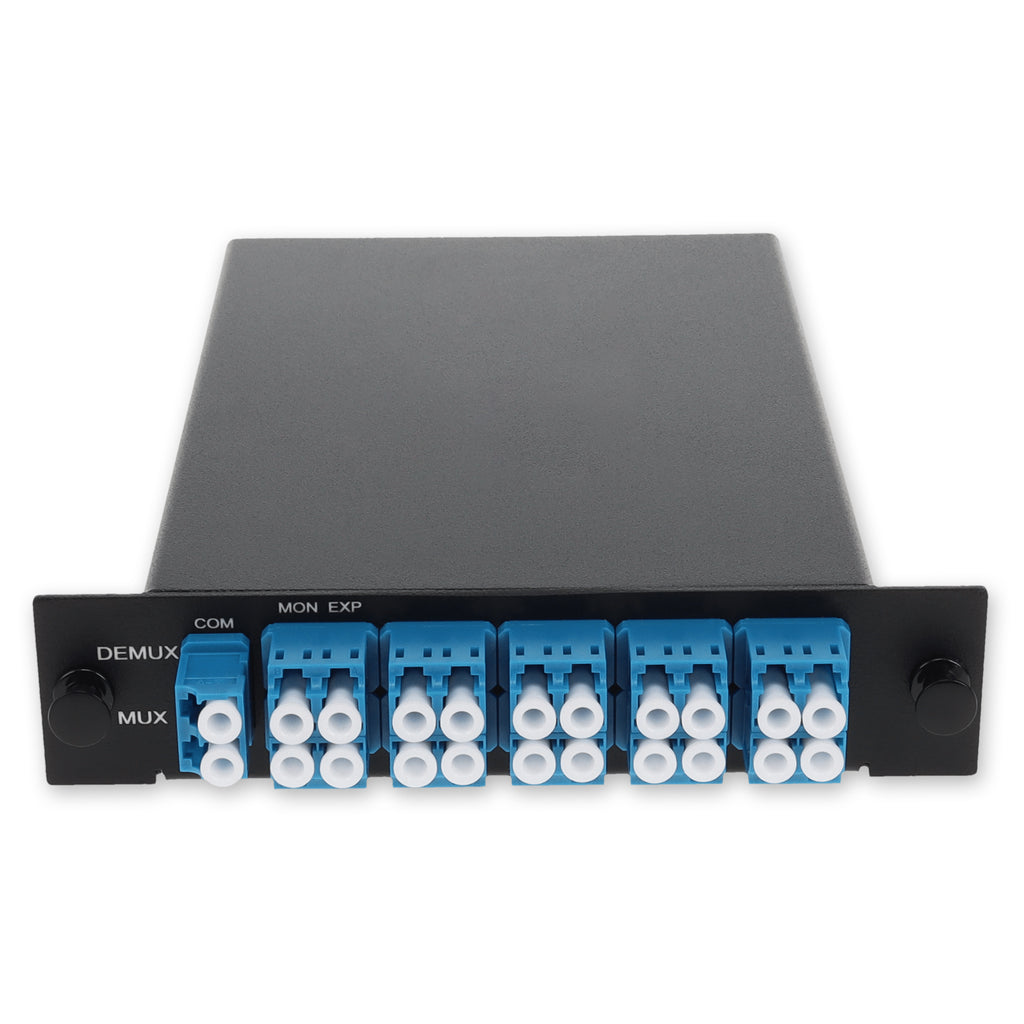

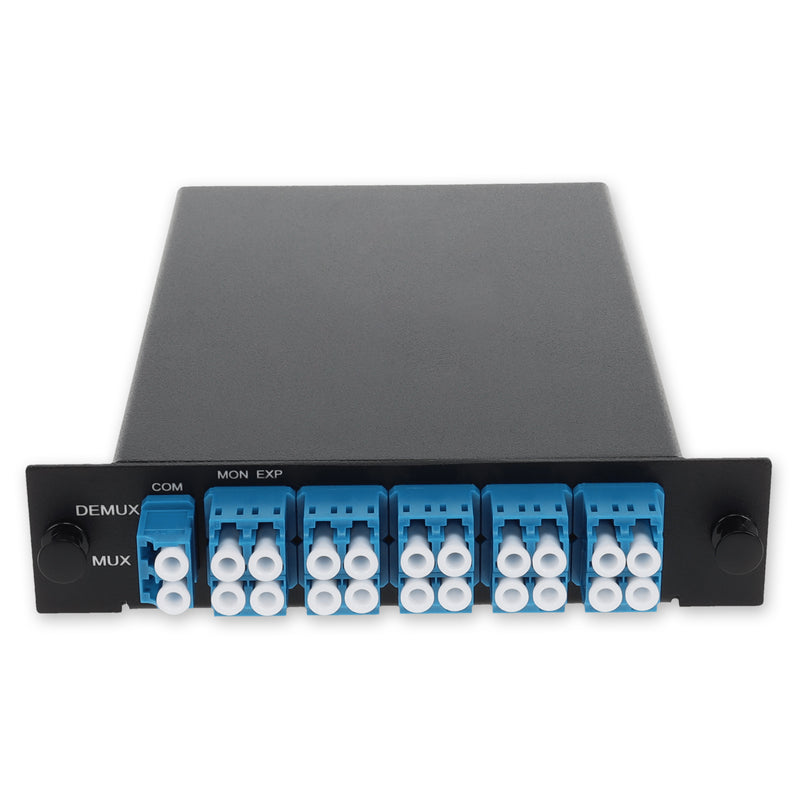

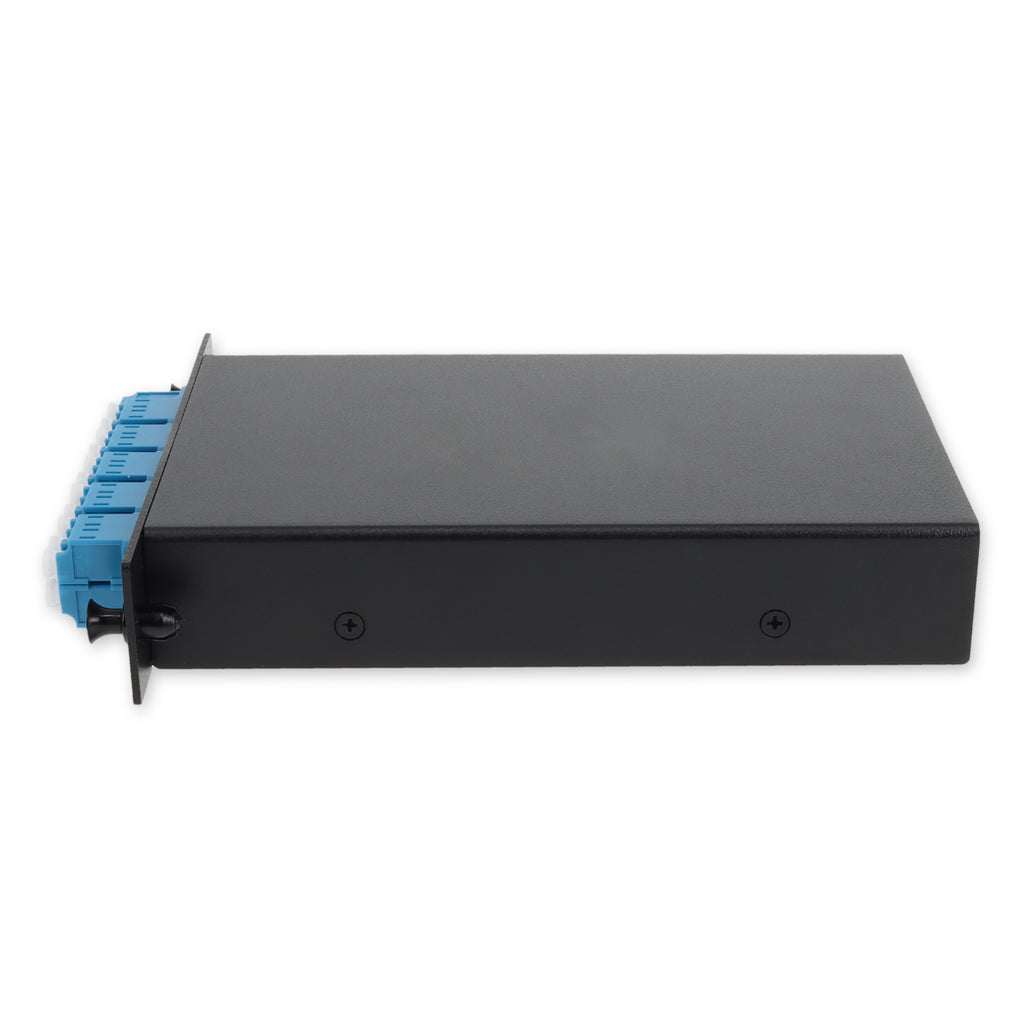

The AddOn ADD-DWDMMUXDL8EM2128 is a high-performance 8-channel DWDM multiplexer and demultiplexer that supports ITU 100GHz channels 21 through 28. Designed for duplex operation, this unit features both express and monitor ports, enabling flexible expansion and simplified network monitoring.
Built with standard LC UPC adapters in a compact 1U LGX-compatible rack-mount form factor, this plug-and-play passive DWDM solution ensures seamless integration into existing optical infrastructures. With low insertion loss, excellent channel isolation, and robust temperature stability, it provides a cost-effective and reliable upgrade path for scaling optical transport networks.
Every AddOn mux/demux unit undergoes stringent certification testing to guarantee 100% compliance and first-use reliability.
| Category | Specification |
|---|---|
| Manufacturer | AddOn |
| Part Number | ADD-DWDMMUXDL8EM2128 |
| Product Type | 8-Channel DWDM Mux/Demux (Duplex) |
| ITU Grid | 100GHz, Channels 21–28 |
| Wavelength Range | 1560.61 nm – 1554.94 nm |
| Ports | Duplex COM Port, Express Port, Monitor Port |
| Connectors | LC UPC |
| Form Factor | 1U LGX-Compatible Rack Mount |
| Max. Insertion Loss | ≤ 3.0 dB |
| Channel Isolation | ≥ 28 dB (adjacent), ≥ 40 dB (non-adjacent) |
| Ripple in Passband | ≤ 0.5 dB |
| Return Loss | ≥ 45 dB |
| Directivity | ≥ 55 dB |
| Max. Power Handling | 500 mW |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 5.12”H × 1.34”W × 6.25”D (1W LGX Module) |
| Compliance | Plug-and-Play, Passive, 100% Tested |
