Description

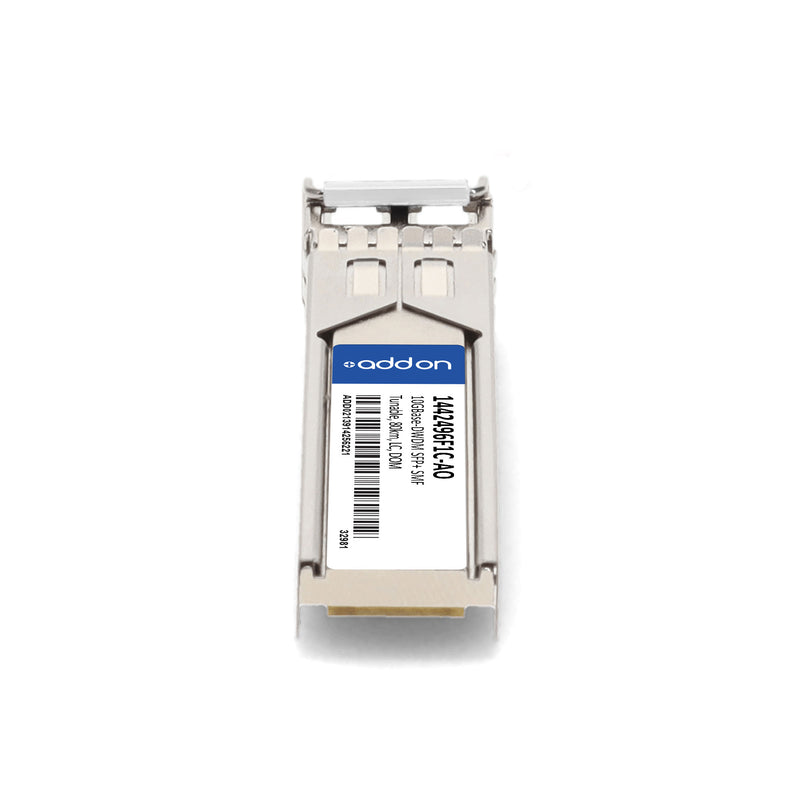

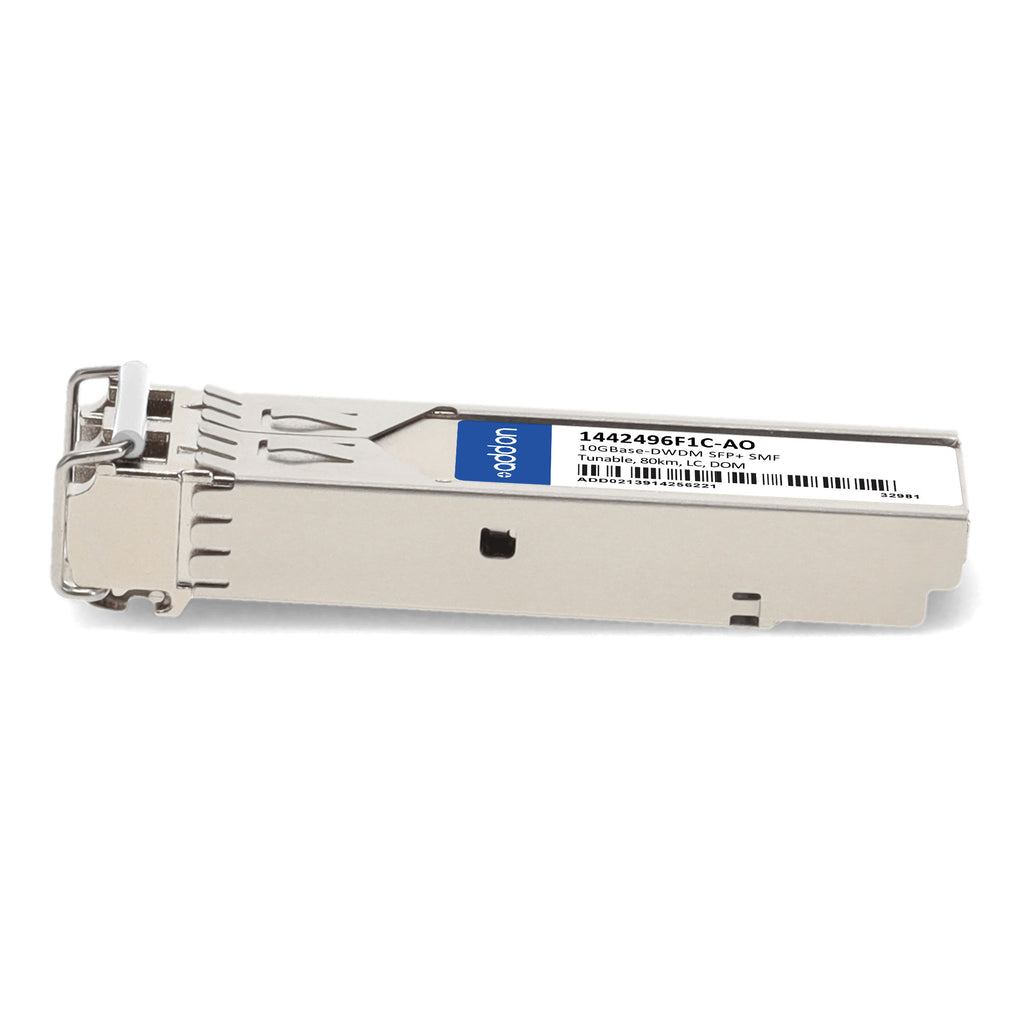

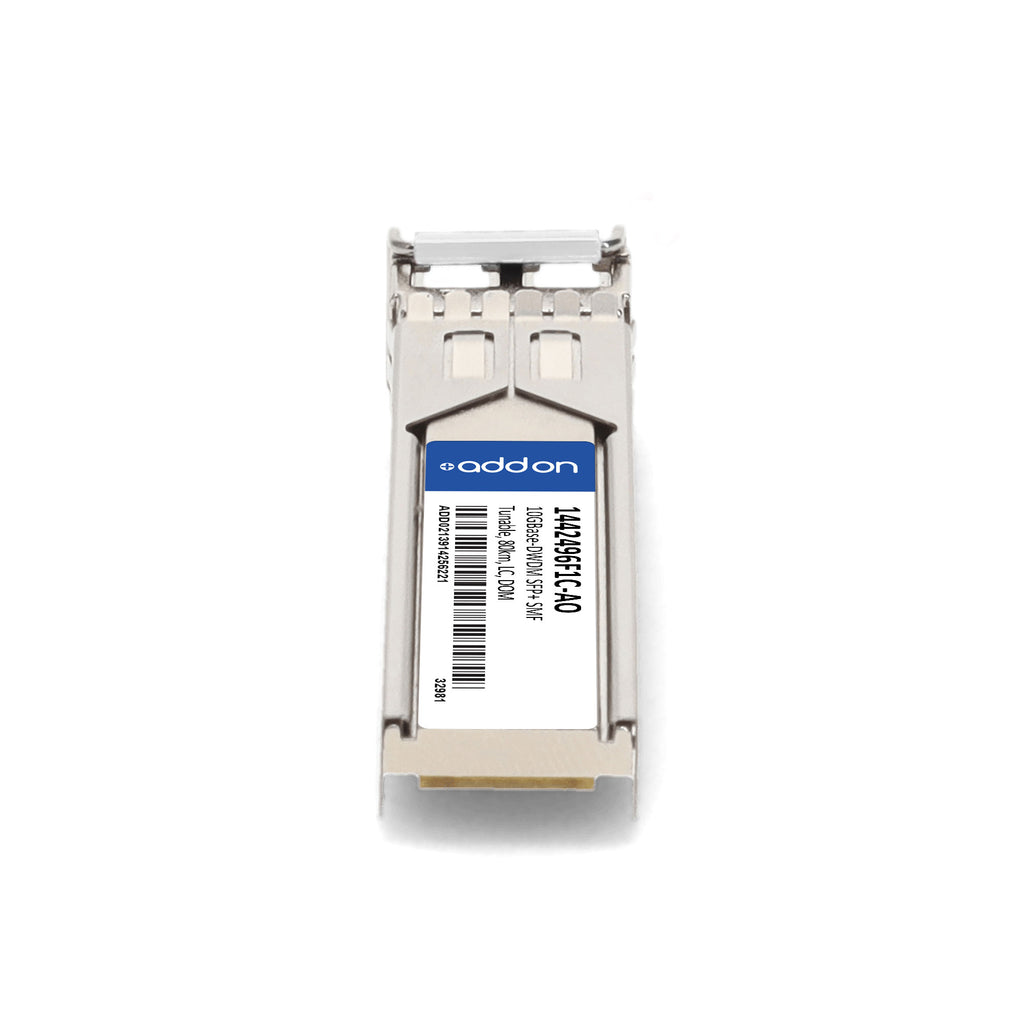

The AddOn ADTRAN® 1442496F1C Compatible 10GBase-DWDM SFP+ Transceiver is a high-performance optical module designed for demanding metro, access, and enterprise network environments. Supporting data rates from 9.95 to 11.3 Gbps, it delivers up to 80 km of transmission over single-mode fiber (SMF) within the C-band wavelength range of 1530 nm to 1565 nm.

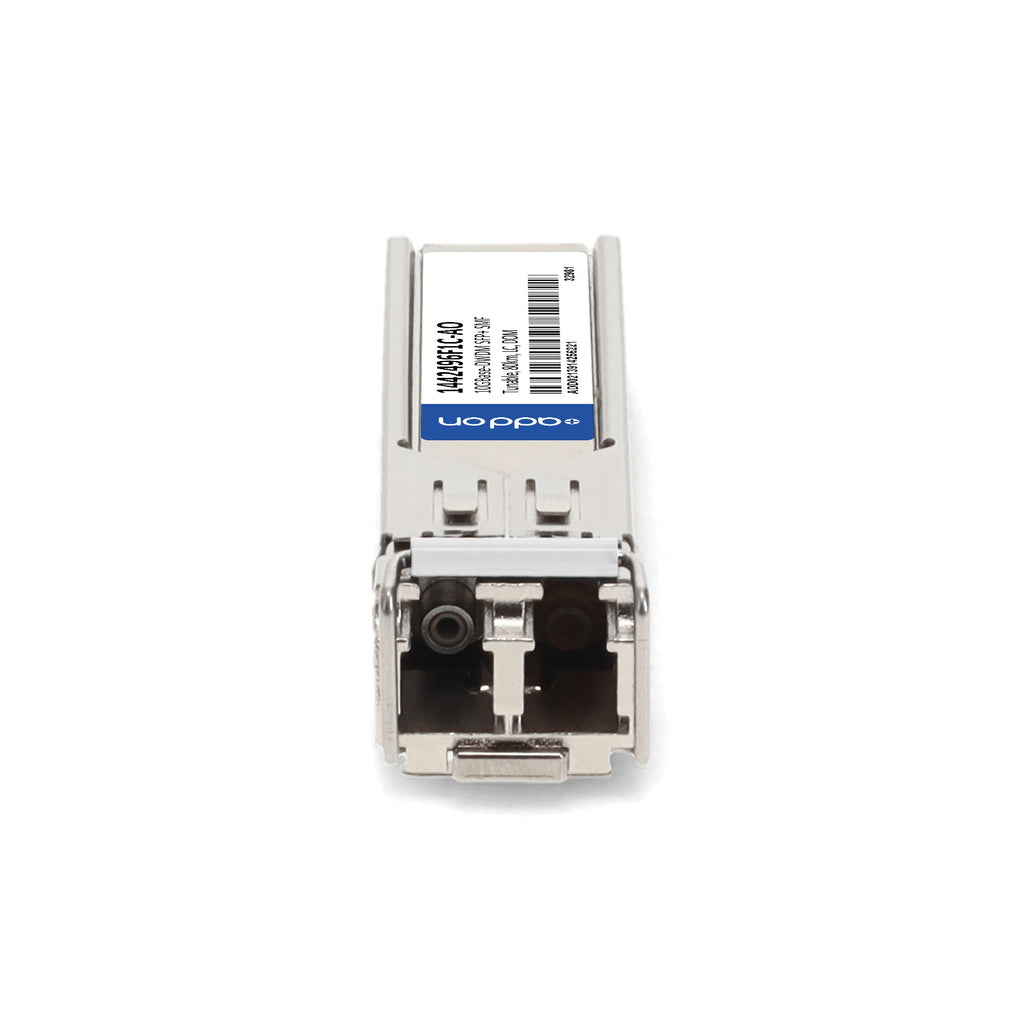

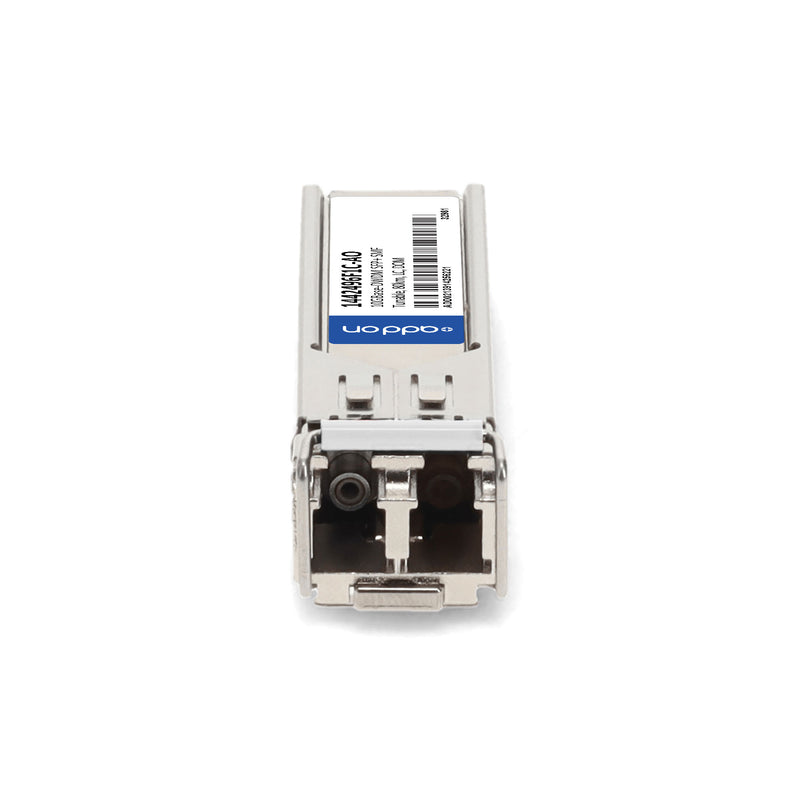

This hot-pluggable SFP+ module features a duplex LC connector and digital optical monitoring (DOM), allowing real-time performance tracking of key operating parameters. It is fully compliant with SFF-8432 and SFF-8472 standards and supports 8G/10G Fibre Channel and 10G Ethernet applications. Each transceiver is programmed, uniquely serialized, and rigorously tested for interoperability, ensuring seamless integration with ADTRAN® networking equipment.
With excellent ESD protection, robust EMI shielding, and RoHS/TAA compliance, the 1442496F1C-AO is engineered to provide reliability, scalability, and superior performance in dense wavelength-division multiplexing (DWDM) networks.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Compatibility | ADTRAN® 1442496F1C |
| Form Factor | SFP+ |
| Data Rate | 9.95 – 11.3 Gbps |
| Transmission Distance | Up to 80 km |
| Wavelength Range | 1530 – 1565 nm (C-Band) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Compliance Standards | SFF-8432, SFF-8472, ITU-T G.691, GR-253 |
| Applications | 8G/10G Fibre Channel, 10G Ethernet over DWDM, Access, Metro, Enterprise |
| Optical Transmit Power | -1.0 to +3.0 dBm |
| Receiver Sensitivity | -24 dBm (Back-to-Back) |
| Maximum Input Power | -7 dBm |
| Extinction Ratio | ≥ 9 dB |
| Spectral Width | ≤ 0.5 nm |
| Side Mode Suppression Ratio (SMSR) | ≥ 35 dB |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.135 – 3.465 V |
| Power Consumption | ≤ 1.7 W |
| Digital Diagnostics (DOM) | Supported |
| Hot-Pluggable | Yes |
| TAA Compliance | Yes |
| RoHS Compliance | Yes |
| Warranty | Limited Lifetime Warranty |
