Description

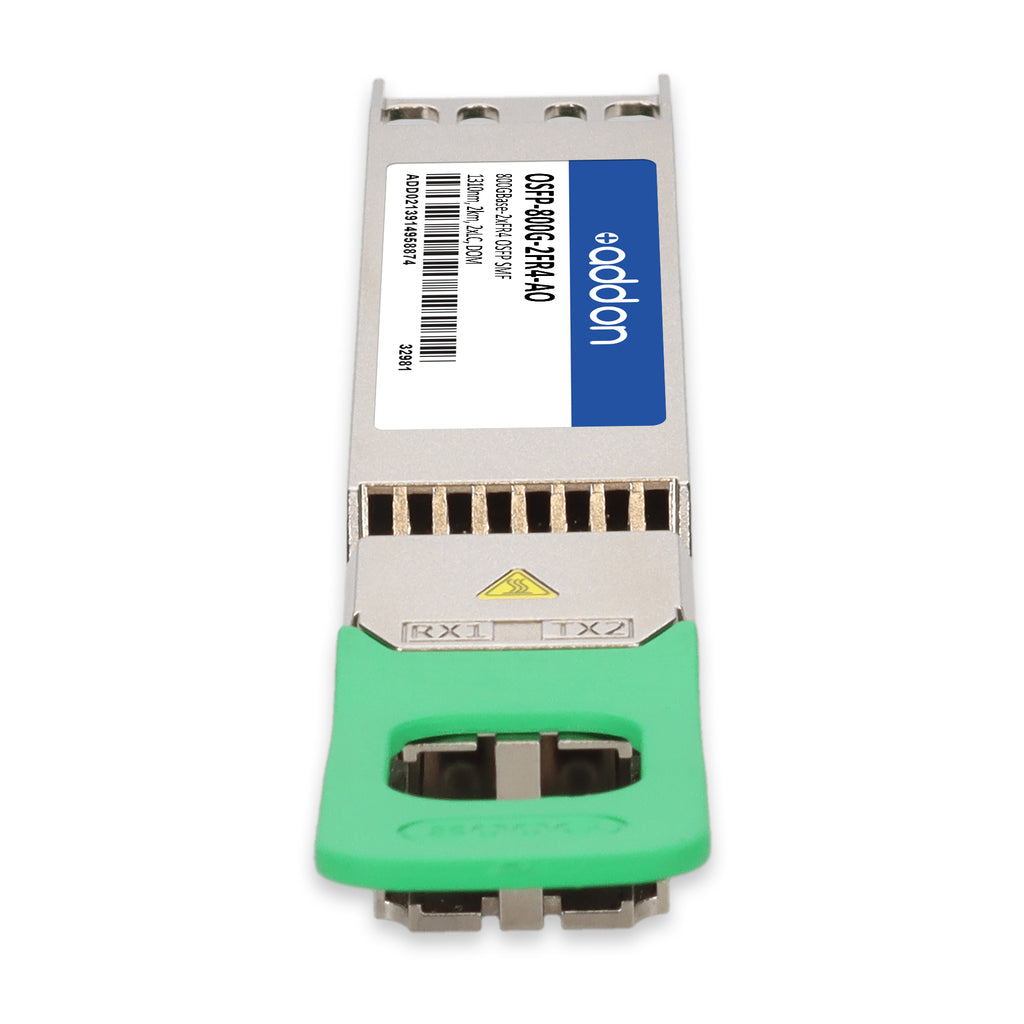

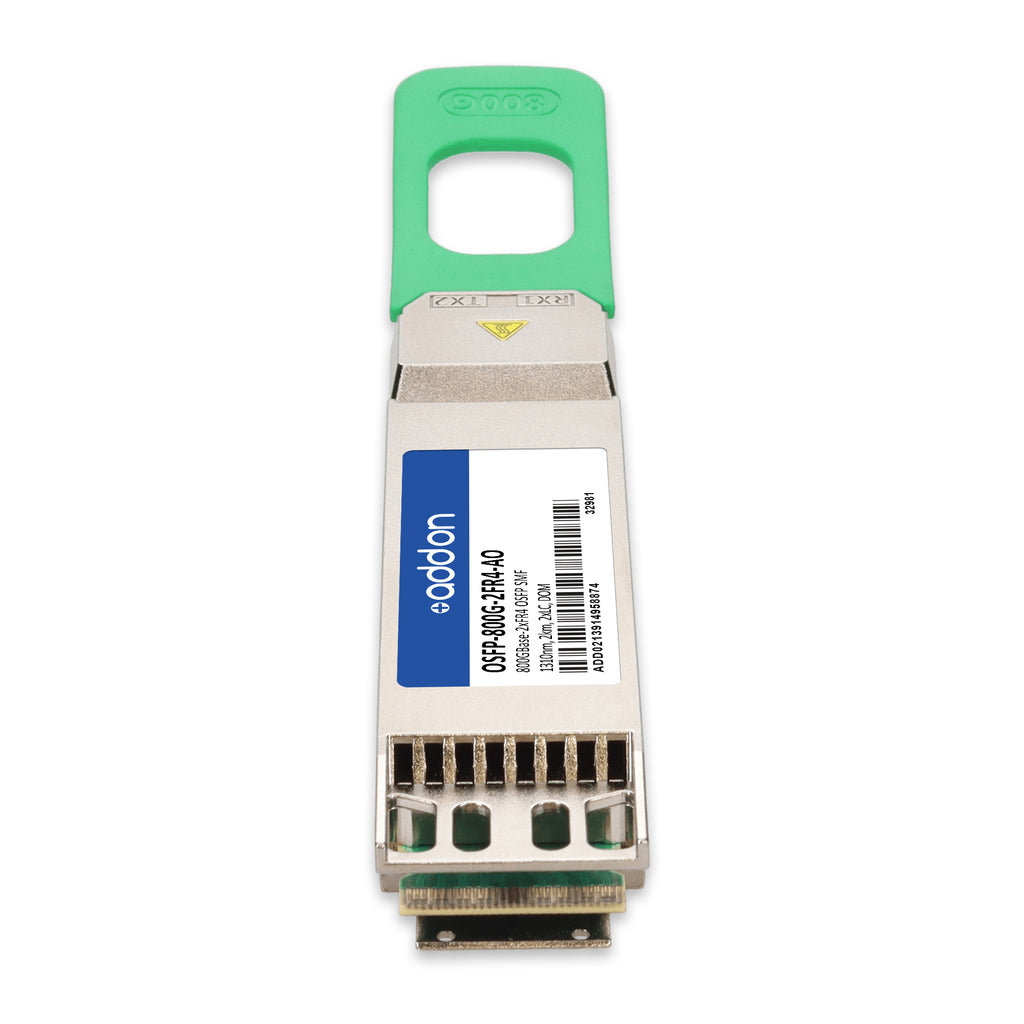

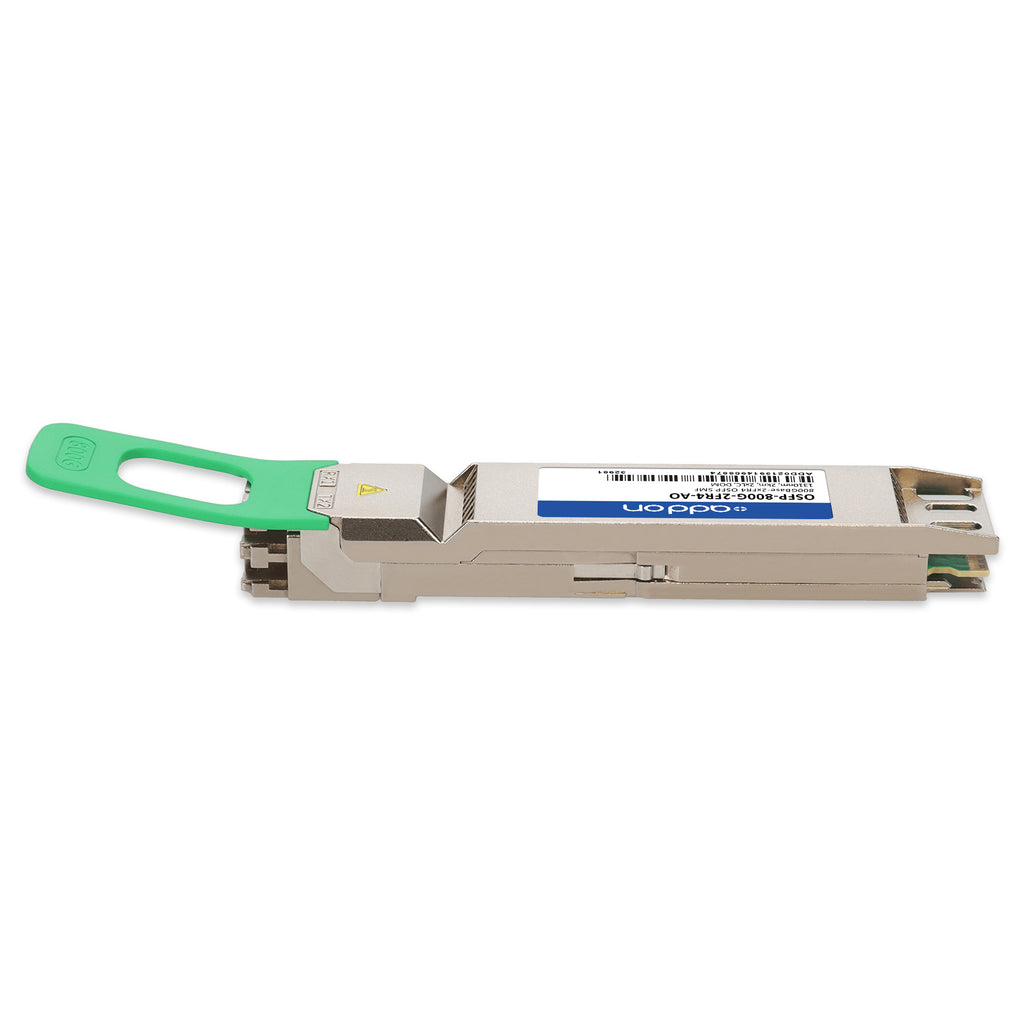

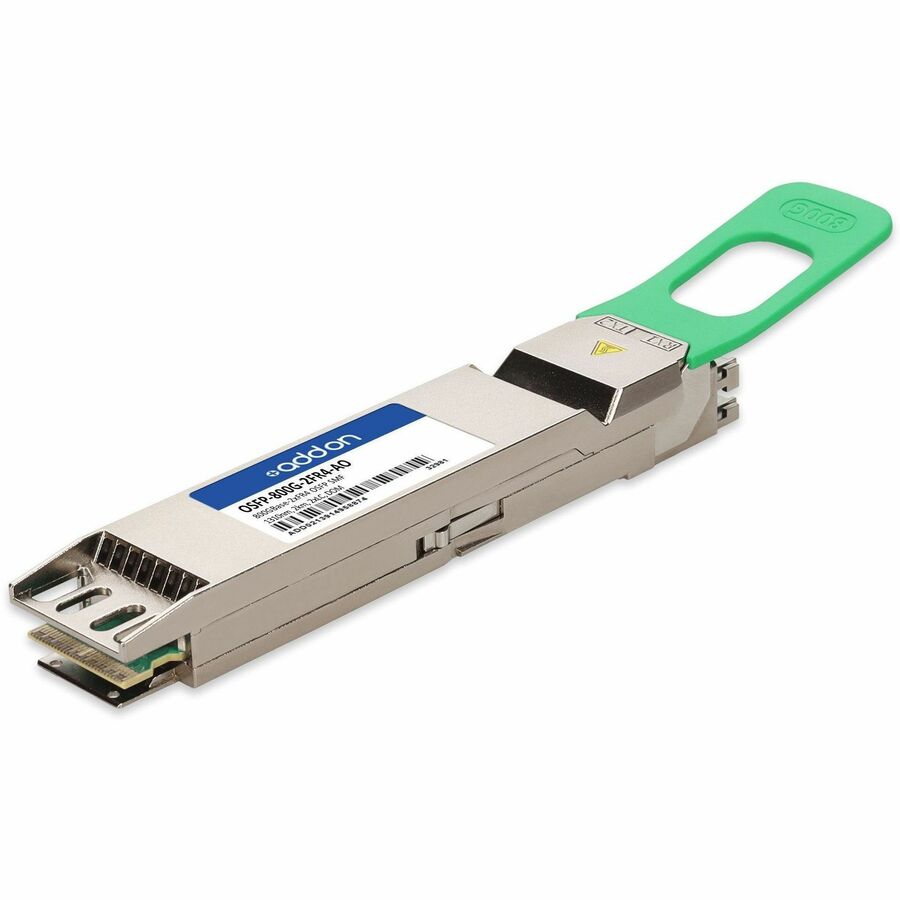

The AddOn Arista Networks® OSFP-800G-2FR4 Compatible Transceiver delivers high-performance 800GBase-2xFR4 throughput over single-mode fiber (SMF) for distances up to 2km using a 1310nm wavelength with dual LC connectors. Built with support for both Ethernet and InfiniBand NDR, this hot-pluggable module features a 2x400GBASE-FR4 optical interface, 2x400GAUI-4 electrical interface, and complies with CMIS Rev. 5.0 for reliable management.
It provides a maximum aggregate bit rate of 850Gbps, digital optical monitoring (DOM) for real-time parameter tracking, and a Type 2 housing for OSFP applications. Fully tested for performance and interoperability, this transceiver is 100% guaranteed Arista Networks® compatible, TAA-compliant, and comes backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| SKU | OSFP-800G-2FR4-AO |
| Form Factor | OSFP (Type 2 Housing) |
| Data Rate | 800GBase-2xFR4 PAM4 (850Gbps aggregate) |
| Optical Interface | 2x400GBASE-FR4 |
| Electrical Interface | 2x400GAUI-4 C2M |
| Wavelengths | 1310nm (1264.5–1337.5nm range) |
| Connector | Dual LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Max Distance | 2km |
| Compatibility | Arista Networks® |
| Standards Compliance | CMIS Rev. 5.0, Class 1 Laser, RoHS, Lead-Free |
| DOM Support | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Dissipation | Up to 16.5W |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
| Compliance | TAA Compliant |
