Description

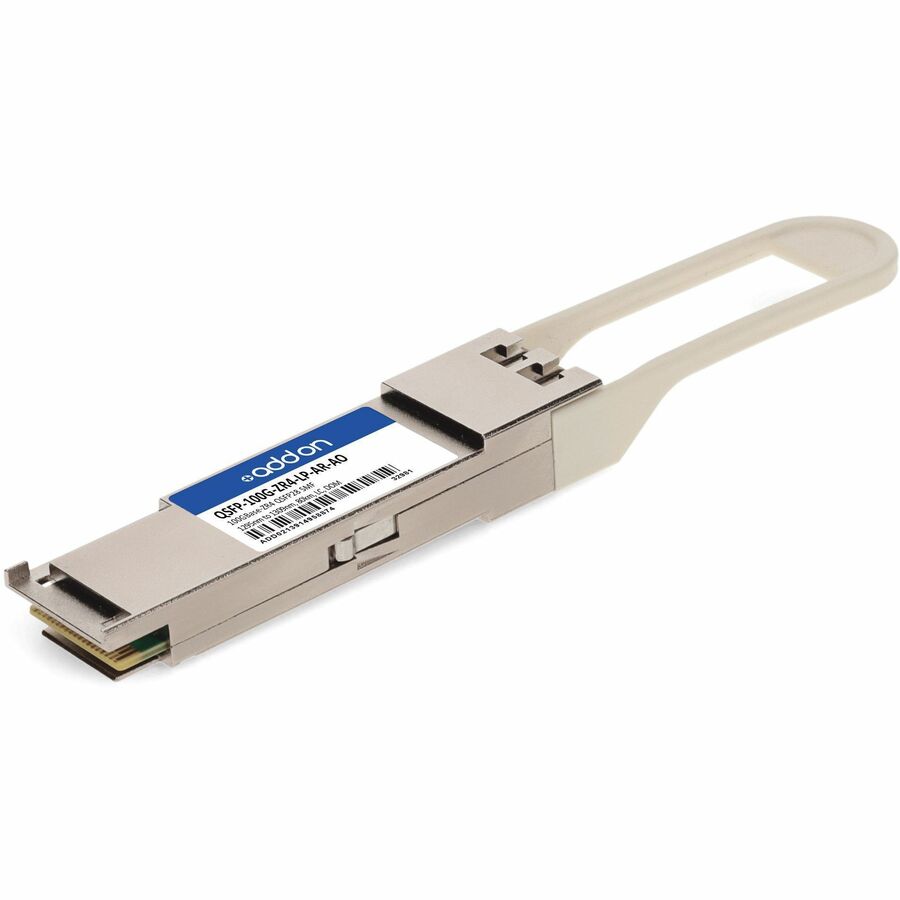

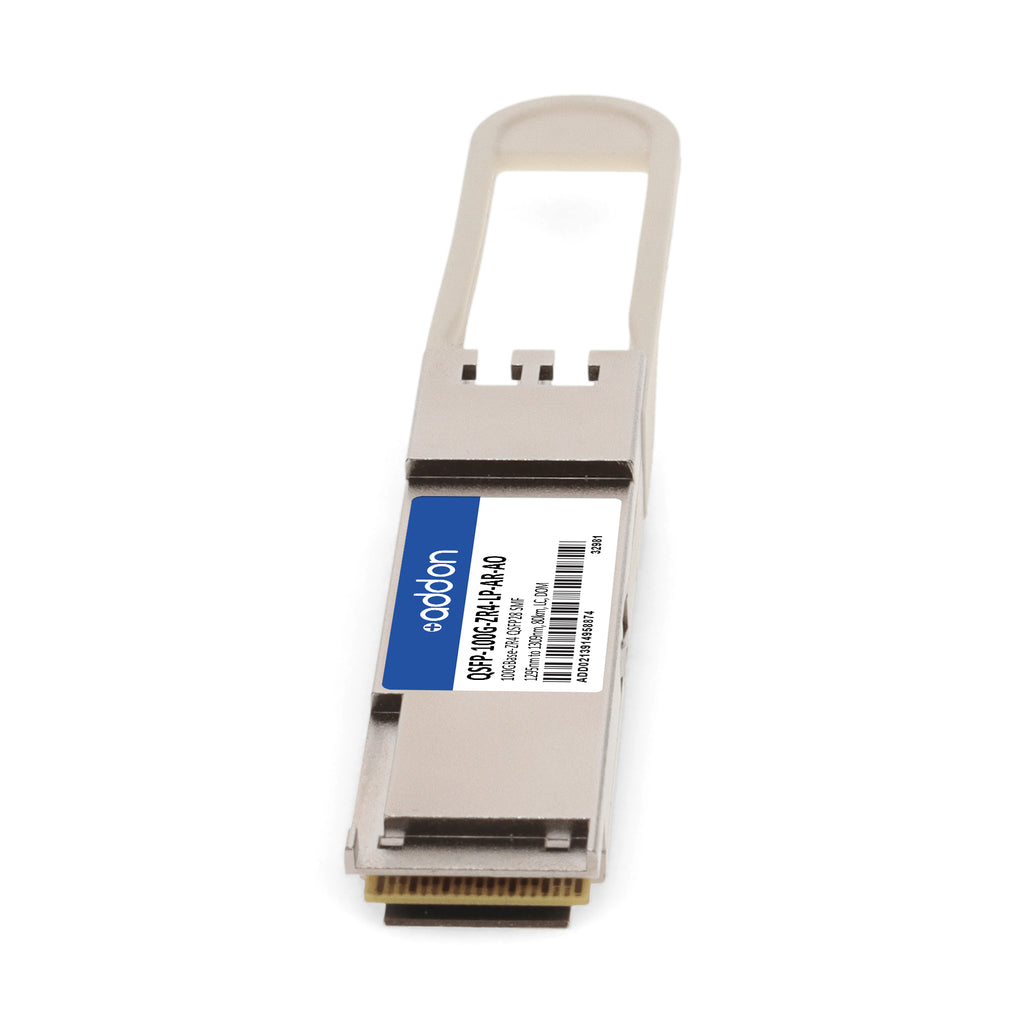

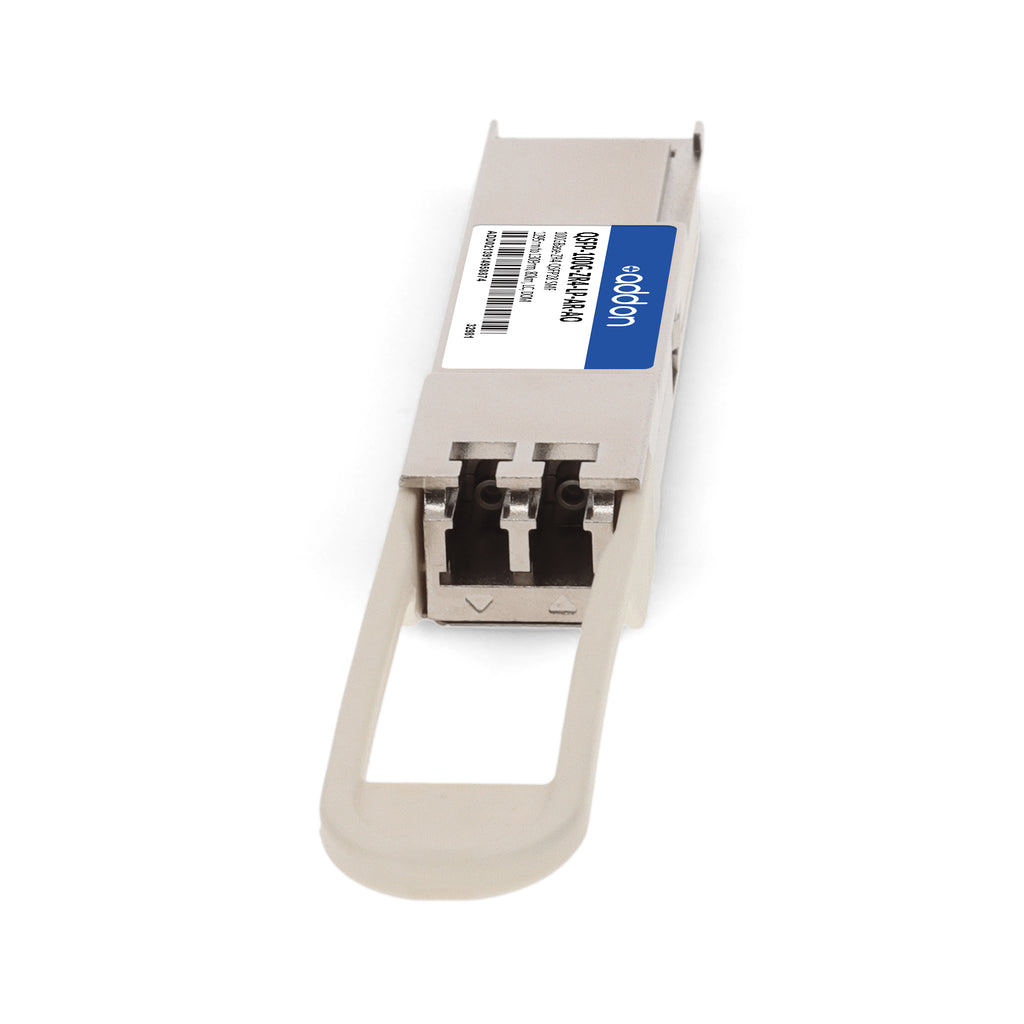

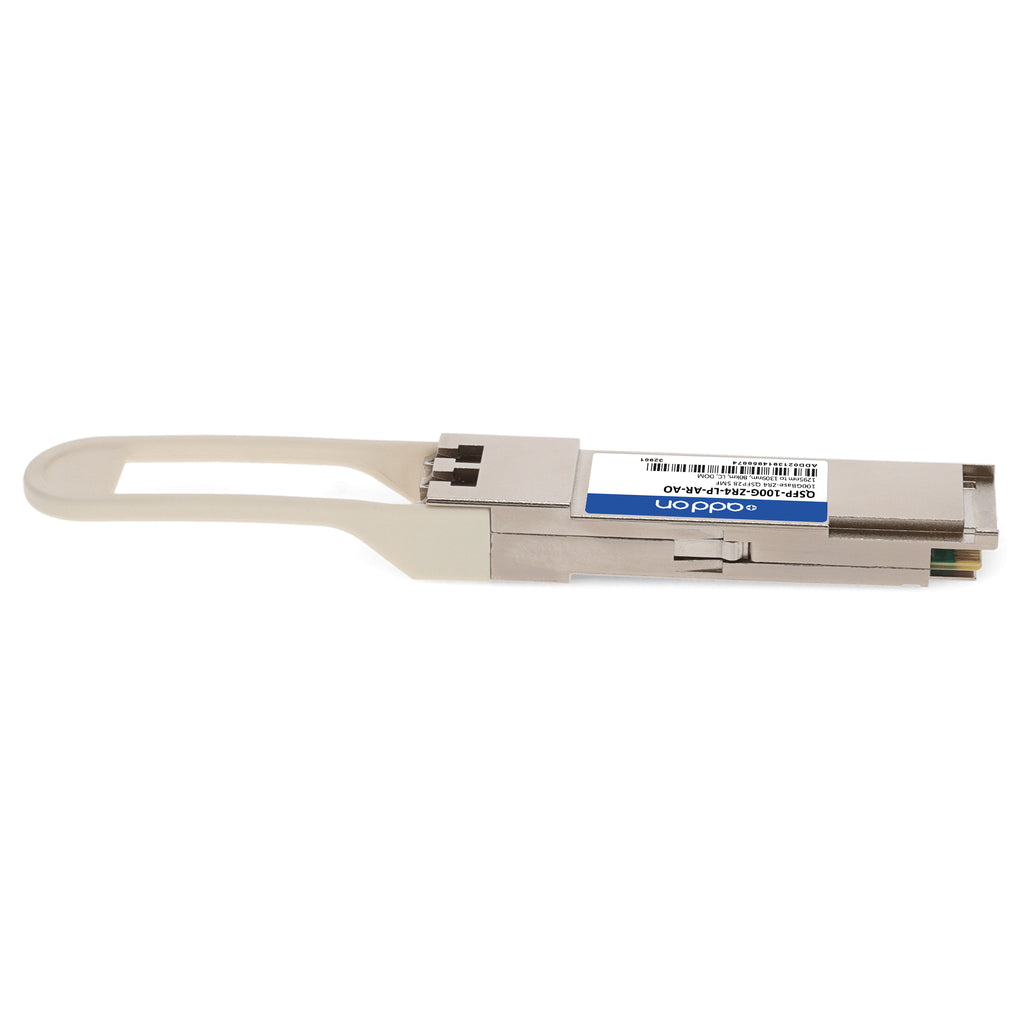

The AddOn Arista Networks® QSFP-100G-ZR4-LP-AR-AO is a TAA-compliant 100GBase-ZR4 QSFP28 transceiver designed for long-distance, high-speed networking applications. Engineered to deliver reliable 100Gbps throughput up to 80km over single-mode fiber (SMF), this hot-swappable optical module operates on LAN WDM wavelengths from 1295nm to 1309nm using a duplex LC connector. Featuring a low power consumption of up to 5W and advanced digital diagnostic monitoring (DOM), it ensures superior performance and simplified network management. Each transceiver is programmed, uniquely serialized, and rigorously tested to guarantee 100% compatibility with the original Arista Networks® hardware, offering a seamless and cost-effective solution for data center, enterprise, and carrier-grade deployments.
| Specification | Details |
|---|---|
| Part Number | QSFP-100G-ZR4-LP-AR-AO |
| Brand Compatibility | Arista Networks® |
| Form Factor | QSFP28 |
| Data Rate | 103.125 Gbps |
| Wavelength | 1295nm to 1309nm (LAN WDM) |
| Transmission Distance | Up to 80km over SMF (with FEC); 40km without FEC |
| Connector Type | Duplex LC |
| Optical Components | LAN WDM EML Laser, SOA+PIN Receiver |
| Optical Launch Power (Per Lane) | 2 to 6.5 dBm |
| Receiver Sensitivity (OMA, Per Lane) | -27.5 dBm |
| Average Receive Power (Per Lane) | -28 to -5 dBm |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Power Supply Voltage | 3.3V (3.135V – 3.465V) |
| Maximum Power Consumption | 5W |
| Maximum Power (Low-Power Mode) | 1.5W |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Hot-Pluggable | Yes |
| Compliance | QSFP28 MSA, IEEE 802.3bs, TAA, RoHS |
| Applications | 100G Ethernet, Access, Enterprise, Long-Haul Links |
| Warranty | Limited Lifetime Warranty |
