Description

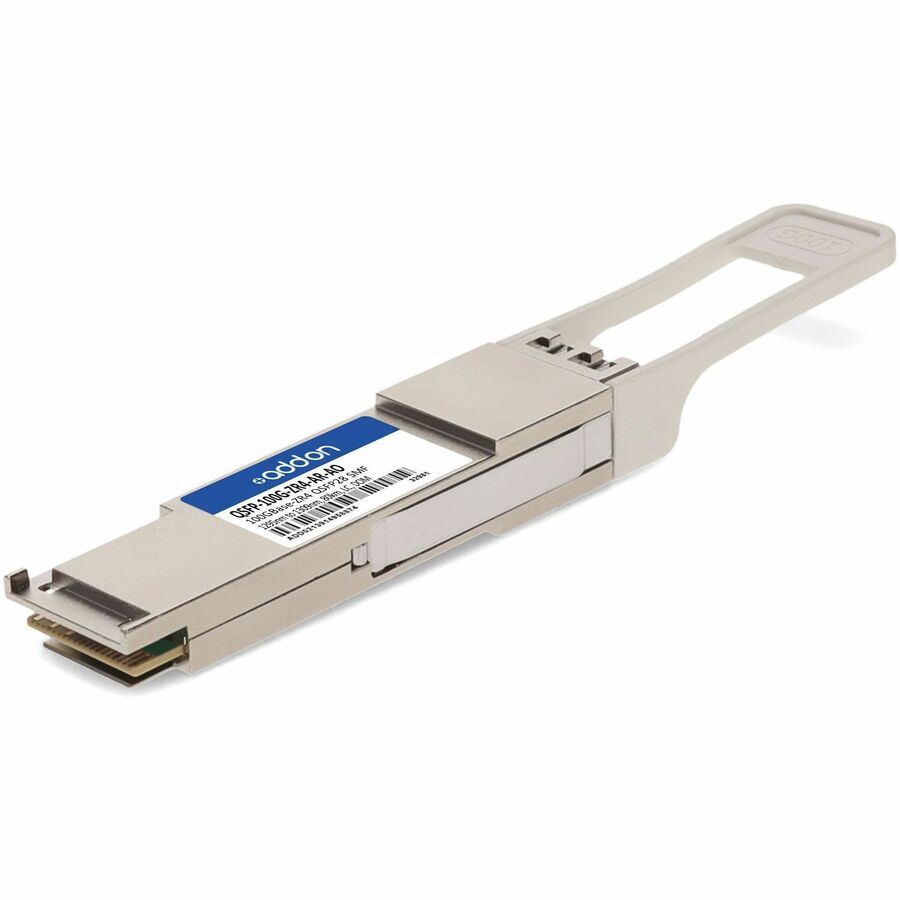

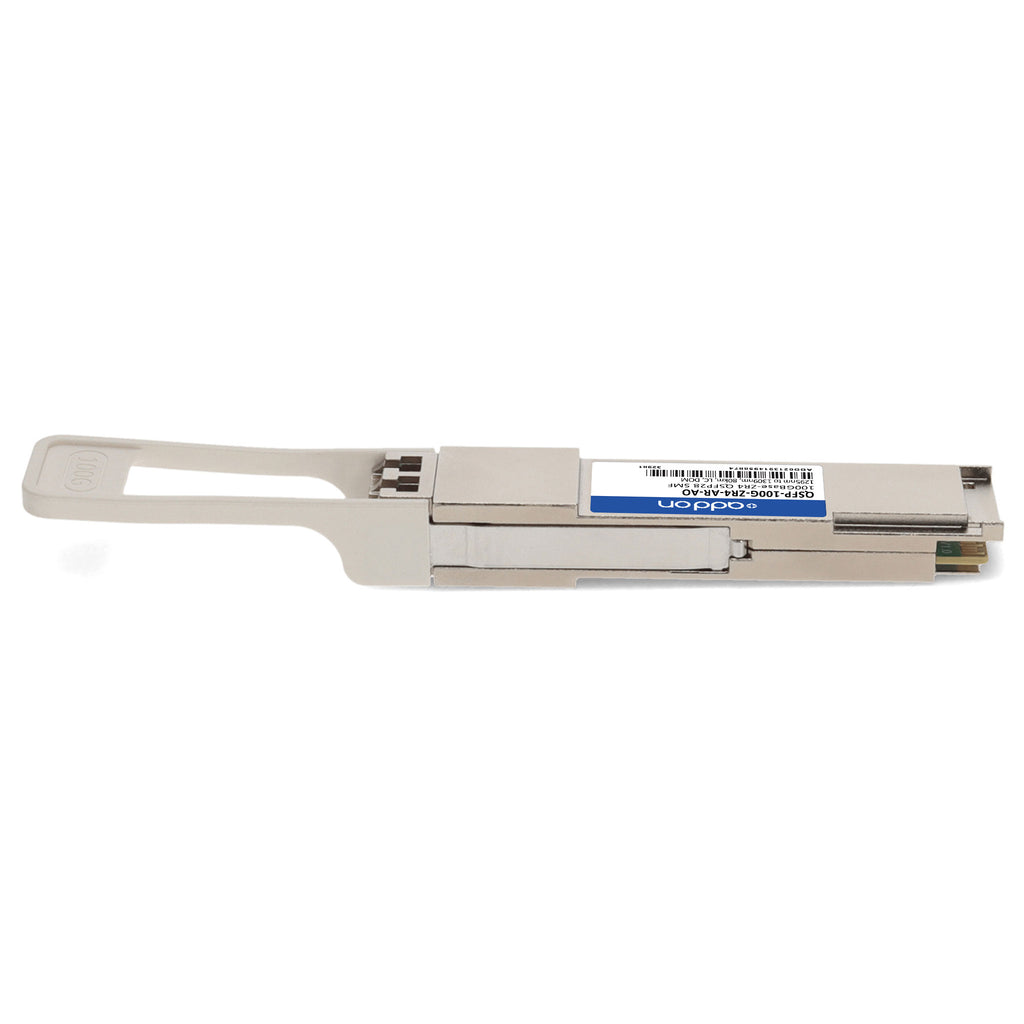

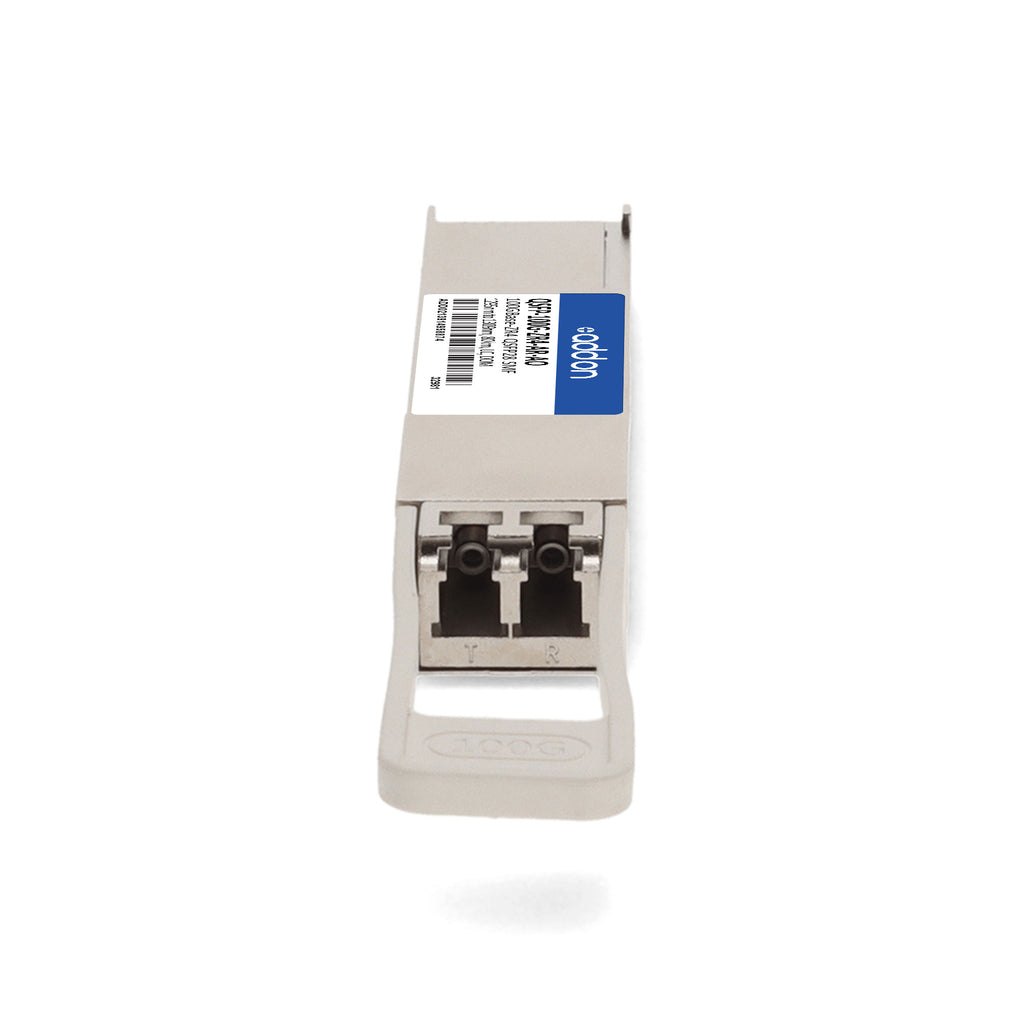

This AddOn Arista Networks® QSFP-100G-ZR4-AR compatible QSFP28 optical transceiver delivers 100GBase-ZR4 throughput over distances up to 80 km via single-mode fiber (SMF) using wavelengths from 1295 nm to 1309 nm with a duplex LC connector. Designed for high-performance data center, enterprise, and carrier applications, it ensures seamless interoperability with Arista® hardware and meets IEEE 802.3ba and ITU-T G.959 standards. Featuring a cooled 4×25 Gbps LAN WDM EML transmitter and SOA+PIN receiver, it supports Digital Optical Monitoring (DOM) for real-time diagnostics. The module is hot-swappable, RoHS compliant, TAA-certified, and built to MSA specifications, ensuring reliable performance and ease of deployment. Each unit is uniquely serialized, tested for data traffic and application performance, and backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps (4×25 Gbps) |
| Wavelength Range | 1295 nm – 1309 nm |
| Transmission Distance | Up to 80 km over SMF (with FEC) |
| Interface Type | Duplex LC |
| Transmitter Type | Cooled 4×25 Gbps LAN WDM EML TOSA |
| Receiver Type | 4×25 Gbps SOA + PIN ROSA |
| Digital Diagnostics (DOM) | Supported |
| Power Supply Voltage | 3.3 V (Single) |
| Power Consumption | ≤ 5.5 W |
| Input Differential Impedance | 100 Ω |
| Average Launch Power per Lane | +1 dBm to +6.5 dBm |
| Receiver Sensitivity (OMA) | ≤ –26.4 dBm |
| Receiver Damage Threshold | +5.5 dBm |
| Extinction Ratio | ≥ 6 dB |
| Side-Mode Suppression Ratio | ≥ 30 dB |
| Operating Temperature | 0 °C to 70 °C (Commercial) |
| Compliance | IEEE 802.3ba, ITU-T G.959, CEI-28G-VSR, MSA, TAA, RoHS |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
