Description

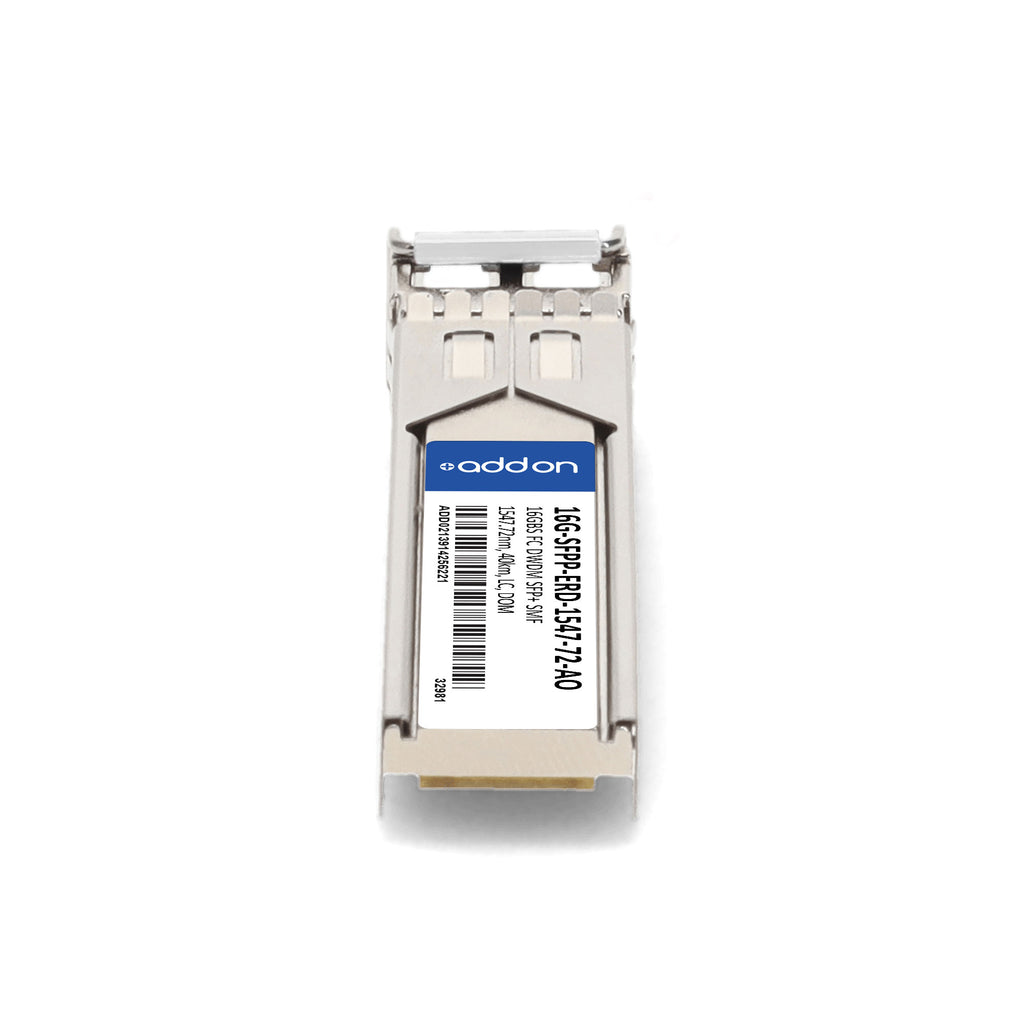

The AddOn Brocade® 16G-SFPP-ERD-1547-72 Compatible SFP+ Transceiver is a high-performance, hot-pluggable optical module designed for 16GBase-DWDM Fibre Channel applications. Operating over single-mode fiber (SMF), it delivers data rates up to 14.025 Gbps and supports distances of up to 40 km using a 1547.72 nm wavelength on the C-Band 100GHz DWDM grid. This module features a cooled EML transmitter, PIN receiver, duplex LC connector, and advanced Digital Optical Monitoring (DOM) for real-time diagnostics. Built to meet SFF-8432 and SFF-8472 standards, it ensures seamless interoperability, exceptional signal integrity, and reliable performance. Fully compliant with TAA regulations, RoHS, and EMI/EMC standards, this transceiver is ideal for Ethernet over DWDM, metro, access, and enterprise network deployments. Each unit is 100% tested for compatibility, serialized, and backed by a limited lifetime warranty.
| Specification | Details |
|---|---|
| SKU | 16G-SFPP-ERD-1547-72-AO |
| Compatible OEM | Brocade® |
| Form Factor | SFP+ |
| Data Rate | 4.25 to 14.025 Gbps |
| Application | 16GBase-DWDM Fibre Channel |
| Wavelength | 1547.72 nm (C-Band 100GHz) |
| Transmission Distance | Up to 40 km |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.135 V to 3.465 V |
| Power Supply Current | 550 mA (max) |
| Average Output Power | -1 to +3 dBm |
| Receiver Sensitivity | ≤ -14 dBm |
| Receiver Overload | 0.5 dBm |
| Extinction Ratio | ≥ 8.2 dB |
| Compliance | SFF-8432, SFF-8472, RoHS 2.0, FCC Part 15, EN55022, FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| ESD Protection | MIL-STD-883E Method 3015.4, IEC 61000-4-3 |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
