Description

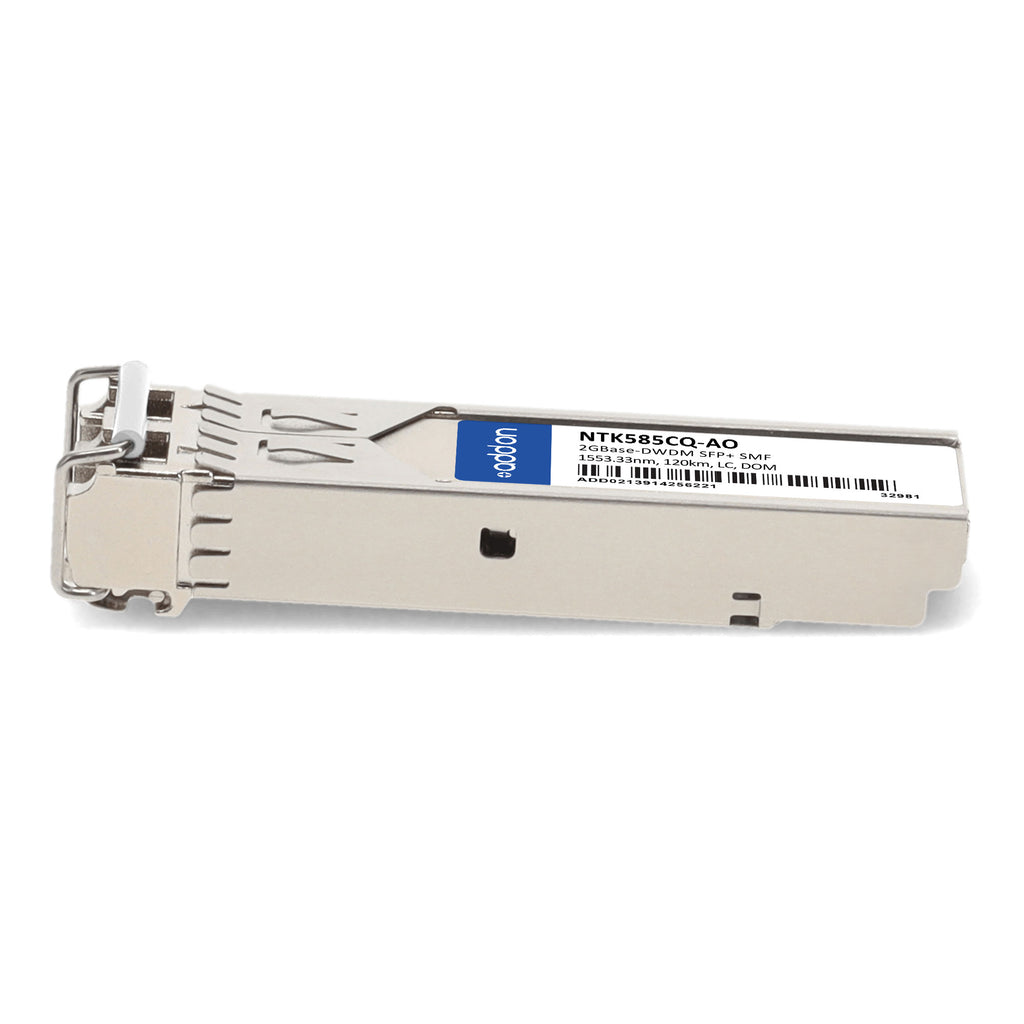

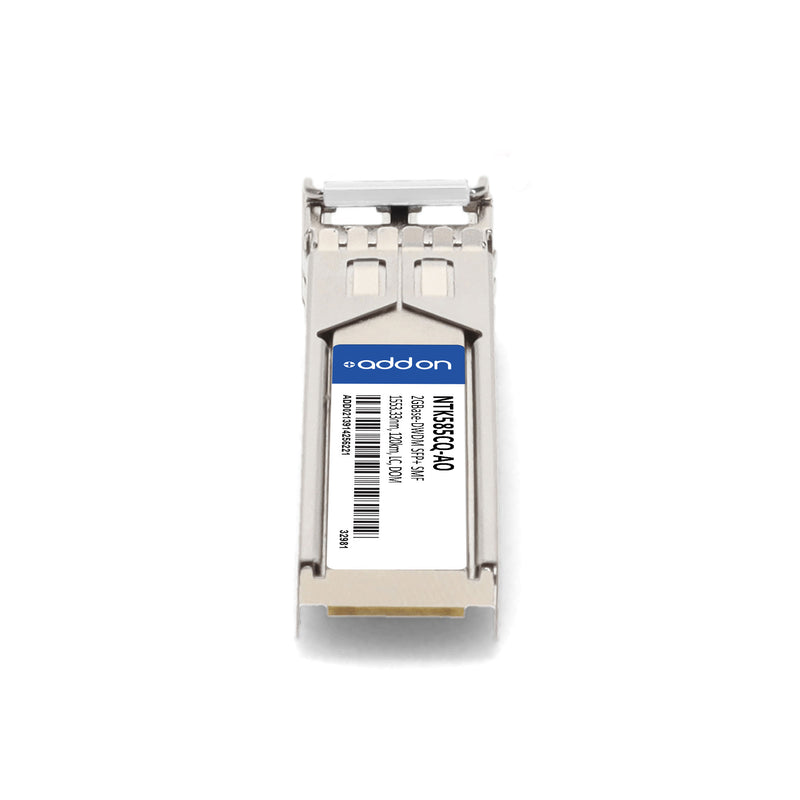

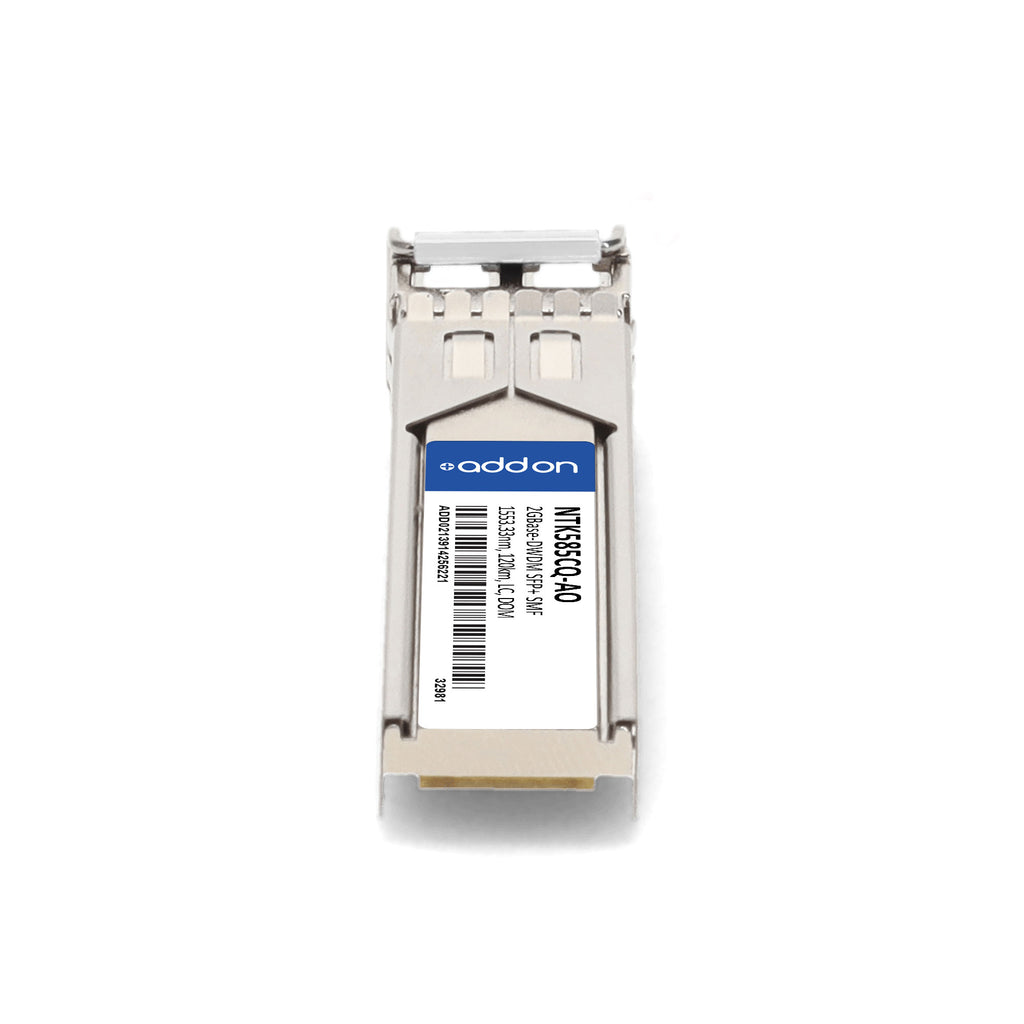

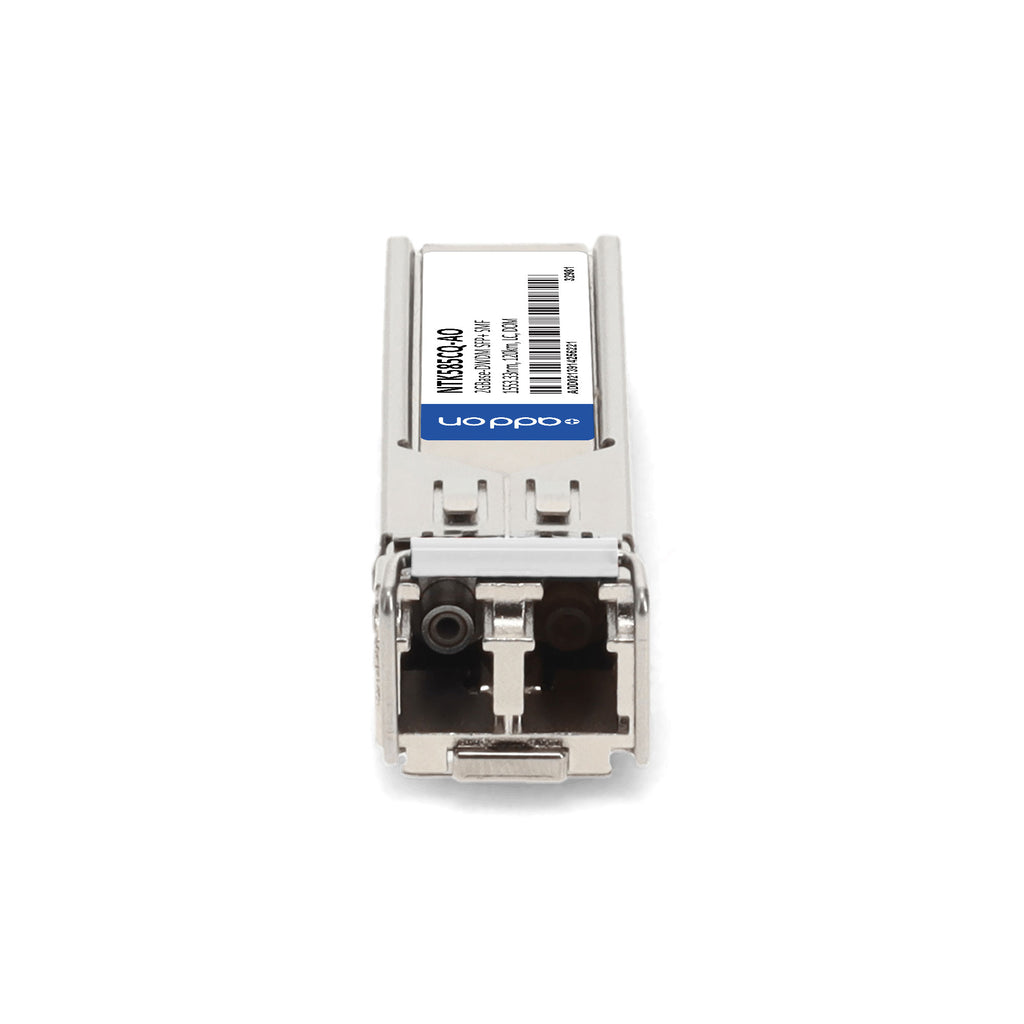

The AddOn Ciena® NTK585CQ-AO is a TAA-compliant, OC-48-LR2 DWDM 100GHz SFP transceiver designed for high-performance long-haul optical networking. Engineered for seamless compatibility with Ciena® equipment, this transceiver delivers OC-48 (2.488 Gbps) data rates over single-mode fiber (SMF) at distances up to 120 km, using a 1553.33 nm wavelength via a duplex LC connector.
Built to meet INF-8074 and SFF-8472 standards, the NTK585CQ-AO supports Digital Optical Monitoring (DOM) for real-time performance insights and features robust ESD protection, low EMI metal housing, and hot-swappable operation. Ideal for Gigabit Ethernet over DWDM, Fibre Channel, access, metro, and enterprise network deployments, it ensures reliable, high-bandwidth transmission with full Ciena® interoperability.
| Specification | Description |
|---|---|
| Brand | AddOn |
| SKU | NTK585CQ-AO |
| Compatibility | Ciena® NTK585CQ |
| Form Factor | SFP |
| Data Rate | OC-48 / 2.488 Gbps |
| Wavelength | 1553.33 nm (100GHz DWDM) |
| Transmission Distance | Up to 120 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Digital Optical Monitoring (DOM) | Supported |
| Compliance Standards | INF-8074, SFF-8472, RoHS 2.0, TAA |
| Applications | Gigabit Ethernet over DWDM, Fibre Channel, Access, Metro, Enterprise |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Optical Power (TX) | 0 to +5 dBm |
| Receiver Sensitivity (RX) | ≤ -24 dBm |
| Receiver Overload | -10 dBm |
| Receiver Wavelength Range | 1260 – 1620 nm |
| Channel Spacing | 100 GHz |
| Insertion Loss | 0.7 dB (typical) |
| Hot-Pluggable | Yes |
| Electrostatic Discharge (ESD) | MIL-STD-883E Method 3015.4 |
| EMI/EMC Compliance | FCC Part 15 Subpart B, EN55022:2010 |
| Laser Safety | FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| Voltage Supply | 3.15V – 3.45V |
| Current Consumption | 300 mA (typical) |
