Description

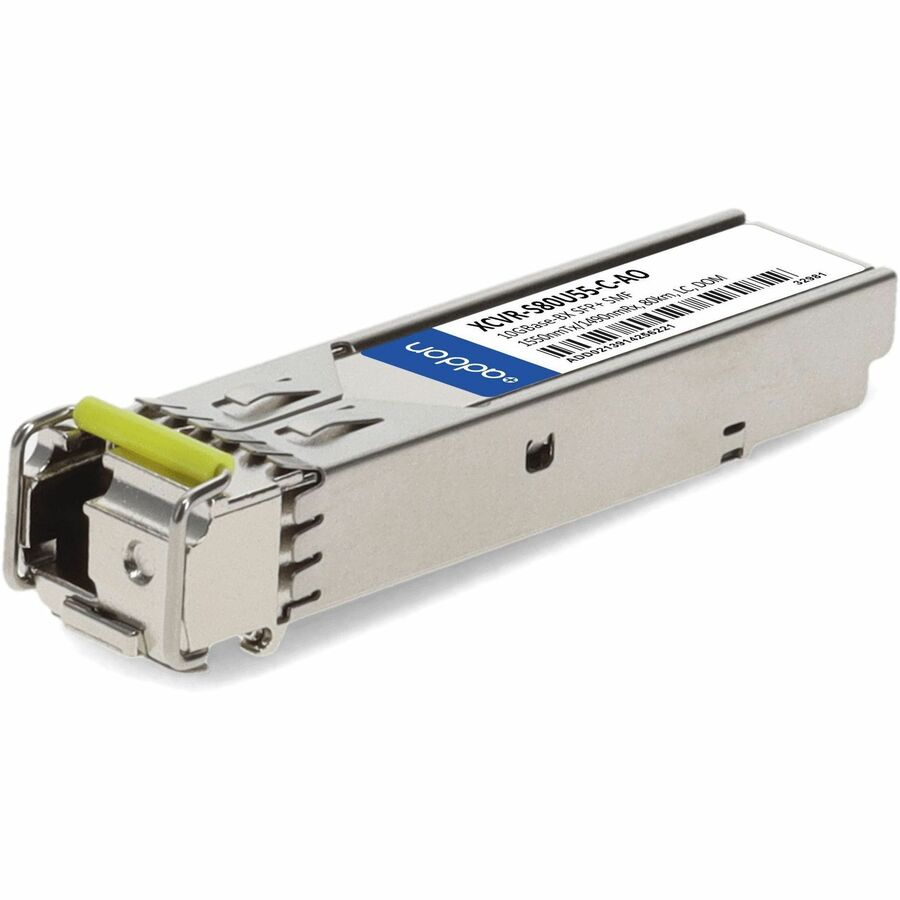

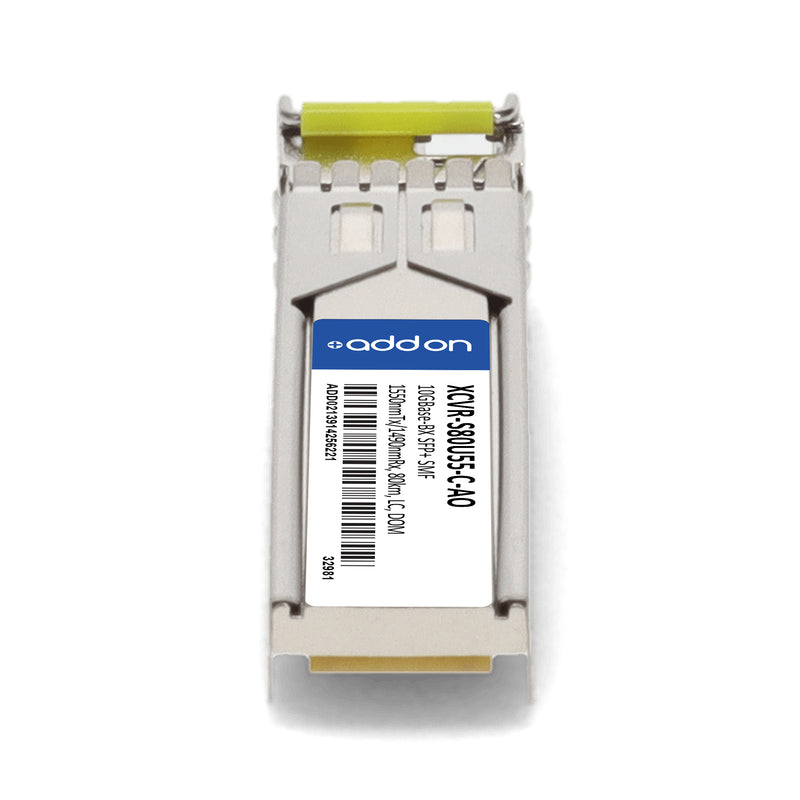

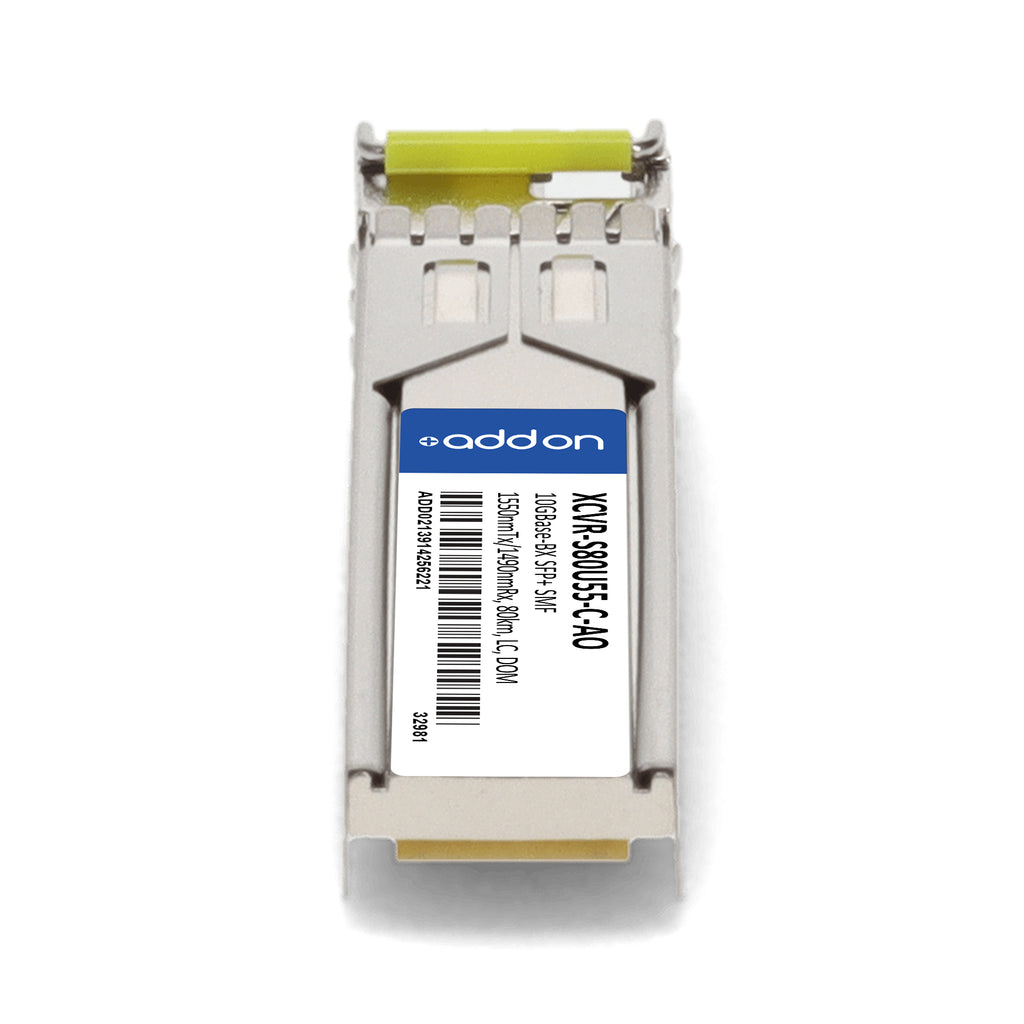

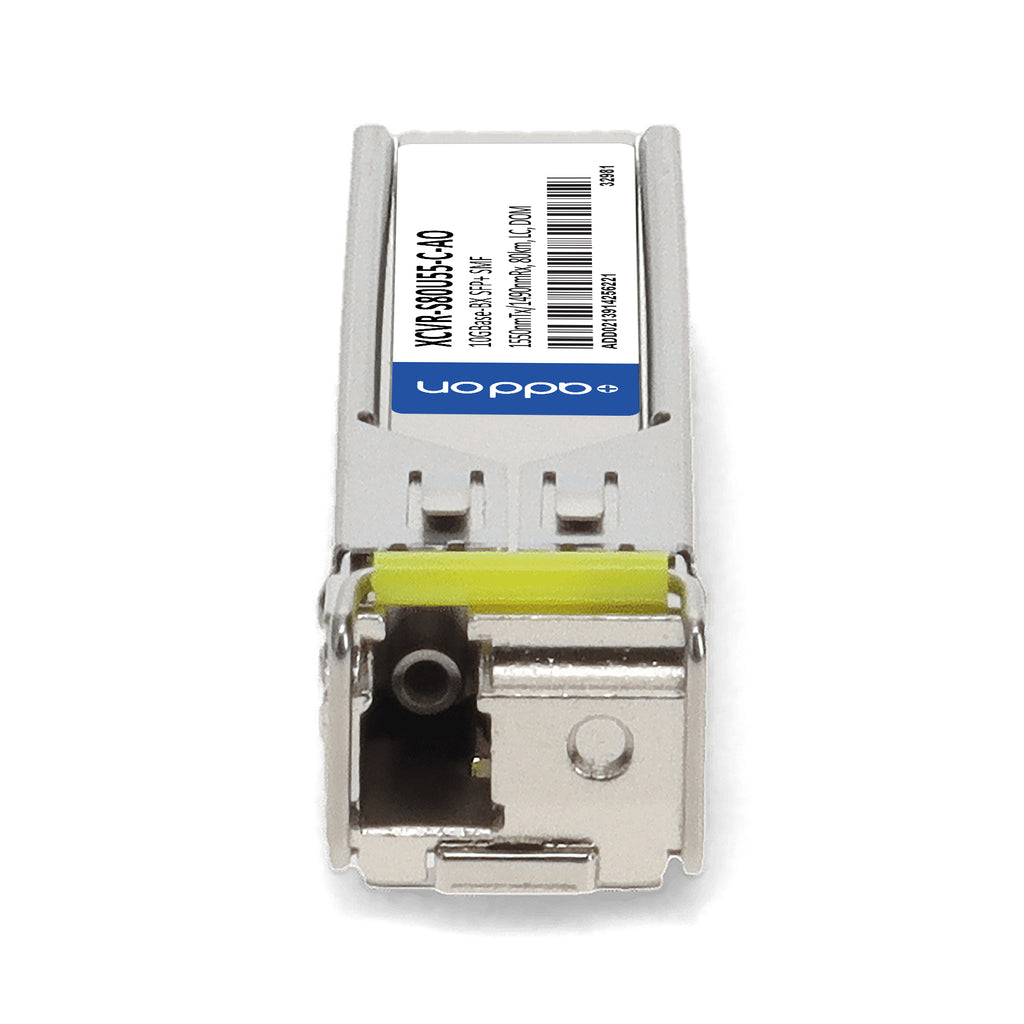

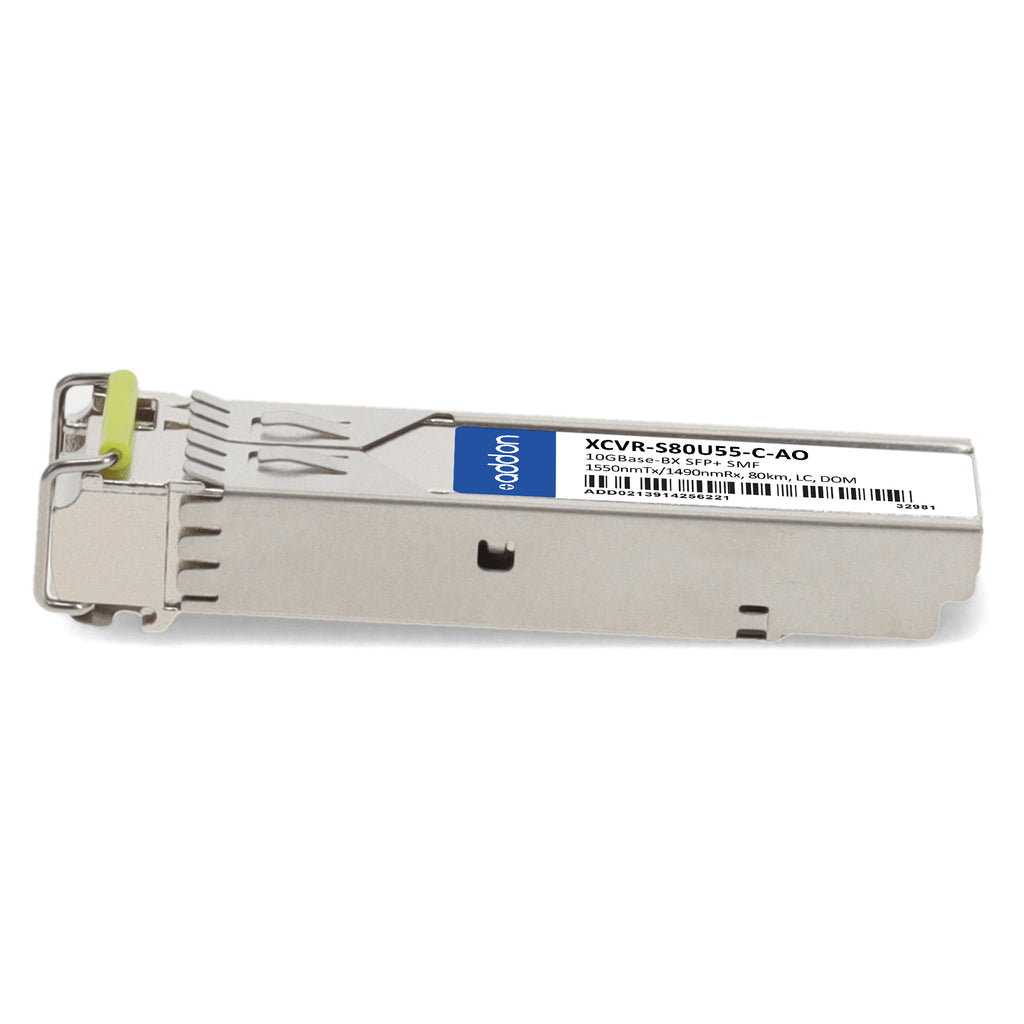

The AddOn Ciena® XCVR-S80U55-C Compatible TAA 10GBase-BX SFP+ Transceiver is a high-performance optical module designed to deliver reliable, long-distance data transmission for modern network infrastructures. Engineered for seamless compatibility with Ciena® equipment, this SFP+ transceiver provides 10GBase-BX throughput up to 80 km over single-mode fiber (SMF) using a 1550 nm transmit and 1490 nm receive wavelength via a simplex LC connector.
Built to meet rigorous SFF-8432 and SFF-8472 standards, it features a temperature-stabilized EML transmitter and APD receiver for enhanced optical performance, along with digital optical monitoring (DOM) for real-time diagnostics. The transceiver is hot-pluggable, RoHS compliant, and Trade Agreements Act (TAA) compliant, ensuring suitability for government and enterprise networks. Each unit is programmed, uniquely serialized, and thoroughly application-tested to guarantee 100% compatibility and consistent performance.
Ideal for access, metro, and enterprise network applications, this module offers excellent ESD protection, low EMI, and dependable long-range connectivity with minimal power consumption — making it a trusted solution for robust 10G Ethernet and Fibre Channel environments.
| Specification | Details |
|---|---|
| SKU | XCVR-S80U55-C-AO |
| Compatible OEM | Ciena® |
| Form Factor | SFP+ |
| Data Rate | Up to 10.31 Gbps |
| Application | 10GBase-BX Ethernet, 8G/10G Fibre Channel |
| Wavelength (Tx/Rx) | 1550 nm (Tx) / 1490 nm (Rx) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Simplex LC |
| Maximum Reach | 80 km |
| Digital Optical Monitoring (DOM) | Supported |
| Transmitter Type | EML (Temperature-stabilized) |
| Receiver Type | APD |
| Power Supply Voltage | 3.15 V – 3.43 V |
| Power Consumption | 1.2 W (typ.) |
| Operating Temperature | 0 °C to 70 °C (Commercial) |
| Storage Temperature | -40 °C to 85 °C |
| Receiver Sensitivity | ≤ -23 dBm |
| Receiver Overload | ≥ -6 dBm |
| Optical Output Power | 0 – 4 dBm |
| Extinction Ratio | ≥ 9 dB |
| Compliance | SFF-8432, SFF-8472, RoHS, TAA |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
