Description

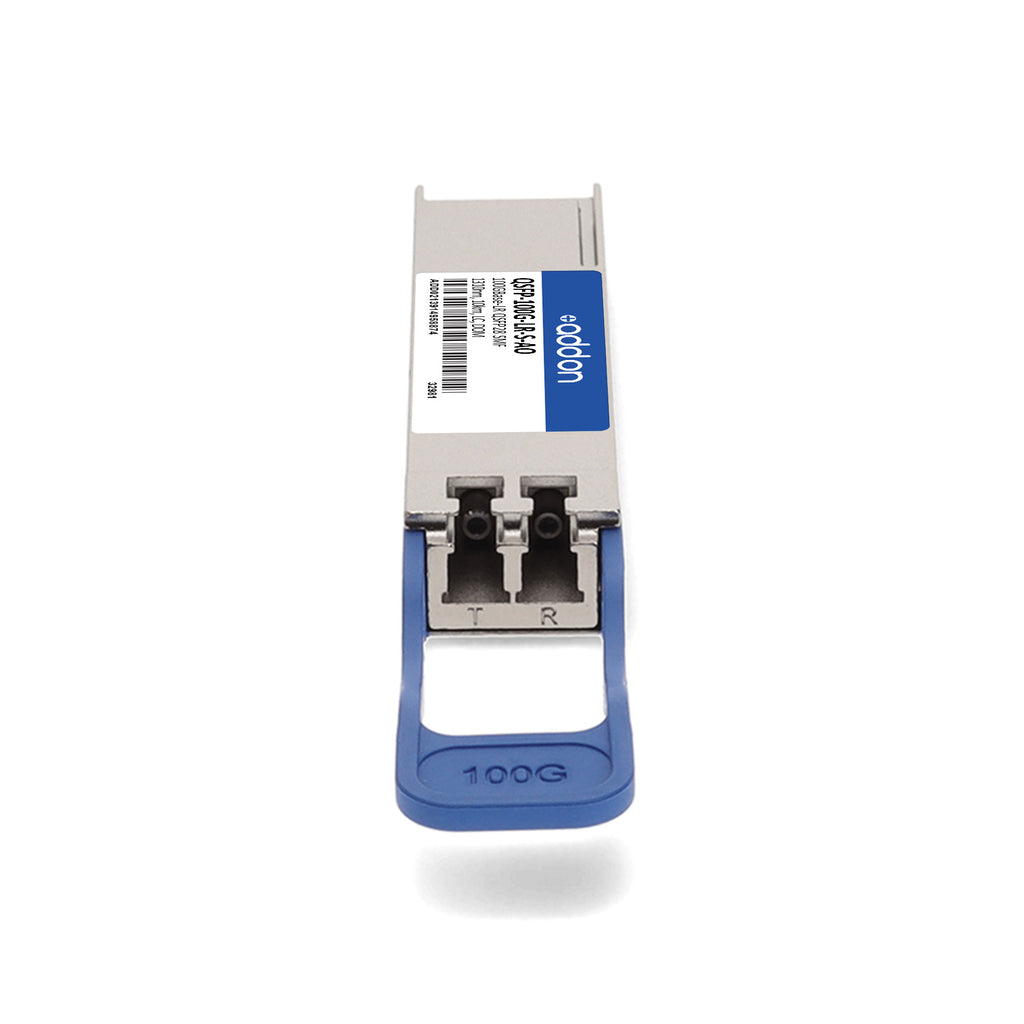

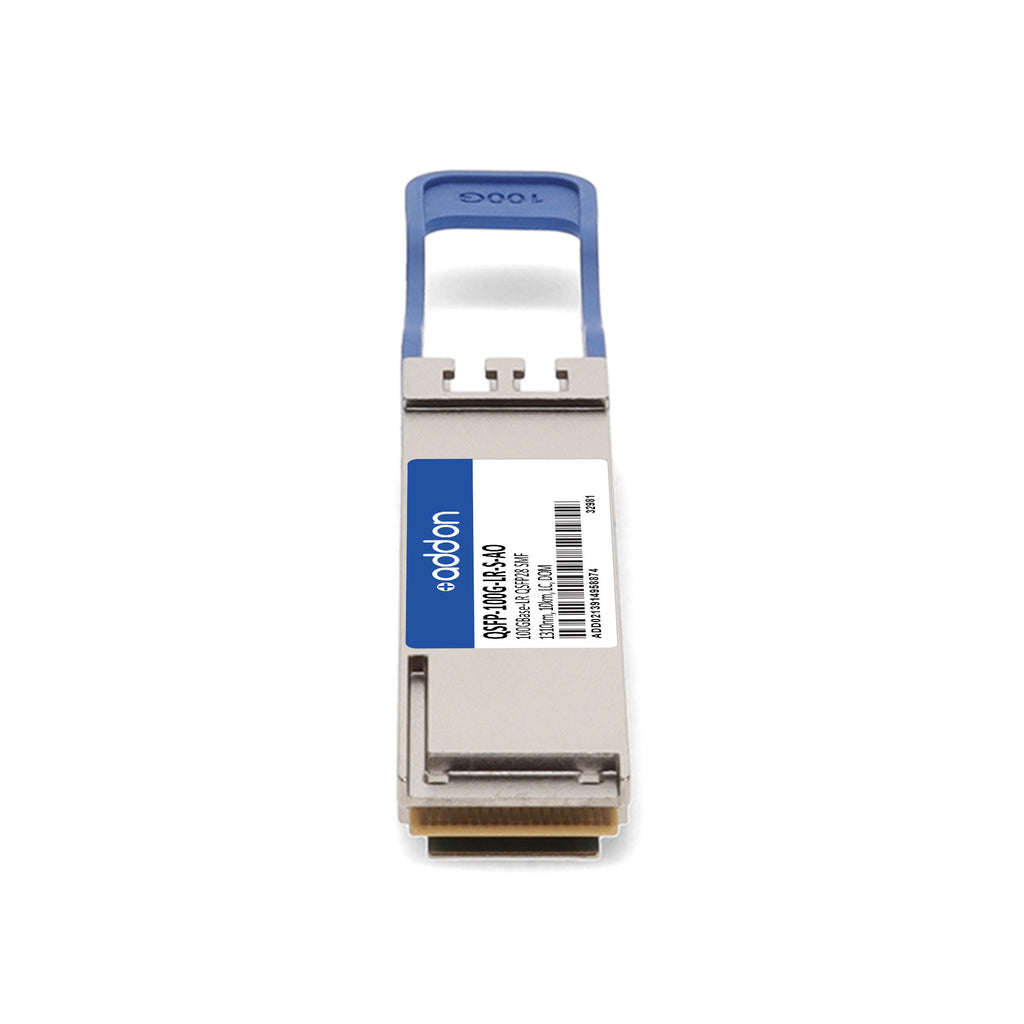

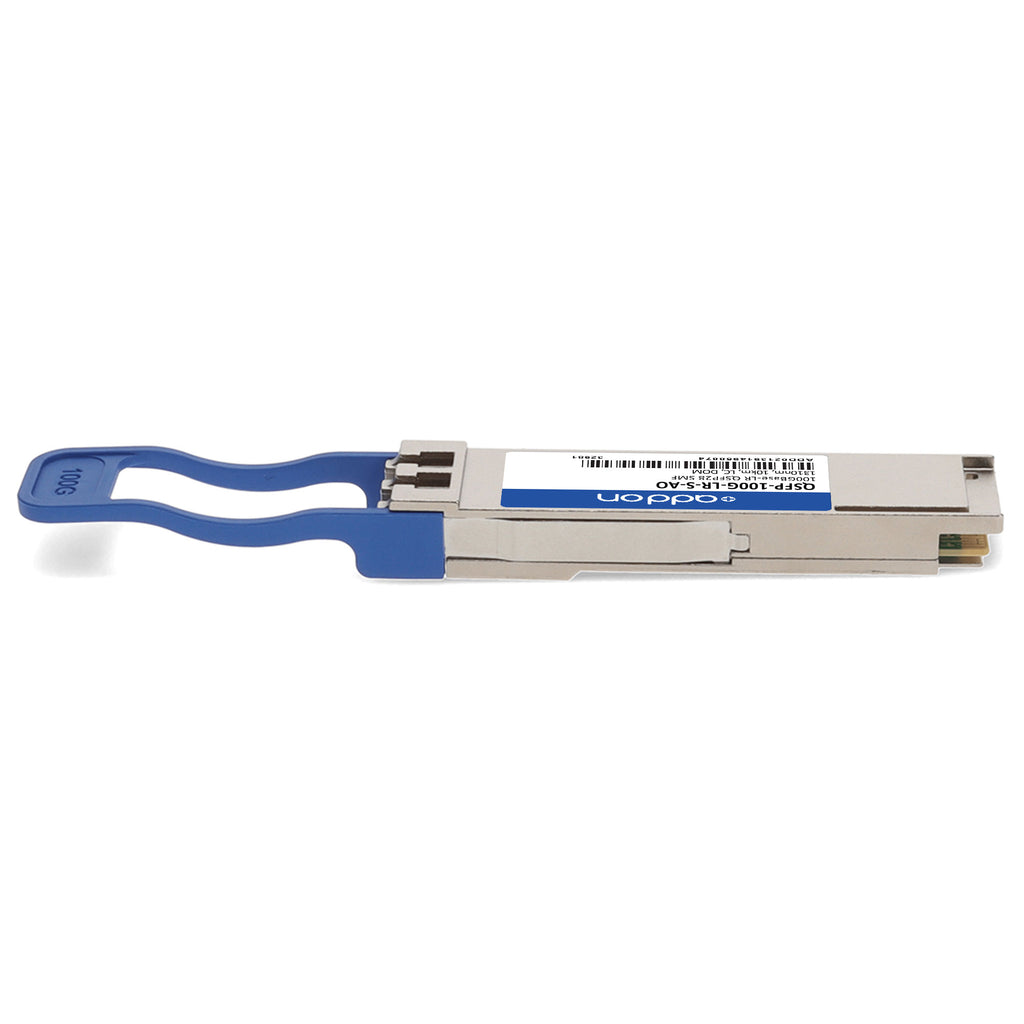

The AddOn Cisco® QSFP-100G-LR-S-AO is a high-performance QSFP28 optical transceiver designed to deliver reliable 100GBase-LR Ethernet connectivity over single-mode fiber (SMF) up to 10 km using a 1310 nm wavelength. Fully compliant with SFF-8665 standards and engineered for seamless interoperability, this module is 100% compatible with Cisco® QSFP-100G-LR-S and ideal for data center, access, and enterprise networks requiring high-speed, long-reach links.
The transceiver features a duplex LC connector, hot-swappable design, and digital optical monitoring (DOM) for real-time diagnostics. Built-in Forward Error Correction (FEC) ensures optimal signal integrity across long distances. Each unit is TAA-compliant, RoHS-certified, rigorously tested for performance, and backed by a limited lifetime warranty — making it a dependable, cost-effective solution for next-generation network infrastructures.
| Specification | Details |
|---|---|
| Part Number | QSFP-100G-LR-S-AO |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-LR |
| Wavelength | 1310 nm |
| Reach / Distance | Up to 10 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Optical Modulation | PAM4 |
| Optical Data Rate | 53.125 GBd |
| Electrical Data Rate (per lane) | 25.78125 Gb/s |
| FEC Support | Yes (embedded) |
| DOM Support | Yes |
| Operating Temperature | 0 °C to 70 °C (Commercial) |
| Power Consumption | ≤ 4.0 W |
| Transmit Power (Avg.) | –1.4 dBm to 4.5 dBm |
| Receive Power (Avg.) | –7.7 dBm to 4.5 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Side Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Receiver Sensitivity (OMAouter) | ≤ –4.1 dBm |
| LOS Assert / Deassert | –15 dBm / –10.7 dBm |
| Compliance Standards | SFF-8665, IEEE 802.3, RoHS, TAA |
| Hot Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
