Description

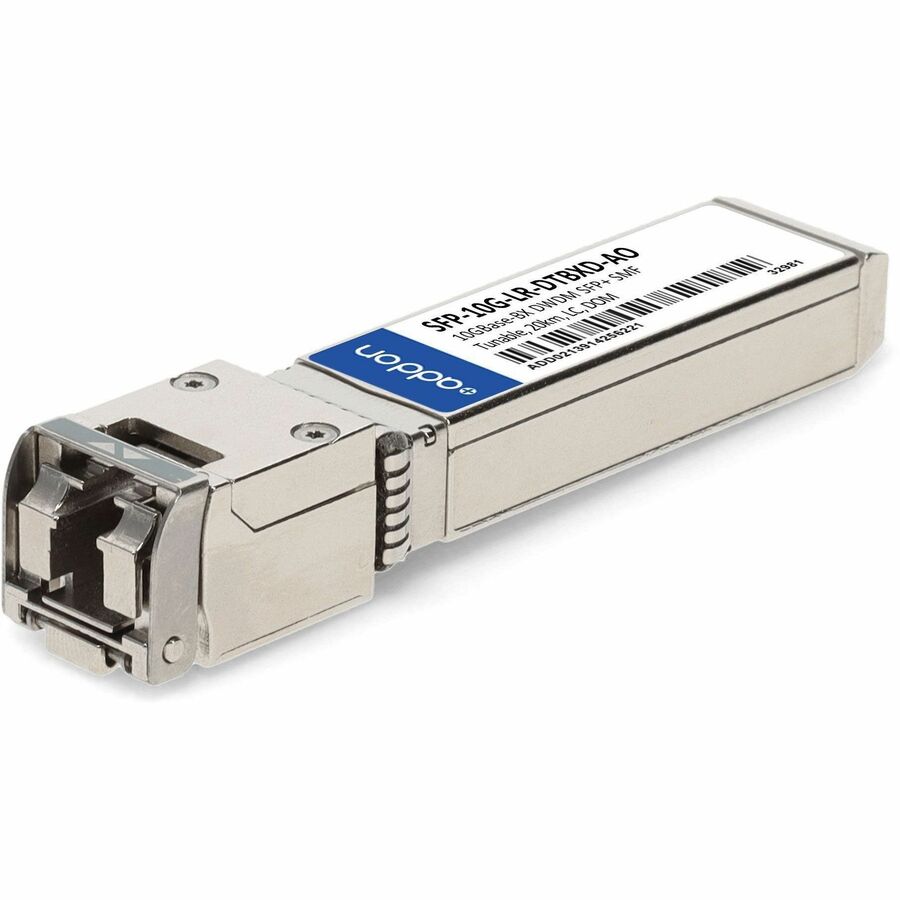

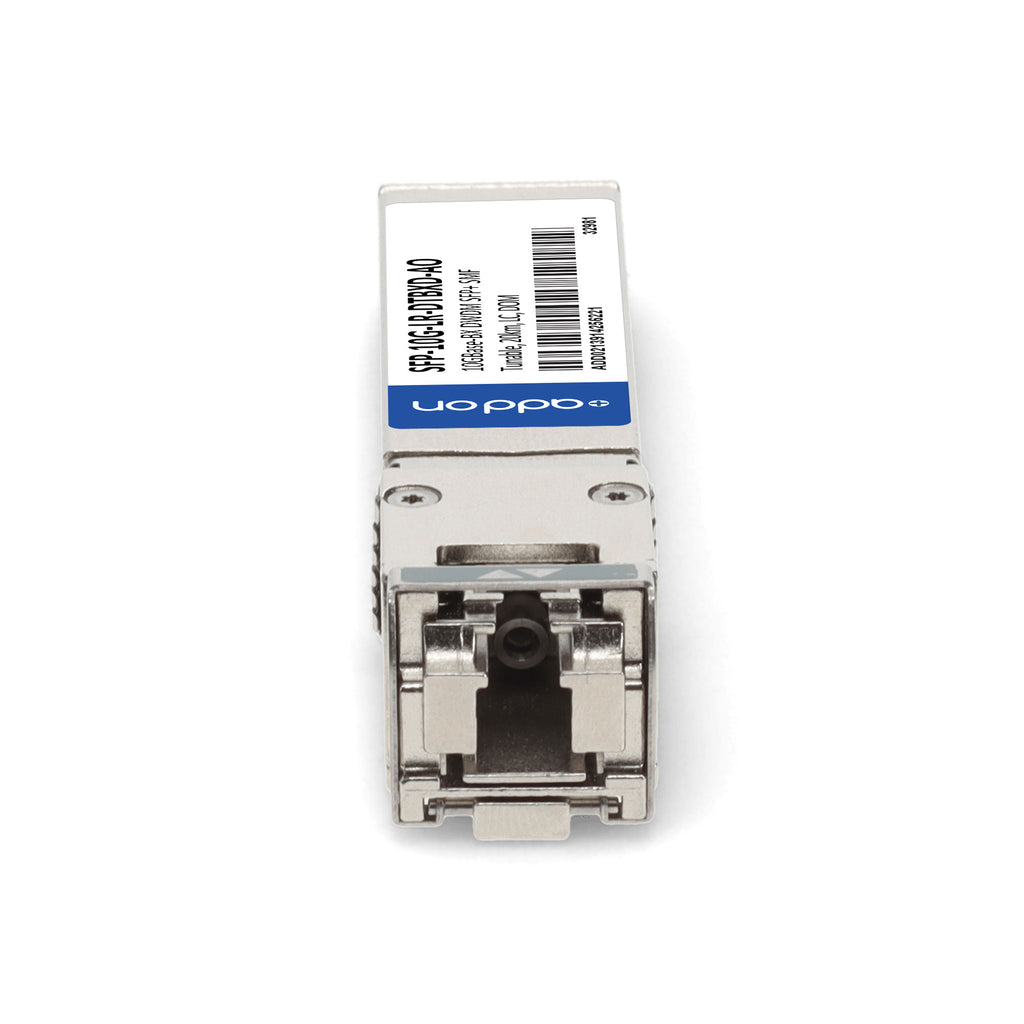

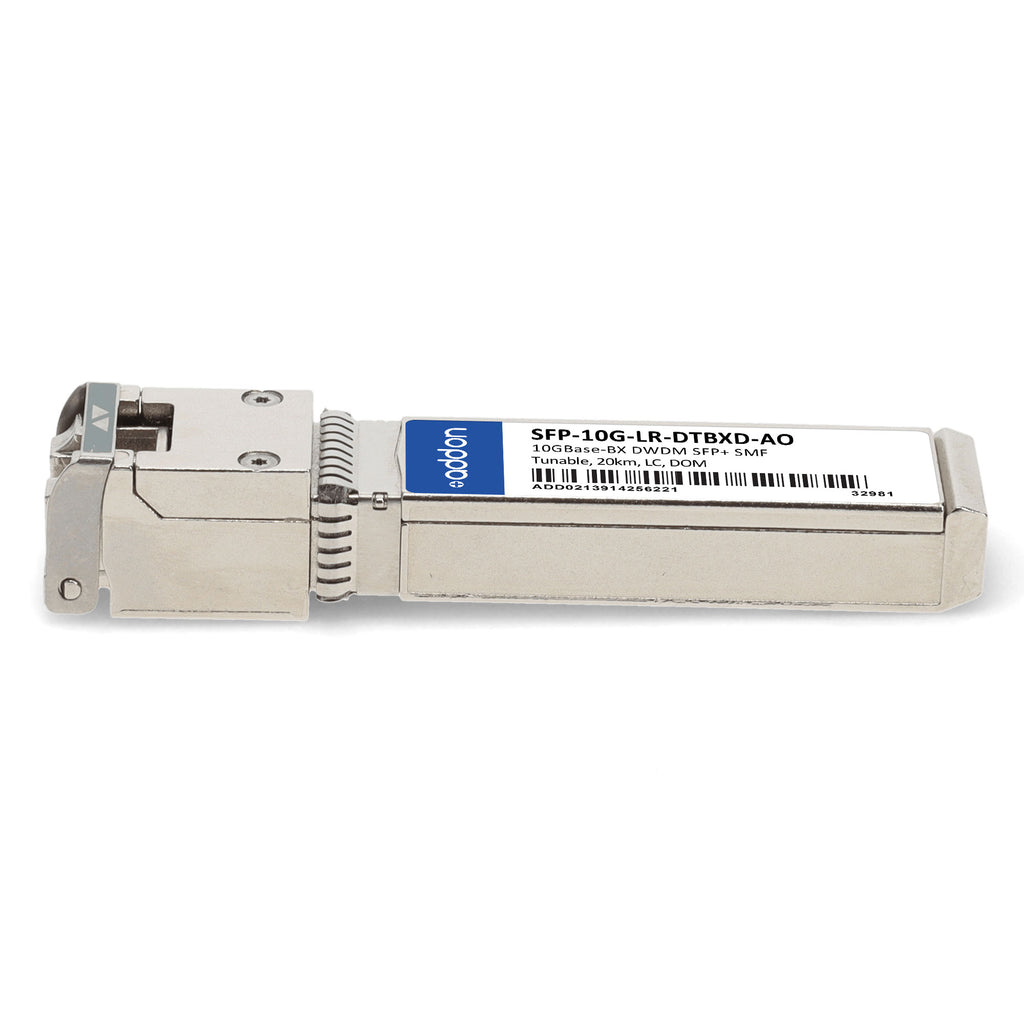

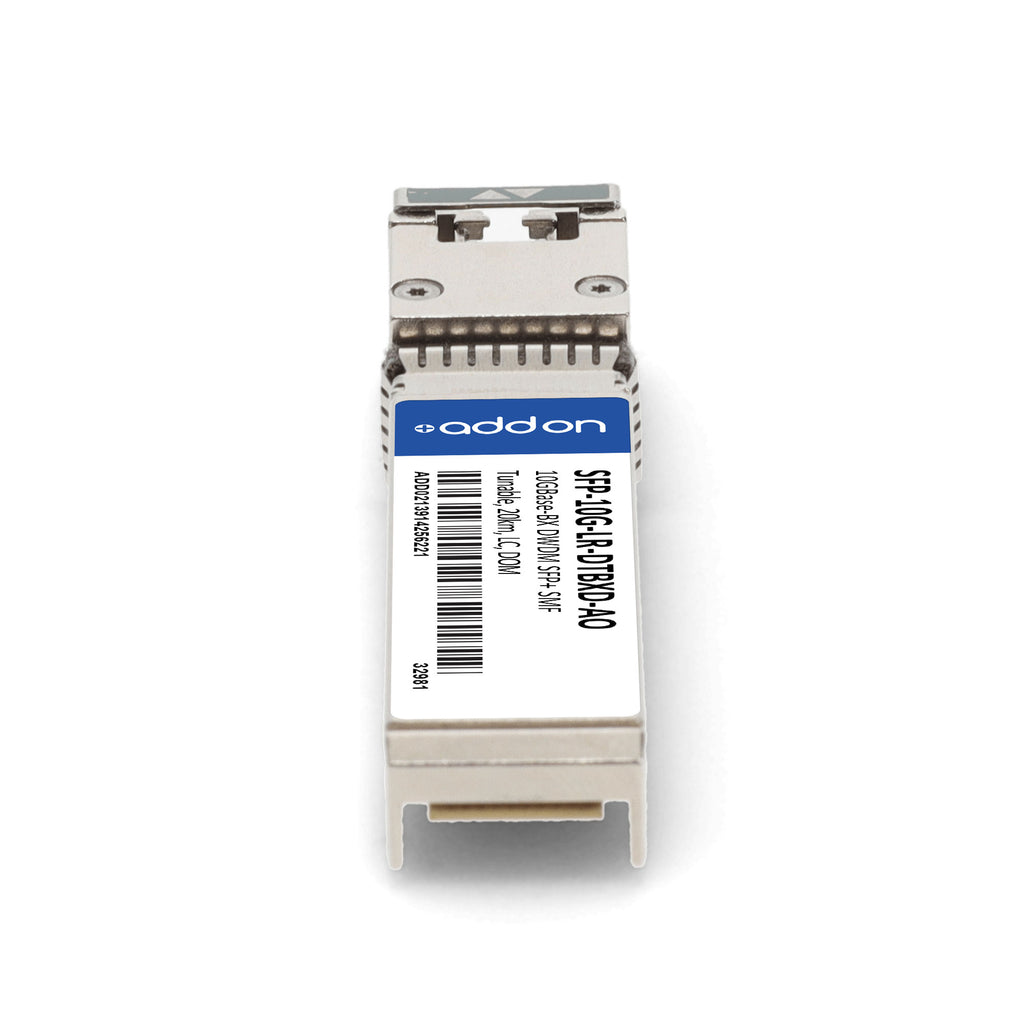

The AddOn Cisco® SFP-10G-LR-DTBXD-AO is a 10G-BX DWDM tunable SFP+ transceiver designed for high-performance, bidirectional optical communication over single-mode fiber (SMF) with a reach of up to 20km. Supporting data rates from 1.2 Gb/s to 11.3 Gb/s, this hot-pluggable module operates within the 1530 nm to 1565 nm wavelength range and features a monolithic tunable BOSA for 40 dual-band point-to-point links on 100 GHz ITU grids. It is equipped with auto-tuning technology and built-in Digital Optical Monitoring (DOM) for real-time diagnostics. TAA-compliant and 100% compatible with the equivalent Cisco® transceiver, it ensures seamless integration and reliable performance for metro, access, and enterprise DWDM networks. Each unit is uniquely serialized, tested for interoperability, and backed by a limited lifetime warranty.
| Specification | Description |
|---|---|
| SKU | SFP-10G-LR-DTBXD-AO |
| Compatible OEM | Cisco® |
| Form Factor | SFP+ |
| Data Rate | 1.2 Gb/s – 11.3 Gb/s |
| Reach / Distance | Up to 20 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Wavelength Range | 1530 nm – 1565 nm |
| ITU Channel Spacing | 100 GHz (40 channels, dual-band bidirectional) |
| Optical Power (Tx) | 0.5 dBm average launch power |
| Receiver Sensitivity | -18.5 dBm |
| Connector Type | LC Duplex |
| Interface | Limiting electrical interface |
| Power Supply Voltage | 3.14 V – 3.46 V |
| Power Dissipation | ≤ 2.5 W |
| Operating Temperature | 0 °C – 70 °C |
| DDM/DOM Support | Yes |
| Auto-Tuning Technology | Yes |
| Compliance | TAA, MSA, RoHS-6, FCC Part 15, EN55022, FDA 21CFR, IEC 60825-1/2 |
| Applications | 8G/10G Fibre Channel, 10G Ethernet over DWDM, Metro, Access, Enterprise |
| Warranty | Limited Lifetime Warranty |
