Description

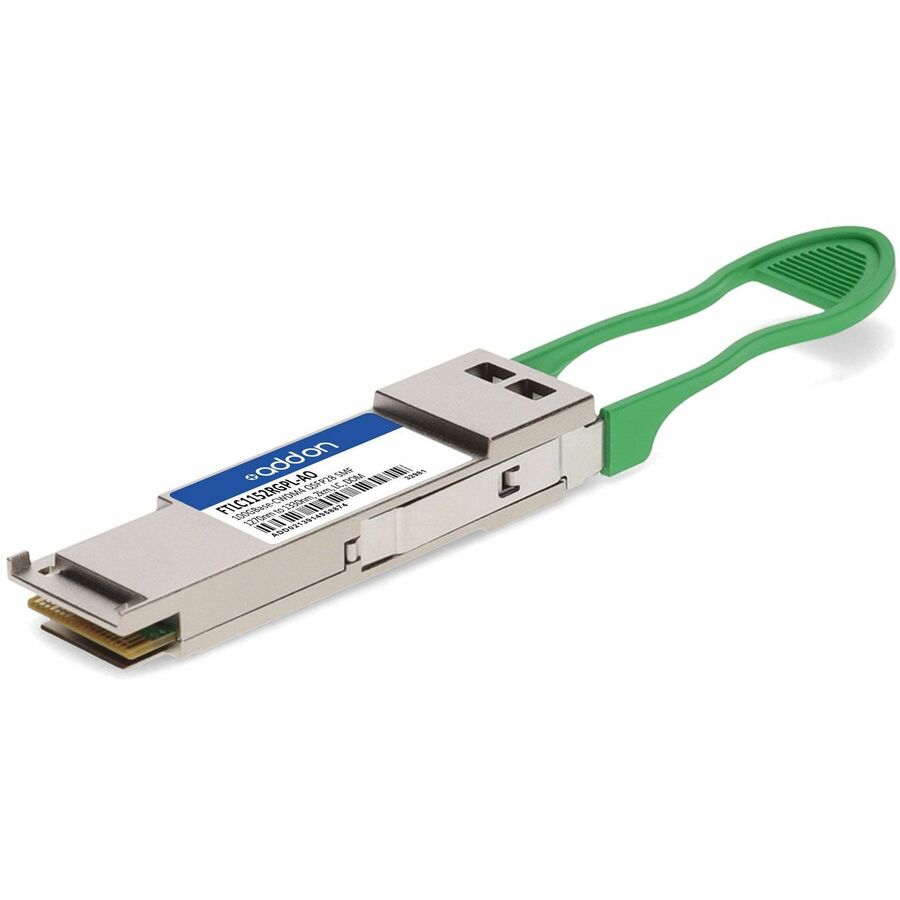

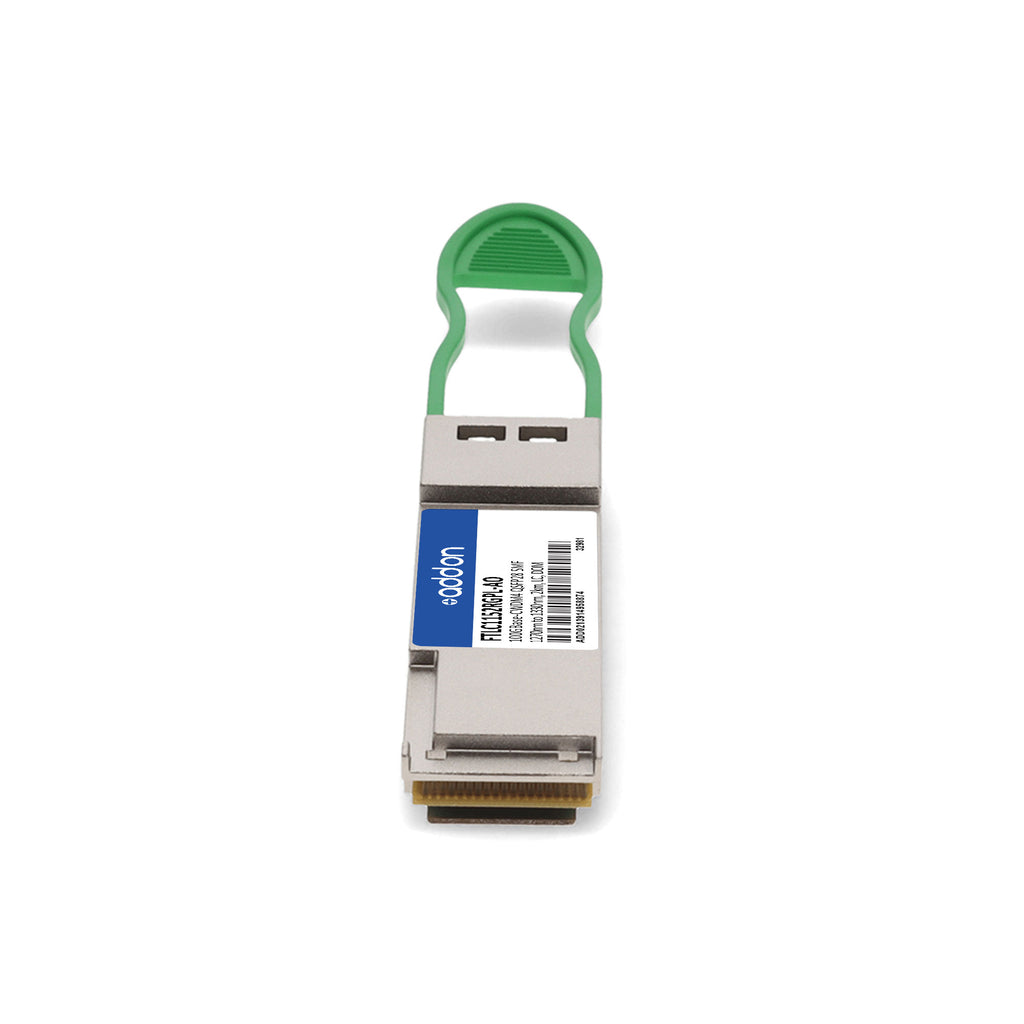

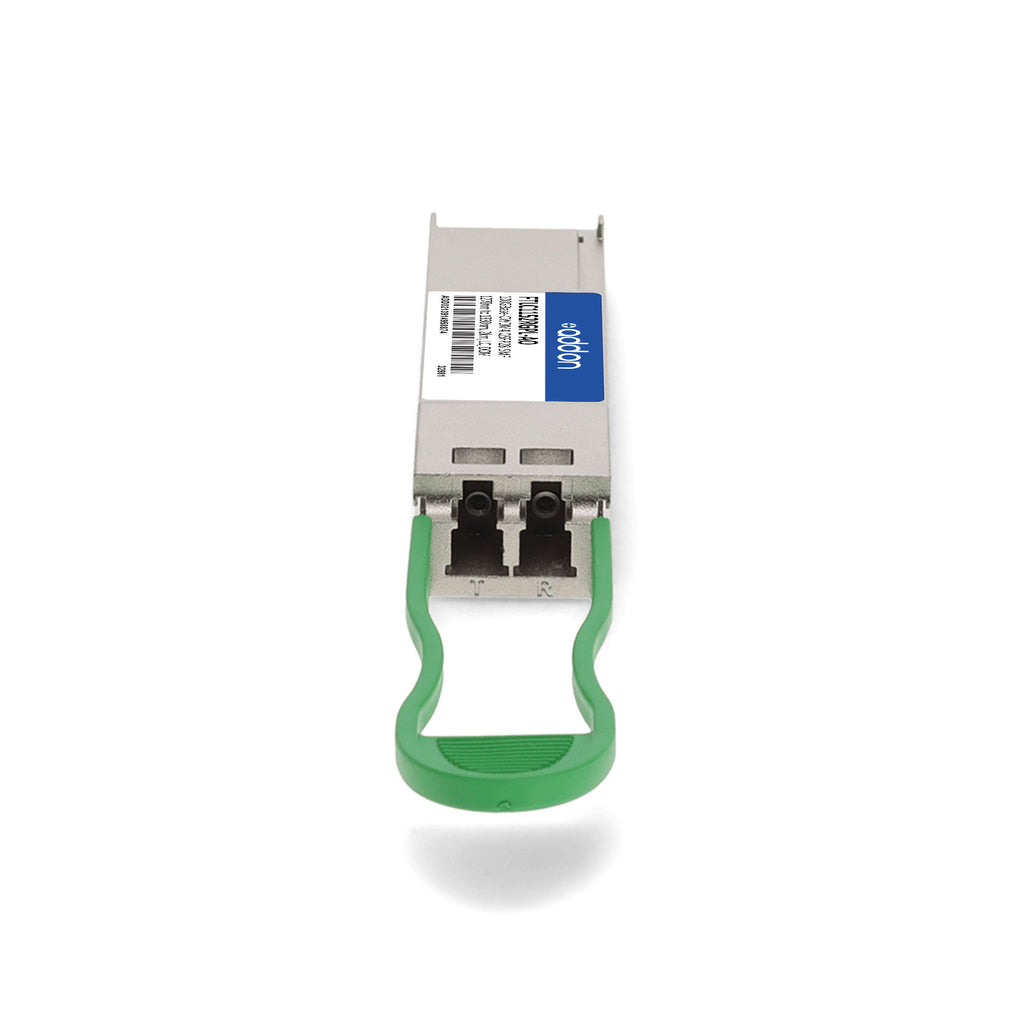

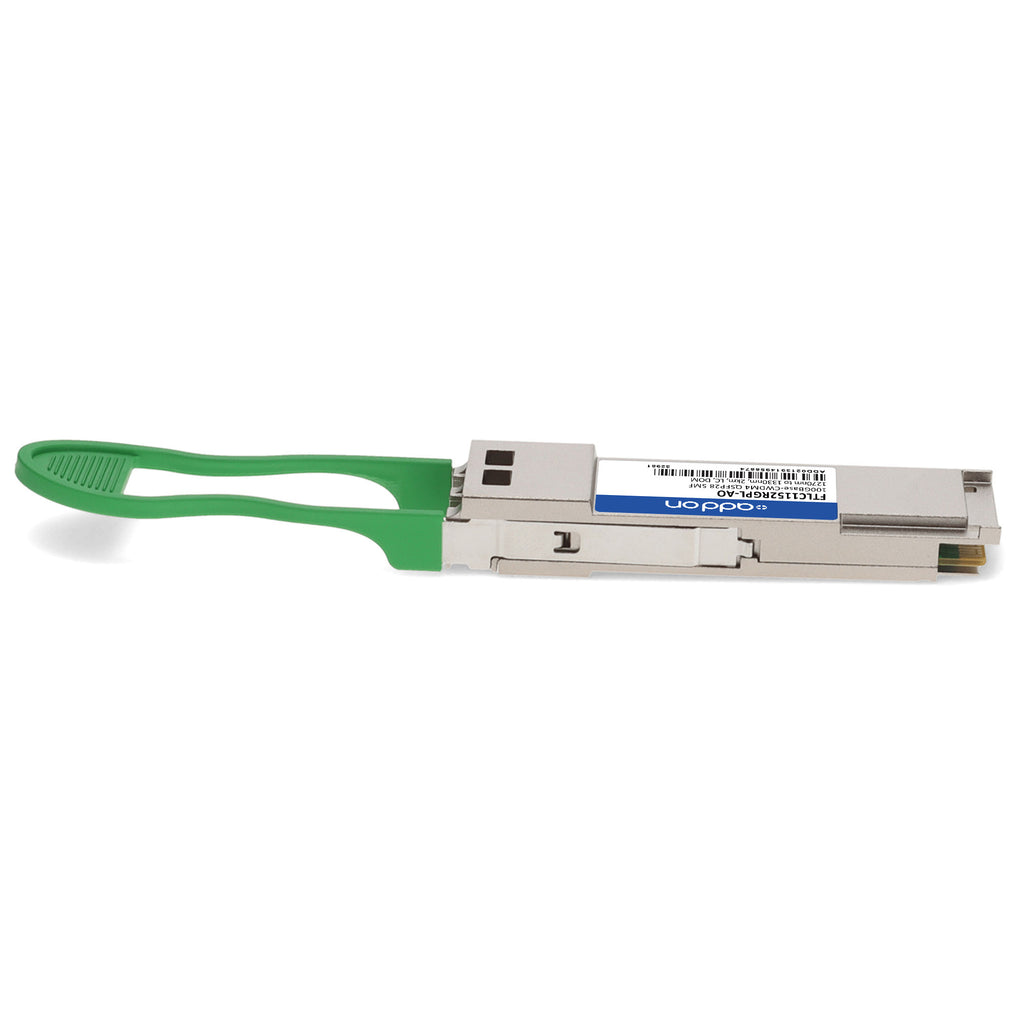

The AddOn Finisar® FTLC1152RGPL compatible QSFP28 transceiver is a high-performance, cost-effective optical module designed for 100GBase-CWDM4 Ethernet applications. Delivering data throughput up to 2km over single-mode fiber (SMF), it operates on wavelengths ranging from 1270nm to 1330nm through a duplex LC connector. This hot-swappable transceiver is built to ensure seamless integration and 100% compatibility with the original Finisar® module.
With Digital Optical Monitoring (DOM) support, network administrators can monitor real-time operating parameters to maintain optimal performance. The transceiver complies with SFF-8665, is RoHS compliant, and TAA-compliant for government procurement. Backed by AddOn’s rigorous testing and a limited lifetime warranty, this solution ensures reliable, high-speed connectivity for access, metro, and enterprise networks.
| Specification | Description |
|---|---|
| SKU | FTLC1152RGPL-AO |
| Compatibility | Finisar® FTLC1152RGPL |
| Form Factor | QSFP28 |
| Application | 100GBase-CWDM4 Ethernet |
| Wavelength Range | 1270nm – 1330nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Max Reach | Up to 2 km |
| Data Rate per Channel | 25.78125 Gb/s |
| Total Data Rate | 100 Gb/s |
| DOM Support | Yes |
| Hot Swappable | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Supply Voltage | 3.135 – 3.465 V |
| Power Dissipation | 3.5 W (typical) |
| Module Supply Current | 1100 mA |
| Launch Optical Power (per lane) | -6.5 to 2.5 dBm |
| Receiver Sensitivity (per channel) | ≤ -11.5 dBm |
| Extinction Ratio | ≥ 4 dB |
| Compliance | SFF-8665, FCC Part 15, EN55022:2010, FDA 21CFR, EN60950-1, IEC 60825-1/2, RoHS 2.0 |
| TAA Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
