Description

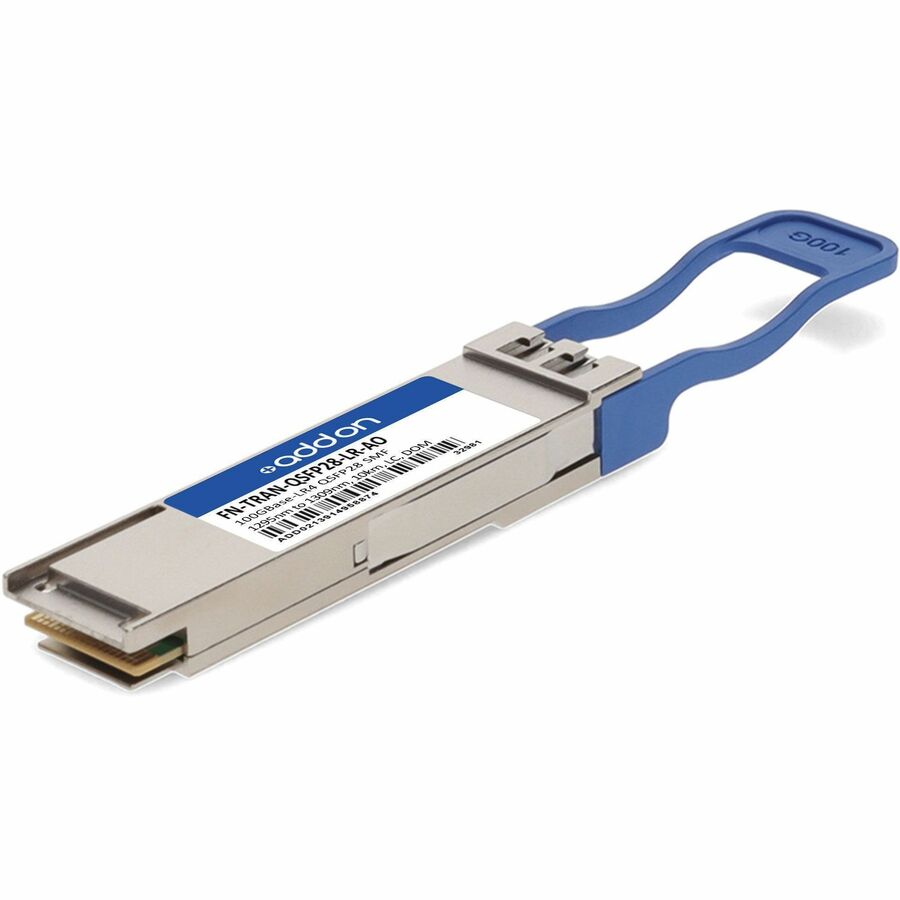

The AddOn Fortinet® FN-TRAN-QSFP28-LR Compatible TAA 100GBase-LR4 QSFP28 Transceiver is a high-performance, hot-swappable optical module designed to deliver reliable 100Gbps Ethernet connectivity over single-mode fiber (SMF) up to 10km. Operating on four lanes with wavelengths ranging from 1295nm to 1309nm, this transceiver uses a duplex LC connector and supports digital optical monitoring (DOM) for real-time diagnostics. It is 100% compatible with the original Fortinet® FN-TRAN-QSFP28-LR module, ensuring seamless interoperability and guaranteed performance. Ideal for data center interconnects, enterprise networks, and access layer deployments, this TAA-compliant module combines excellent ESD protection, low EMI metal housing, and rigorous testing for long-term reliability.
| Specification | Details |
|---|---|
| Compatible OEM | Fortinet® |
| Part Number | FN-TRAN-QSFP28-LR-AO |
| Form Factor | QSFP28 |
| Data Rate | 100Gbps |
| Wavelength Range | 1295nm – 1309nm |
| Transmission Distance | Up to 10km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Compliance Standards | SFF-8665, IEEE 802.3bm |
| DOM Support | Yes |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C |
| Power Dissipation | 3.5W (Max) |
| Supply Voltage | 3.135V – 3.465V |
| Launch Power (per lane) | -4.3 to 4.5 dBm |
| OMA (per lane) | -1.3 to 4.5 dBm |
| Extinction Ratio | ≥ 4 dB |
| Receive Sensitivity (per lane) | ≤ -8.6 dBm |
| Receiver Damage Threshold | 5.5 dBm |
| Applications | 100G Ethernet, Access, Enterprise Networks |
| Hot Pluggable | Yes |
| ESD Protection | Excellent |
| Compliance | RoHS, TAA |
| Warranty | Limited Lifetime Warranty |
