Description

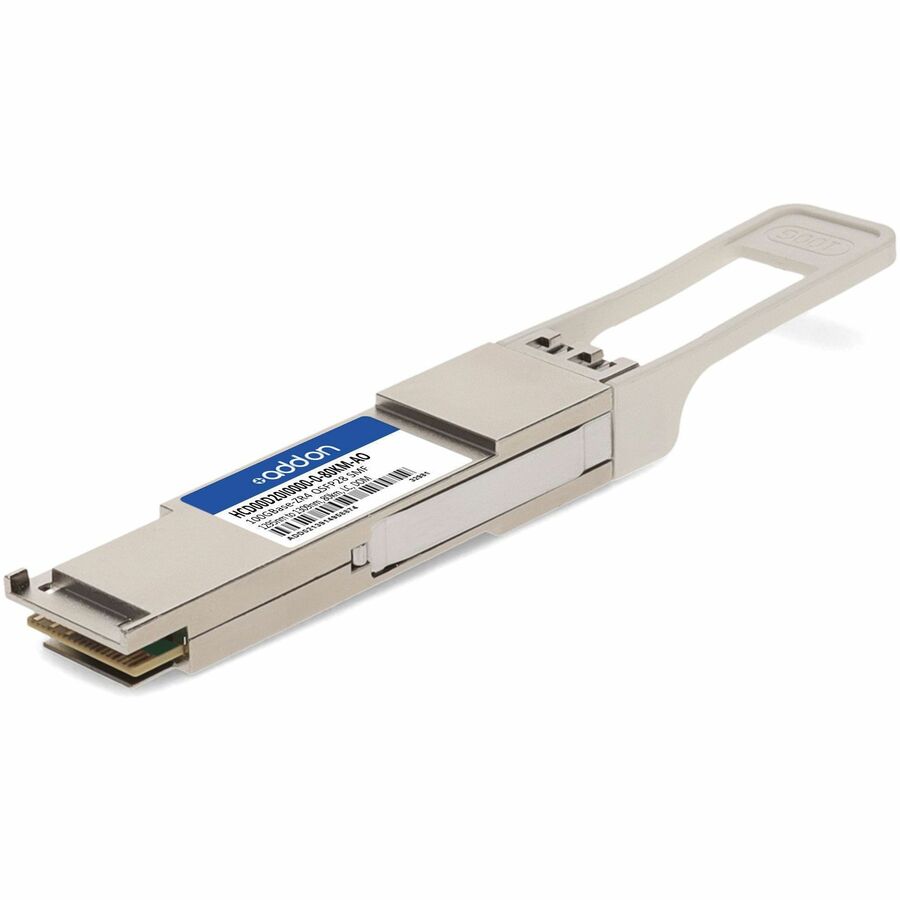

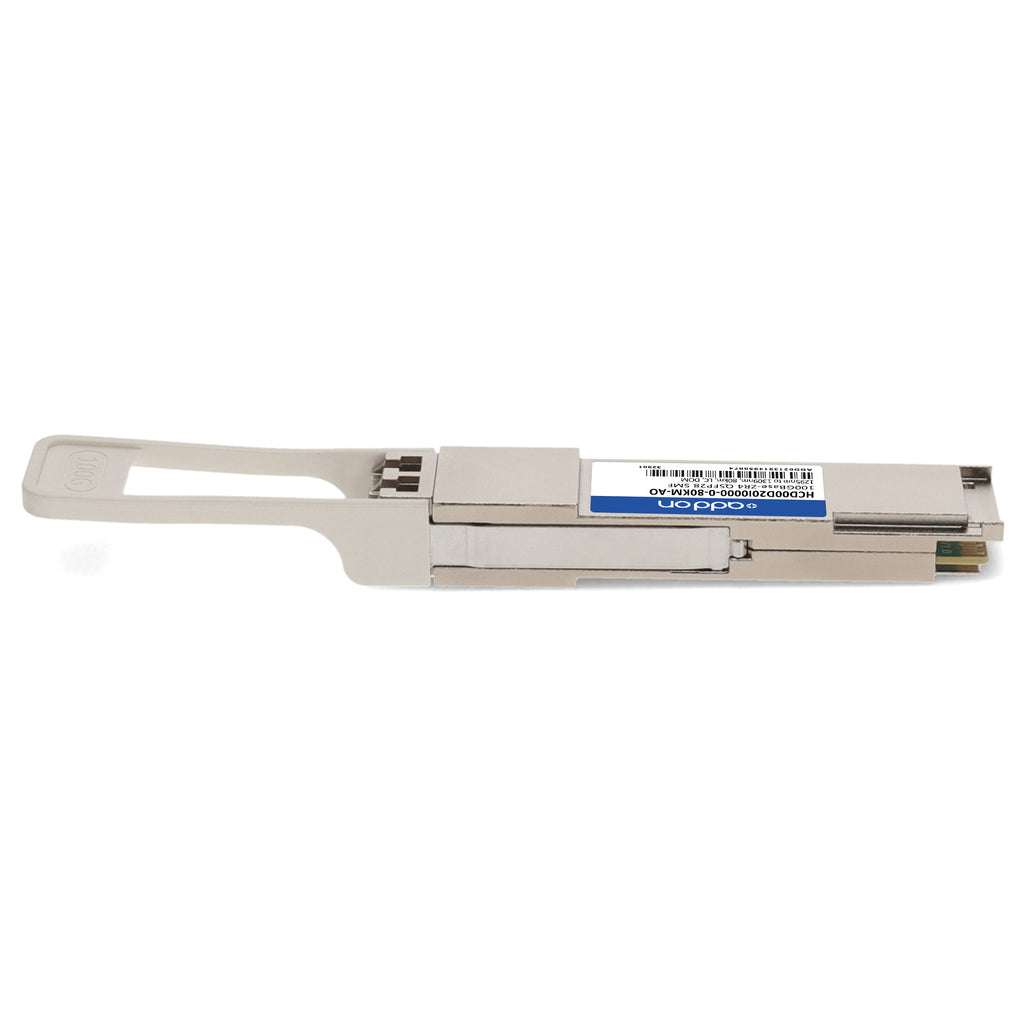

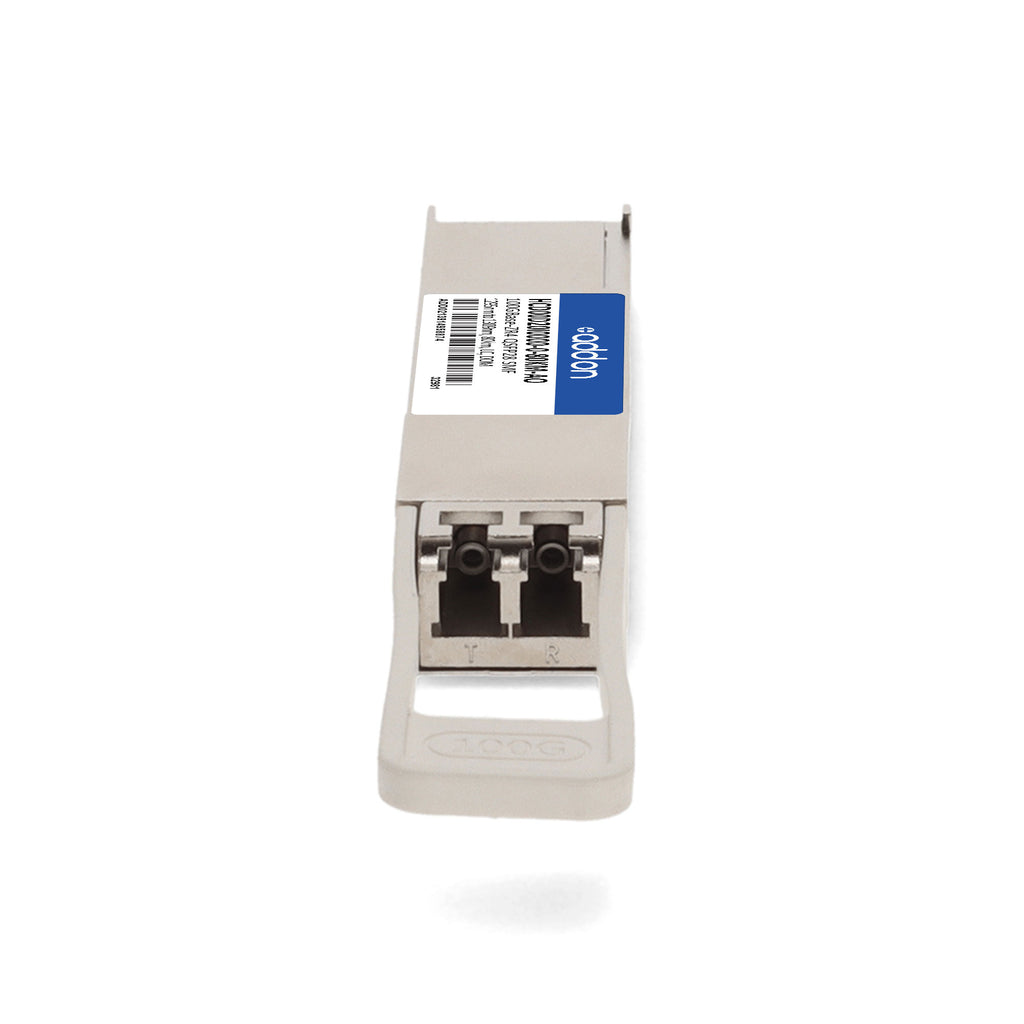

The AddOn Fujitsu® HCD00D20I0000-0-80KM Compatible TAA 100GBase-ZR4 QSFP28 Transceiver delivers reliable high-speed optical connectivity for long-distance data center, enterprise, and telecom applications. Designed for 100G Ethernet networks, this hot-pluggable module provides up to 80km transmission over single-mode fiber (SMF) using LAN WDM wavelengths from 1295nm to 1309nm via a duplex LC connector.
It features a cooled 4x25Gbps LAN WDM EML transmitter, 4x25Gbps SOA+PIN receiver, and supports digital optical monitoring (DOM) for real-time diagnostics. Compliant with IEEE 802.3ba and ITU-T G.959 standards, this module operates within a commercial temperature range (0°C to 70°C) and consumes a maximum of 5.5W power. Fully TAA compliant and 100% guaranteed to perform identically to the original Fujitsu® transceiver, it offers a cost-effective, high-performance solution backed by AddOn’s lifetime warranty.
| Parameter | Specification |
|---|---|
| Compatible OEM | Fujitsu® |
| Compatible With OEM Part Number(s) | HCD00D20I0000-0-80KM |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-ZR4 |
| Wavelength | 1295nm – 1309nm (LAN WDM) |
| Interface | Duplex LC |
| Media | Single-Mode Fiber (SMF) |
| Maximum Distance | 80 km |
| Transmitter Type | 4x25Gbps LAN WDM EML TOSA |
| Receiver Type | 4x25Gbps SOA+PIN ROSA |
| Digital Optical Monitoring (DOM) | Supported |
| Power Supply | 3.3V |
| Power Consumption | ≤ 5.5 W |
| Operating Temperature | 0°C to 70°C |
| Optical Output Power (Total) | +7 to +12.5 dBm |
| Receiver Sensitivity (Per Lane, OMA) | ≤ -26.4 dBm |
| Rx Damage Threshold | +5.5 dBm |
| Compliance Standards | IEEE 802.3ba, ITU-T G.959, QSFP28 MSA, RoHS |
| TAA Compliance | Yes |
| Hot-Pluggable | Yes |
| Applications | 100G Ethernet, Access & Enterprise Networks |
