Description

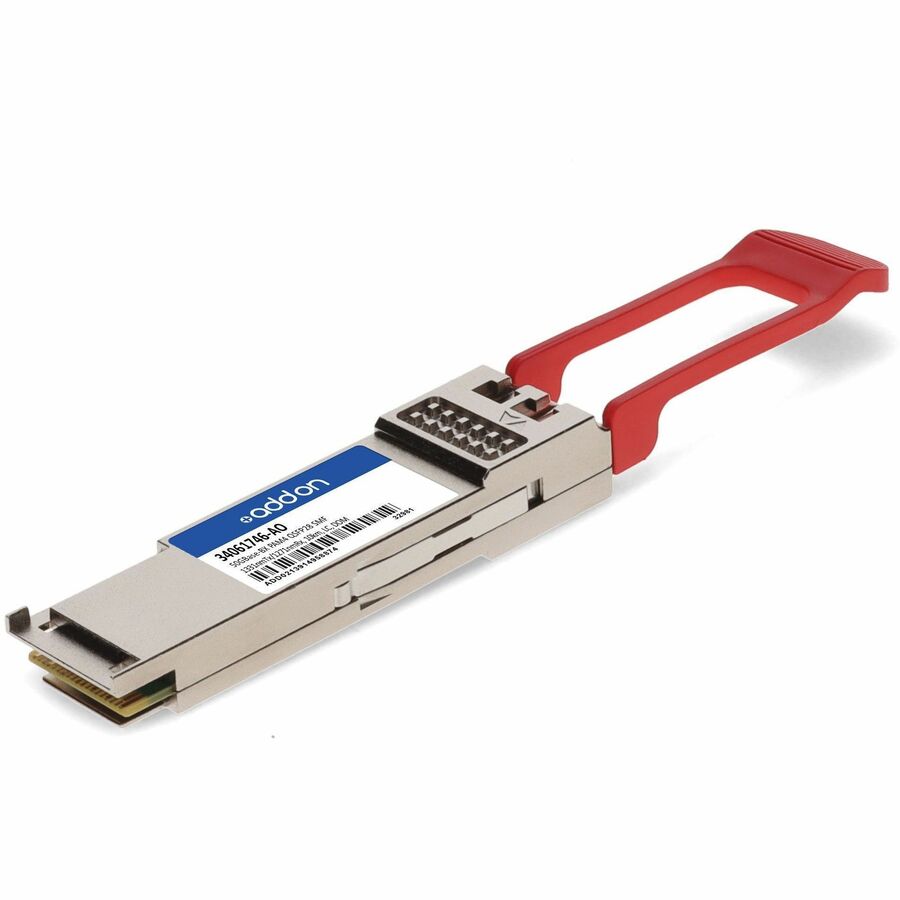

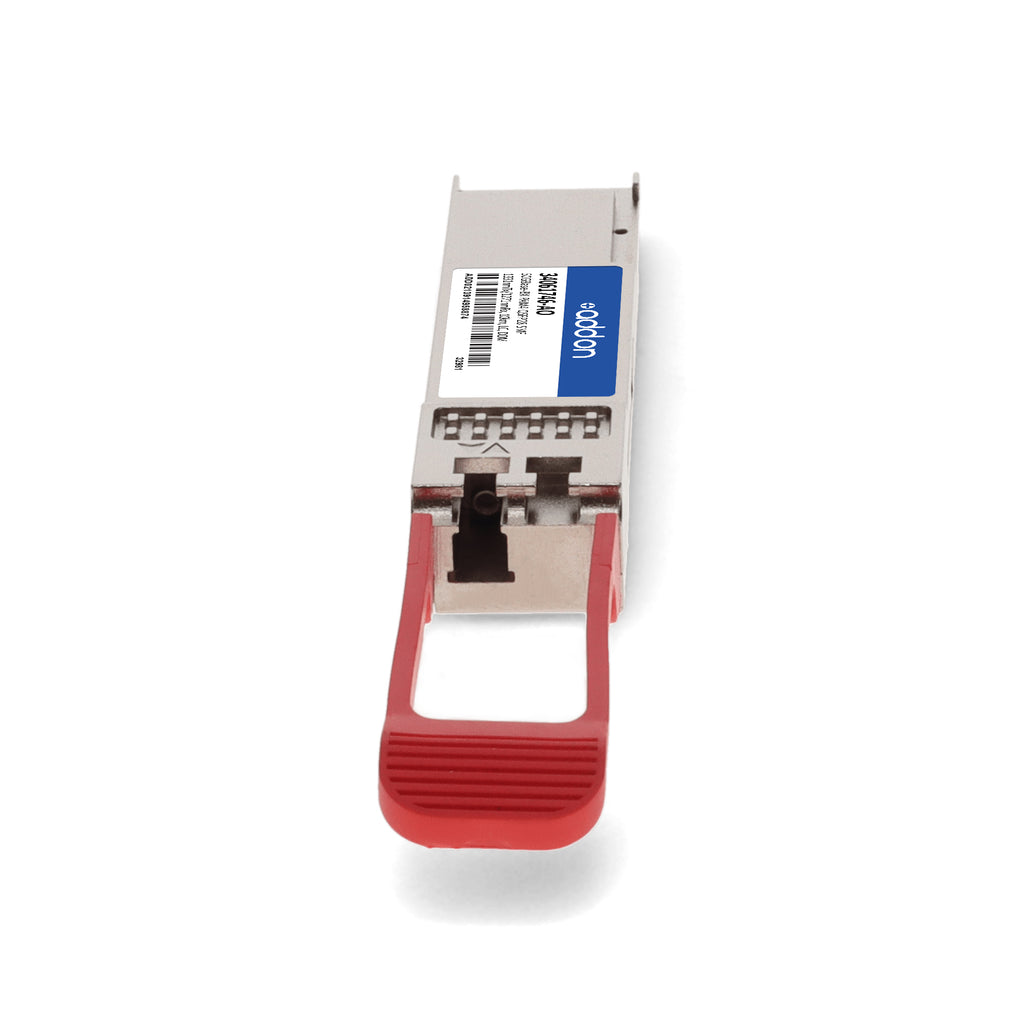

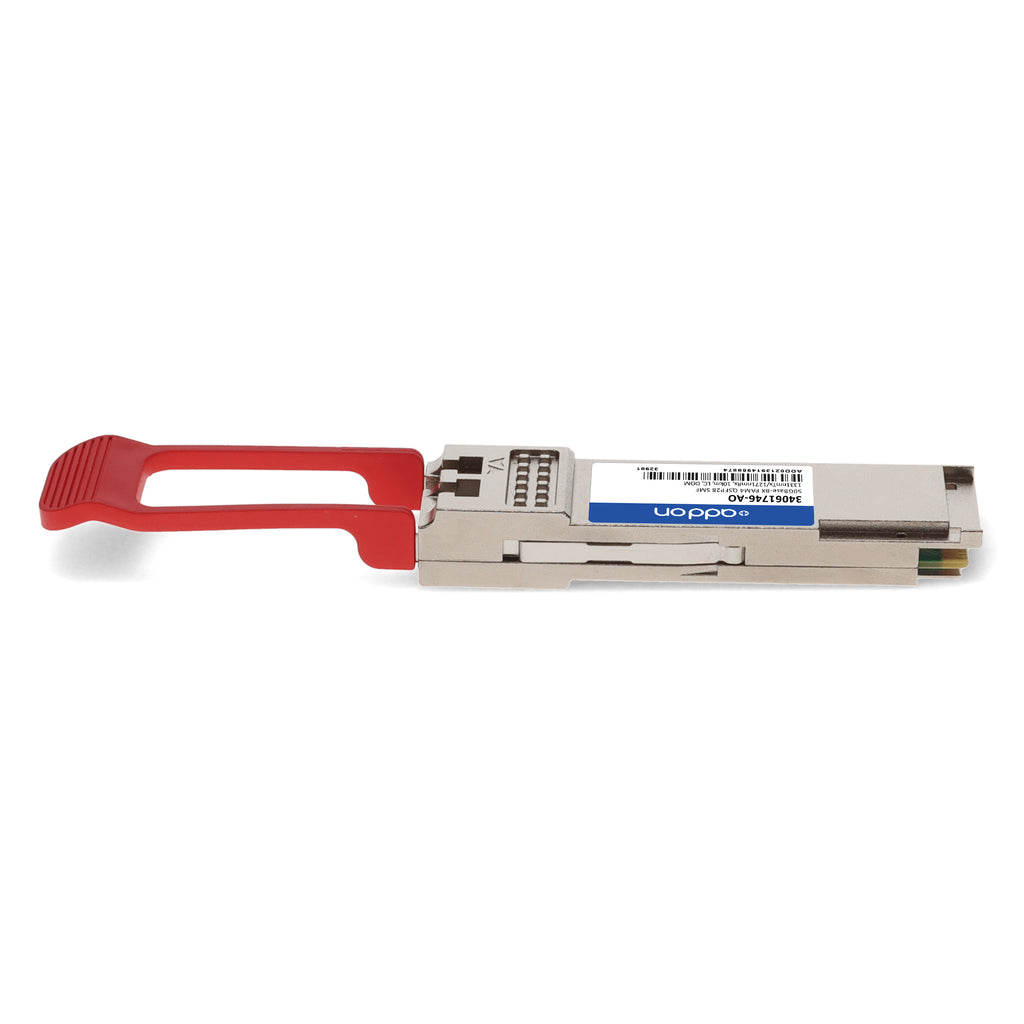

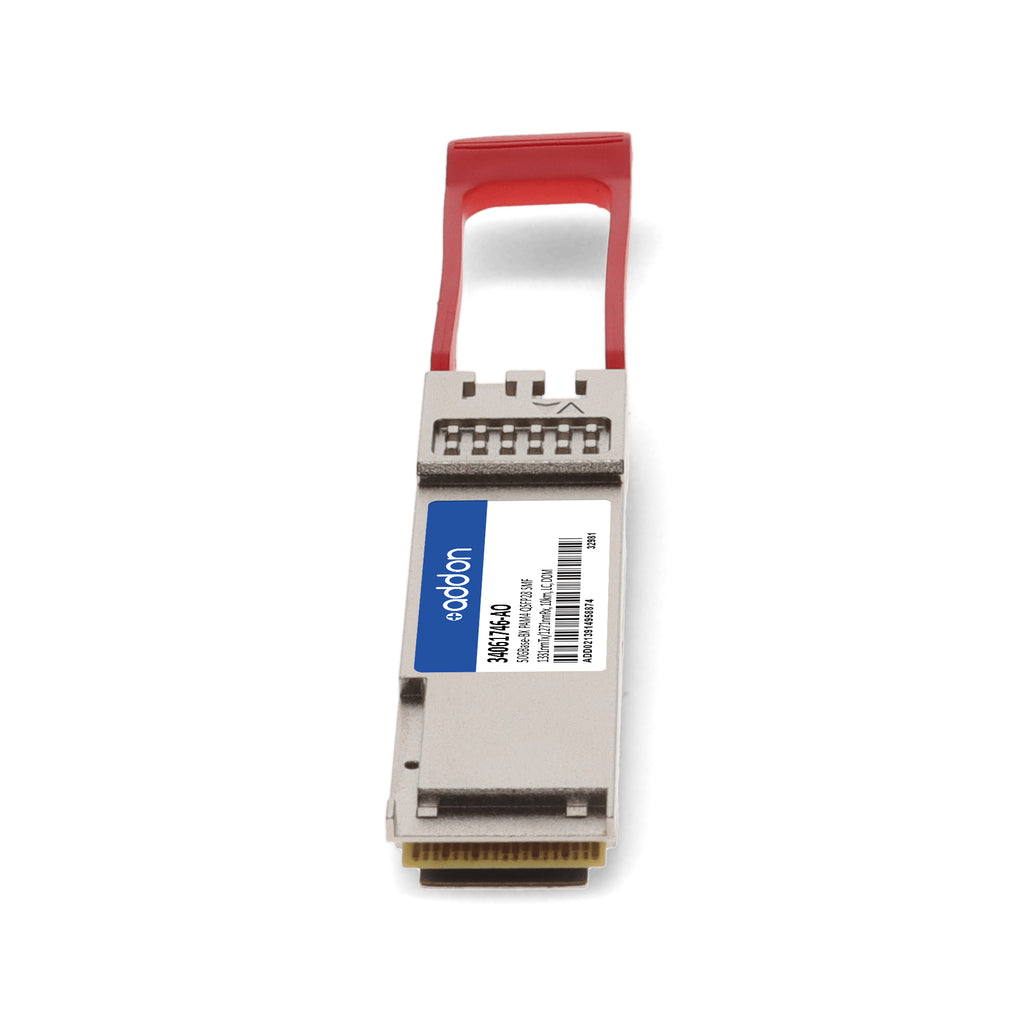

The AddOn Huawei® 34061746 Compatible TAA 50GBase-BX PAM4 QSFP28 Transceiver is designed to deliver high-performance, cost-effective optical networking for 50G Ethernet, access, and enterprise applications. Operating over single-mode fiber (SMF) with a reach of up to 10km, this hot-swappable module utilizes bidirectional transmission with a 1331nm transmit and 1271nm receive wavelength via an LC connector. It supports 50GAUI-2 serial electrical interface and complies with IEEE 802.3cp standards.
This transceiver features a power dissipation of less than 3.5W, a 2-wire management interface, and digital optical monitoring (DOM) for real-time parameter tracking. Built to ensure seamless compatibility, each unit is programmed, uniquely serialized, and thoroughly tested to guarantee identical initialization and performance to the original Huawei® part. Fully TAA and RoHS compliant, it offers exceptional reliability backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Compatible OEM | Huawei® |
| Compatible OEM Part Number | 34061746 |
| Form Factor | QSFP28 |
| Data Rate | 50GBase-BX PAM4 |
| Interface | 50GAUI-2 Serial Electrical |
| Connector Type | LC Duplex (BiDi) |
| Wavelength (Tx/Rx) | 1331nm Tx / 1271nm Rx |
| Fiber Type | Single-Mode Fiber (SMF) |
| Transmission Distance | Up to 10 km |
| Optical Modulation | PAM4 |
| Average Launch Power | -4.5 to 4.2 dBm |
| Receiver Sensitivity (OMA) | -8.9 dBm |
| Power Dissipation | < 3.5 W |
| Supply Voltage | 3.3 V |
| Digital Diagnostics | DOM Supported |
| Operating Temperature | 0°C to 70°C |
| Compliance Standards | IEEE 802.3cp, QSFP+ MSA, TAA, RoHS-6 |
| Applications | 50G Ethernet, Access, Enterprise Networks |
| Hot-Pluggable | Yes |
