Description

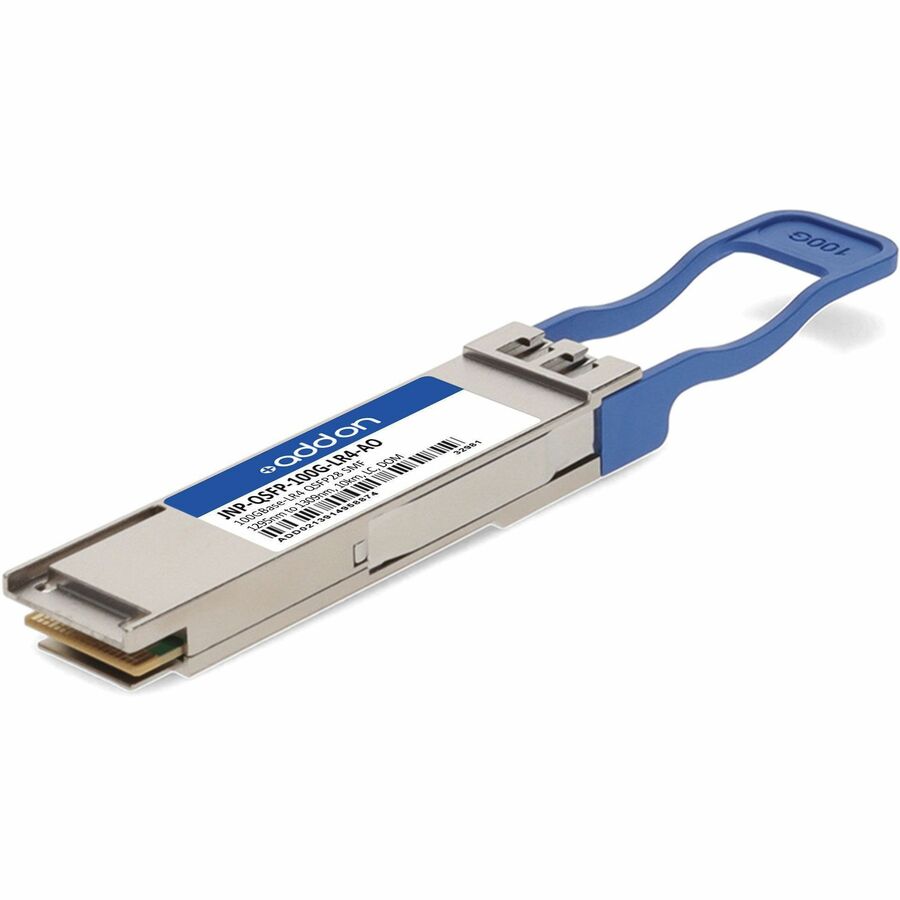

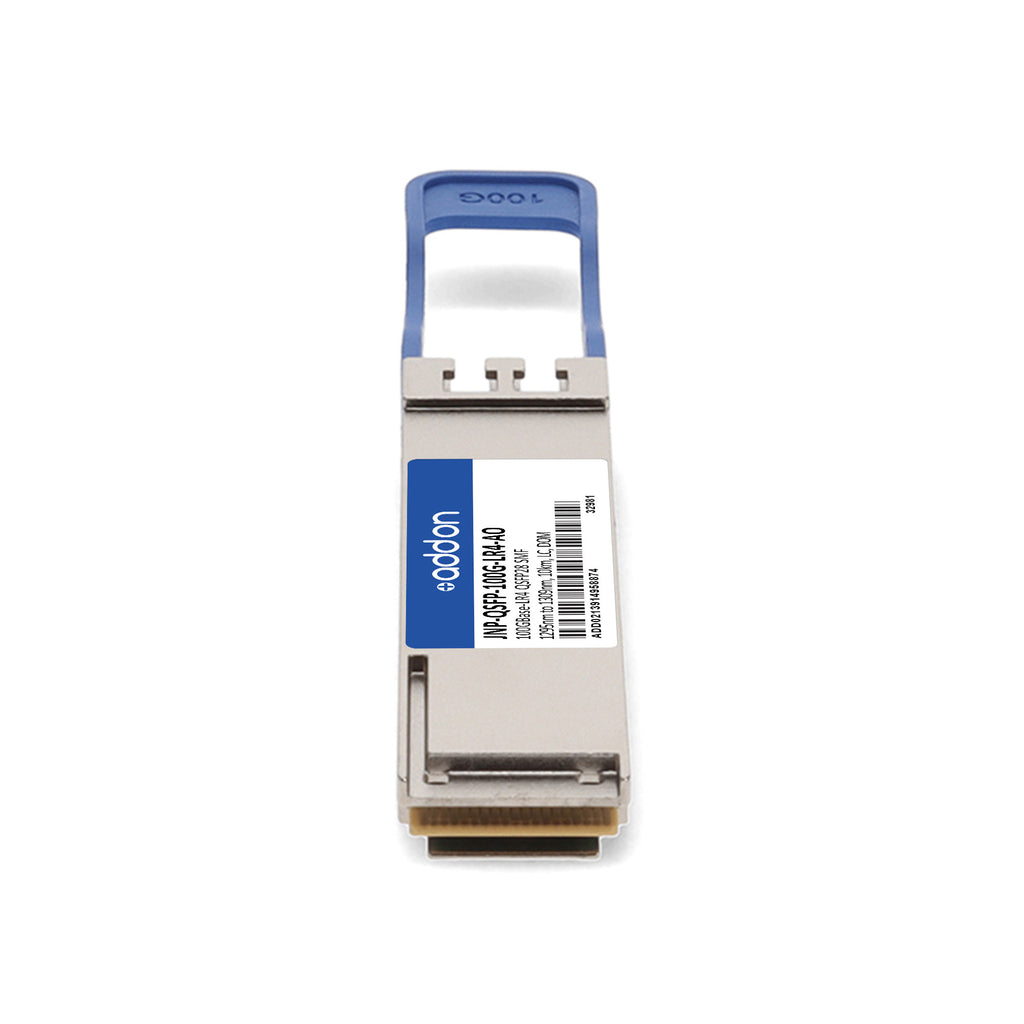

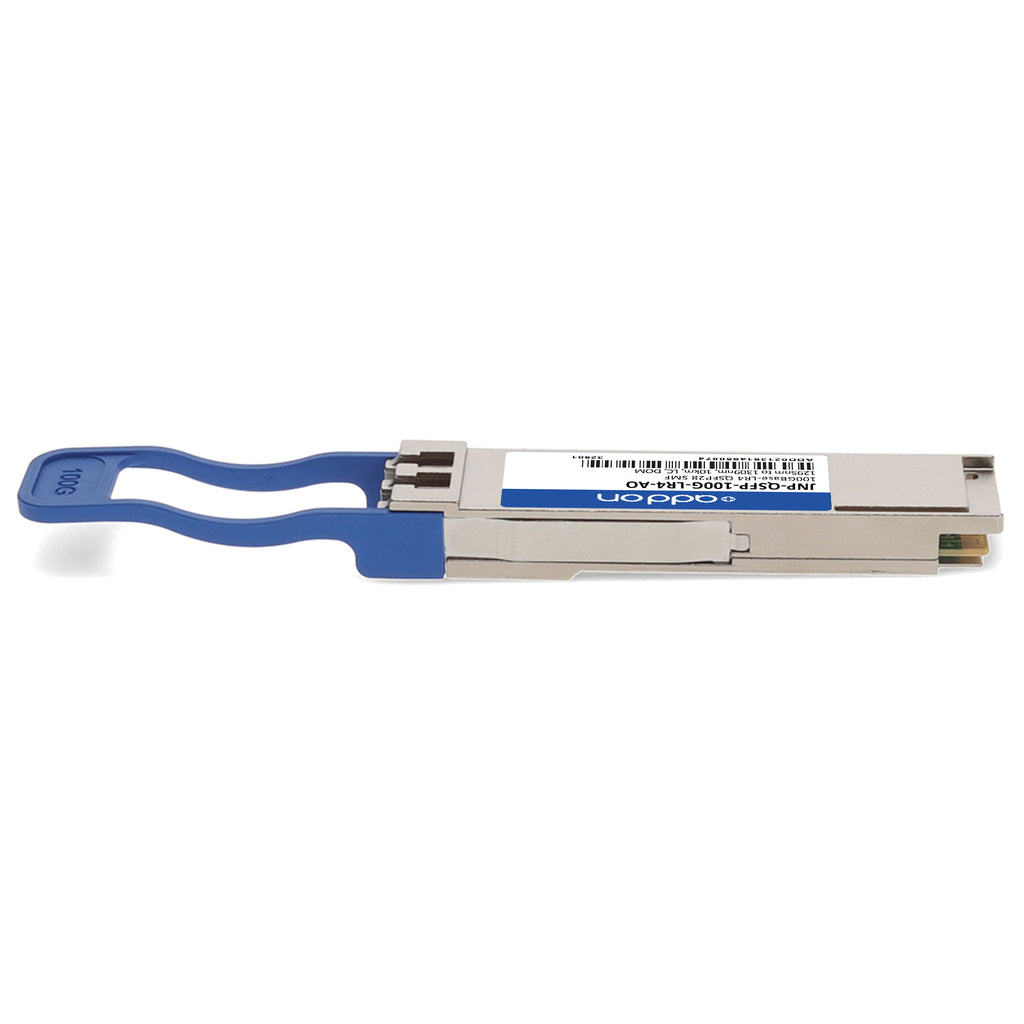

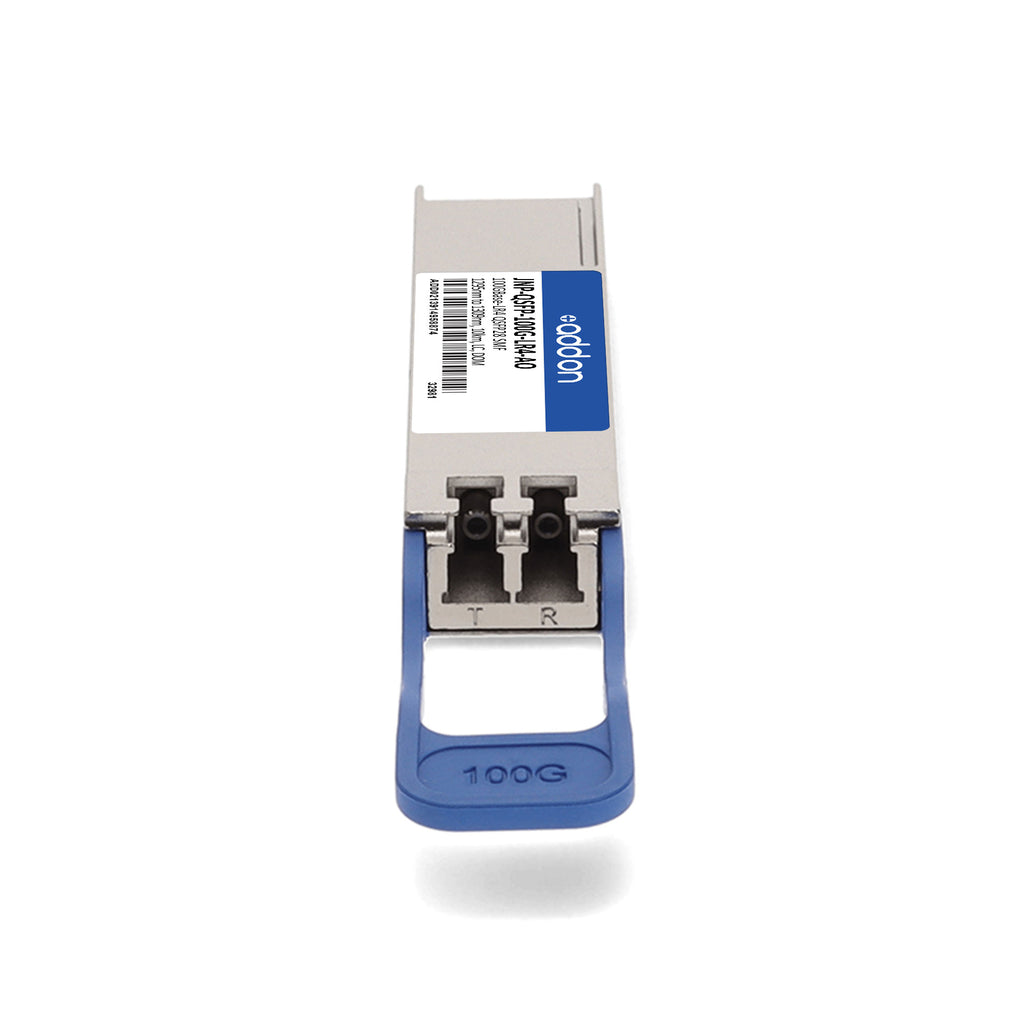

The AddOn Juniper Networks® JNP-QSFP-100G-LR4-AO is a high-performance, fully compatible QSFP28 transceiver designed to deliver reliable 100GBase-LR4 connectivity up to 10 km over single-mode fiber (SMF). Operating on four distinct wavelengths between 1295 nm and 1309 nm via a duplex LC connector, this hot-swappable module offers seamless interoperability with Juniper networking equipment.
Engineered to meet rigorous SFF-8665 and IEEE 802.3bm standards, the transceiver provides exceptional signal integrity, excellent ESD protection, and low EMI performance, making it ideal for data center, enterprise, and access network environments. Built with Digital Optical Monitoring (DOM) for real-time diagnostics, it ensures optimal performance and simplified network management.
Trade Agreements Act (TAA) compliant and backed by AddOn’s limited lifetime warranty, the JNP-QSFP-100G-LR4-AO offers a cost-effective, high-reliability solution for upgrading or expanding 100 Gbps optical links without compromising on quality or compatibility.
| Feature | Specification |
|---|---|
| Part Number | JNP-QSFP-100G-LR4-AO |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps (4 × 25.78 Gbps lanes) |
| Wavelength Range | 1295 nm – 1309 nm |
| Transmission Distance | Up to 10 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Compliance | SFF-8665, IEEE 802.3bm |
| Operating Temperature | 0 °C to 70 °C |
| Power Dissipation | ≤ 3.5 W |
| DOM Support | Yes |
| Hot Pluggable | Yes |
| Extinction Ratio | ≥ 4 dB |
| Average Launch Power (per lane) | –4.3 dBm to +4.5 dBm |
| Receiver Sensitivity (OMA per lane) | ≤ –8.6 dBm |
| Maximum Receive Power | +4.5 dBm |
| Receiver Damage Threshold | +5.5 dBm |
| TAA Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
