Description

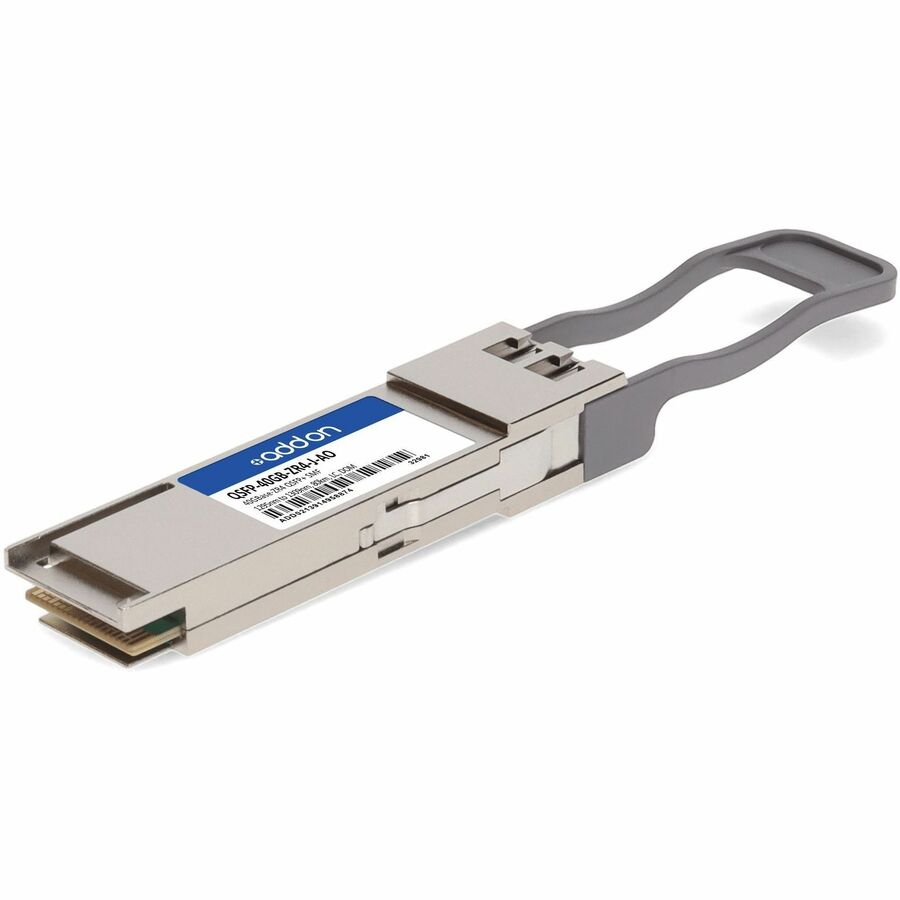

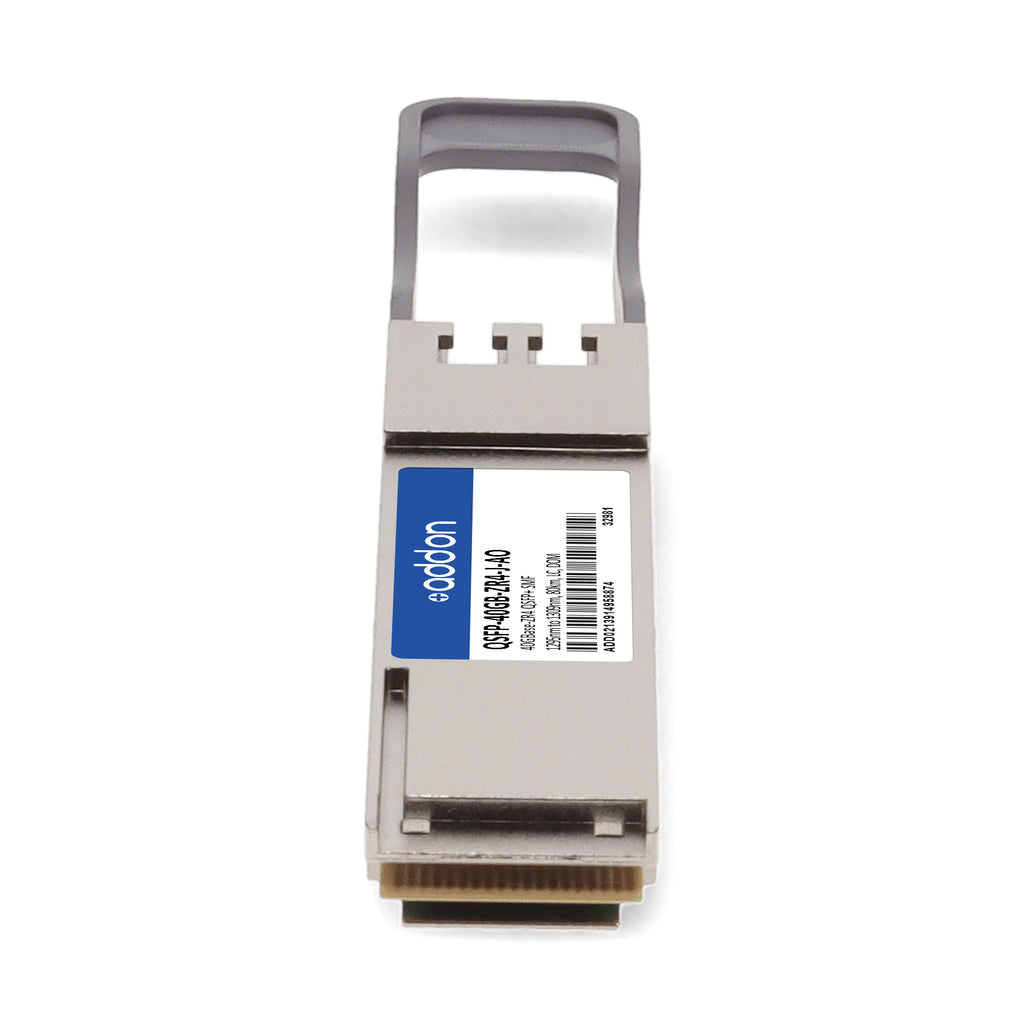

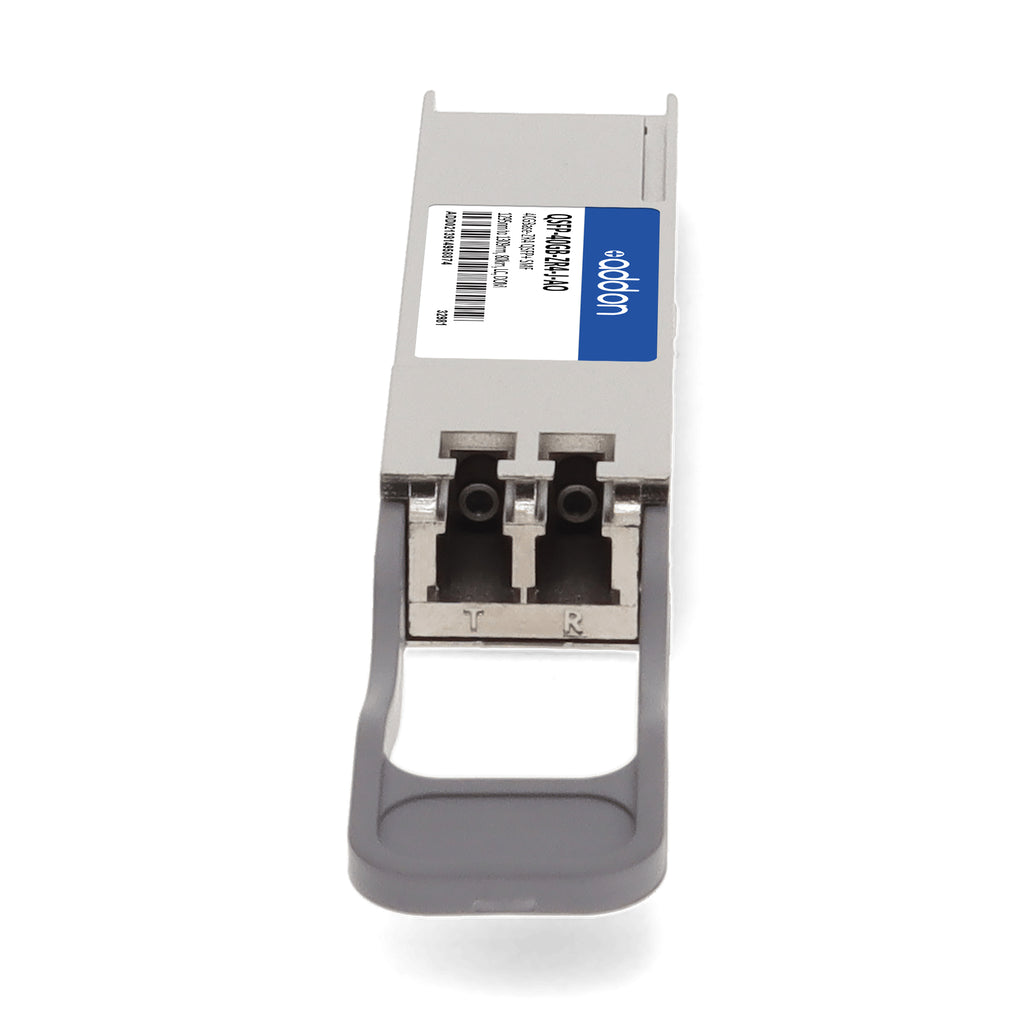

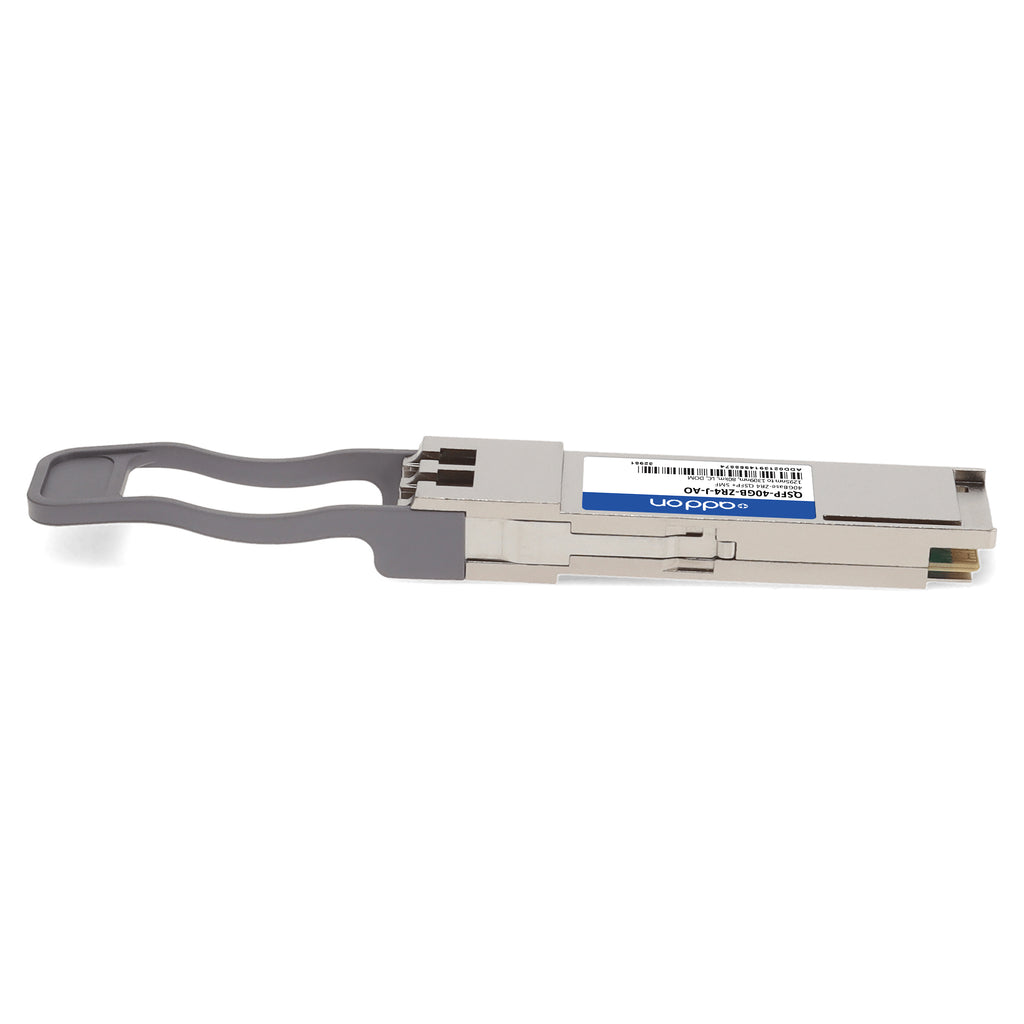

The AddOn Juniper Networks® QSFP-40GB-ZR4-J Compatible TAA 40GBase-ZR4 QSFP+ Transceiver delivers high-performance, long-distance connectivity for 40G Ethernet applications over single-mode fiber (SMF). Designed for seamless interoperability with Juniper® networking equipment, this hot-swappable transceiver supports up to 80 km transmission distance using LAN WDM wavelengths (1295 nm to 1309 nm) and a duplex LC connector.
Compliant with QSFP+ MSA standards, this module features four cooled 10.3125 Gbps LAN WDM EML transmitters, four SOA PIN photodetectors, and Digital Optical Monitoring (DOM) for real-time performance monitoring. It operates reliably within a commercial temperature range (0°C to 70°C) and is fully TAA-compliant, making it ideal for government, enterprise, and service provider networks. Each unit is programmed, uniquely serialized, and thoroughly tested for guaranteed compatibility and reliable network integration.
| Specification | Details |
|---|---|
| Manufacturer | AddOn |
| Part Number | QSFP-40GB-ZR4-J-AO |
| Form Factor | QSFP+ |
| Data Rate per Channel | 10.3125 Gbps |
| Aggregate Data Rate | 40 Gbps |
| Wavelength | 1295 nm – 1309 nm (LAN WDM) |
| Transmission Distance | Up to 80 km |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Digital Optical Monitoring (DOM) | Supported |
| Laser Type | Cooled LAN WDM EML |
| Receiver Type | SOA PIN photodetector |
| Optical Launch Power (per lane) | 2.0 – 6.5 dBm |
| Total Launch Power | Up to 12.5 dBm |
| Receiver Sensitivity (OMA) | -26.9 dBm |
| Receiver Sensitivity (Average) | -28 dBm |
| Extinction Ratio | ≥ 8 dB |
| Side-Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Optical Return Loss Tolerance | ≥ 20 dB |
| Power Supply Voltage | +3.3 V |
| Power Dissipation | ≤ 5 W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Compliance | QSFP+ MSA, RoHS, TAA |
| Hot-Swappable | Yes |
| Warranty | Limited Lifetime Warranty |
