Description

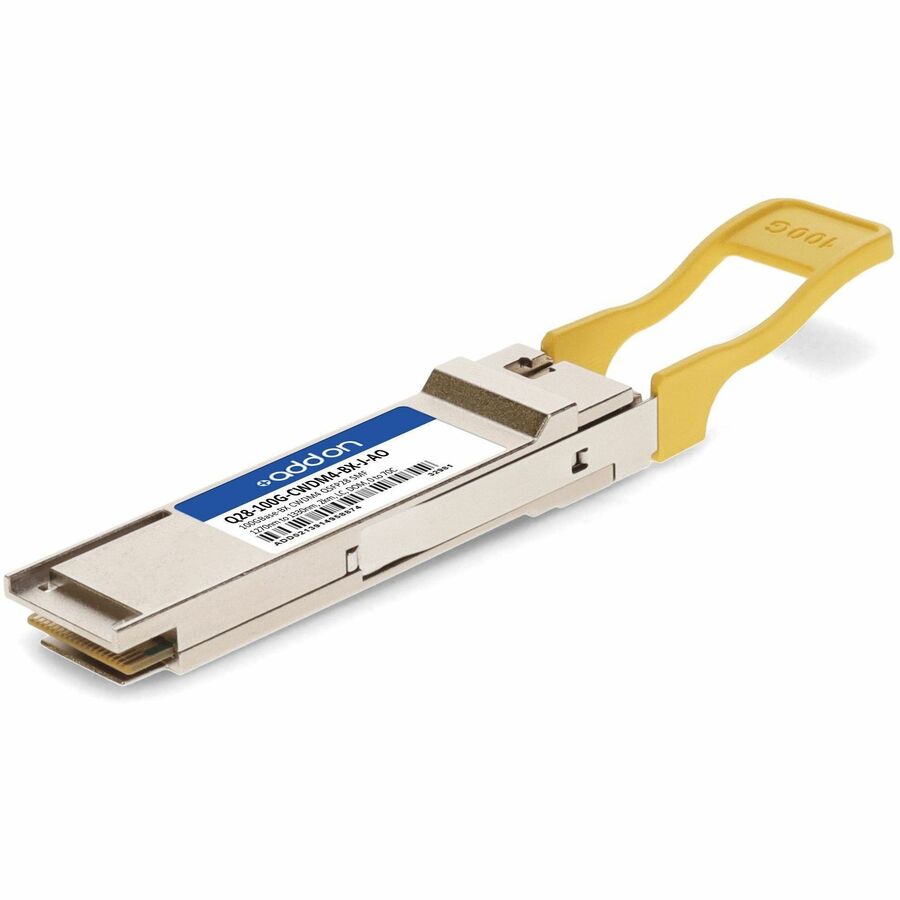

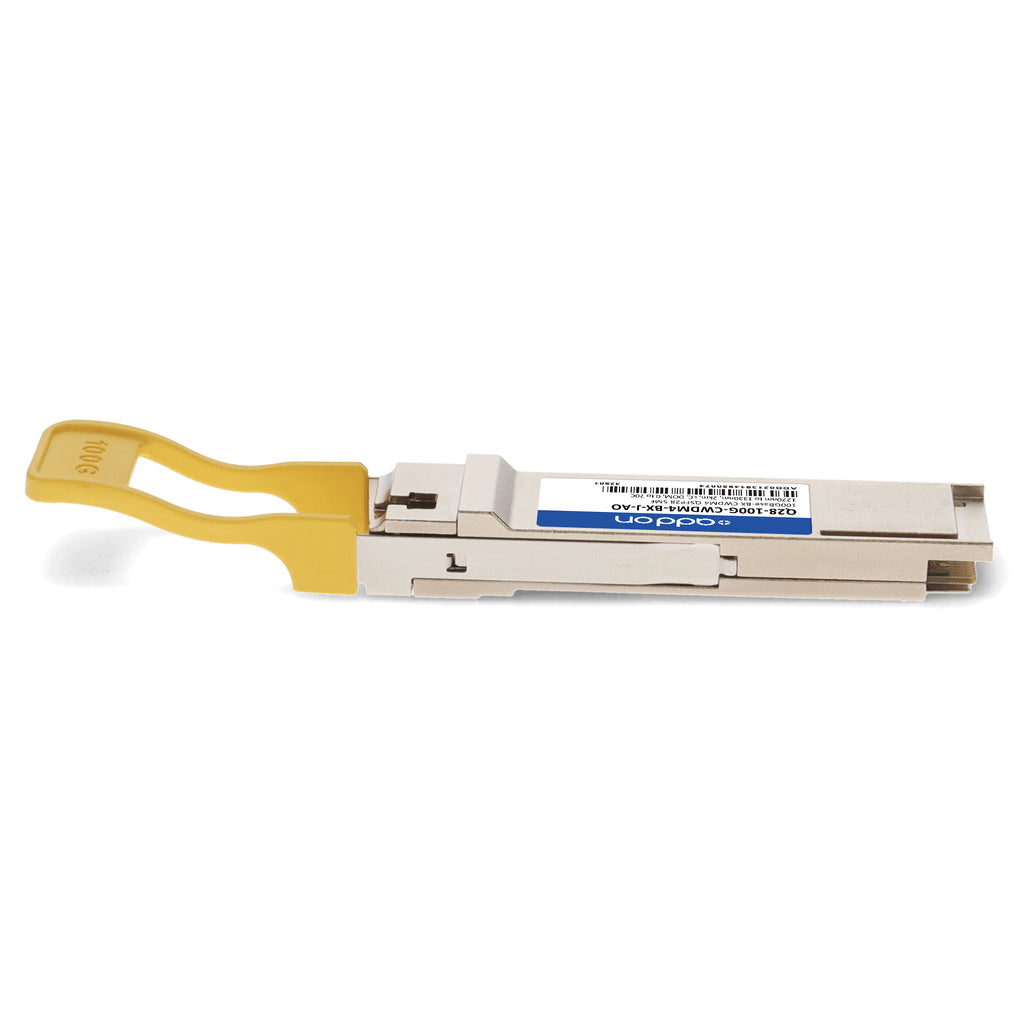

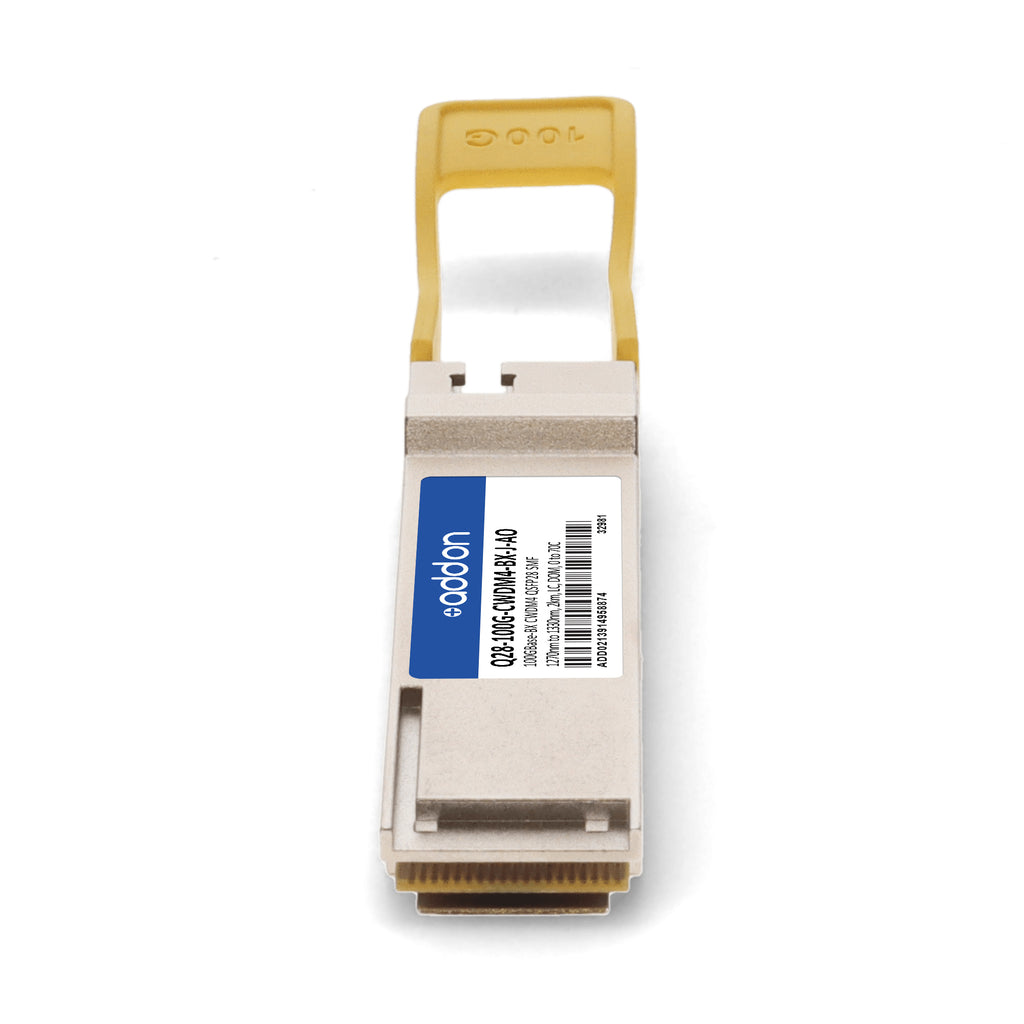

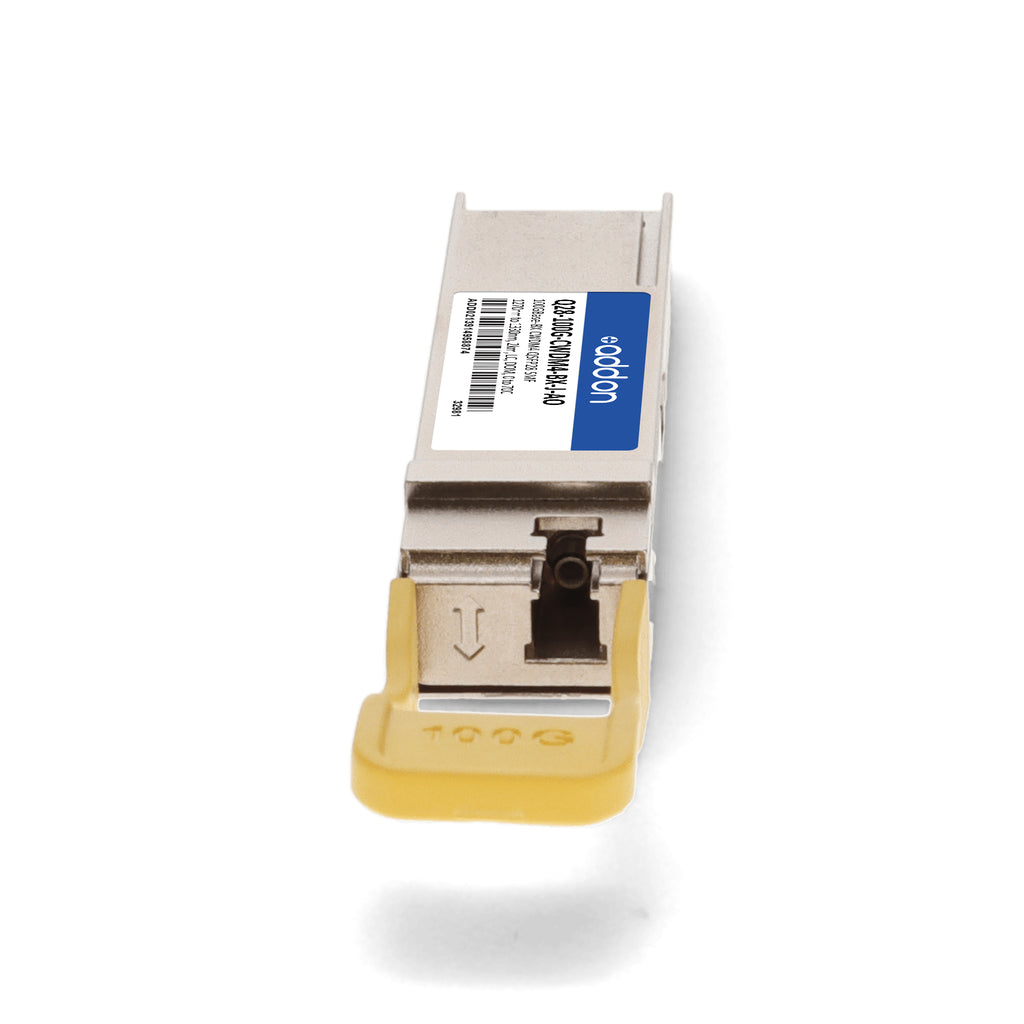

The AddOn Juniper Networks® Q28-100G-CWDM4-BX-J-AO is a high-performance, TAA-compliant QSFP28 transceiver designed to deliver 100GBase-BX CWDM4 connectivity over single-mode fiber (SMF) at distances of up to 2km. Utilizing four CWDM lanes in the 1270nm to 1330nm wavelength range, this module offers an aggregate data rate of 103.1Gbps and supports bidirectional data transmission with a simplex LC connector. Built to meet or exceed OEM standards, it is fully compatible with Juniper Networks® equipment, programmed, serialized, and rigorously tested for guaranteed interoperability and performance.
This transceiver complies with MSA standards and includes Digital Optical Monitoring (DOM) support for real-time parameter monitoring. With a hot-pluggable design, low power consumption (≤3.5W), and a commercial operating temperature range of 0°C to 70°C, it is ideal for Ethernet over CWDM deployments in metro, enterprise, and access network environments. AddOn’s modules are RoHS compliant, lead-free, and backed by a limited lifetime warranty for long-term reliability and peace of mind.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | Q28-100G-CWDM4-BX-J-AO |
| Compatibility | Juniper Networks® |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-BX CWDM4 (4×25.78125 Gbps) |
| Wavelength Range | 1270nm – 1330nm |
| Transmission Distance | Up to 2 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | LC Simplex, Angled Polish |
| Optical Interface | 4 CWDM Lanes (MUX/DEMUX) |
| Optical Power (Avg. per Lane) | -6.5 to 2.5 dBm |
| Receiver Sensitivity (OMA per Lane) | ≤ -10 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Digital Optical Monitoring (DOM) | Supported |
| Power Consumption | ≤ 3.5 W |
| Operating Temperature | 0°C to 70°C |
| Compliance | QSFP28 MSA, RoHS, TAA, FCC Part 15, EN55022, FDA 21CFR, IEC 60825-1/2 |
| Applications | Ethernet over CWDM, Metro, Access, Enterprise Networks |
| Hot Pluggable | Yes |
| Warranty | Limited Lifetime |
