Description

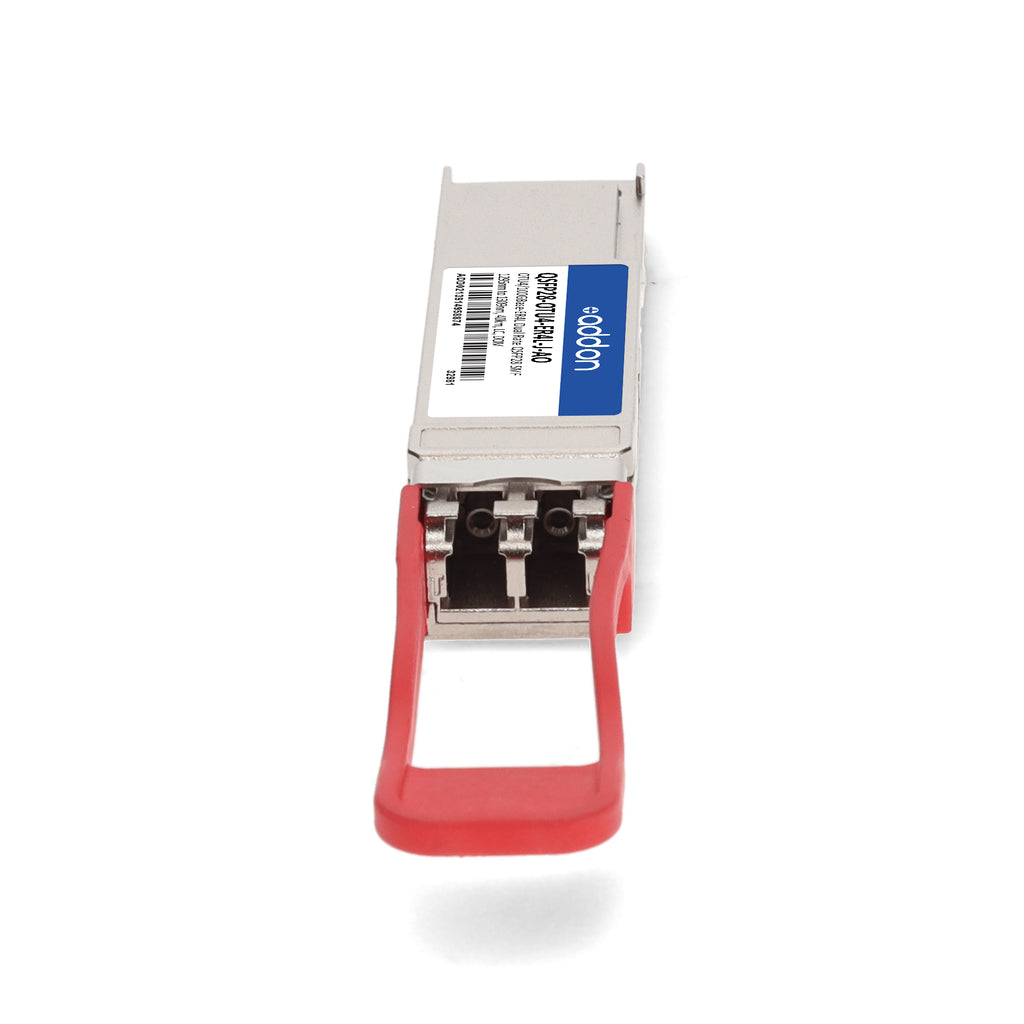

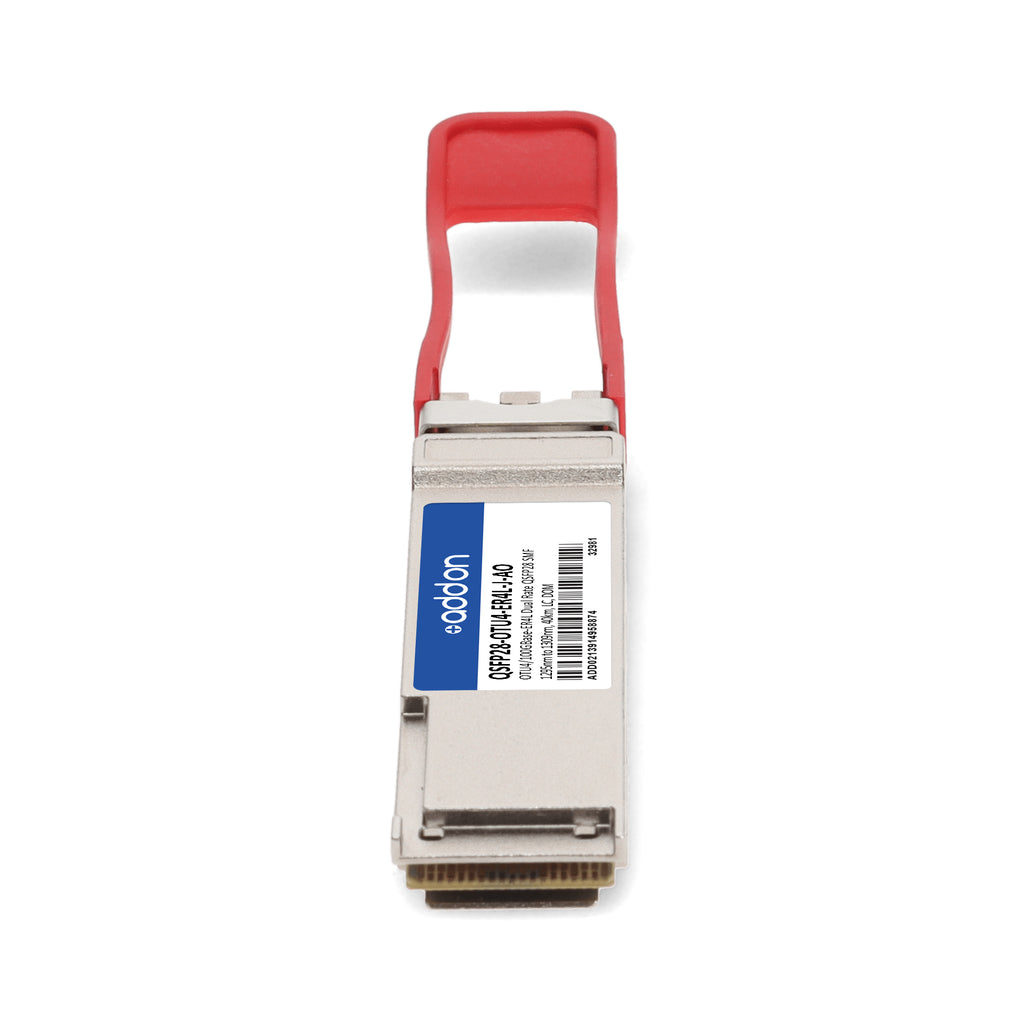

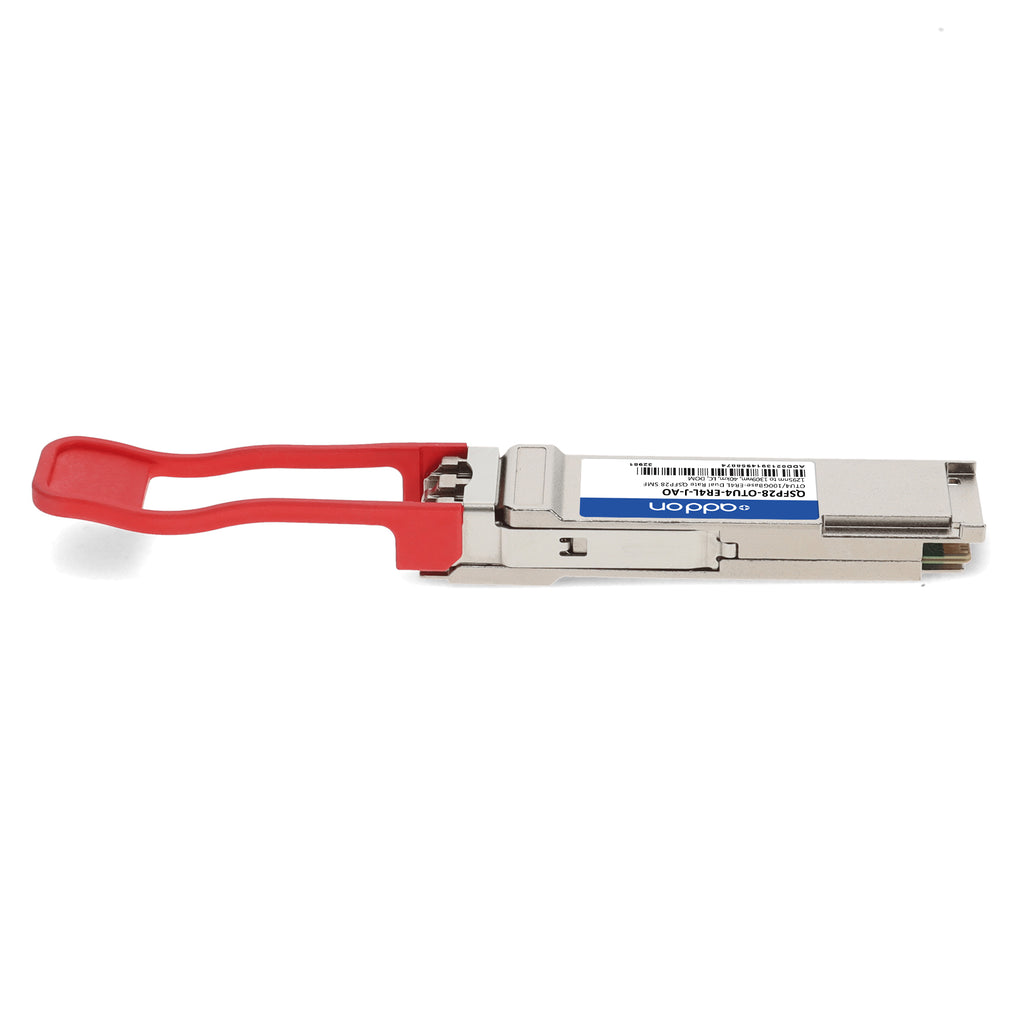

The AddOn Juniper Networks® QSFP28-OTU4-ER4L Compatible TAA 100GBase/OTU4 Dual-Rate Transceiver delivers reliable high-speed data transmission over single-mode fiber (SMF) for distances up to 40km with FEC, using wavelengths from 1295nm to 1309nm via a duplex LC connector. This hot-swappable module supports both Ethernet and OTN OTU4 applications, making it ideal for access, enterprise, and carrier networks that require long-reach 100G connectivity.
Built to meet rigorous industry standards, the transceiver complies with SFF-8665, provides excellent ESD protection, and features a metal housing for reduced EMI. Digital Optical Monitoring (DOM) is integrated to allow real-time monitoring of key operating parameters. Each unit is uniquely serialized, fully tested for data traffic and application performance, and guaranteed to function identically to the OEM part. The module is RoHS-compliant, lead-free, and Trade Agreements Act (TAA) compliant, backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| SKU | QSFP28-OTU4-ER4L-J-AO |
| Compatible OEM | Juniper Networks® |
| Form Factor | QSFP28 |
| Data Rate | 100GBase Ethernet / OTU4 Dual-Rate |
| Wavelength Range | 1295nm – 1309nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Reach | Up to 40km with FEC (30km without FEC) |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Power Consumption | 4.5 W (typ.) |
| Compliance Standards | SFF-8665, FCC Part 15B, EN55022:2010, FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| ESD Protection | MIL-STD-883E Method 3015.4, IEC 61000-4-3 |
| EMI Shielding | Metal Housing, Low EMI |
| Hot-Swappable | Yes |
| Applications | 100G Ethernet, OTN OTU4, Access & Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
| TAA Compliance | Yes |
| RoHS Compliance | Yes (RoHS 2.0, Directive 2015/863/EU) |
