Description

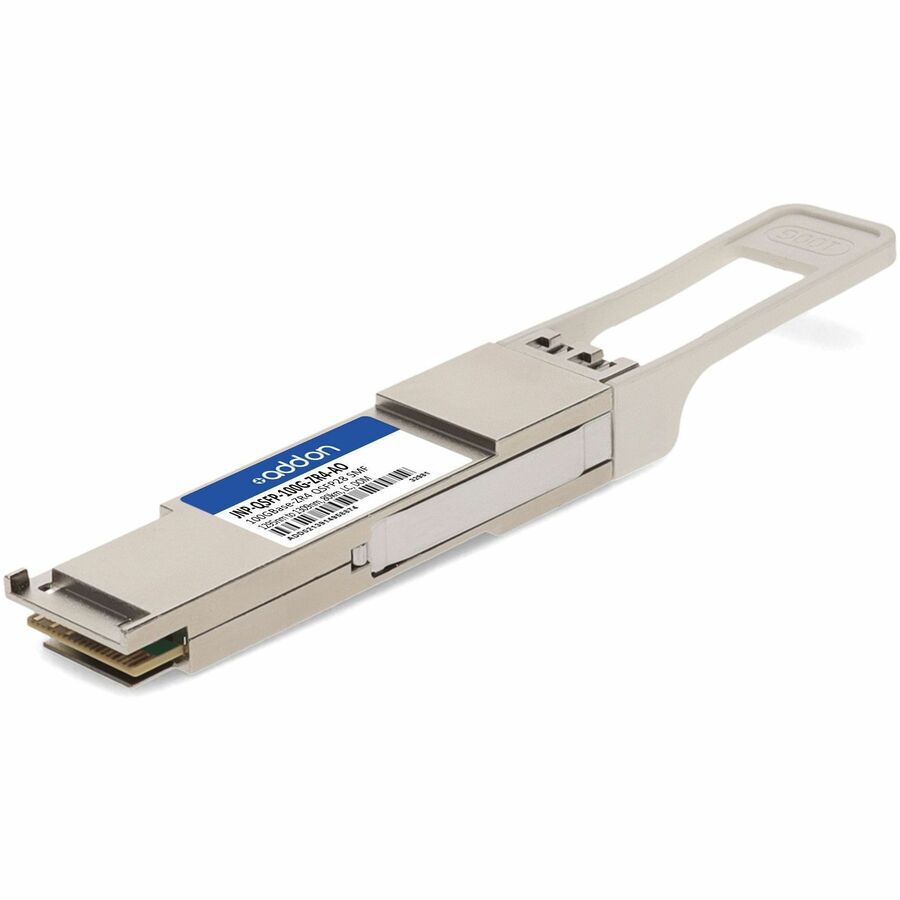

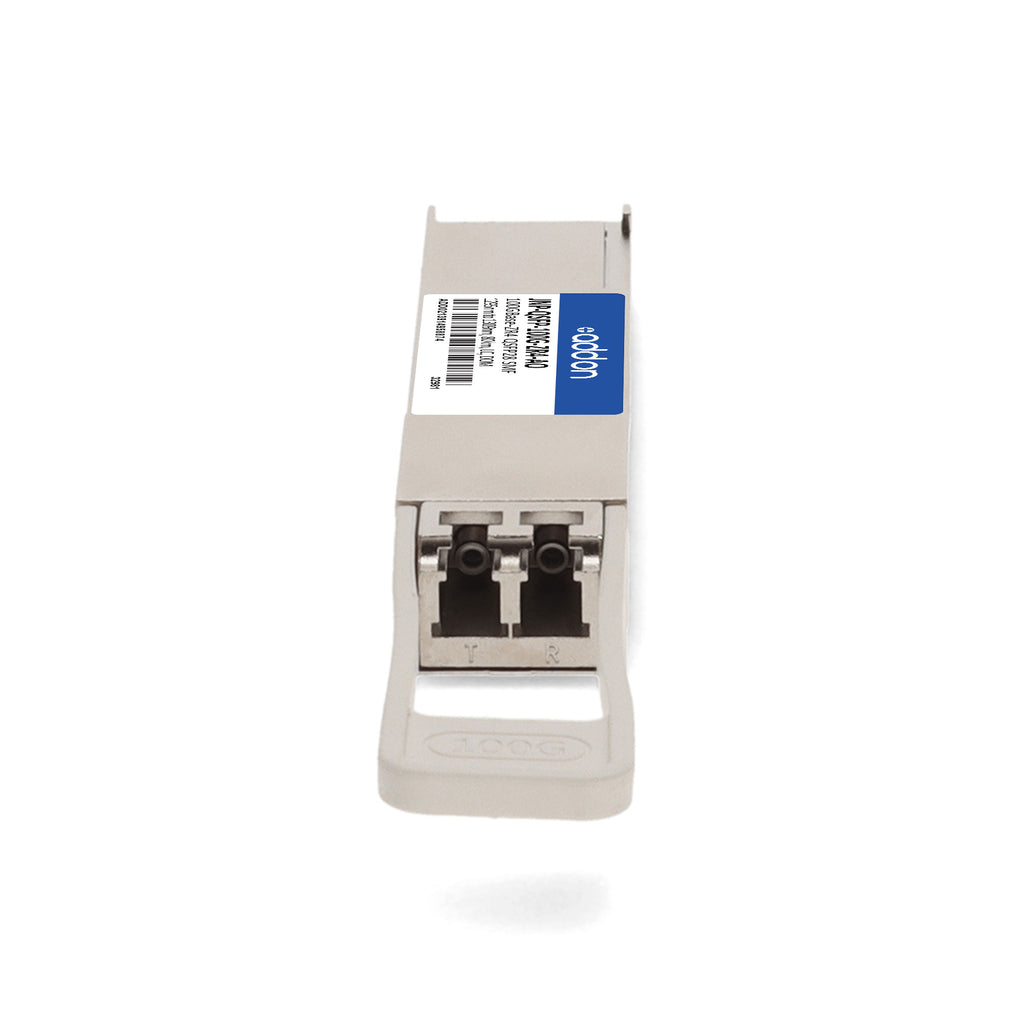

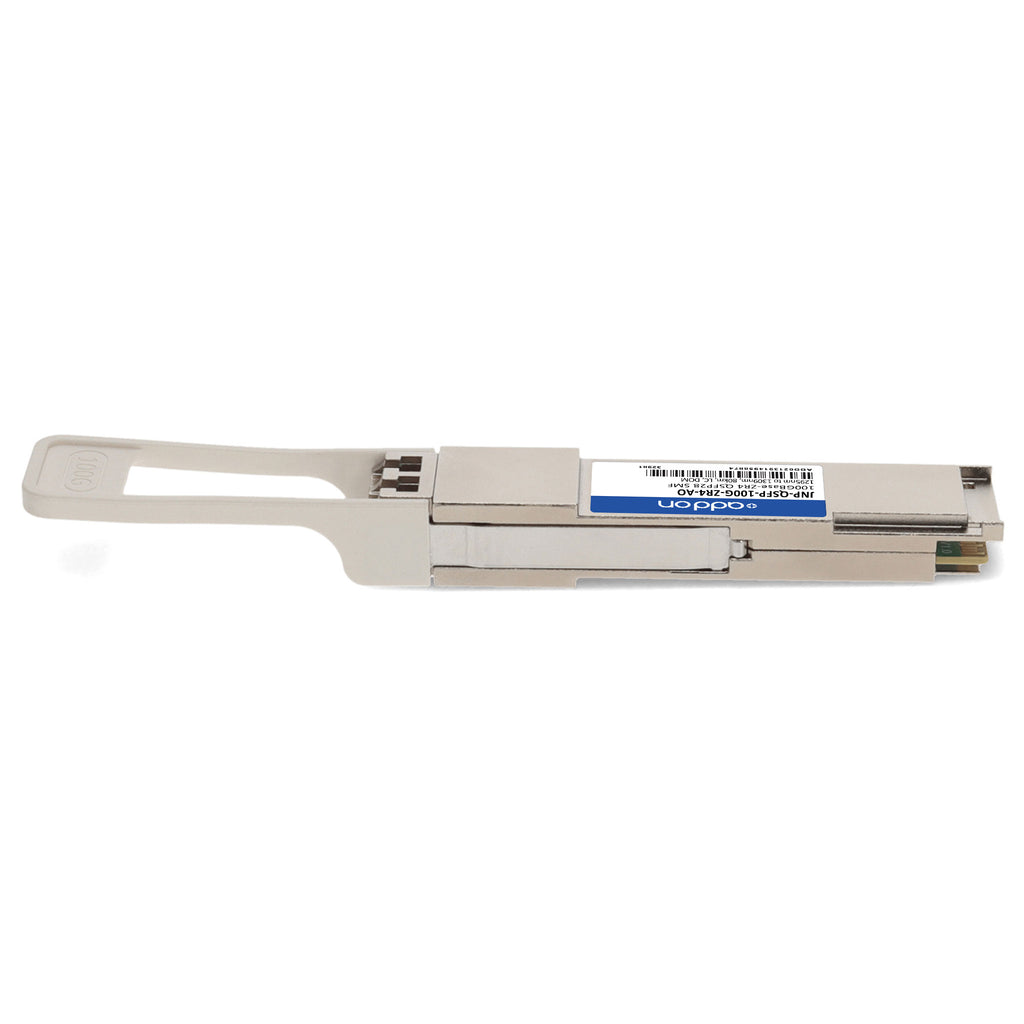

The AddOn Juniper Networks® JNP-QSFP-100G-ZR4 Compatible TAA 100GBase-ZR4 QSFP28 Transceiver delivers high-performance 100Gbps connectivity for demanding network applications. Designed for use over single-mode fiber (SMF), it supports transmission distances up to 80 km using 1295nm–1309nm wavelengths and duplex LC connectors.
Engineered to comply with IEEE 802.3ba and ITU-T G.959, this hot-pluggable transceiver integrates a cooled 4×25Gbps LAN WDM EML TOSA transmitter and a 4×25Gbps SOA+PIN ROSA receiver, ensuring superior signal integrity and reliability. With Digital Optical Monitoring (DOM) support, users can easily monitor real-time operating parameters for enhanced network management.
Each unit is programmed, uniquely serialized, and rigorously tested for 100% compatibility with Juniper Networks® platforms, guaranteeing seamless integration and identical performance. It is TAA compliant, RoHS certified, and backed by AddOn’s limited lifetime warranty, making it a dependable solution for 100G Ethernet, enterprise, and access network environments.
| Specification | Details |
|---|---|
| Compatible OEM | Juniper Networks® |
| Part Number | JNP-QSFP-100G-ZR4 |
| Form Factor | QSFP28 |
| Application | 100GBase-ZR4 Ethernet |
| Compliance Standards | IEEE 802.3ba, ITU-T G.959, QSFP28 MSA |
| Wavelength Range | 1295nm – 1309nm (LAN WDM) |
| Transmission Distance | Up to 80 km (with FEC) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmitter Type | Cooled 4×25Gbps LAN WDM EML TOSA |
| Receiver Type | 4×25Gbps SOA+PIN ROSA |
| Data Rate | 100 Gbps (4×25.78125 Gbps) |
| Optical Output Power (Per Lane) | +1 to +6.5 dBm |
| Receiver Sensitivity (Per Lane) | ≤ -26.4 dBm (OMA) |
| Power Consumption | ≤ 5.5 W |
| Supply Voltage | 3.135V – 3.465V |
| Operating Temperature | 0°C to +70°C (Commercial) |
| Storage Temperature | -40°C to +85°C |
| Digital Optical Monitoring (DOM) | Supported |
| Hot-Pluggable | Yes |
| TAA Compliant | Yes |
| RoHS Compliant / Lead-Free | Yes |
