Description

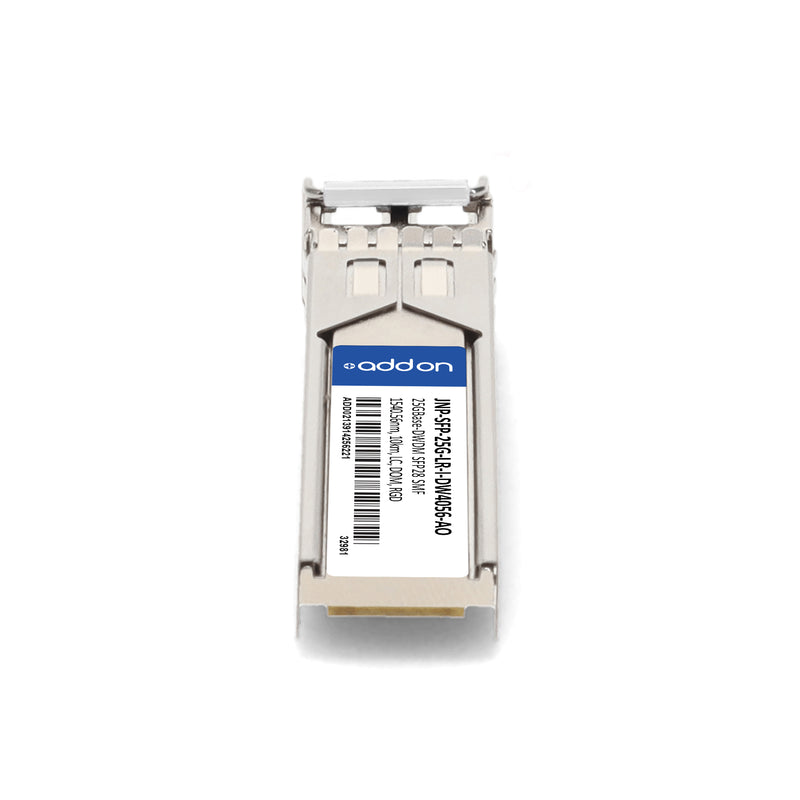

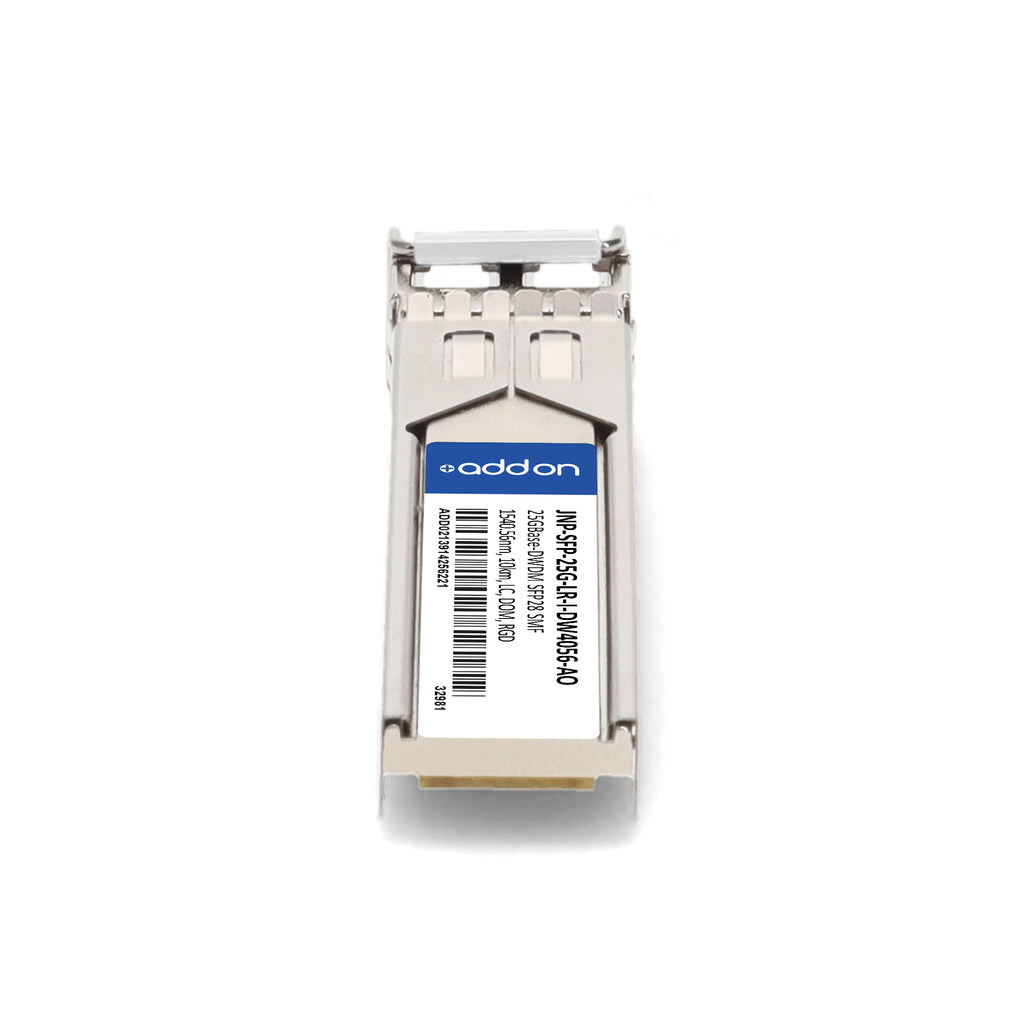

The AddOn Juniper JNP-SFP-25G-LR-I-DW4056 Compatible SFP28 Transceiver delivers high-performance 25GBase-DWDM connectivity up to 10km over single-mode fiber (SMF) using a 1540.56nm wavelength. Fully compliant with Juniper standards, this hot-swappable transceiver ensures seamless integration into existing network infrastructures.
Engineered with industrial temperature tolerance (-40°C to 85°C), digital optical monitoring (DOM), and low power consumption, it is optimized for demanding access, metro, and enterprise environments. TAA compliant, RoHS certified, and backed by AddOn’s limited lifetime warranty, this transceiver is a reliable and cost-effective choice for mission-critical networks.
| Attribute | Details |
|---|---|
| SKU | JNP-SFP-25G-LR-I-DW4056-AO |
| Form Factor | SFP28 (Hot-Pluggable) |
| Data Rate | 25GBase-DWDM (24.33 – 25.78 Gbps) |
| Wavelength | 1540.56nm (DWDM, ITU Channel D46) |
| Distance / Reach | Up to 10 km over SMF |
| Connector | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Temperature Range | Industrial: -40°C to 85°C |
| Digital Diagnostics (DOM) | Supported |
| Power Dissipation | 2.0W (Max) |
| Transmitter Power | -1 to +5 dBm |
| Receiver Sensitivity | -15 dBm (typical), -14.5 dBm (EOL), -9 dBm after 10km fiber |
| Extinction Ratio | >6 dB |
| Compliance | SFF-8432, SFF-8472, RoHS, TAA, FCC Part 15, EN55022, FDA 21CFR, IEC 60825 |
| Warranty | Limited Lifetime |
