Description

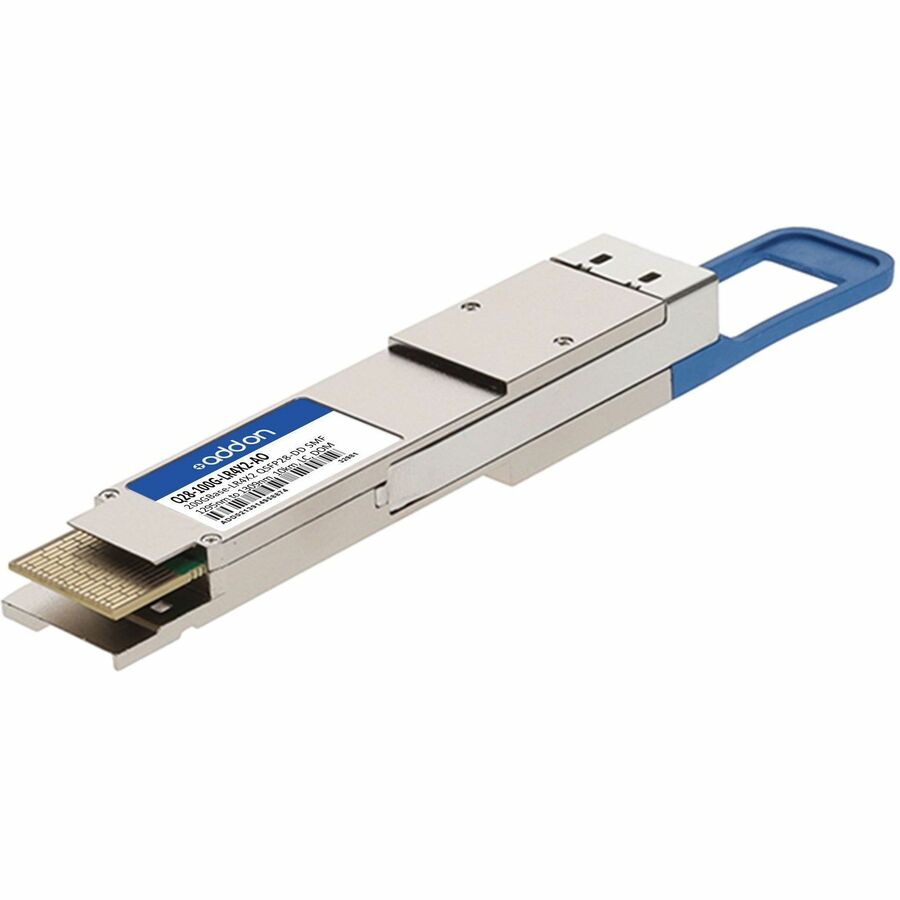

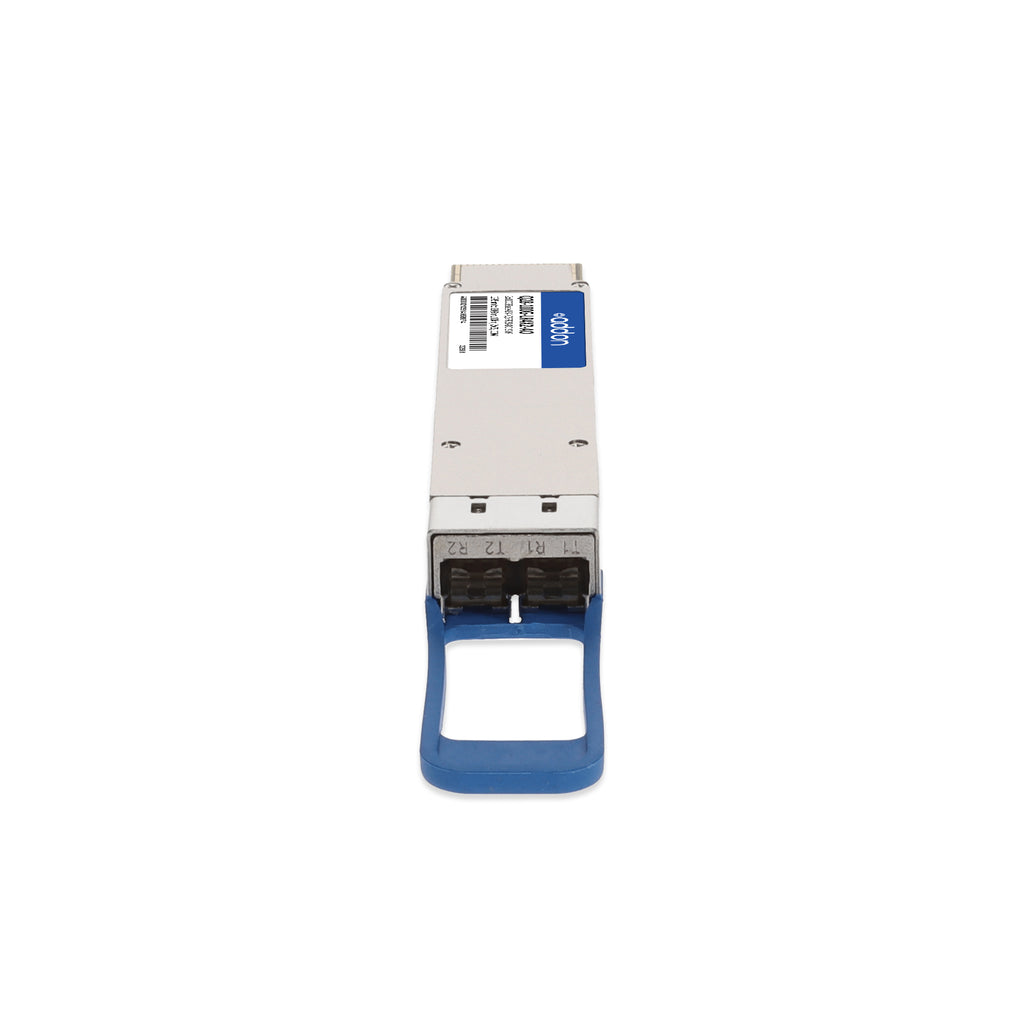

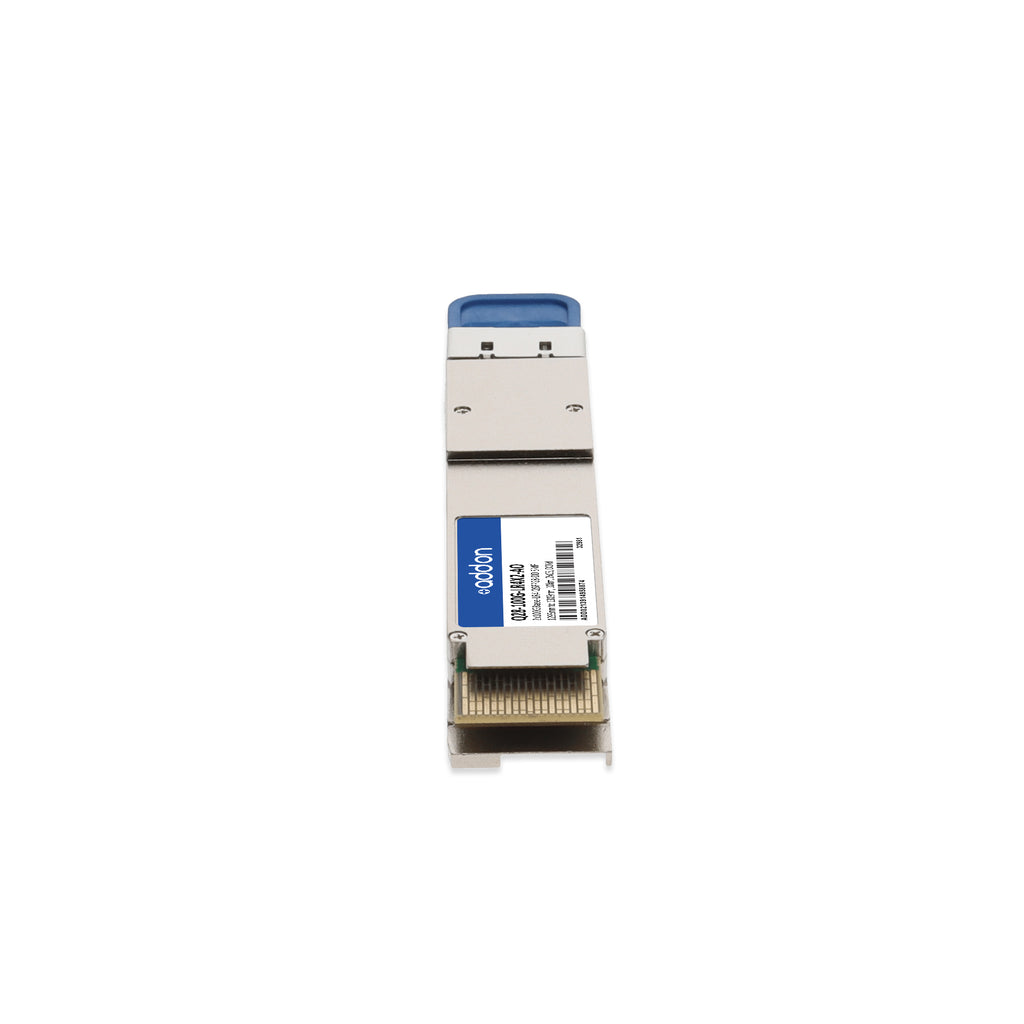

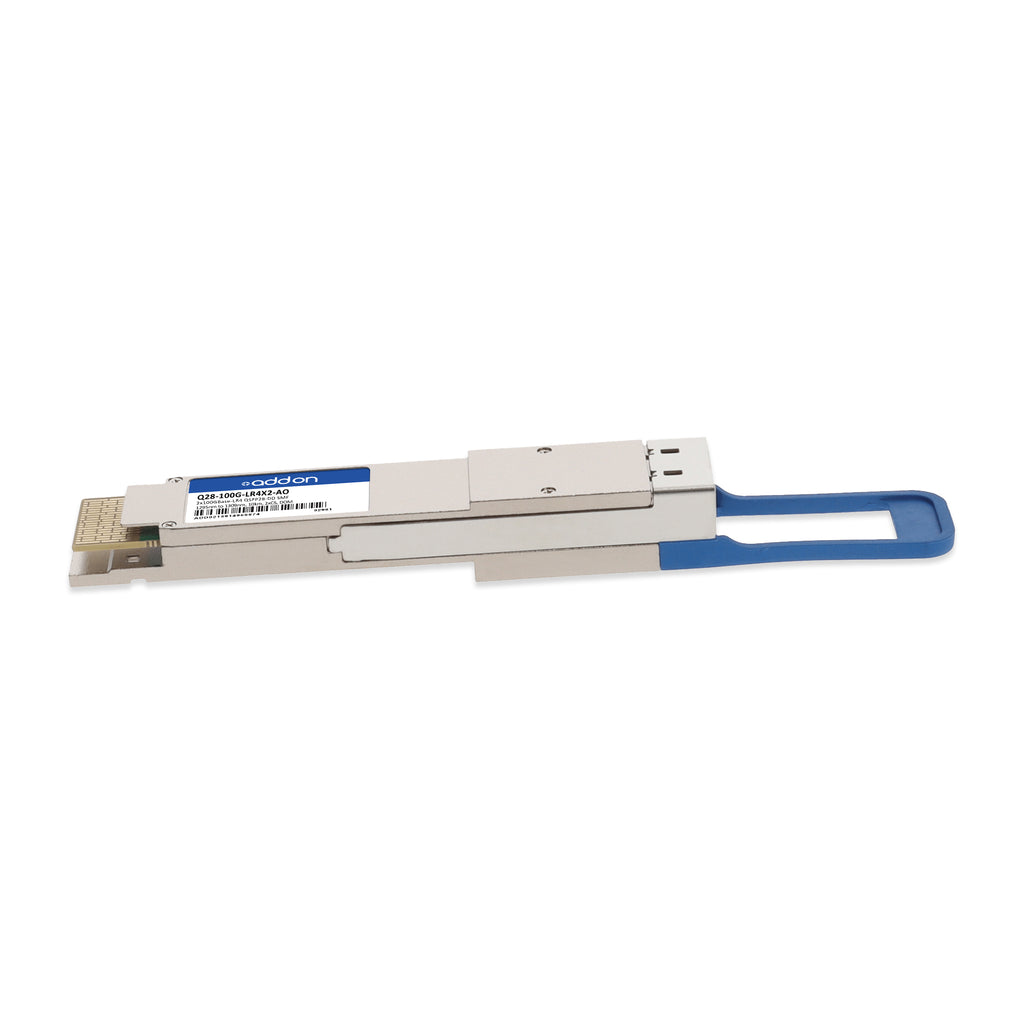

The AddOn Q28-100G-LR4X2-AO is a high-performance MSA- and TAA-compliant QSFP28-DD optical transceiver designed to deliver dual 100G Ethernet connectivity for next-generation data center, enterprise, and carrier networks. Supporting a total data rate of up to 206Gbps with an 8x25Gbps electrical interface, this transceiver provides two independent 100GBase-LR4 channels over single-mode fiber (SMF) for distances up to 10km. It operates on LAN-WDM wavelengths from 1295nm to 1309nm and utilizes a dual CS connector for high-density deployment. Featuring integrated Digital Diagnostic Monitoring (DOM) via an I2C interface, the module allows real-time access to critical parameters, ensuring reliable network performance. With low power dissipation, RoHS-6 compliance, and a commercial operating temperature range, it’s engineered for seamless integration into high-speed networks where reliability and performance are essential.
| Specification | Details |
|---|---|
| SKU | Q28-100G-LR4X2-AO |
| Form Factor | QSFP28-DD |
| Data Rate | 2 × 100GBase-LR4 (206Gbps total) |
| Wavelength | 1295nm – 1309nm (LAN-WDM) |
| Transmission Distance | Up to 10km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Dual CS |
| Transmitter Type | 8x25Gbps DFB-based LAN-WDM |
| Receiver Type | PIN and TIA array |
| Digital Diagnostic Monitoring (DOM) | Supported (I2C interface) |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Power Supply Voltage | +3.3V |
| Power Dissipation | 8W (max) |
| Compliance | MSA, TAA, RoHS-6 |
| Applications | 200G Ethernet, Access, and Enterprise networks |
| Warranty | Limited Lifetime Warranty |
