Description

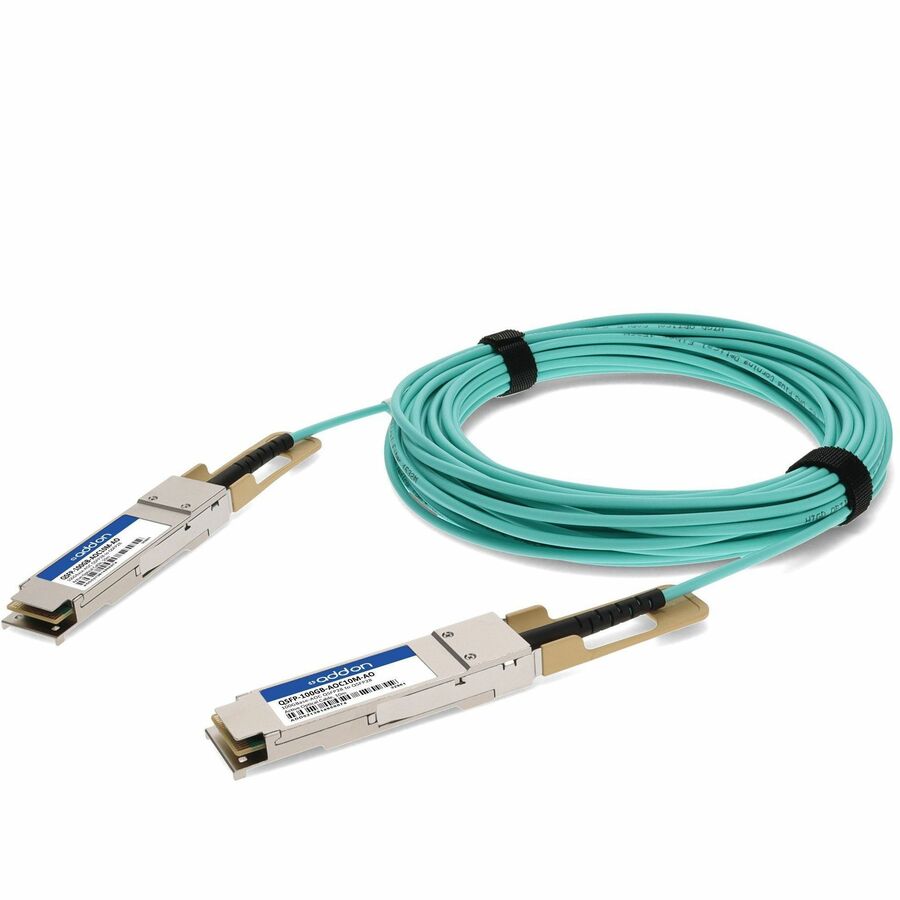

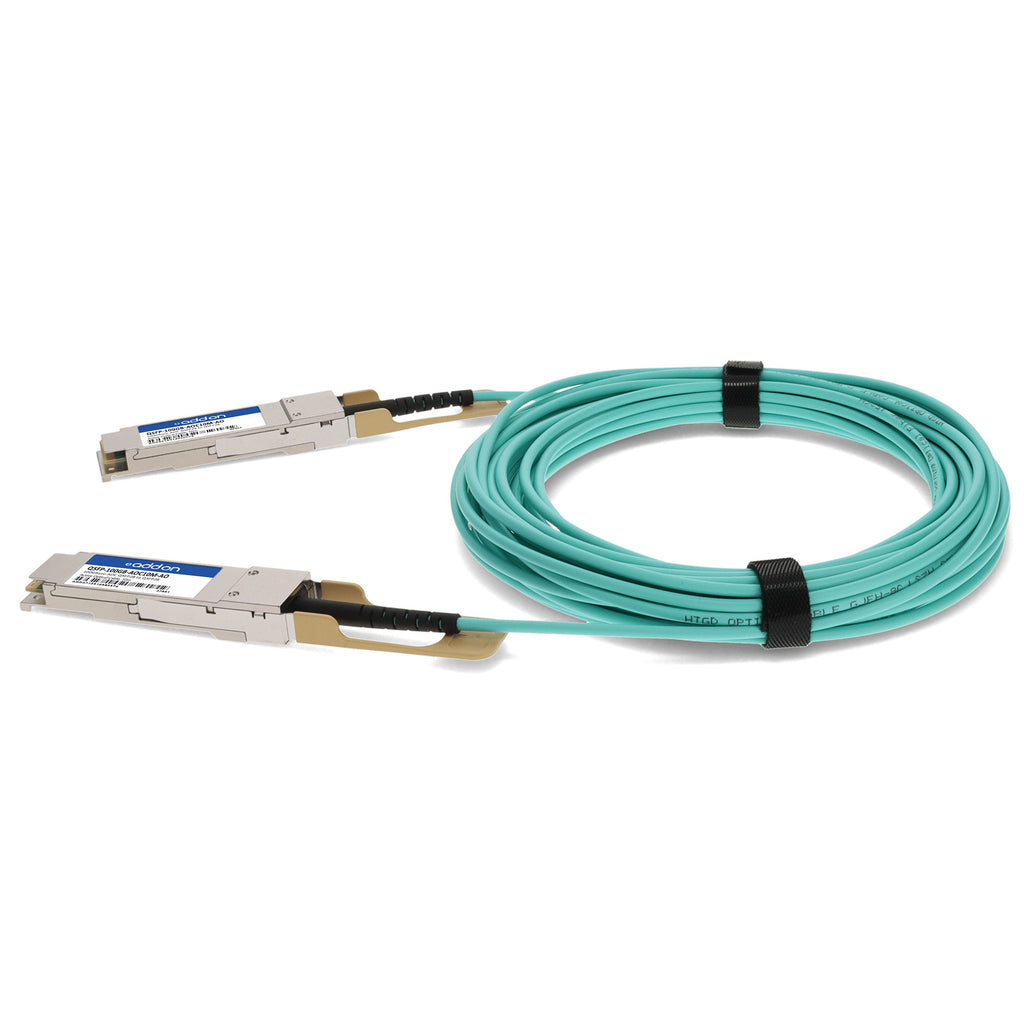

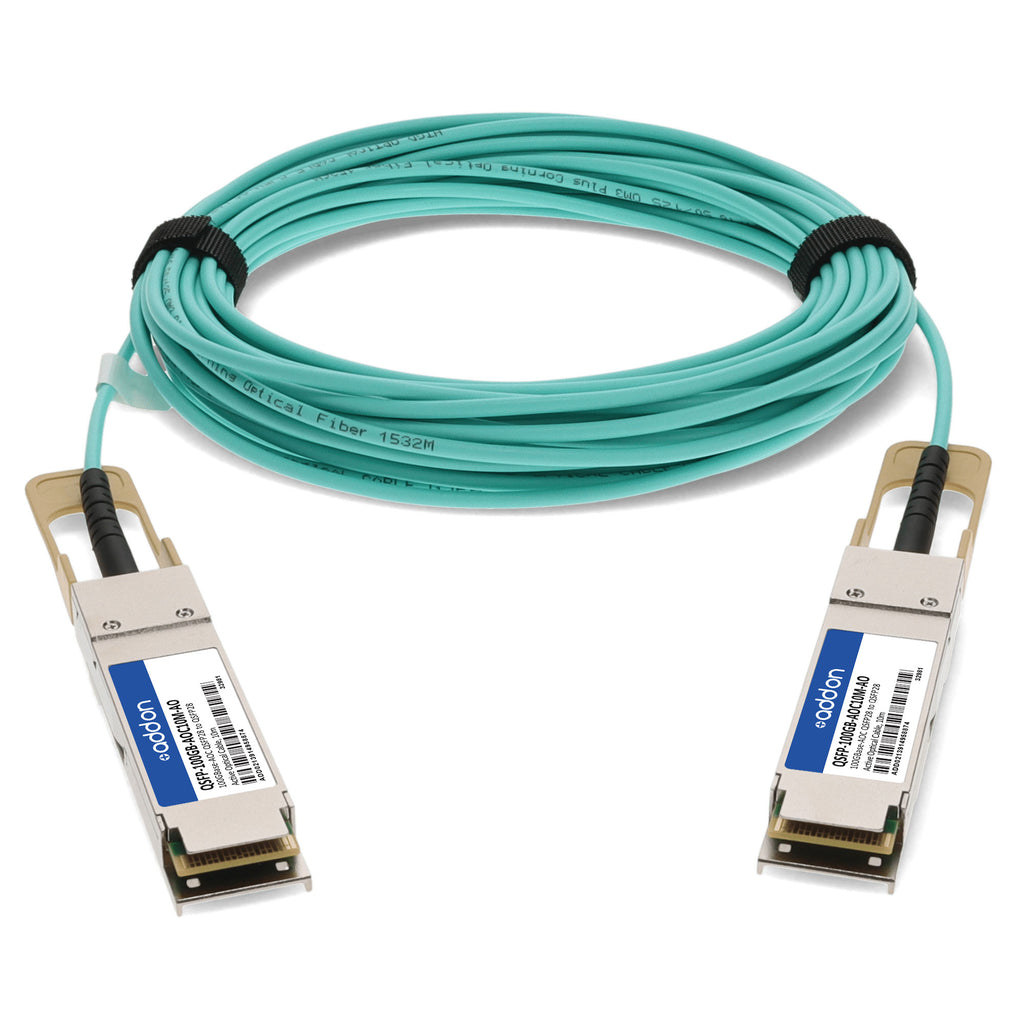

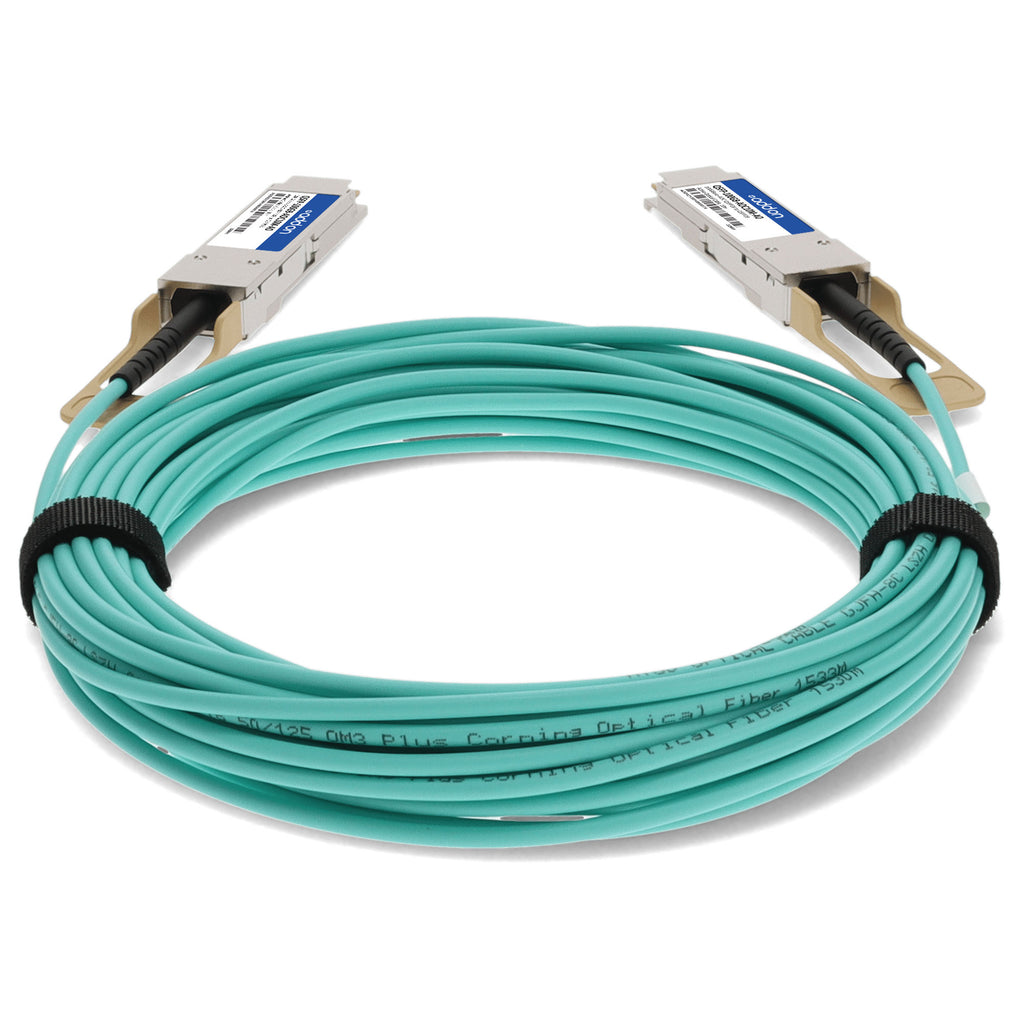

The AddOn QSFP-100GB-AOC10M-AO is a MSA and TAA compliant 100GBase Active Optical Cable (AOC) designed for high-speed data center, enterprise, and HPC applications. Featuring QSFP28 to QSFP28 connectors, this active optical cable supports an aggregate data rate of 103.1Gbps across four full-duplex lanes, each running at 25.78125Gbps. Optimized for InfiniBand EDR and 100GBase Ethernet applications, it ensures low power consumption (2.5W per terminal) and reliable performance over a maximum reach of 10 meters using multimode fiber at 850nm. Built to rigorous AddOn quality standards, this AOC is RoHS compliant, lead-free, uniquely serialized, and application-tested to ensure 100% functionality. Backed by a limited lifetime warranty, it provides a cost-effective, reliable interconnect solution for modern networking environments.
| Specification | Details |
|---|---|
| SKU | QSFP-100GB-AOC10M-AO |
| Product Type | 100GBase Active Optical Cable (AOC) |
| Form Factor | QSFP28 to QSFP28 |
| Cable Length | 10 meters |
| Wavelength | 850nm |
| Fiber Type | Multimode Fiber (MMF) |
| Data Rate (Aggregate) | 103.1Gbps |
| Data Rate per Lane | 25.78125Gbps |
| Channels | 4 independent full-duplex |
| Electrical Interface | 4x25G OIF CEI-28G-VSR |
| Power Supply Voltage | 3.3V (single supply) |
| Power Consumption | 2.5W per terminal (typical) |
| Supply Current | 757mA |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 85% (non-condensing) |
| Compliance | QSFP28 MSA, TAA, RoHS, Lead-Free |
| Applications | InfiniBand EDR, 100GBase Ethernet |
| Warranty | Limited Lifetime Warranty |
