Description

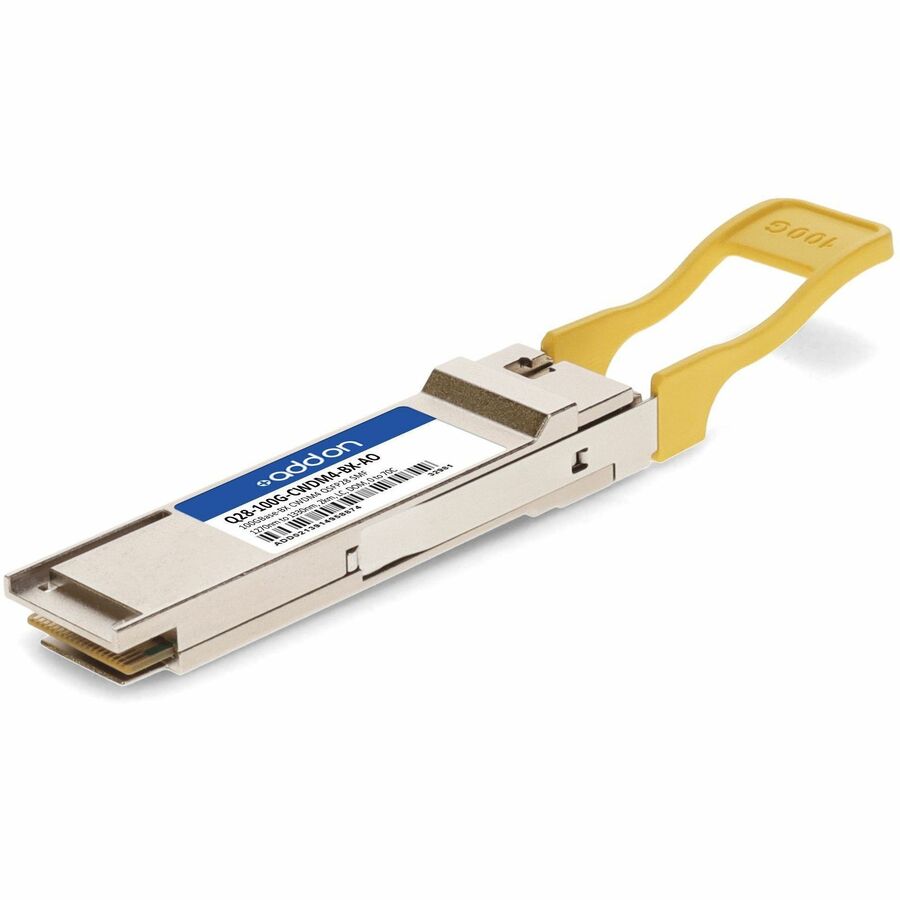

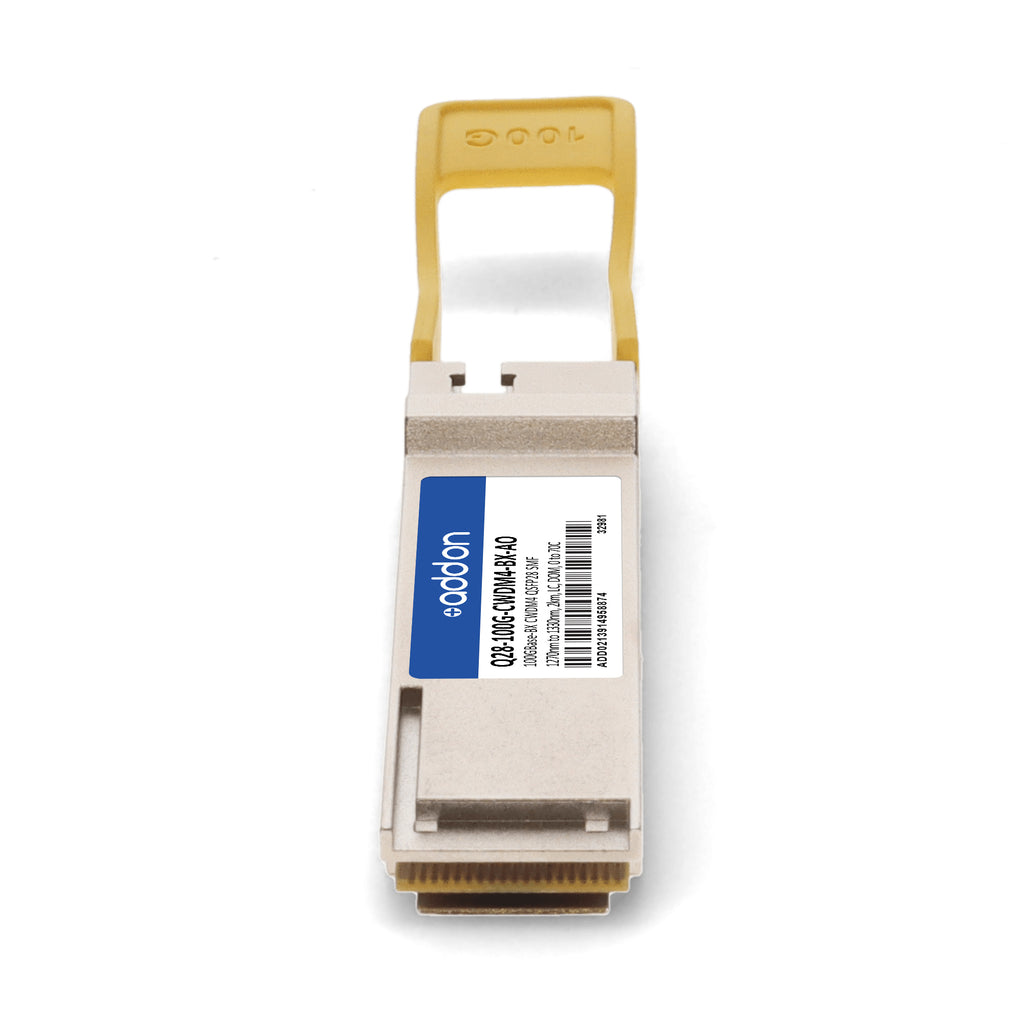

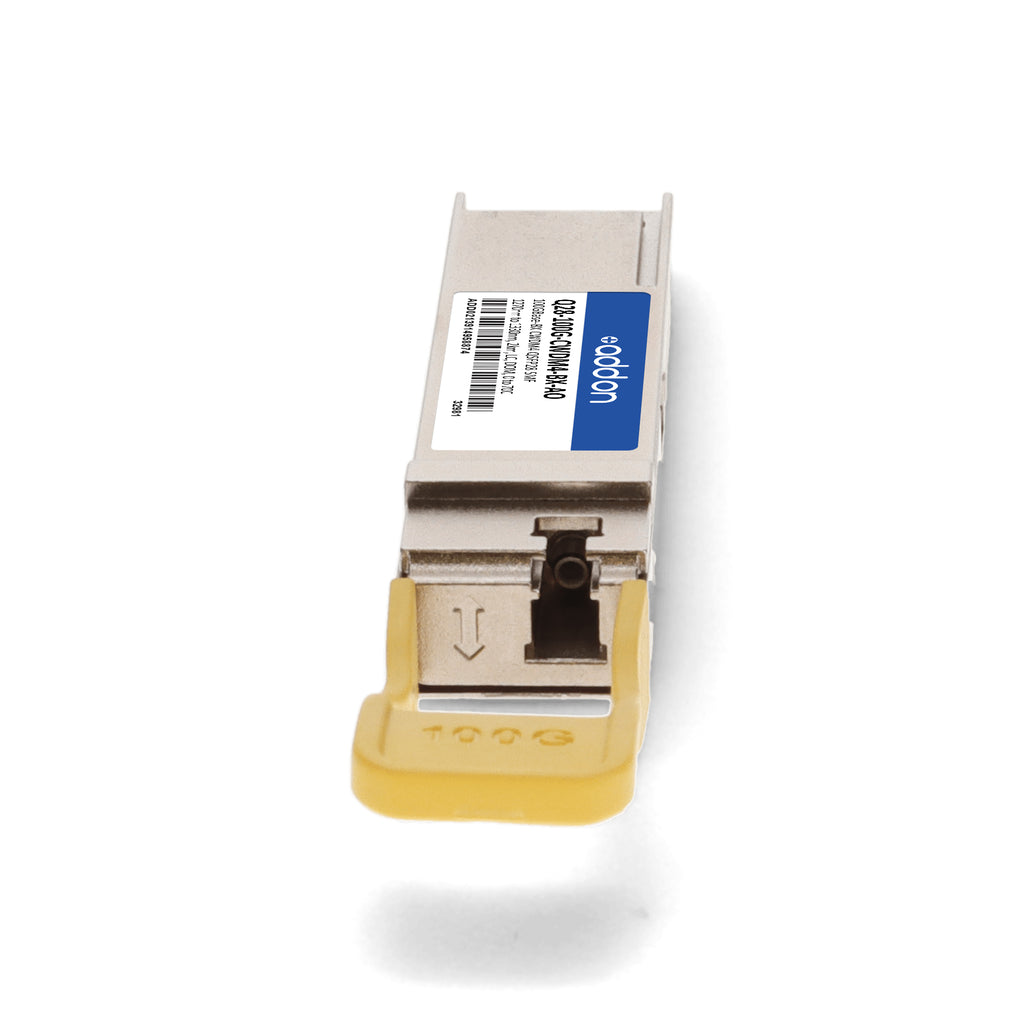

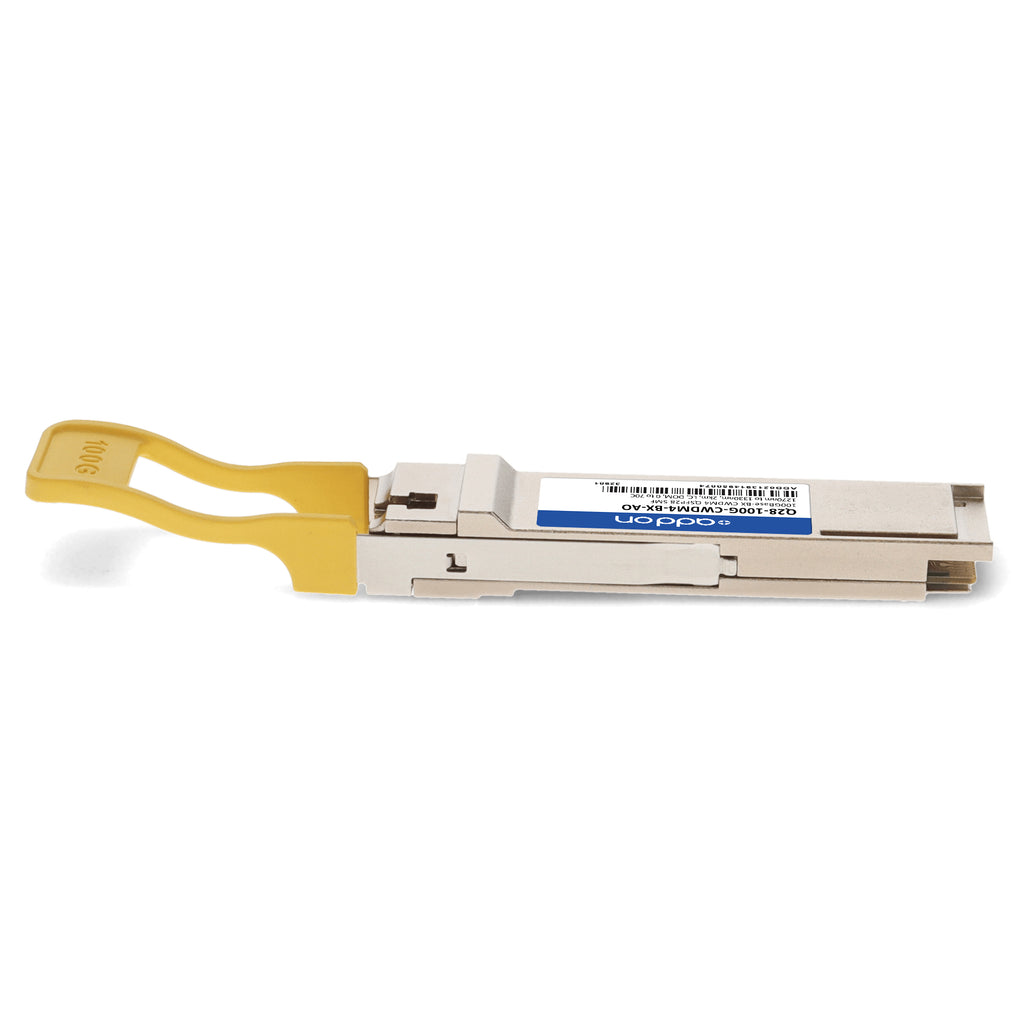

The AddOn Q28-100G-CWDM4-BX-AO is an MSA and TAA compliant 100GBase-BX CWDM4 QSFP28 transceiver designed to deliver high-speed optical connectivity up to 2km over single-mode fiber (SMF). Operating across four CWDM wavelengths (1270nm to 1330nm) and supporting a 103.1Gbps aggregate bit rate, this bidirectional transceiver provides exceptional performance for Ethernet over CWDM, metro networks, access, and enterprise applications. It features a simplex LC connector, low power consumption (3.5W max), and full Digital Optical Monitoring (DOM) support for real-time diagnostics. Built to meet stringent industry standards and environmental compliance requirements, it ensures seamless interoperability, reliable operation in commercial temperature ranges (0°C to 70°C), and long-term network scalability.
| Specification | Details |
|---|---|
| Part Number | Q28-100G-CWDM4-BX-AO |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-BX (103.1Gbps aggregate) |
| Wavelength Range | 1270nm – 1330nm (4 CWDM lanes) |
| Transmission Distance | Up to 2km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | LC simplex (angled, polished) |
| Electrical Interface | 4x 25G |
| Optical Modulation Amplitude (OMA) Per Lane | -4.0 to 2.5 dBm |
| Average Launch Power Per Lane | -6.5 to 2.5 dBm |
| Receiver Sensitivity (OMA) Per Lane | ≤ -10 dBm |
| Receiver Damage Threshold | 3.5 dBm |
| Power Consumption | ≤ 3.5W |
| Operating Temperature | 0°C to 70°C |
| Compliance | QSFP28 MSA, TAA, RoHS 2.0, FCC Part 15, EN55022, FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| Digital Diagnostics (DOM) | Supported |
| Applications | Ethernet over CWDM, Access, Metro, Enterprise Networks |
