Description

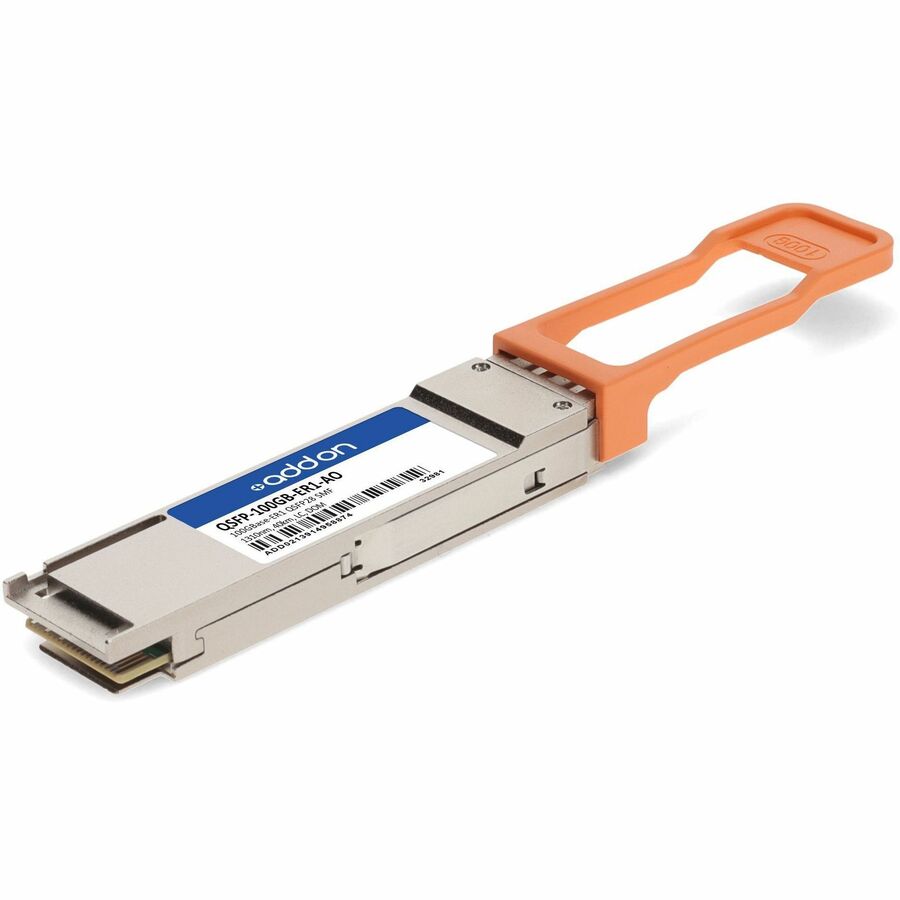

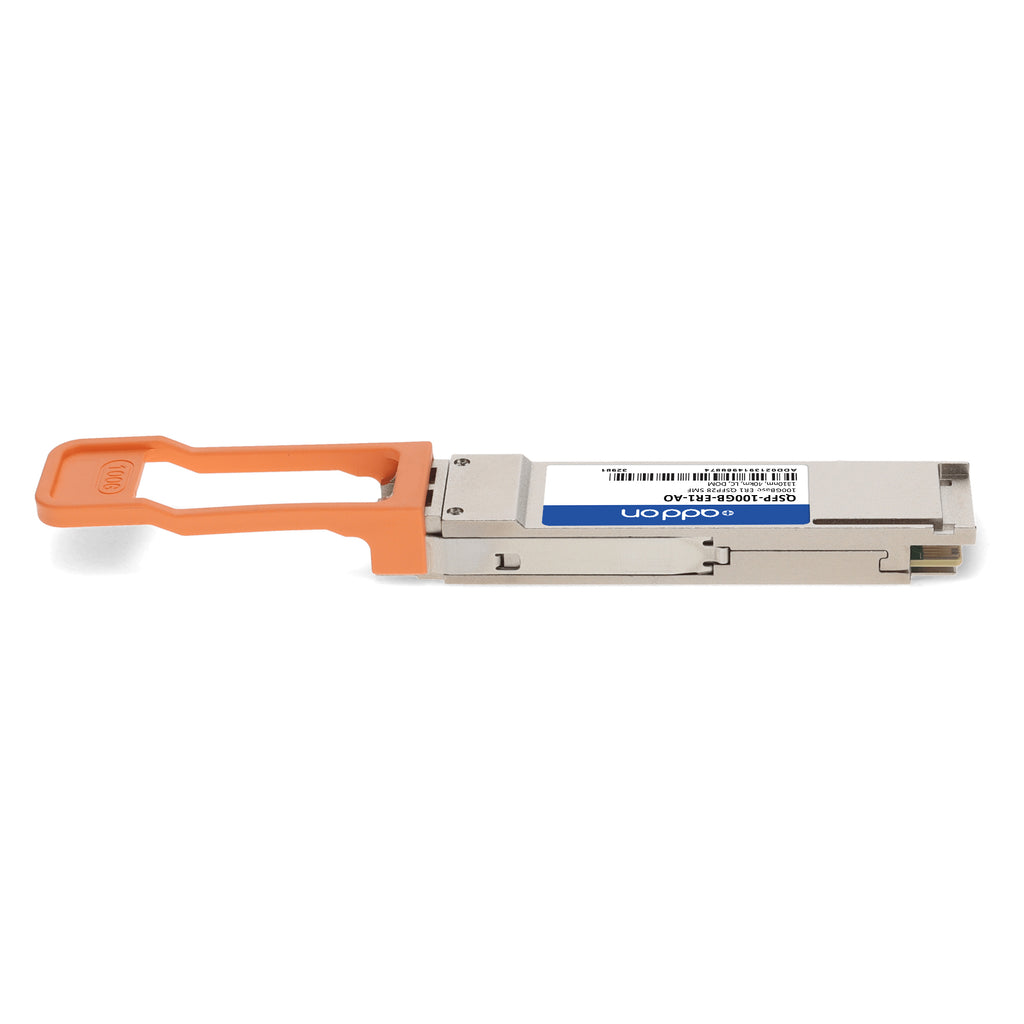

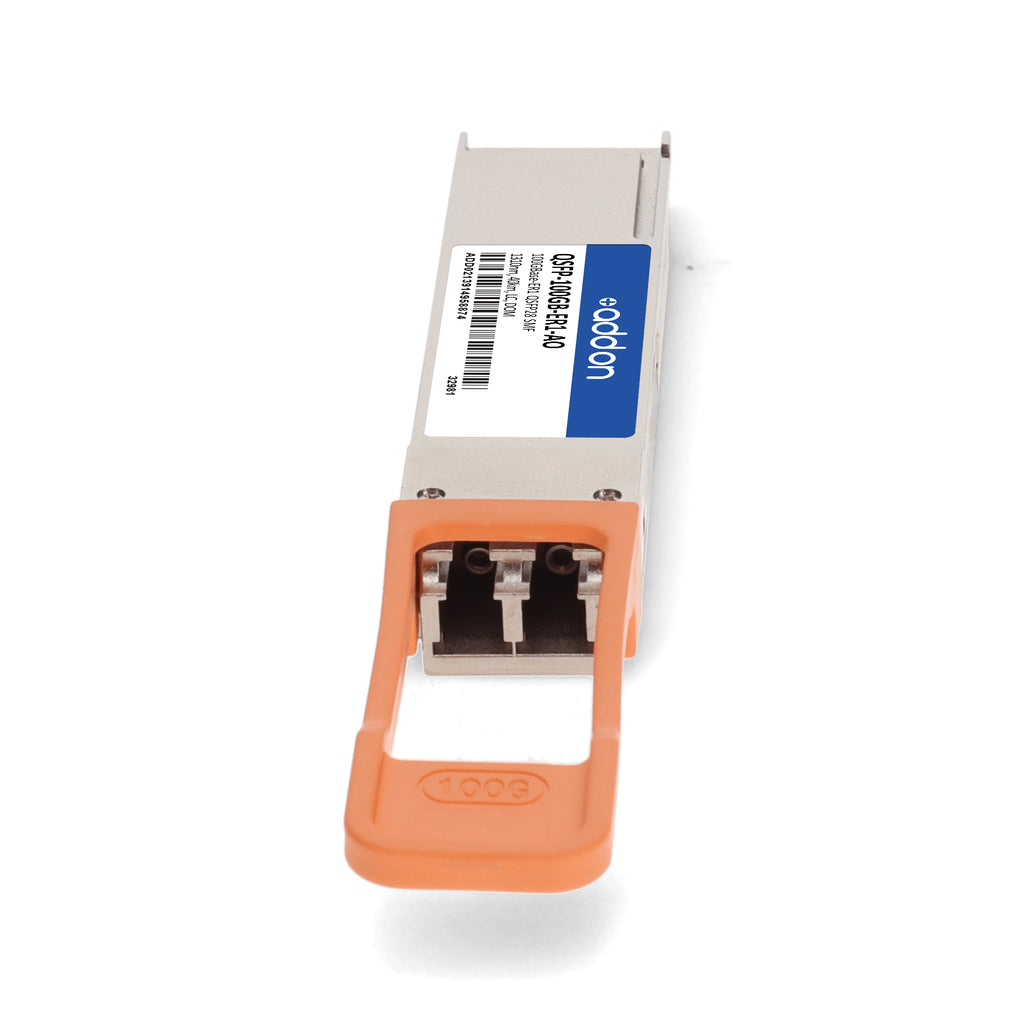

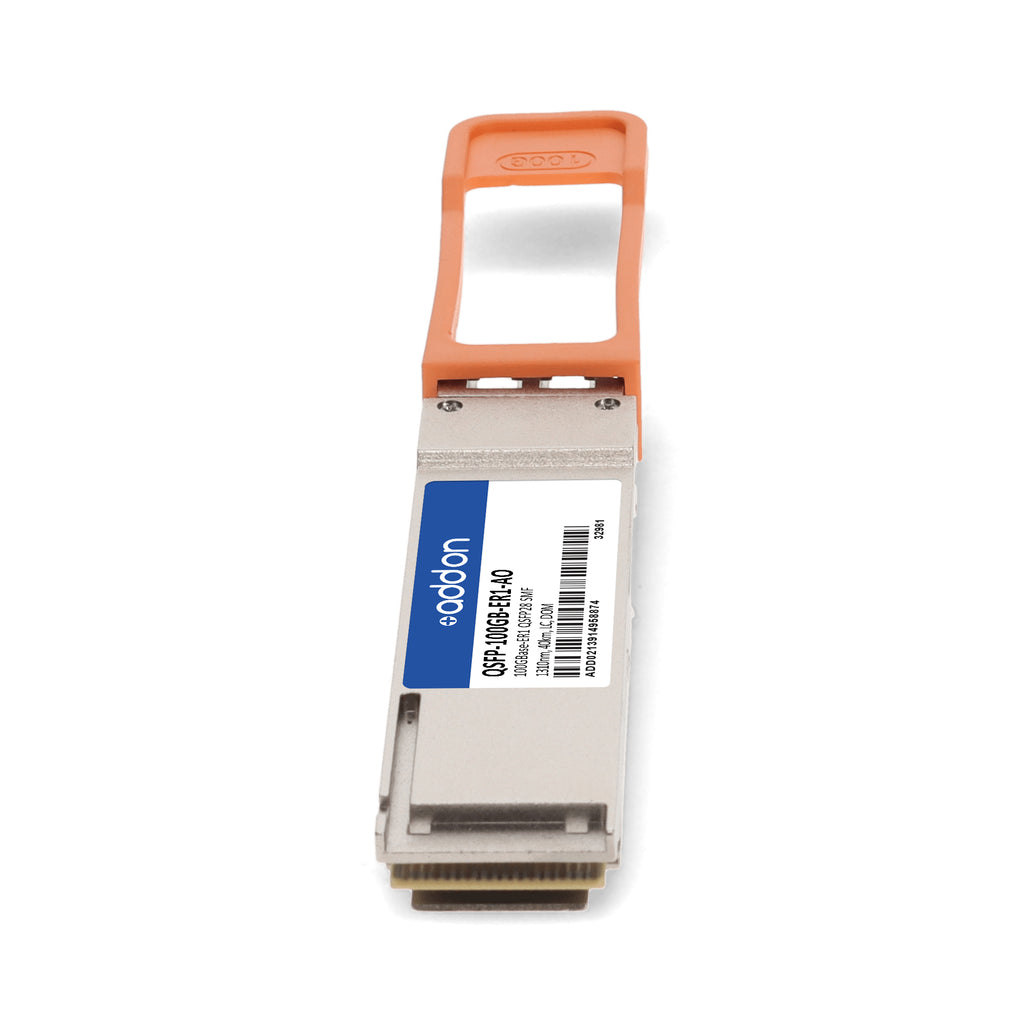

The AddOn QSFP-100GB-ER1-AO is a high-performance 100GBase-ER1 QSFP28 single lambda transceiver designed for long-distance data transmission over single-mode fiber (SMF) up to 40 km. Operating at a 1310 nm wavelength and supporting 106.25 Gbps PAM4 signaling, this transceiver delivers reliable, high-speed connectivity for enterprise, data center, and service provider networks. Built to QSFP28 MSA standards and TAA compliant, it features a duplex LC connector, digital optical monitoring (DOM), and a high-sensitivity APD receiver for enhanced performance. The hot-pluggable module ensures seamless deployment and scalability, while robust ESD protection and low-EMI metal housing maximize durability and system reliability. Backed by AddOn’s lifetime warranty, this transceiver ensures optimal performance, interoperability, and long-term network investment protection.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gbps (PAM4) |
| Transmission Standard | 100GBase-ER1 |
| Wavelength | 1310 nm |
| Maximum Reach | 40 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to 70°C |
| Compliance | QSFP28 MSA, TAA, RoHS |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Power Consumption | Max. 5.5 W |
| Average Launch Power | 1.7 to 7.1 dBm |
| Receiver Sensitivity (OMAouter) | ≤ -13.8 dBm |
| Extinction Ratio | ≥ 5.0 dB |
| Optical Return Loss Tolerance | ≥ 15 dB |
| Hot Pluggable | Yes |
| Applications | 100G Ethernet, Access & Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
