Description

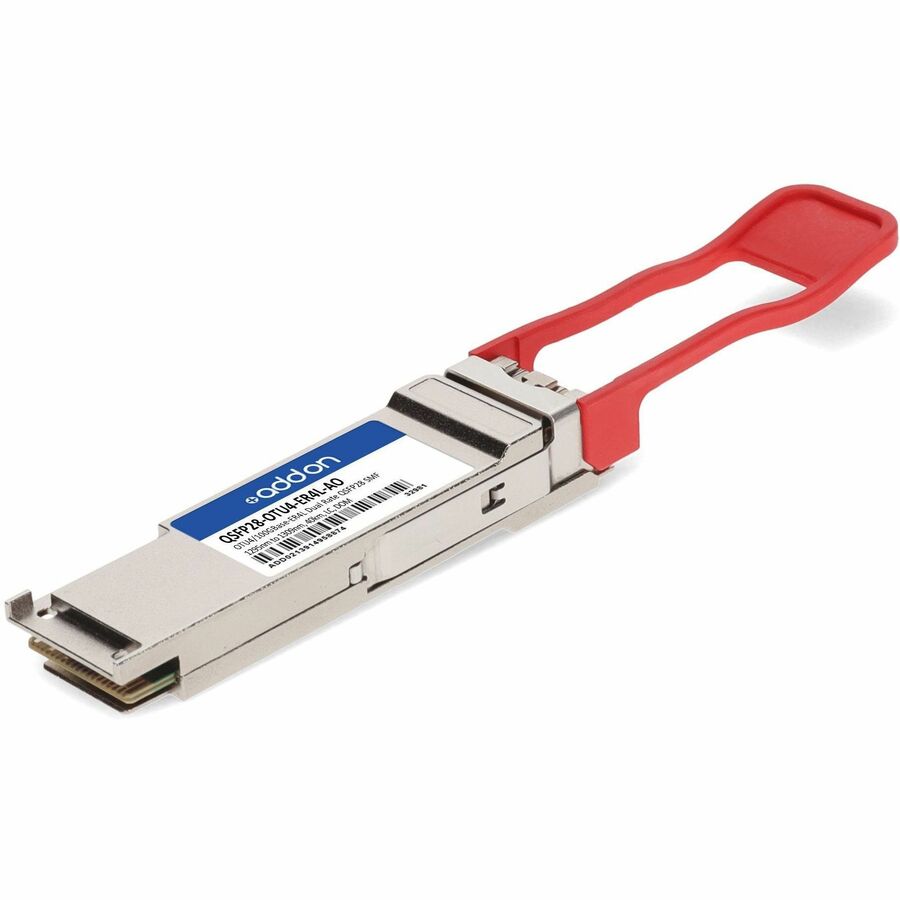

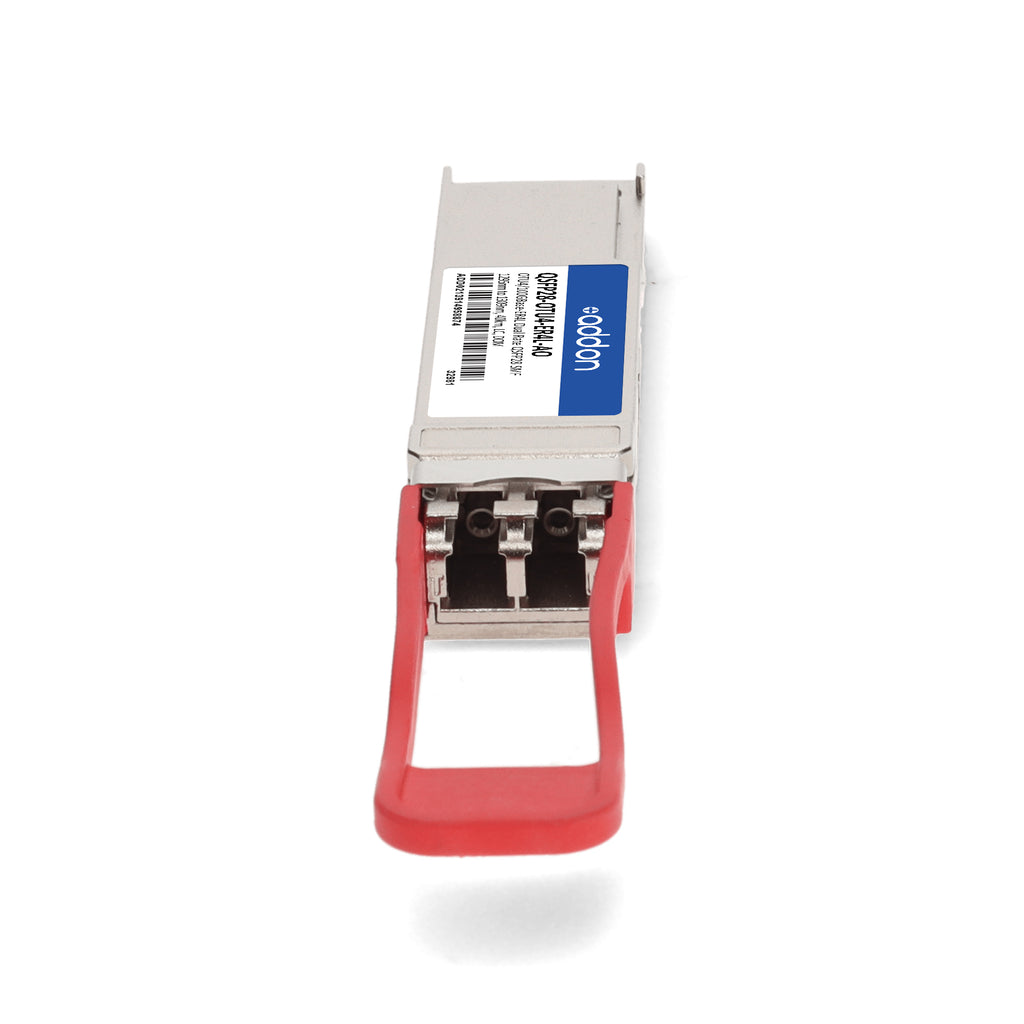

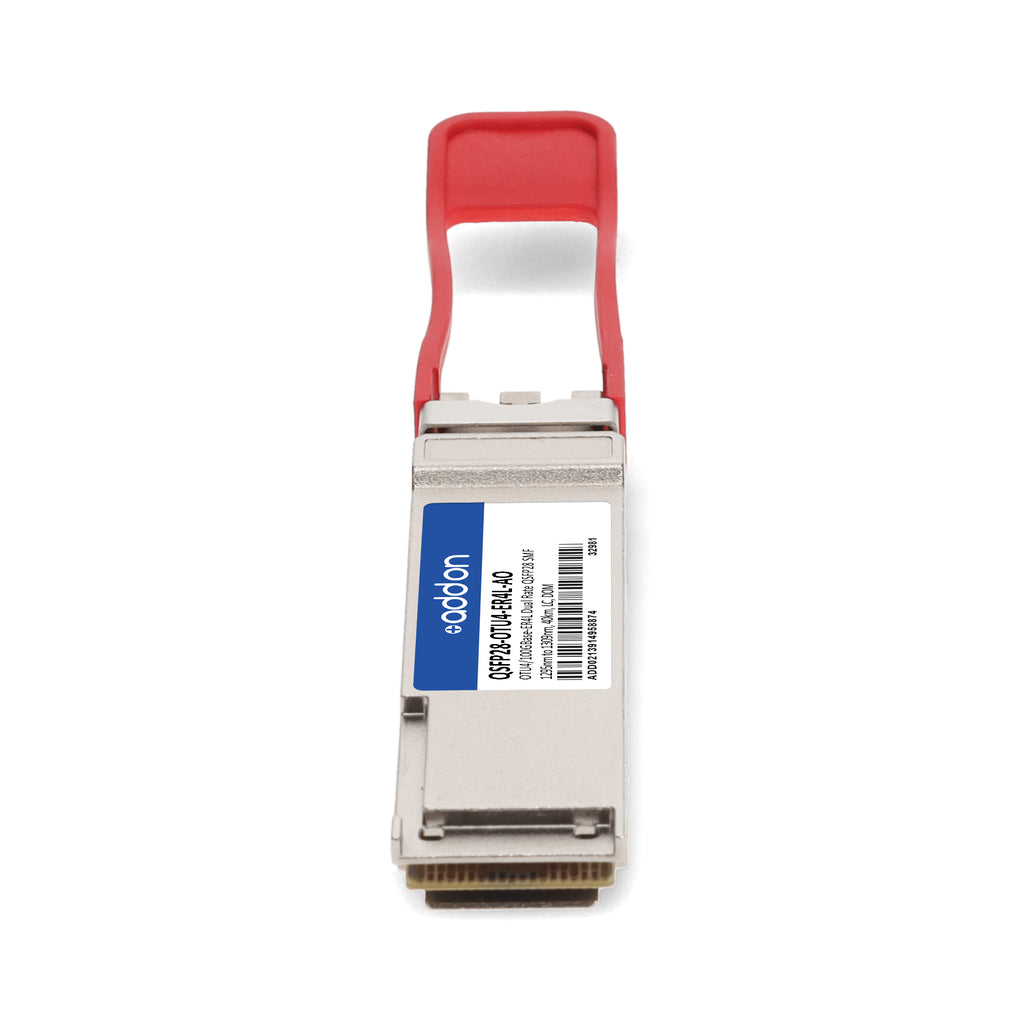

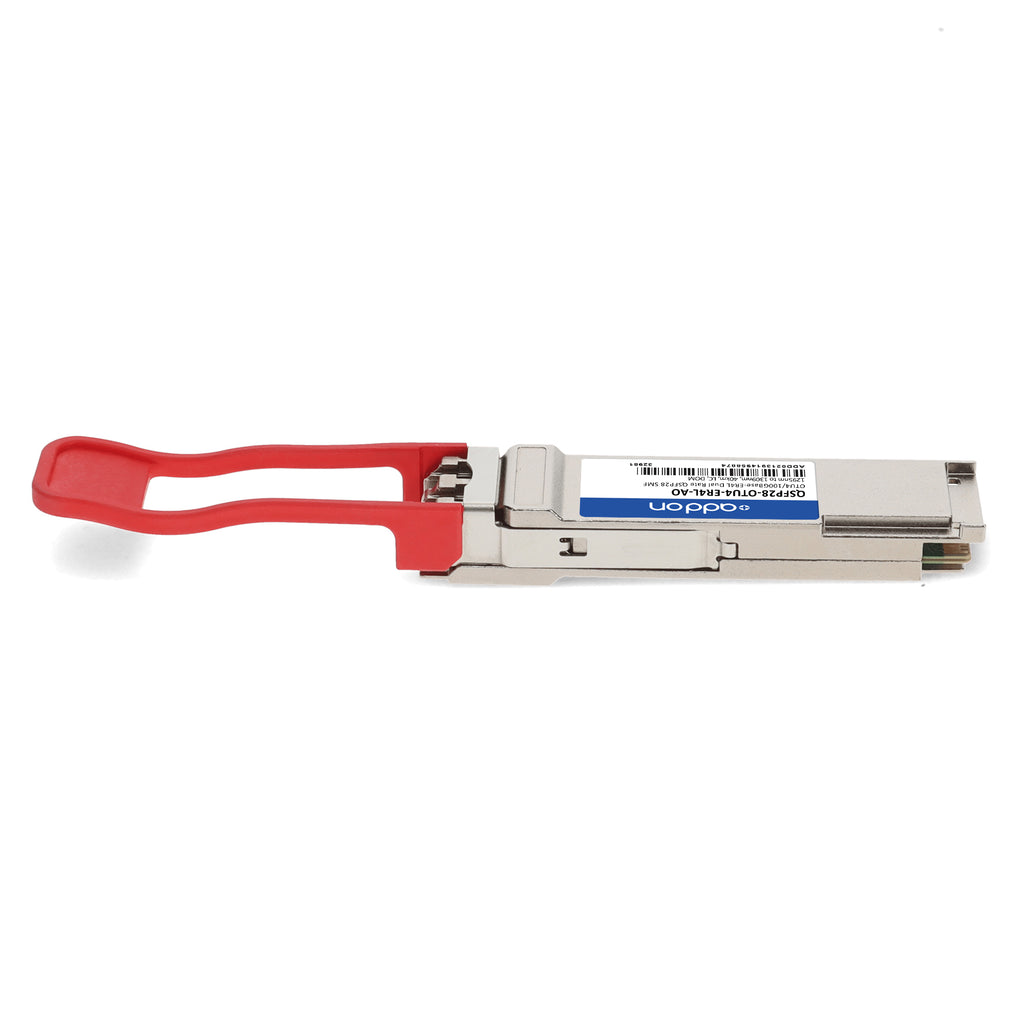

The AddOn QSFP28-OTU4-ER4L-AO is a high-performance dual-rate optical transceiver designed for 100GBASE-ER4 and OTU4 applications over single-mode fiber (SMF). Operating across a wavelength range of 1295nm to 1309nm, this module delivers reliable connectivity up to 40km with host FEC enabled (30km without FEC) via a duplex LC connector. It supports aggregate data rates of 103.1Gb/s and 112Gb/s with a 4x25G electrical interface, ensuring seamless integration into modern high-speed networks.
Built to meet QSFP28 MSA, IEEE 802.3ba, and IEEE 802.3bm standards, this transceiver features a cooled 4x25Gb/s LAN WDM DML TOSA transmitter and a 4x25Gb/s APD ROSA receiver for superior optical performance. Digital Optical Monitoring (DOM) provides real-time diagnostics, while low power dissipation (<4.5W) and a single 3.3V power supply enhance energy efficiency. TAA compliance and a Class 1 laser safety certification make it ideal for government, enterprise, and carrier-grade deployments.
| Specification | Details |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 103.1Gb/s and 112Gb/s aggregate |
| Application | 100GBASE-ER4, OTU4, Infiniband QDR/DDR |
| Wavelength Range | 1295nm – 1309nm (LAN WDM) |
| Transmission Distance | Up to 30km (without FEC), 40km (with FEC) |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Transmitter Type | Cooled 4x25Gb/s LAN WDM DML TOSA |
| Receiver Type | 4x25Gb/s APD ROSA |
| Optical Modulation Amplitude (OMA) | 0.5 to 6.5 dBm per lane |
| Average Launch Power (Per Lane) | -2.5 to 6.5 dBm |
| Extinction Ratio | ≥ 4.5 dB |
| Receiver Sensitivity | -18.5 dBm (BER=5x10⁻⁵), -14.5 dBm (BER=1x10⁻¹²) |
| Receiver Overload | -7 dBm |
| Power Supply Voltage | 3.14V – 3.47V |
| Power Consumption | < 4.5W |
| Operating Temperature | 0°C to 70°C |
| Diagnostics | Digital Optical Monitoring (DOM) |
| Compliance | QSFP28 MSA, IEEE 802.3ba, IEEE 802.3bm, RoHS 6/6, TAA |
| Safety Certifications | Class 1 Laser, FCC Part 15 Subpart B, EN55022:2010, FDA 21CFR, IEC 60825-1/2 |
| Interface | 4x25G Electrical Serial |
| Connector Interface | Duplex LC |
| Warranty | Limited Lifetime Warranty |
