Description

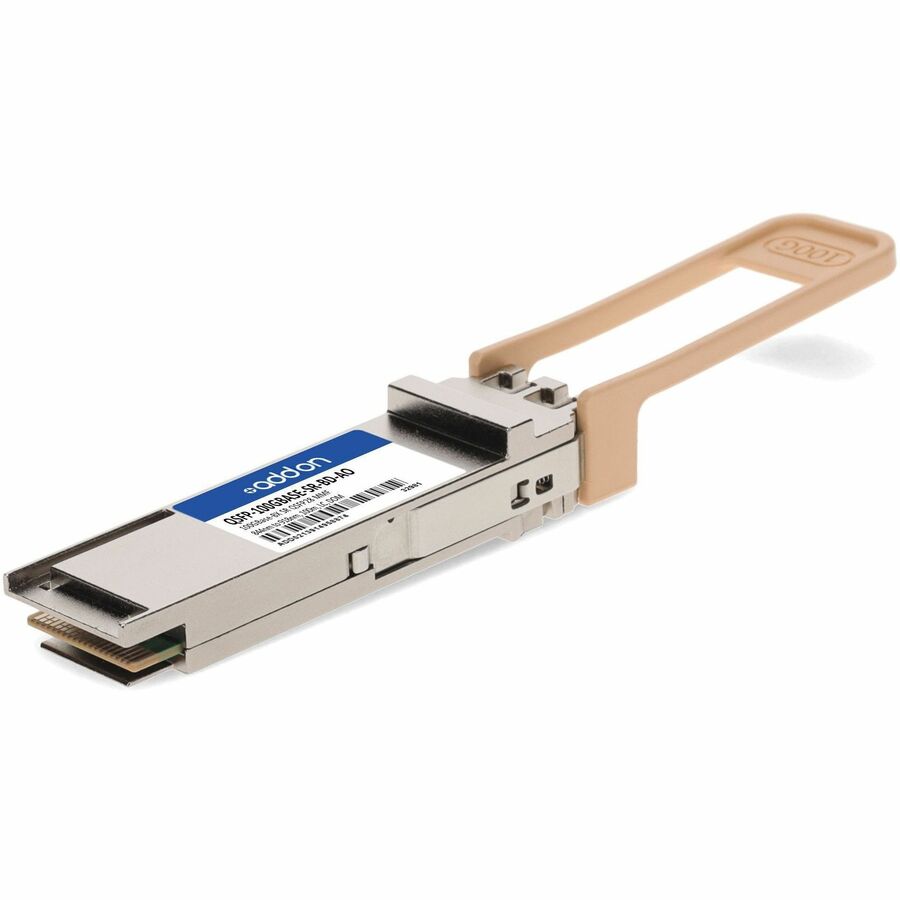

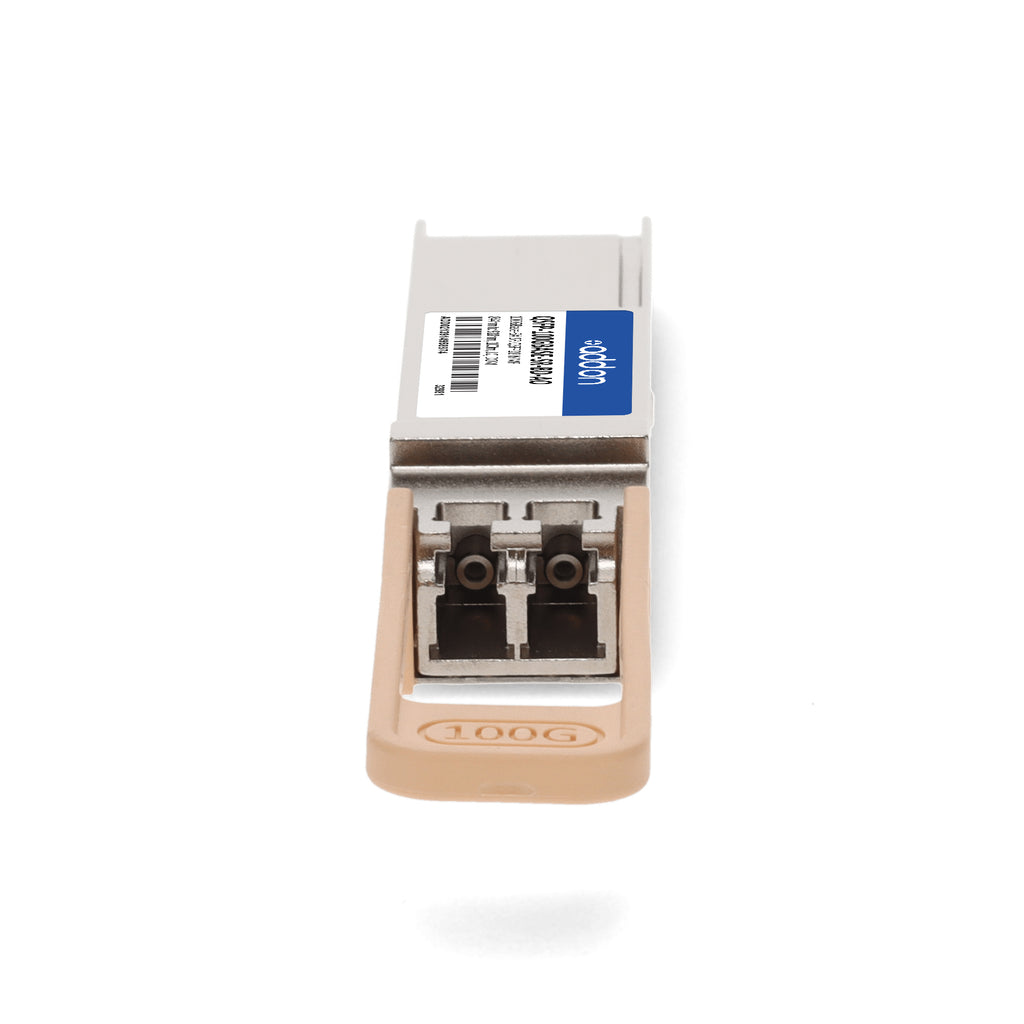

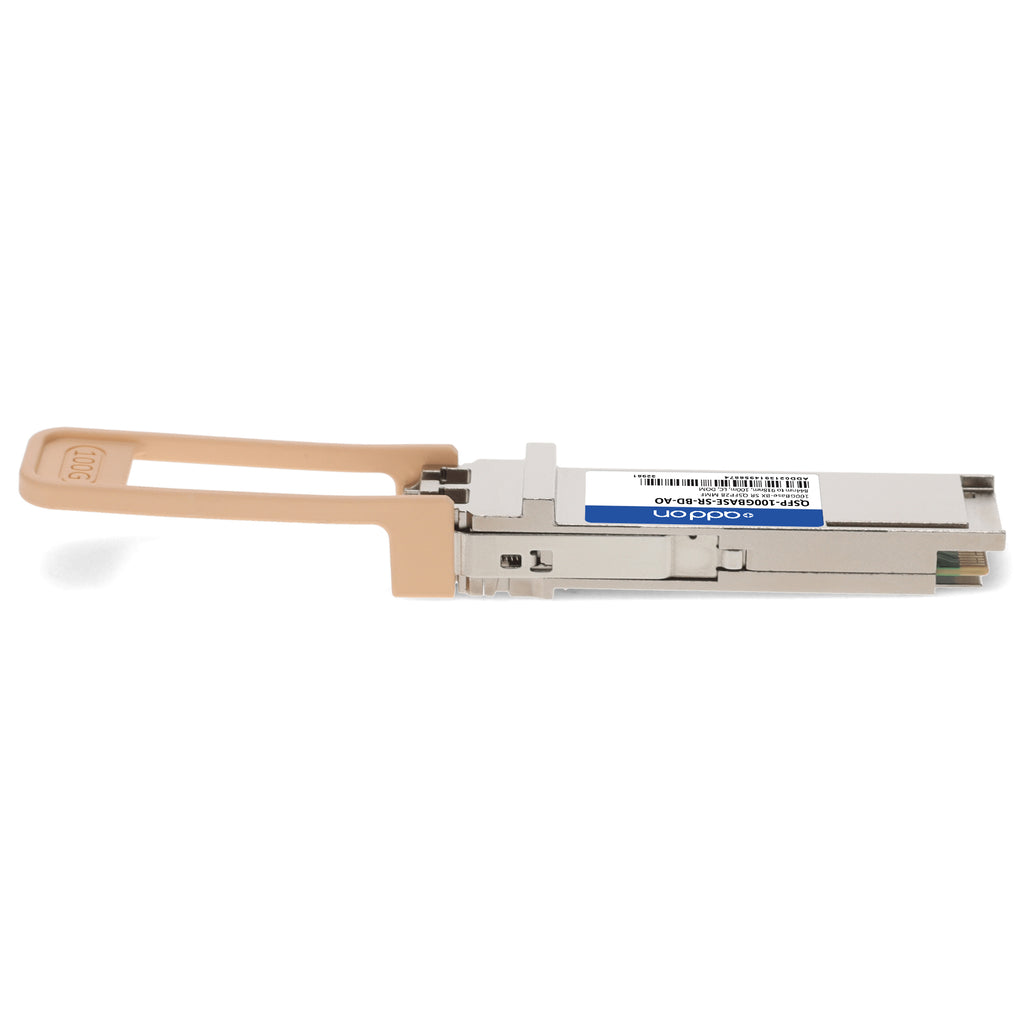

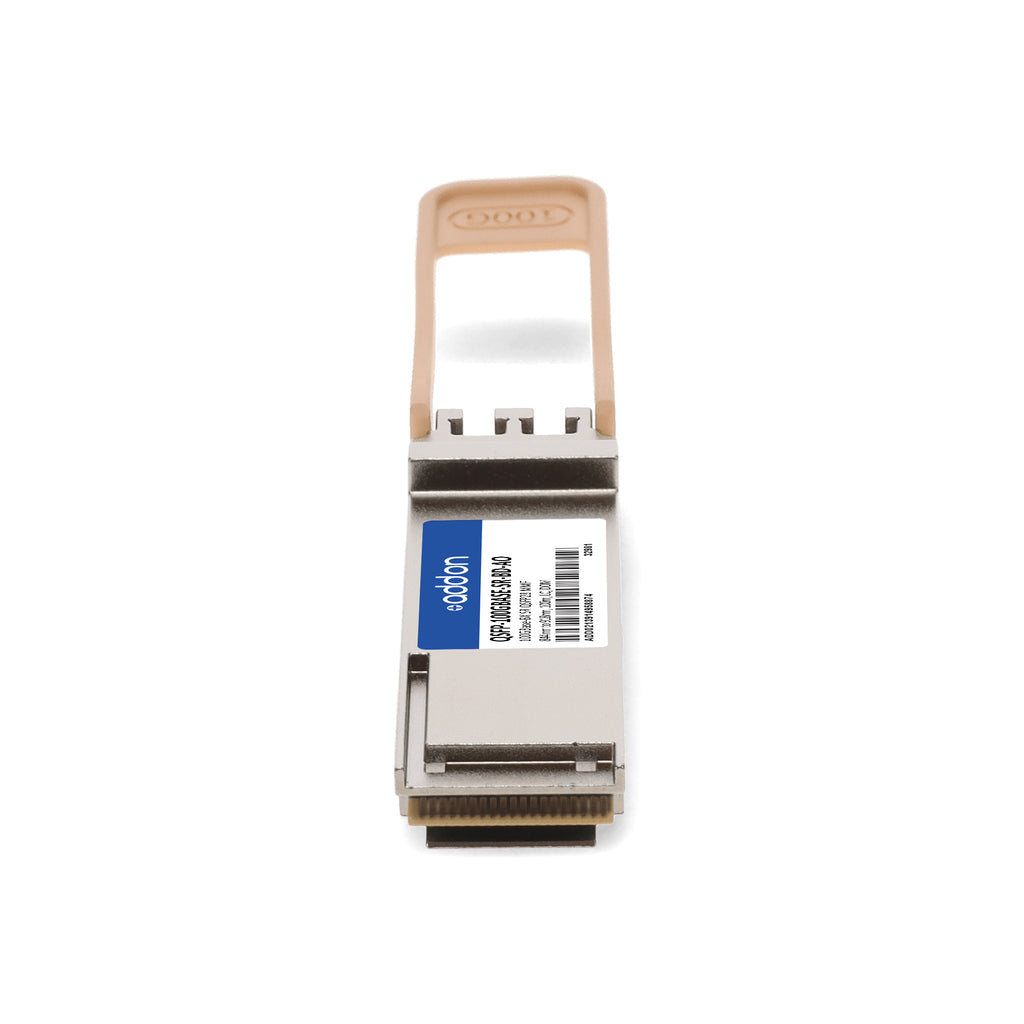

The AddOn QSFP-100GBASE-SR-BD-AO is a high-performance, MSA-compliant 100GBase-BiDi QSFP28 transceiver designed for short-reach data center and enterprise network applications. Supporting aggregate bit rates of 100Gbps, this module operates over OM4 multi-mode fiber (MMF) with a reach of up to 100 meters, using dual bidirectional wavelengths ranging from 844nm to 918nm. It features an LC duplex connector and supports Digital Optical Monitoring (DOM) for real-time diagnostics of key operating parameters. With a maximum power consumption of 4W, a standard 3.3V power supply, and KP4 FEC support, this transceiver ensures reliable, high-speed performance. Fully compliant with TAA and RoHS standards, it is uniquely serialized, data-traffic tested, and backed by AddOn’s limited lifetime warranty, making it a dependable choice for high-density 100G Ethernet deployments.
| Specification | Description |
|---|---|
| Brand | AddOn |
| Model / SKU | QSFP-100GBASE-SR-BD-AO |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Wavelength | 844nm – 918nm |
| Transmission Distance | Up to 100 m (OM4 MMF) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Connector Type | LC Duplex |
| Optical Modulation | PAM4 |
| FEC Support | KP4 FEC |
| Digital Optical Monitoring (DOM) | Supported |
| Channels | 2 independent full-duplex channels |
| Average Launch Power (per lane) | -6.2 to +4 dBm |
| Optical Modulation Amplitude (per lane) | -4.2 to +3 dBm |
| Extinction Ratio | ≥ 3.0 dB |
| Receiver Sensitivity (OMA) | Max(-6.6 dBm, SECQ-8) |
| Power Supply Voltage | 3.3V |
| Power Consumption | ≤ 4 W |
| Operating Case Temperature | 10°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 85% (non-condensing) |
| Compliance | MSA, TAA, RoHS |
| Applications | 100G Ethernet, Access, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
