Description

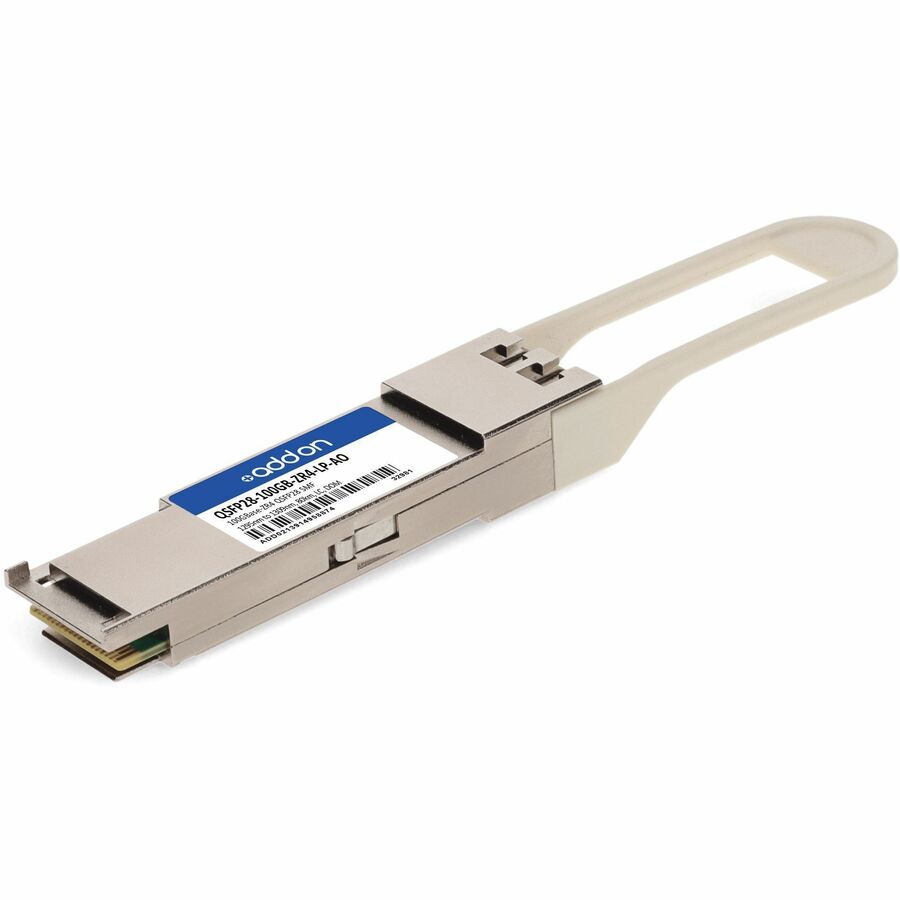

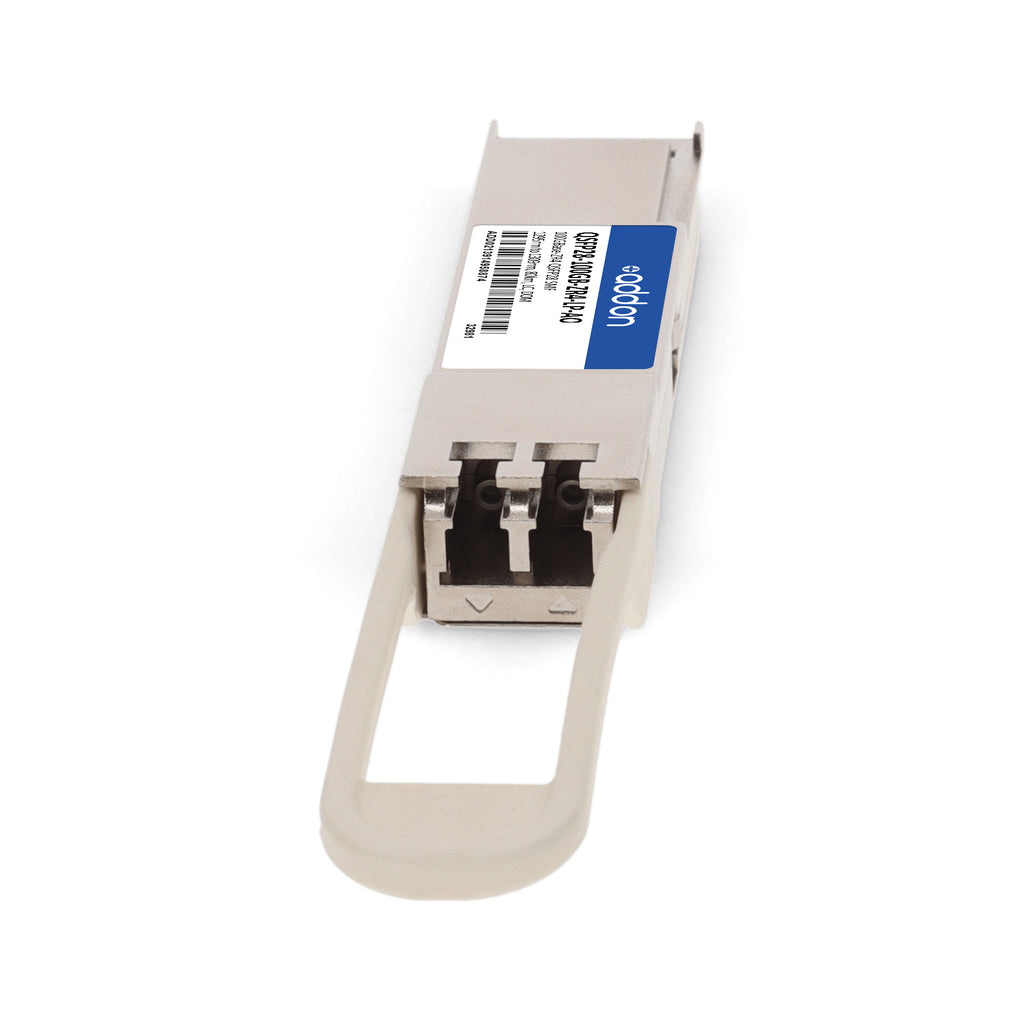

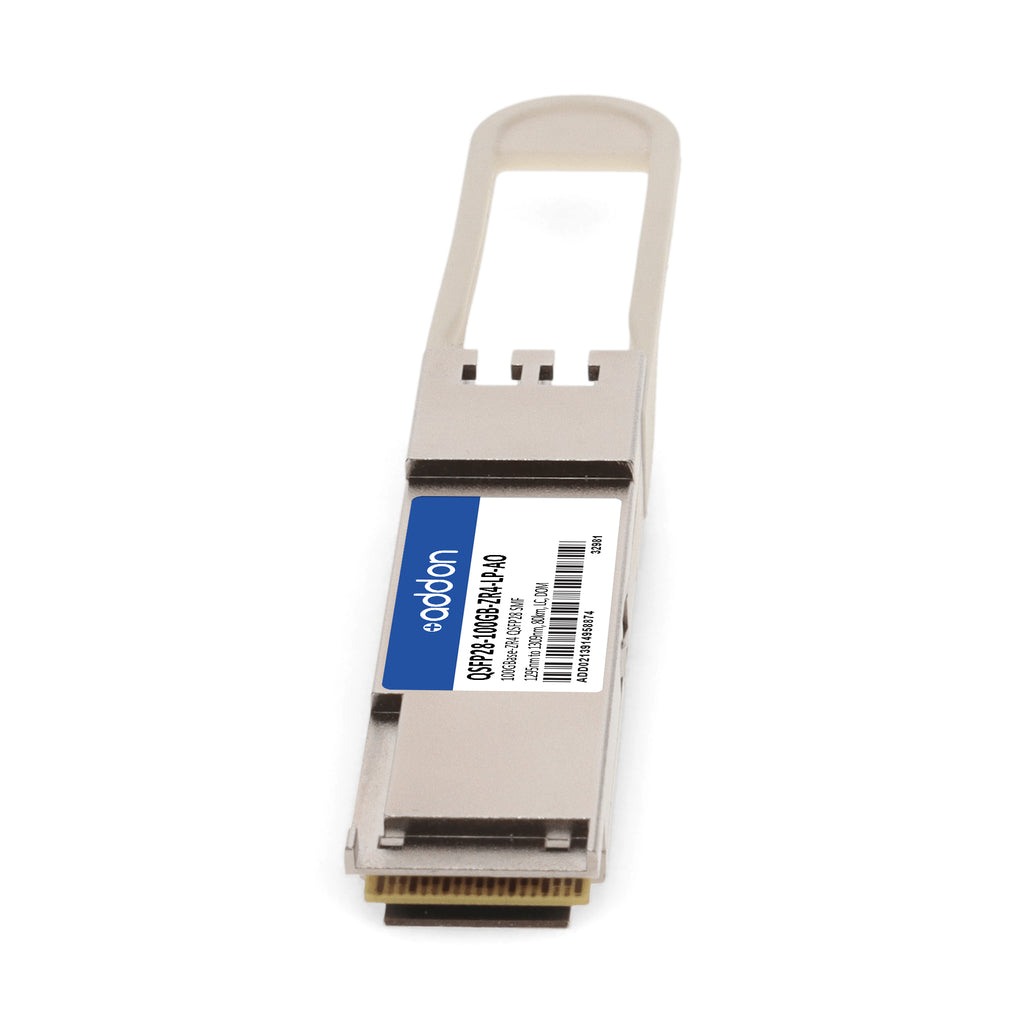

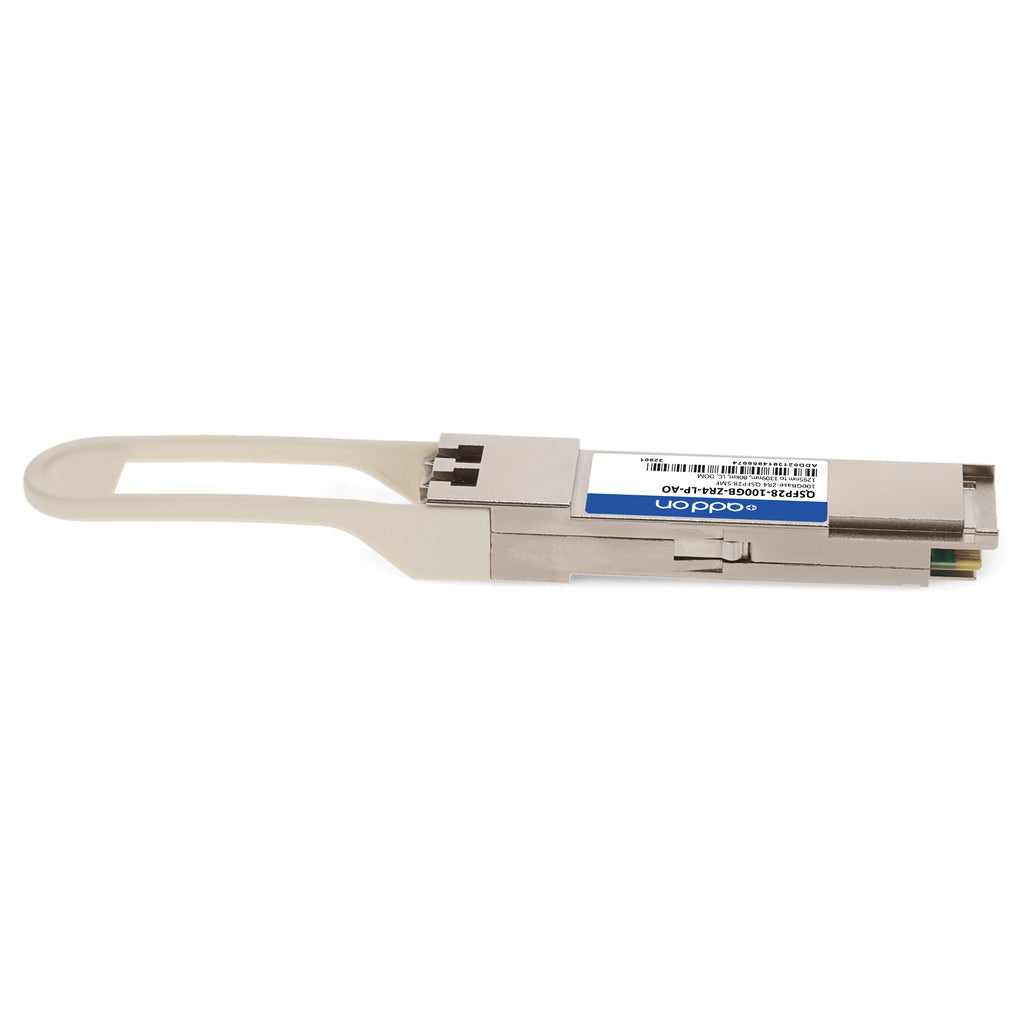

The AddOn QSFP28-100GB-ZR4-LP-AO is a high-performance, low-power optical transceiver designed for 100 Gigabit Ethernet applications over single-mode fiber (SMF). Fully compliant with MSA, IEEE 802.3ba, and ITU-T G.959 standards, it delivers up to 80 km transmission distance using LAN-WDM wavelengths 1295 nm – 1309 nm through a duplex LC connector.
Equipped with 4×25 Gbps LAN-WDM EML transmitters and SOA+PIN receivers, this hot-pluggable module ensures reliable, high-speed data throughput while maintaining a maximum power consumption of only 5.5 W. Integrated Digital Optical Monitoring (DOM) enables real-time tracking of key operating parameters, while TAA compliance ensures eligibility for government and enterprise networks.
Each transceiver undergoes rigorous serialization, traffic simulation, and application testing to guarantee seamless interoperability in existing network infrastructures. Backed by AddOn’s limited lifetime warranty, it’s an ideal choice for data centers, service providers, and enterprise access networks demanding extended-reach 100G connectivity.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Part Number (SKU) | QSFP28-100GB-ZR4-LP-AO |
| Form Factor | QSFP28 |
| Application | 100GBase-ZR4 Ethernet |
| Data Rate | 4×25.78125 Gbps (100 Gbps) |
| Transmission Distance | Up to 80 km (with FEC) |
| Wavelength Range | 1295 nm – 1309 nm (LAN-WDM) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Cooled 4×25 Gbps LAN-WDM EML TOSA |
| Receiver Type | 4×25 Gbps SOA + PIN ROSA |
| Power Consumption | ≤ 5.5 W |
| Power Supply Voltage | 3.3 V |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Operating Temperature Range | 0 °C – 70 °C |
| Launch Power (Total) | 7 dBm – 12.5 dBm |
| Receiver Sensitivity (Per Lane, OMA) | ≤ –26.4 dBm |
| Connector Interface Standard | Compliant with MSA |
| Compliance Standards | IEEE 802.3ba, ITU-T G.959, CEI-28G-VSR, RoHS |
| Hot-Pluggable | Yes |
| TAA Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
