Description

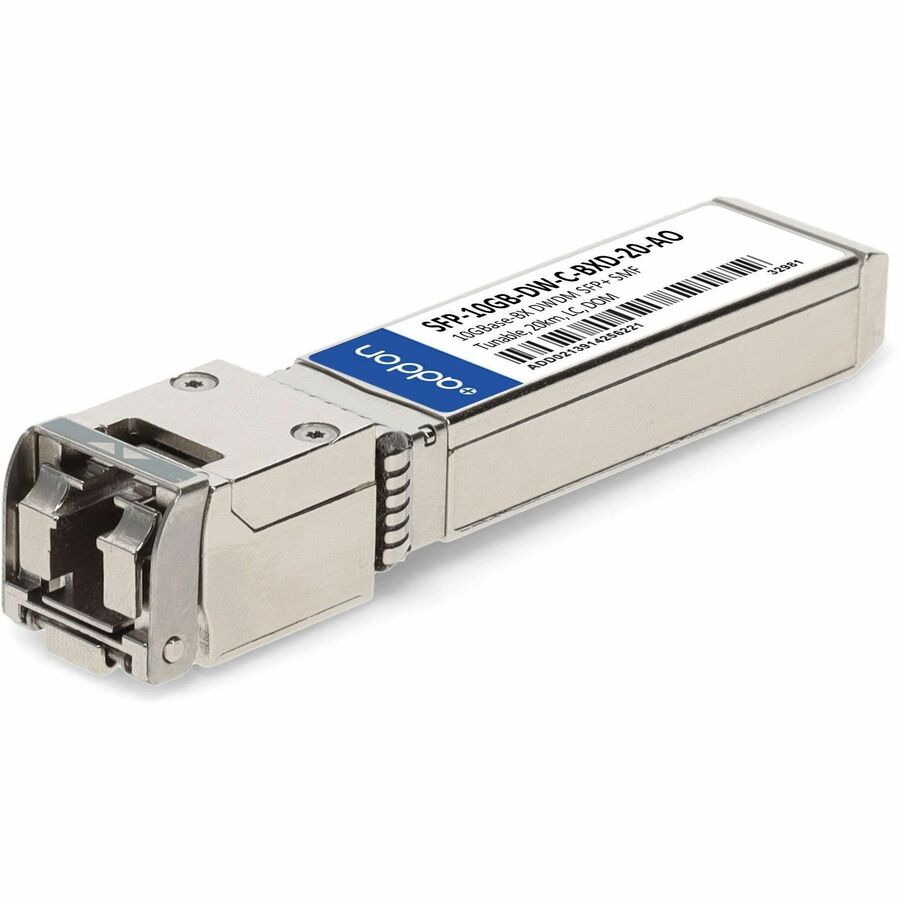

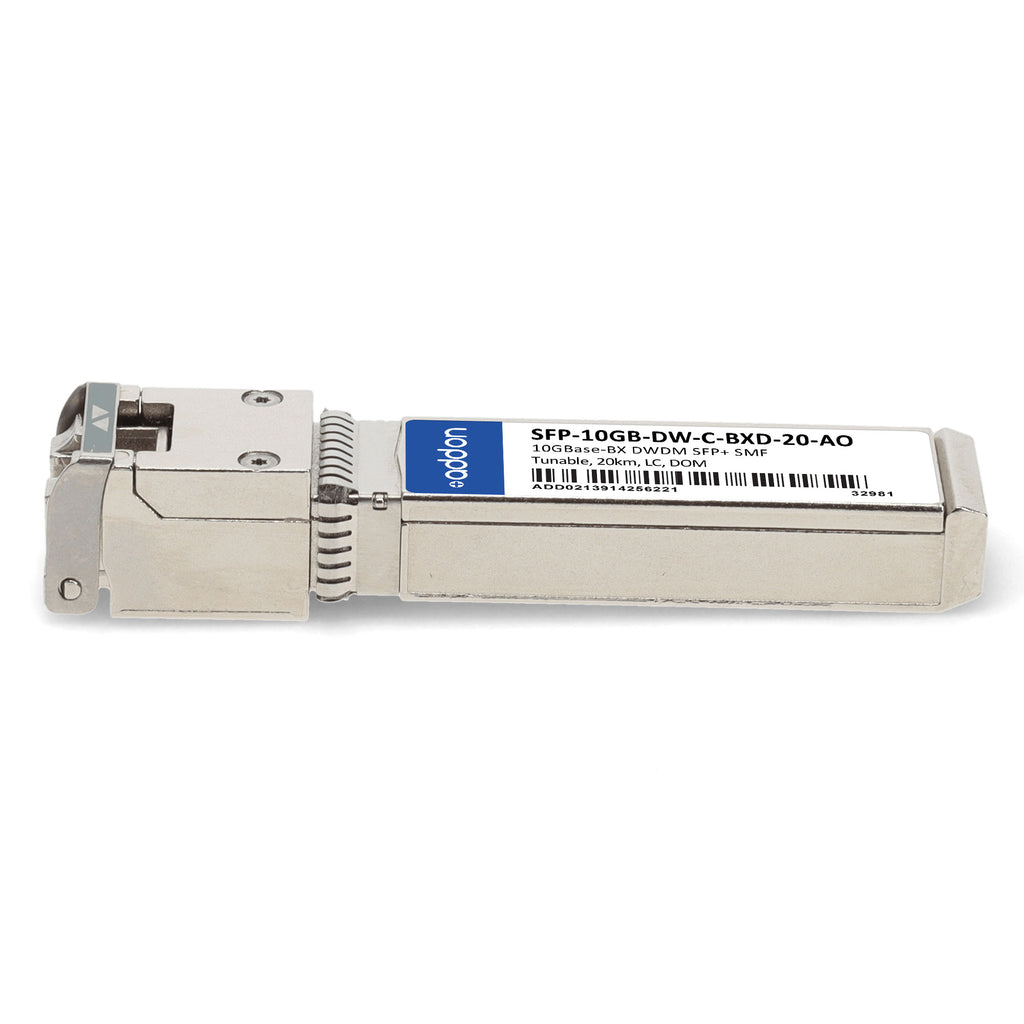

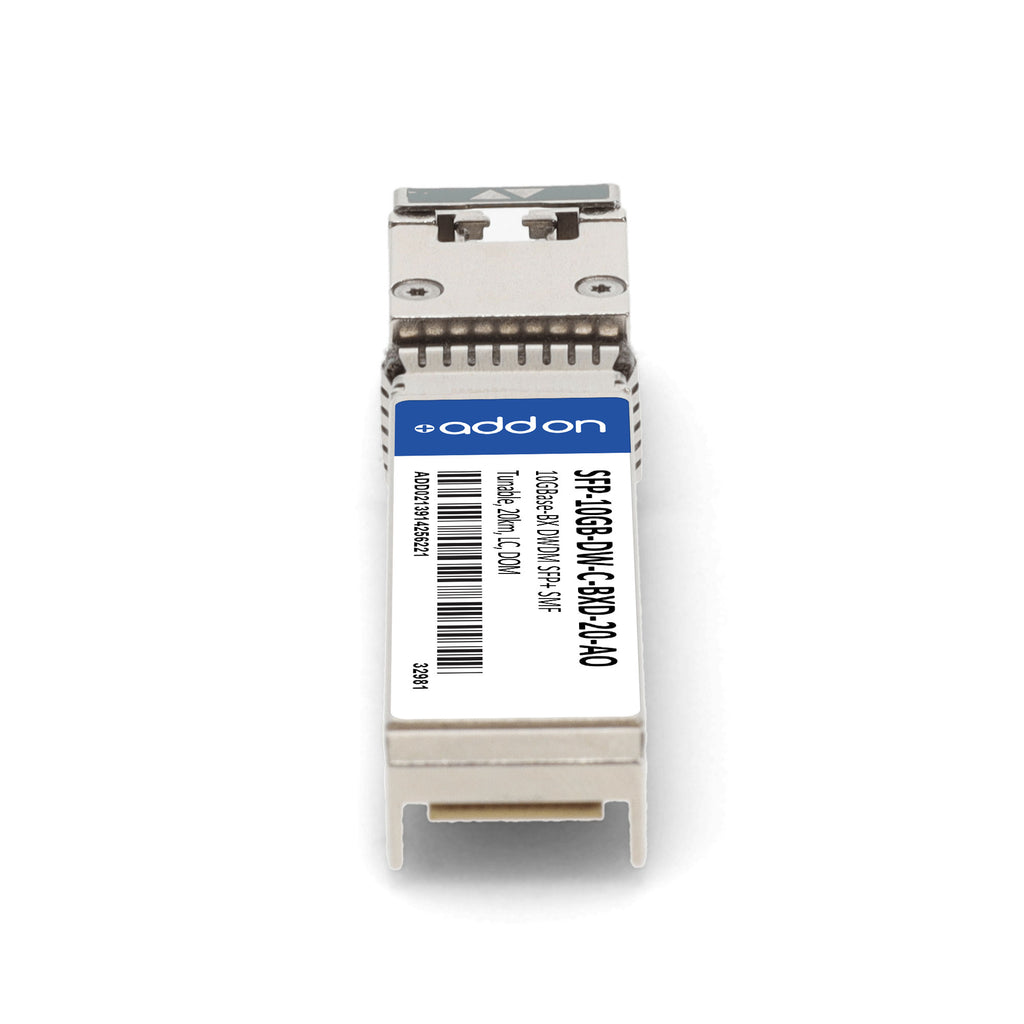

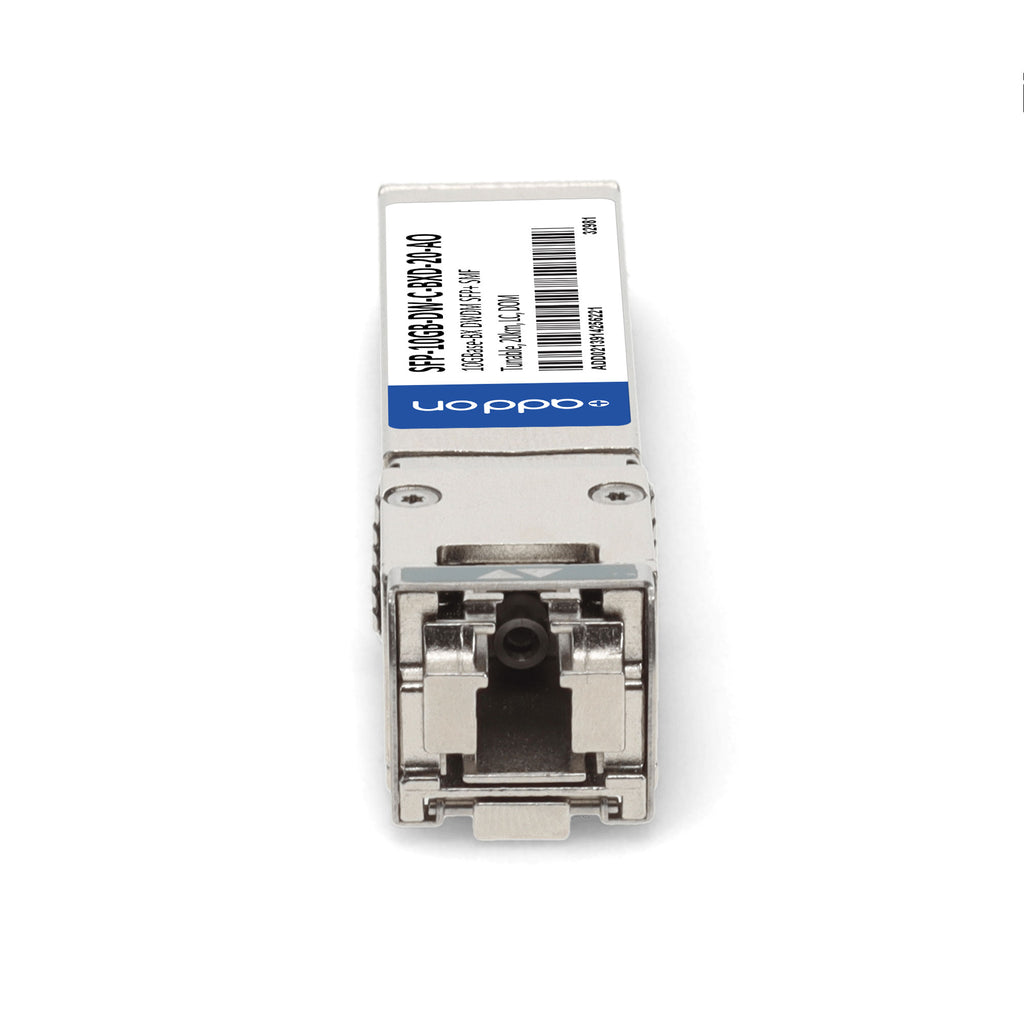

The AddOn SFP-10GB-DW-C-BXD-20-AO is an MSA and TAA compliant 10GBase-DWDM bidirectional SFP+ transceiver designed to deliver reliable and flexible optical connectivity across dense wavelength division multiplexing (DWDM) networks. Supporting data rates from 1.2 Gbps to 11.3 Gbps, this transceiver operates over single-mode fiber (SMF) with a reach of up to 20 km and features a monolithic tunable BOSA with auto-tuning technology for simplified deployment across 40 dual-band bidirectional point-to-point links on 100 GHz ITU grids.
Engineered for high-performance access, metro, and enterprise network applications, it provides digital optical monitoring (DOM) for real-time performance metrics and is built with advanced diagnostics and low-power consumption. Each module is uniquely serialized, tested for full data-traffic compliance, and backed by AddOn’s limited lifetime warranty, ensuring seamless network integration and dependable operation.
| Specification | Details |
|---|---|
| Part Number | SFP-10GB-DW-C-BXD-20-AO |
| Form Factor | SFP+ |
| Data Rate | 1.2 Gbps – 11.3 Gbps |
| Wavelength Range | 1529.55 nm – 1565.50 nm (tunable, 100 GHz ITU grid) |
| Channel Spacing | 100 GHz |
| Interface | Single LC connector (Bi-Directional) |
| Transmission Distance | Up to 20 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Optical Output Power | 0.5 dBm average |
| Receiver Sensitivity | -18.5 dBm |
| Overload Power | -7 dBm |
| Extinction Ratio | ≥ 9.0 dB |
| Power Supply Voltage | 3.14 V – 3.46 V |
| Power Consumption | ≤ 2.5 W |
| Operating Temperature | -5 °C to +70 °C |
| Digital Diagnostics (DOM) | Supported |
| Auto-Tuning | Supported |
| Applications | 8G/10G Fibre Channel, 10G Ethernet over DWDM, Access/Metro/Enterprise |
| Compliance | MSA, TAA, RoHS-6, FCC Part 15, IEC 61000-4-3, EN55022, FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| Connector Type | LC Duplex |
| Warranty | Limited Lifetime Warranty |
