Description

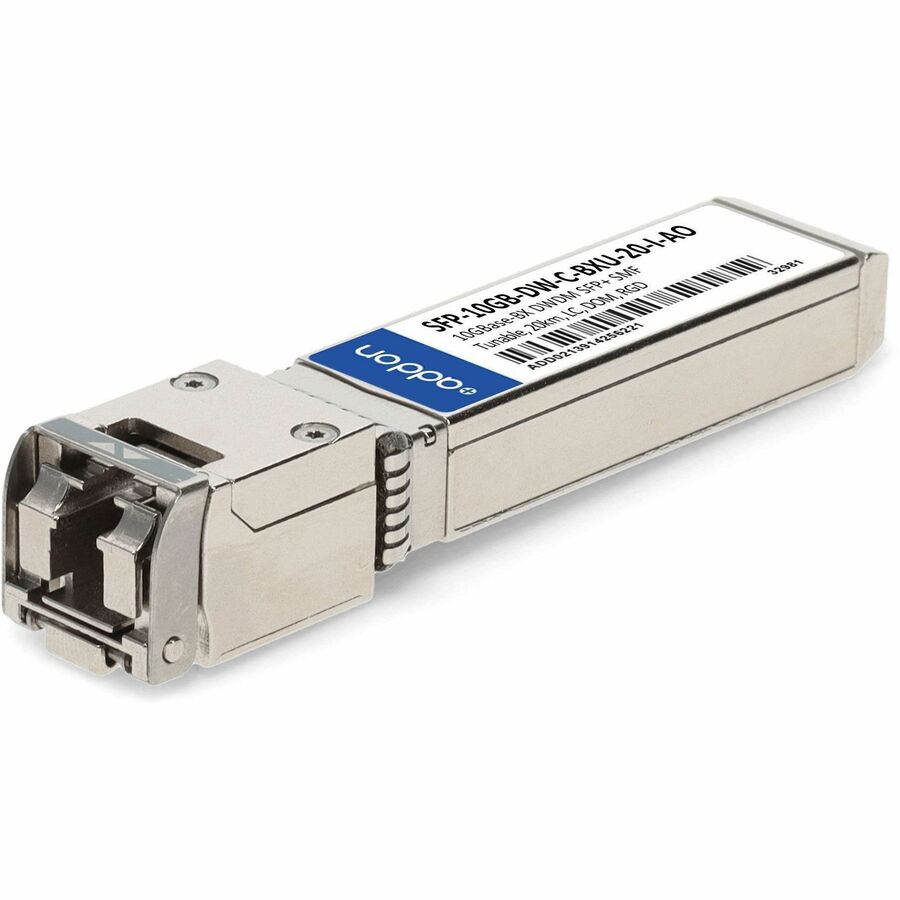

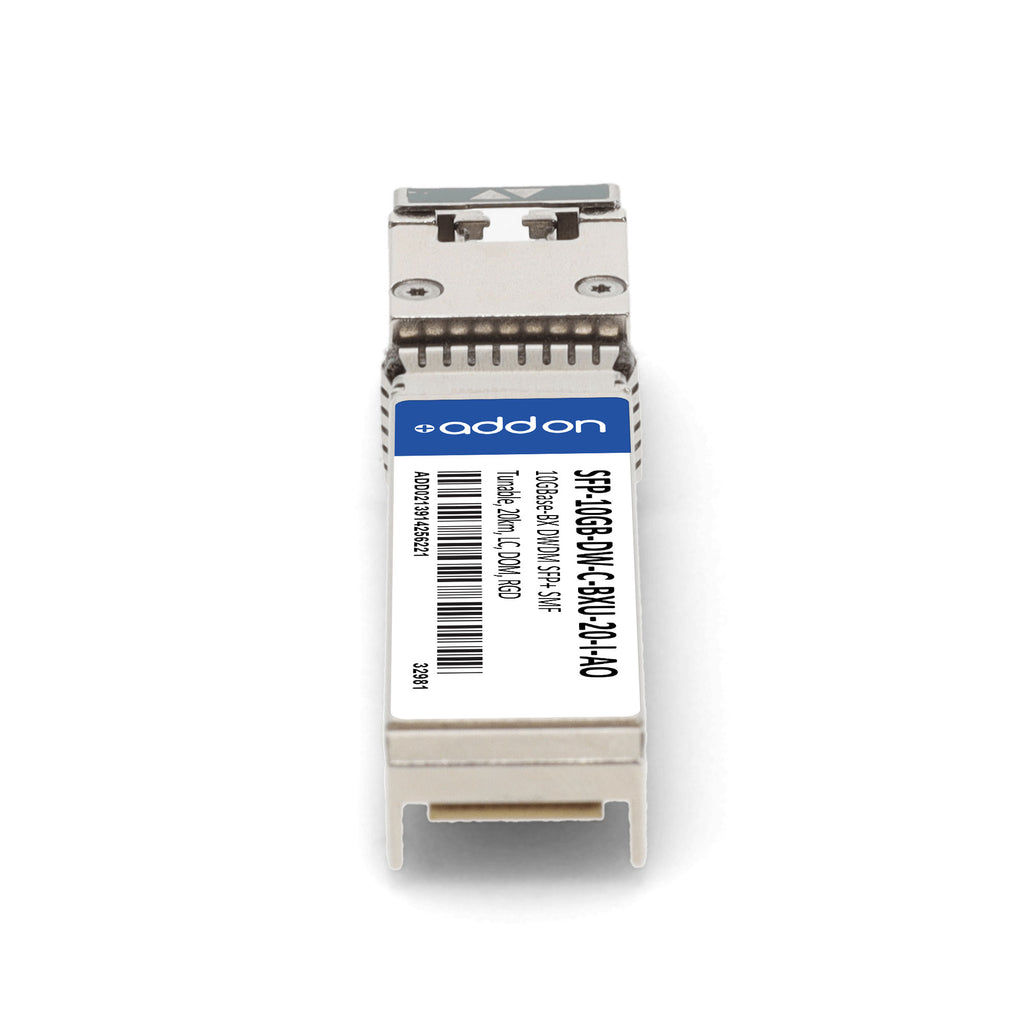

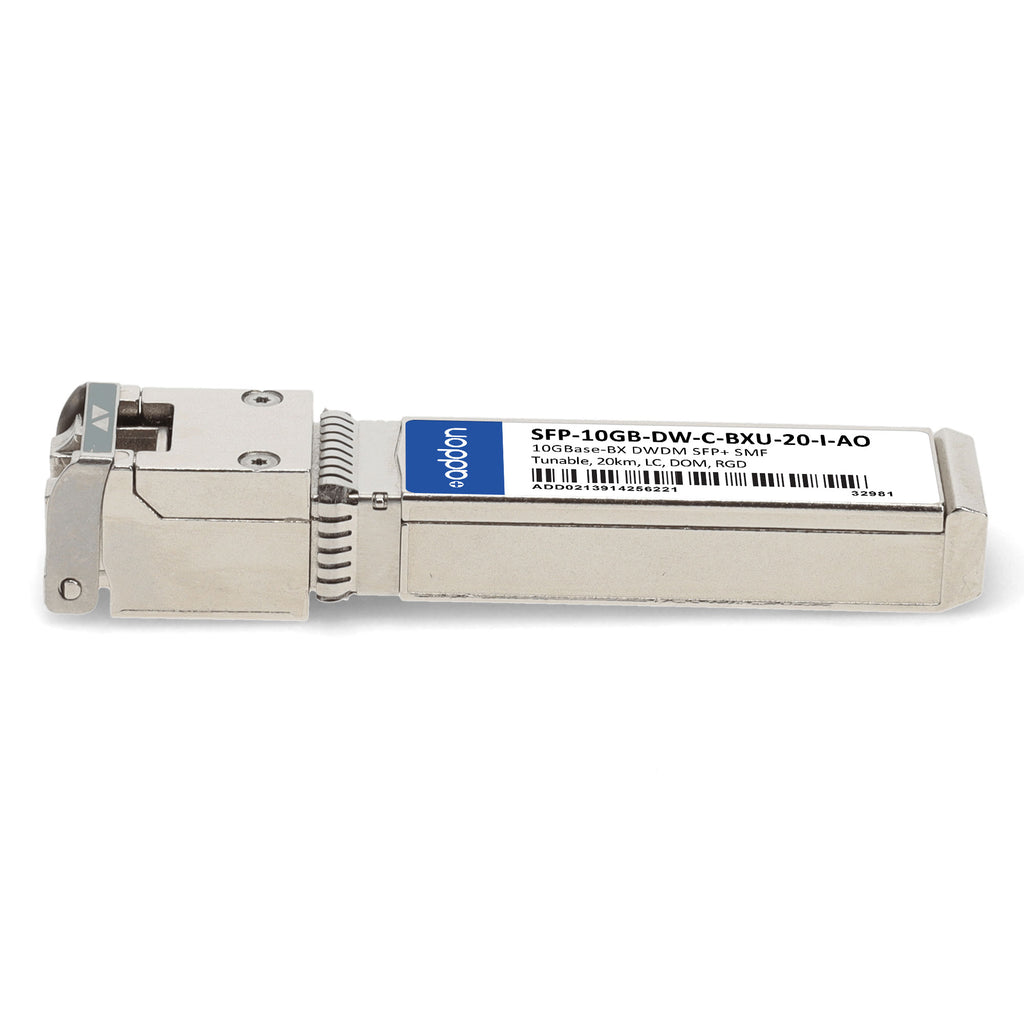

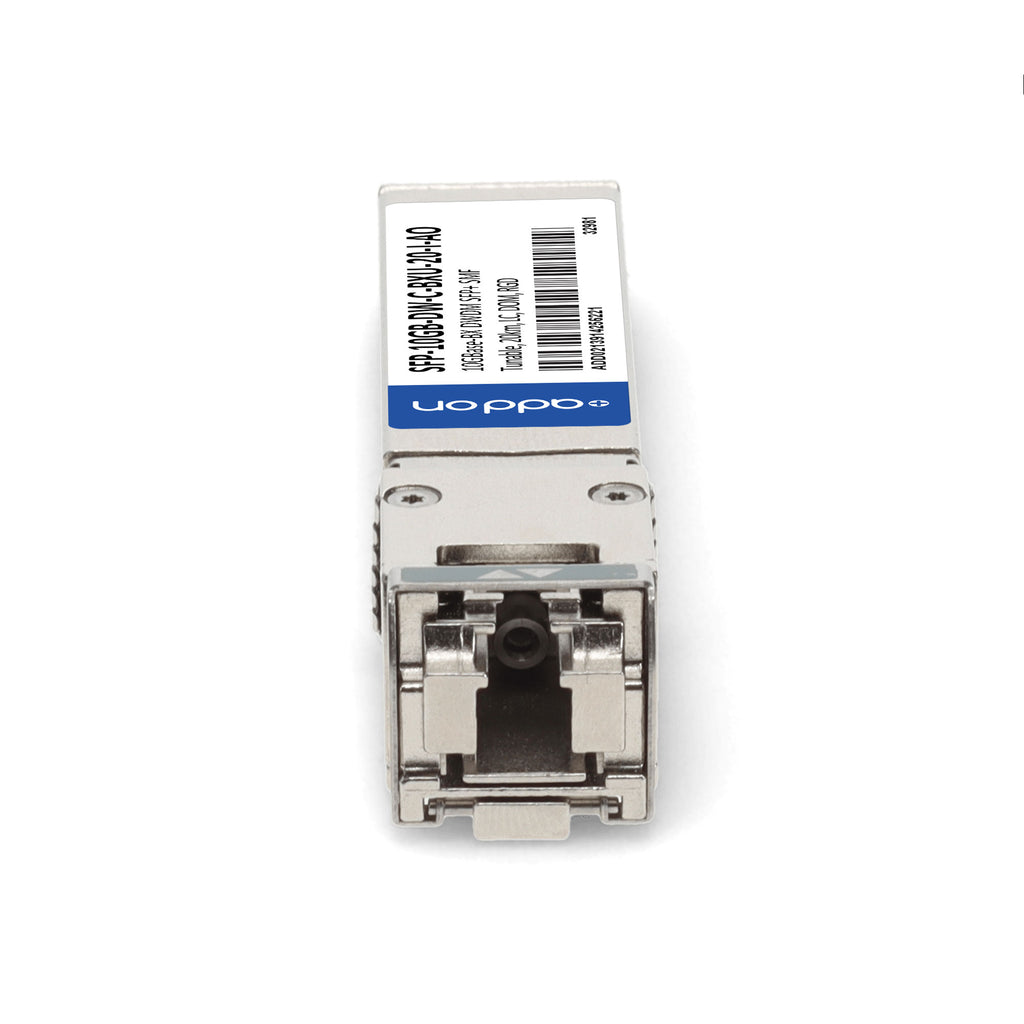

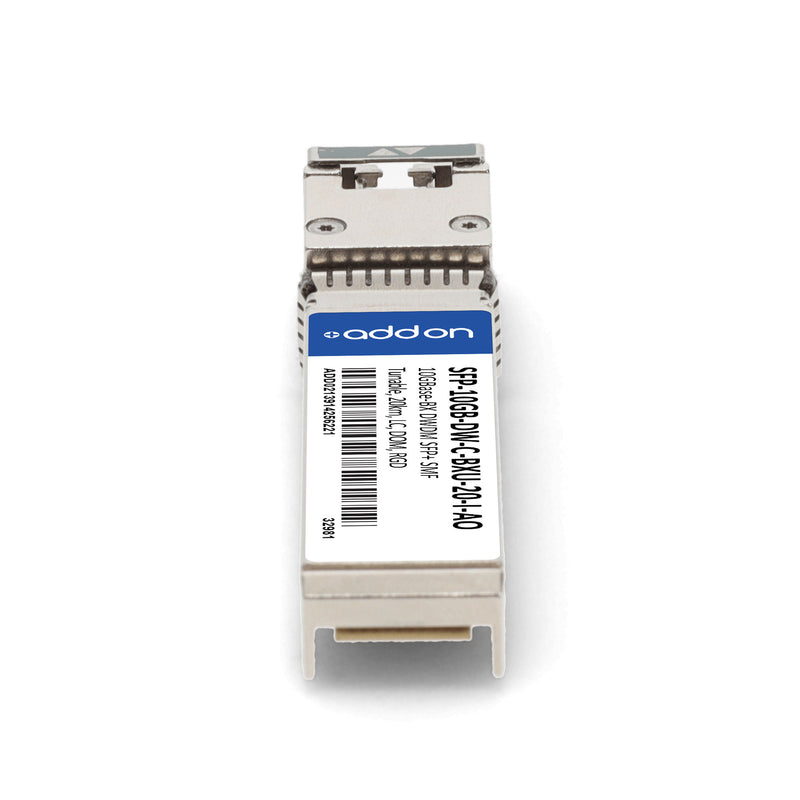

The AddOn SFP-10GB-DW-C-BXU-20-I-AO is a high-performance, MSA-compliant, and TAA-certified SFP+ optical transceiver designed for multi-rate applications ranging from 1.2 Gbps to 11.3 Gbps. Operating over single-mode fiber (SMF) with a maximum reach of 20 km, this module uses a wavelength range of 1530 nm to 1565 nm and features a single LC connector for bi-directional communication.
Engineered with a monolithic tunable BOSA and auto-tuning technology, this transceiver supports 40 dual-band bidirectional point-to-point links on 100 GHz ITU grids. It also includes Digital Optical Monitoring (DOM) for real-time diagnostics and operates reliably in industrial temperature environments from -40 °C to +85 °C. This secondary, upstream transceiver is designed to be paired with a primary downstream unit, making it ideal for access, metro, and enterprise network deployments. Every unit is uniquely serialized, rigorously tested for data traffic and application performance, and backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Manufacturer | AddOn |
| Part Number | SFP-10GB-DW-C-BXU-20-I-AO |
| Form Factor | SFP+ |
| Compliance | MSA, TAA, RoHS-6 |
| Data Rate | 1.2 Gbps – 11.3 Gbps |
| Transmission Distance | Up to 20 km |
| Wavelength Range | 1530 nm – 1565 nm |
| Frequency Range | 192.1 THz – 196.0 THz |
| ITU Channel Spacing | 100 GHz |
| Connector Type | Single LC (Bi-Directional) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Transmitter Technology | Monolithic Tunable BOSA |
| Features | Auto-tuning, DOM support, Limiting receiver |
| Output Power (Tx) | 0.5 dBm average |
| Receiver Sensitivity | –18.5 dBm |
| Extinction Ratio | ≥ 9.0 dB |
| Power Supply Voltage | 3.14 V – 3.46 V |
| Power Consumption | ≤ 2.5 W |
| Operating Temperature | –40 °C to +85 °C |
| Applications | 8x/10x Fibre Channel, 10G Ethernet over DWDM, Access, Metro, Enterprise |
| Warranty | Limited Lifetime Warranty |
