Description

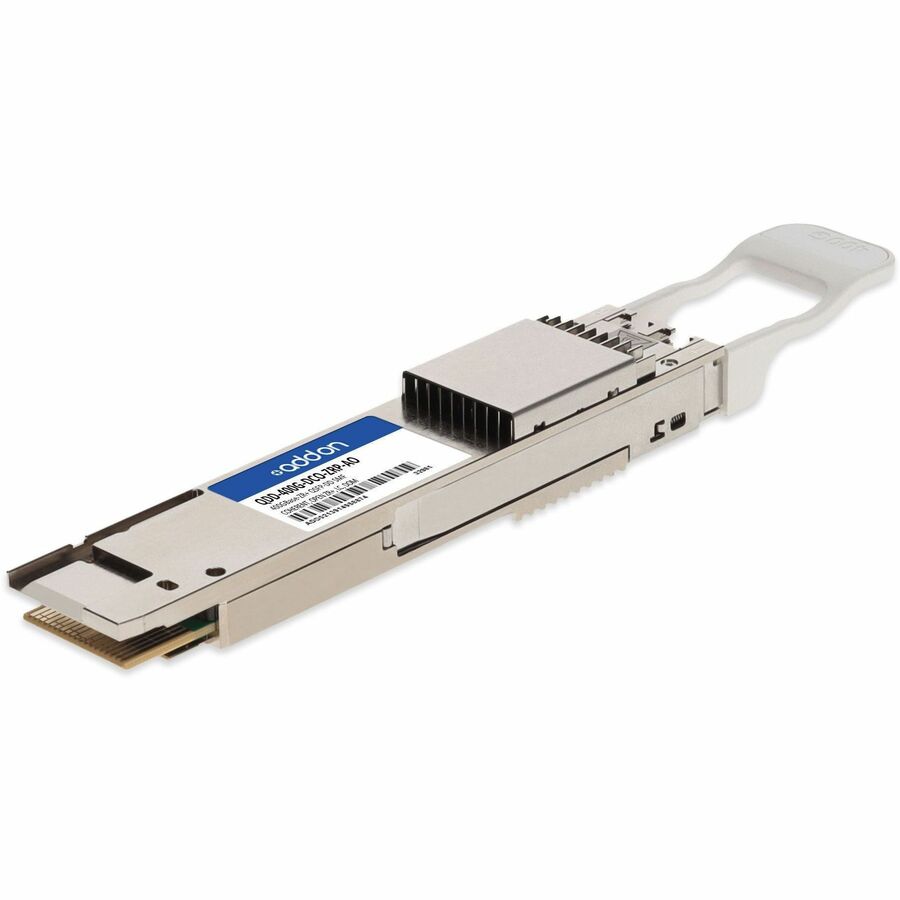

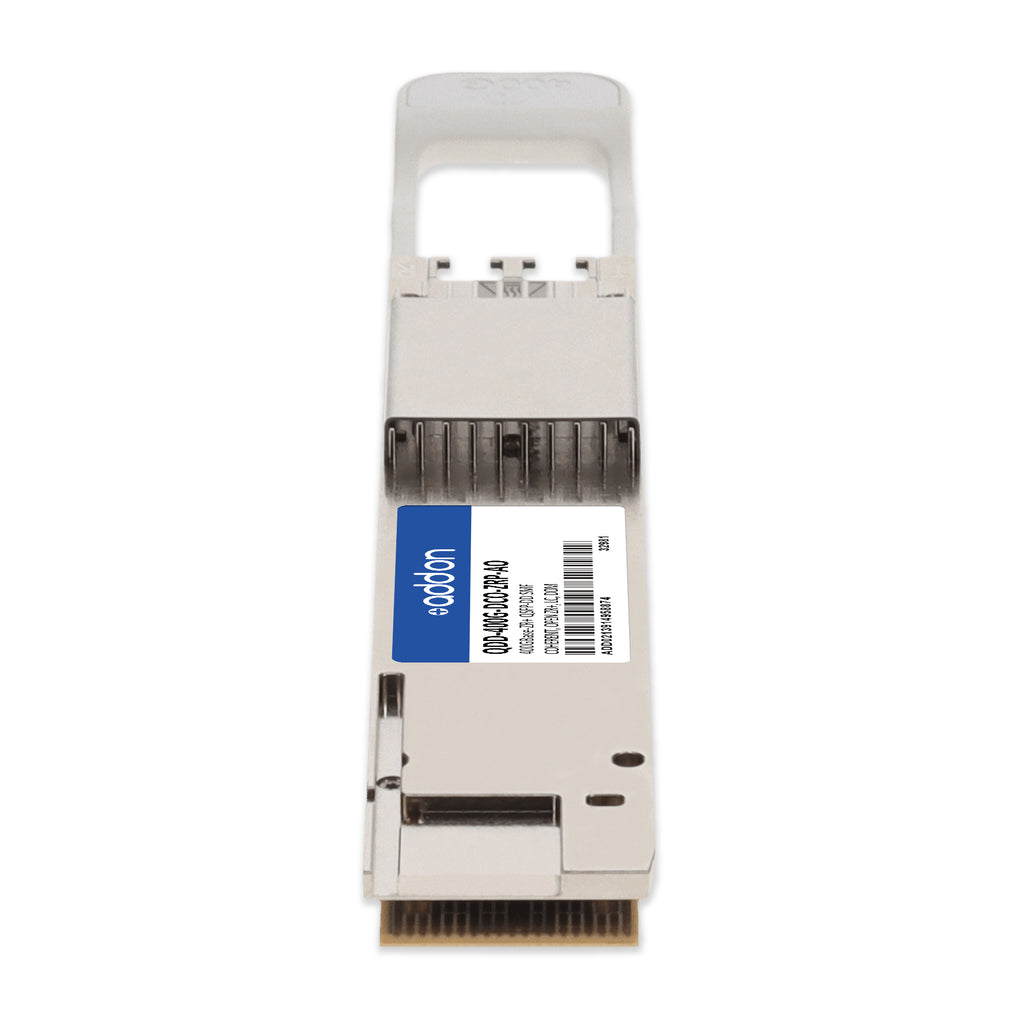

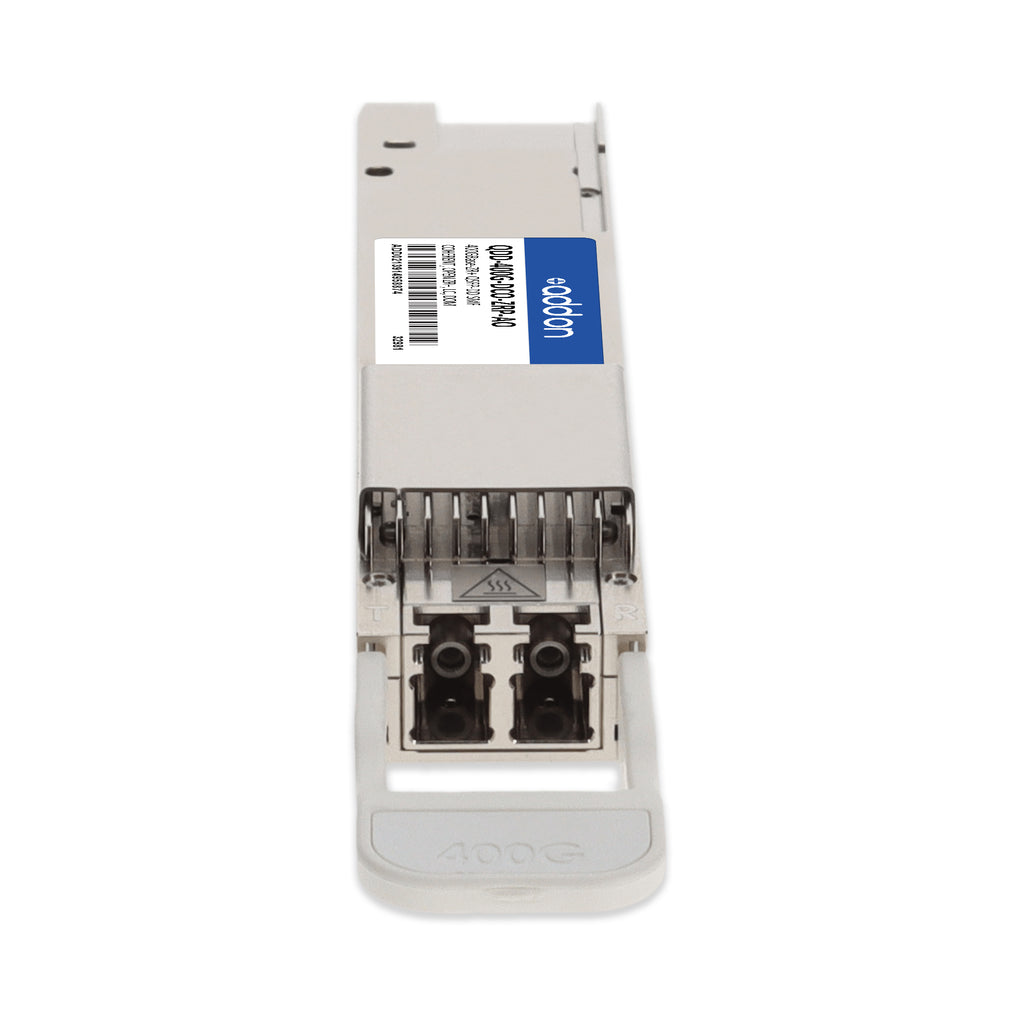

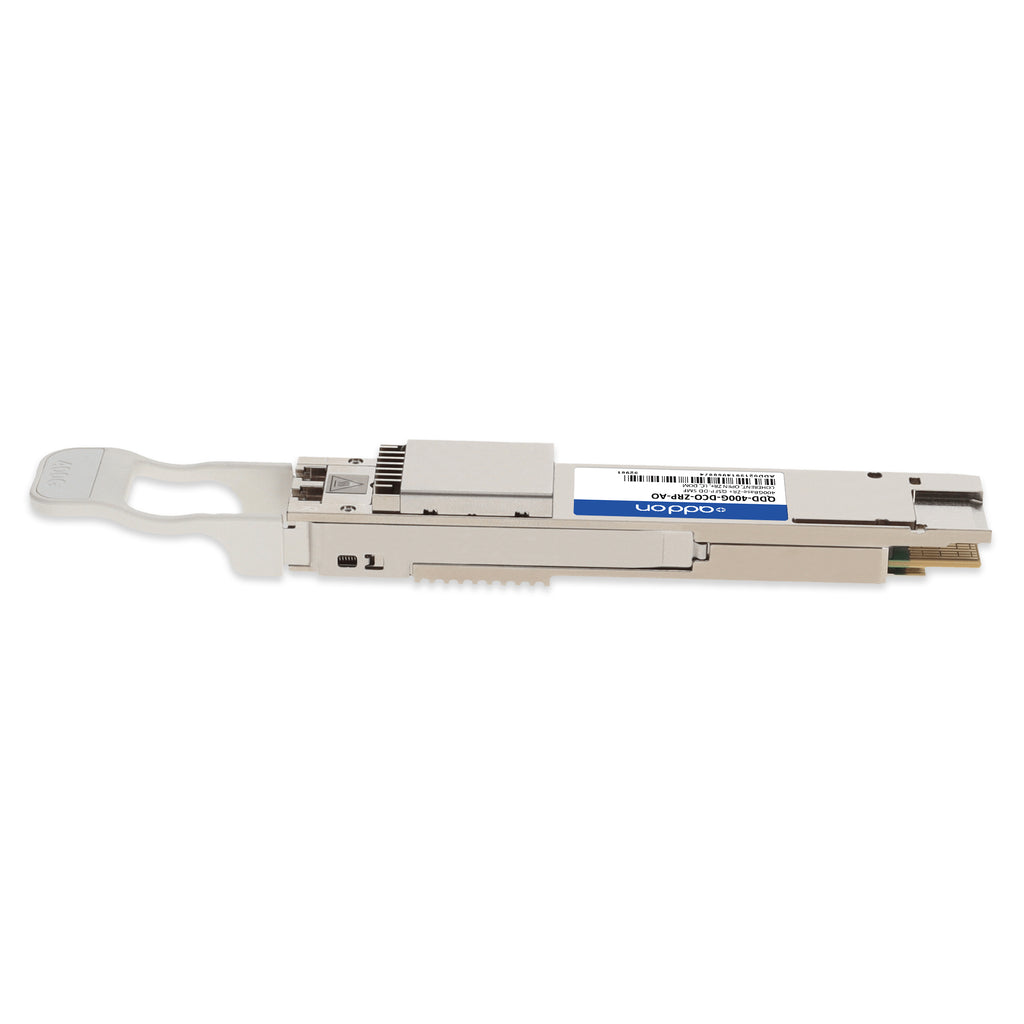

The AddOn QDD-400G-DCO-ZRP-AO is a high-performance, MSA-compliant 400GBase-ZR+ QSFP-DD coherent optical transceiver designed for long-reach, high-capacity data center interconnects and service provider networks. Supporting 400 Gbps, 300 Gbps, 200 Gbps, and 100 Gbps payloads over single-mode fiber (SMF), it delivers unmatched flexibility and performance for metro and long-haul applications.
Featuring a tunable C-band transmitter and coherent receiver technology, this transceiver operates across the 1528.58 nm to 1567.34 nm wavelength range and supports Open ZR+ deployments with digital optical monitoring (DOM) for real-time diagnostics. It is fully hot-pluggable with a QSFP-DD (Type 2A) footprint and supports Duplex LC connectivity.
With O-FEC (15%) forward error correction, up to 11.6 dB net coding gain, and advanced signal integrity features such as PAM4 electrical interfaces, high OSNR tolerance, and chromatic dispersion compensation, the QDD-400G-DCO-ZRP-AO is ideal for carrier-class, enterprise, and hyperscale environments demanding long-reach coherent optics and seamless integration.
| Specification | Details |
|---|---|
| Part Number | QDD-400G-DCO-ZRP-AO |
| Form Factor | QSFP-DD (Type 2A), hot-pluggable |
| Data Rate Support | 400 Gbps, 300 Gbps, 200 Gbps, 100 Gbps |
| Transmission Distance | ZR+ (Long-reach, up to ~2000 km depending on deployment) |
| Wavelength Range | 1528.58 nm – 1567.34 nm (C-band, tunable) |
| Optical Modulation | Coherent with PAM4 serial electrical interface |
| Connector Type | Duplex LC |
| FEC | O-FEC (15%) with up to 11.6 dB net coding gain |
| Baud Rate (Line) | Up to 60.13855 GBd |
| Receiver Sensitivity | -23 dBm to -32 dBm (depending on modulation) |
| Receiver Overload | 1 dBm |
| Output Power (Tx) | -10 dBm to -6 dBm |
| OSNR Tolerance | Up to 22.7 dB |
| Chromatic Dispersion Tolerance | Up to 80,000 ps/nm |
| Channel Spacing | 6.25 GHz (ITU-T G.694.1 DWDM grid) |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Power Consumption | 18.4 W – 21.3 W (1.5 W in low-power mode) |
| Operating Temperature | -5 °C – 80 °C |
| Storage Temperature | -40 °C – 85 °C |
| Compliance | MSA, Open ZR+, RoHS, TAA |
| Applications | 400G Ethernet, metro and long-haul DCI, carrier and enterprise backbones |
