Description

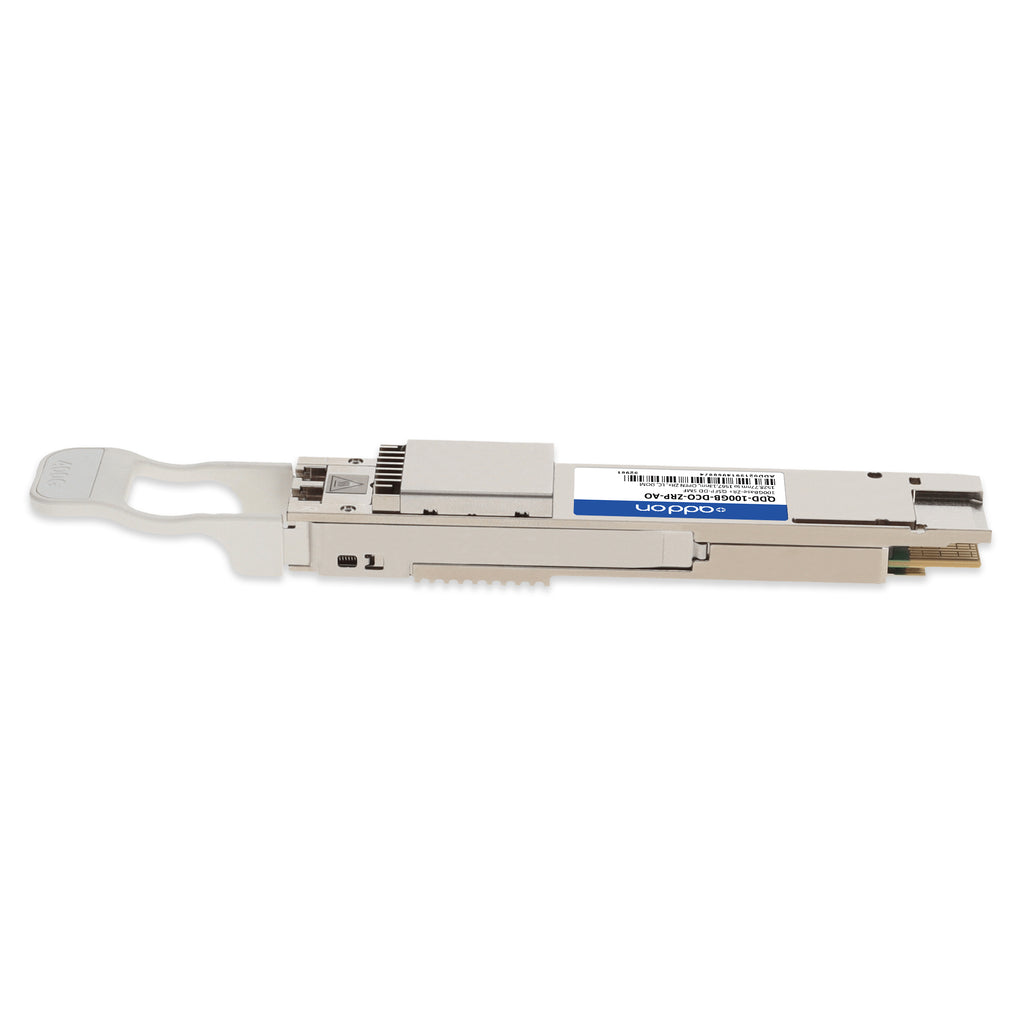

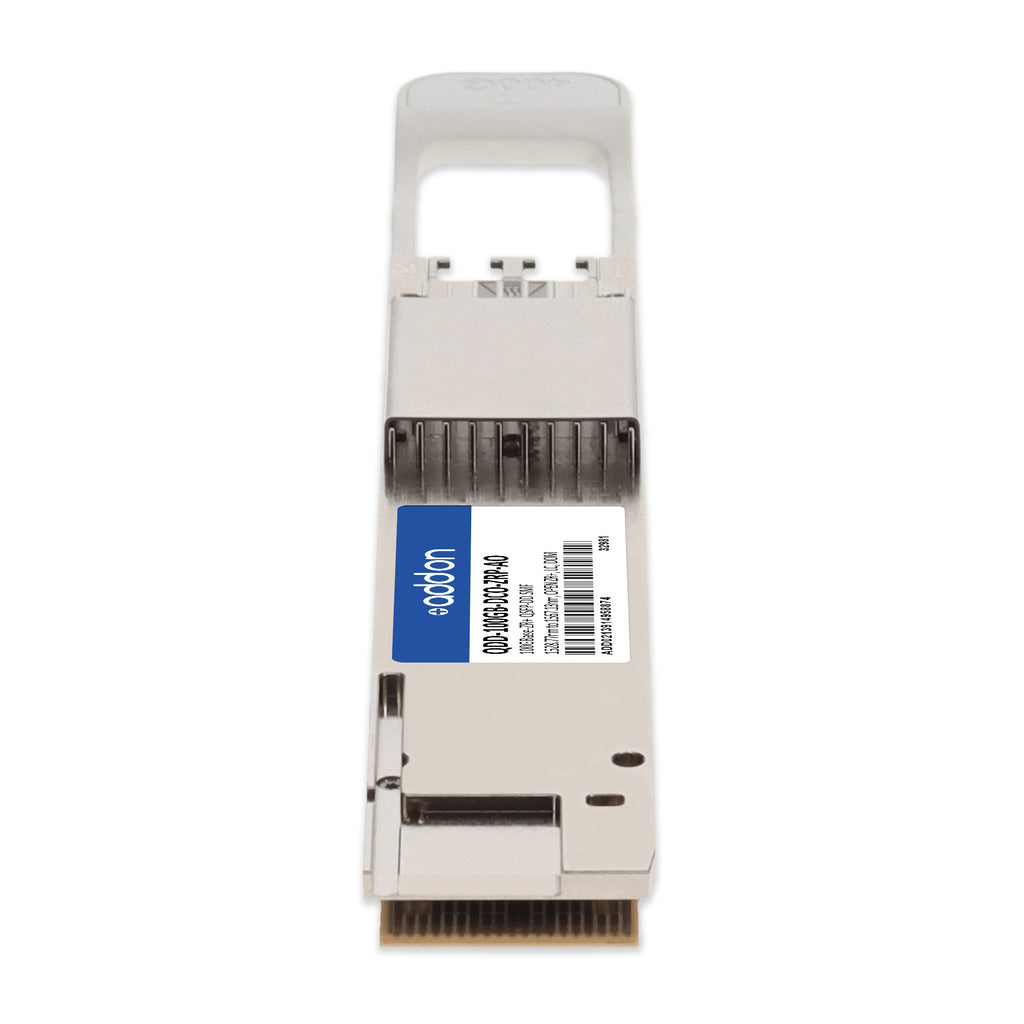

The AddOn QDD-100GB-DCO-ZRP-AO is a high-performance 100GBase-ZR+ coherent QSFP-DD transceiver designed for long-reach data center interconnect and metro optical transport applications. Fully compliant with QSFP-DD MSA and Open ZR+ standards, it supports 100Gbps payload transmission over single-mode fiber (SMF) using a tunable C-band transmitter and coherent receiver technology.
Equipped with O-FEC (15%) with 11.6dB Net Coding Gain, this module ensures superior signal integrity and extended reach. It supports both CAUI-4 NRZ and 100GAUI-2 PAM4 electrical interfaces and includes digital optical monitoring (DOM) for real-time diagnostics.
Built for reliability and seamless integration, each unit is TAA-compliant, RoHS-certified, uniquely serialized, and rigorously tested for performance and interoperability — backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Part Number | QDD-100GB-DCO-ZRP-AO |
| Form Factor | QSFP-DD (Type 2A), hot-pluggable |
| Data Rate | 100Gbps payload (Open ZR+) |
| Wavelength Range | 1528.77 nm – 1567.13 nm (C-band, tunable) |

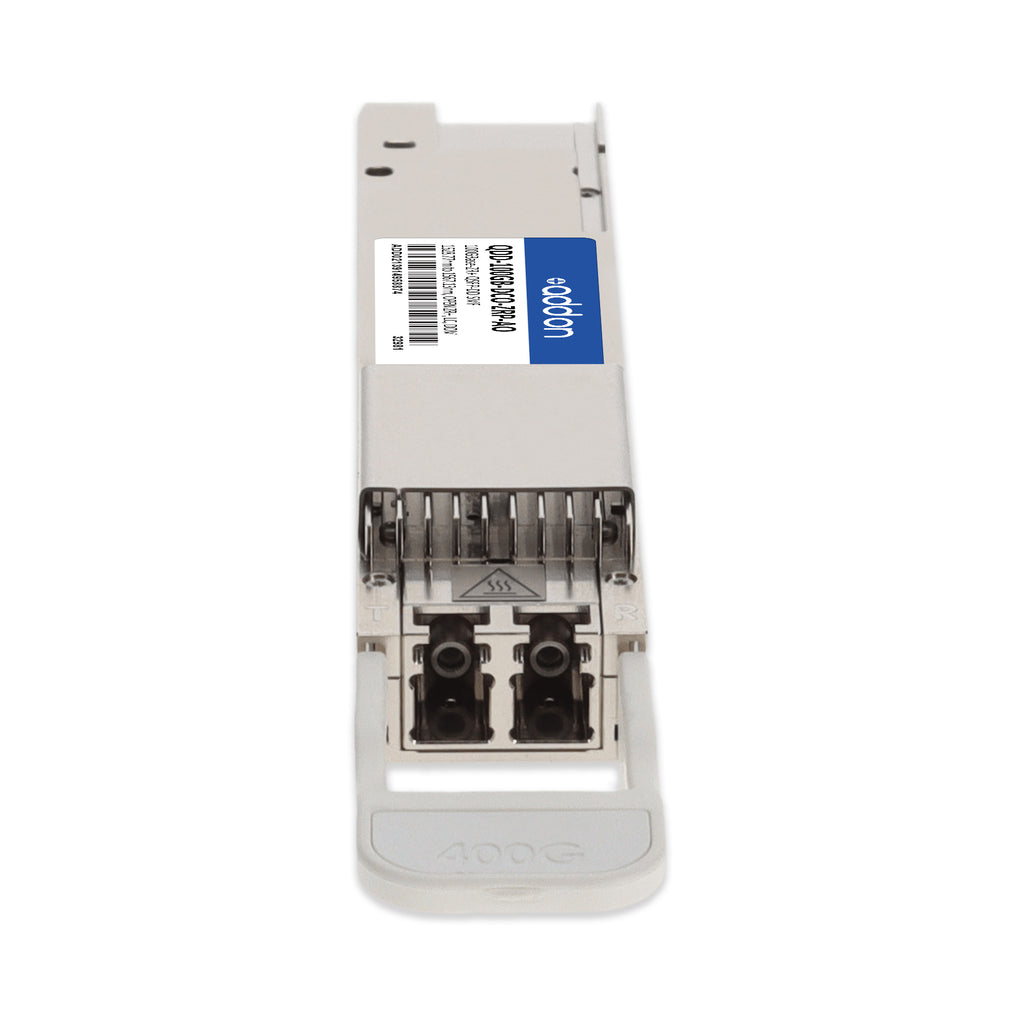

| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| FEC Support | O-FEC (15%), RS-FEC (544/528), RS-FEC (544/514) |
| Electrical Interface | CAUI-4 (4×25.78125 Gbps NRZ), 100GAUI-2 (2×26.5625 GBd PAM4) |
| Average TX Output Power | –6 dBm to –2 dBm |
| Receiver Sensitivity | –32 dBm |
| Receiver Overload | +4 dBm |
| Chromatic Dispersion Tolerance | Up to 5000 ps/nm |
| OSNR Tolerance | 14 – 15.5 dB |
| Channel Spacing | 6.25 GHz |
| Power Supply Voltage | 3.218 V – 3.465 V |
| Power Consumption | 16.5 W (typical), 1.5 W (low-power mode) |
| Operating Temperature | 0 °C – 70 °C |
| Compliance | QSFP-DD MSA, Open ZR+, IEEE 802.3, TAA, RoHS |
| DOM Support | Yes (real-time diagnostics) |
| Applications | Data Center Interconnect, Metro Transport, Access & Enterprise Networks |
