Description

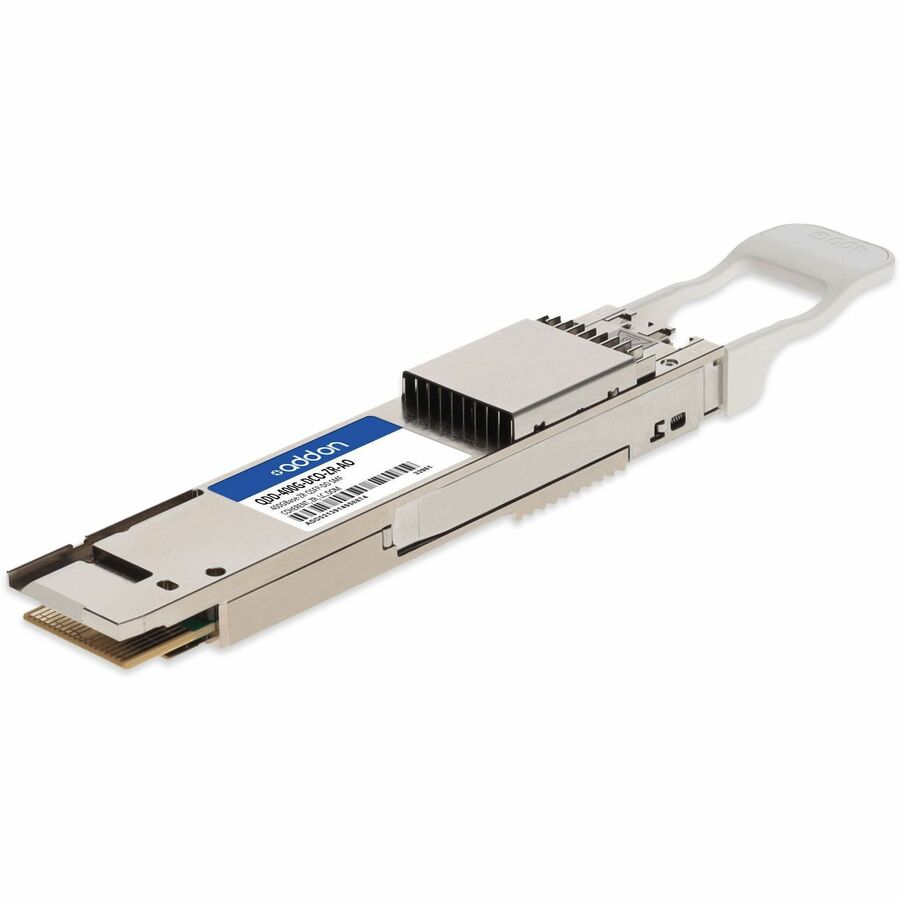

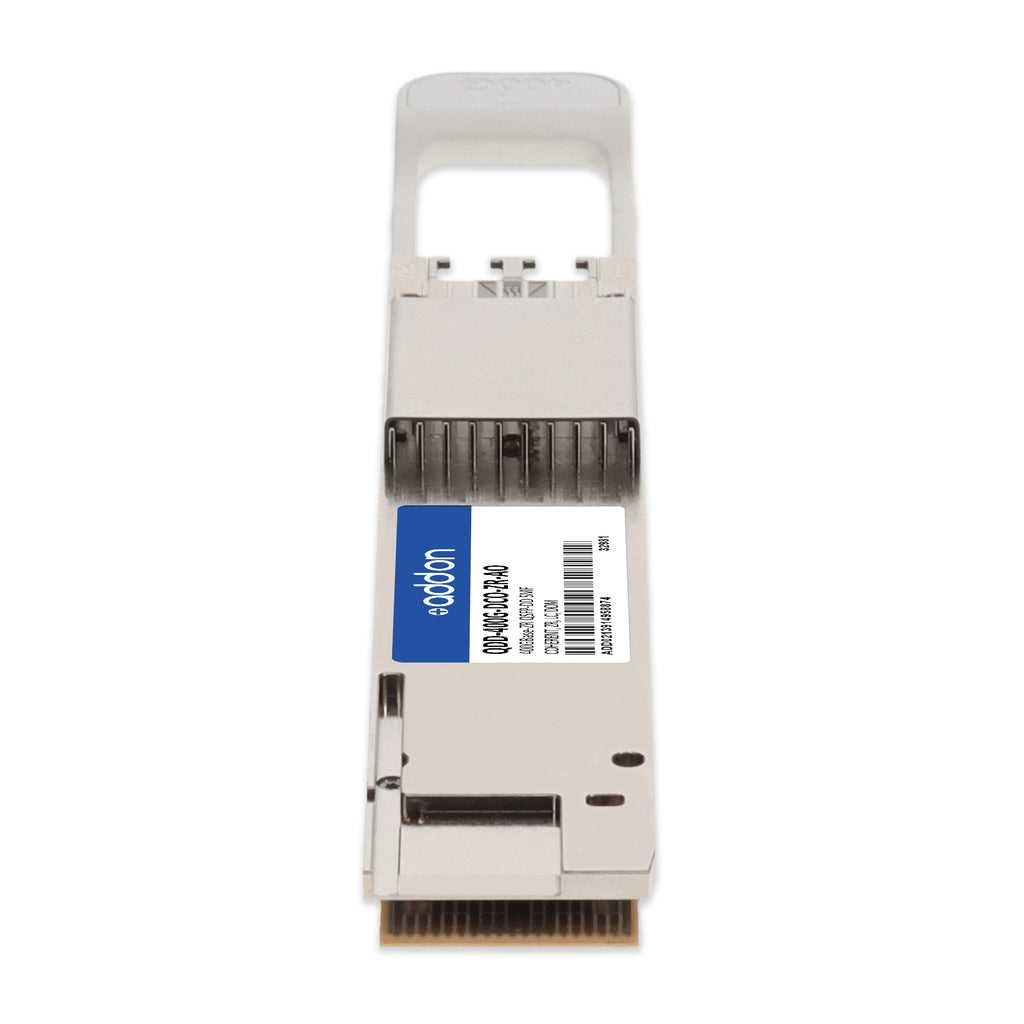

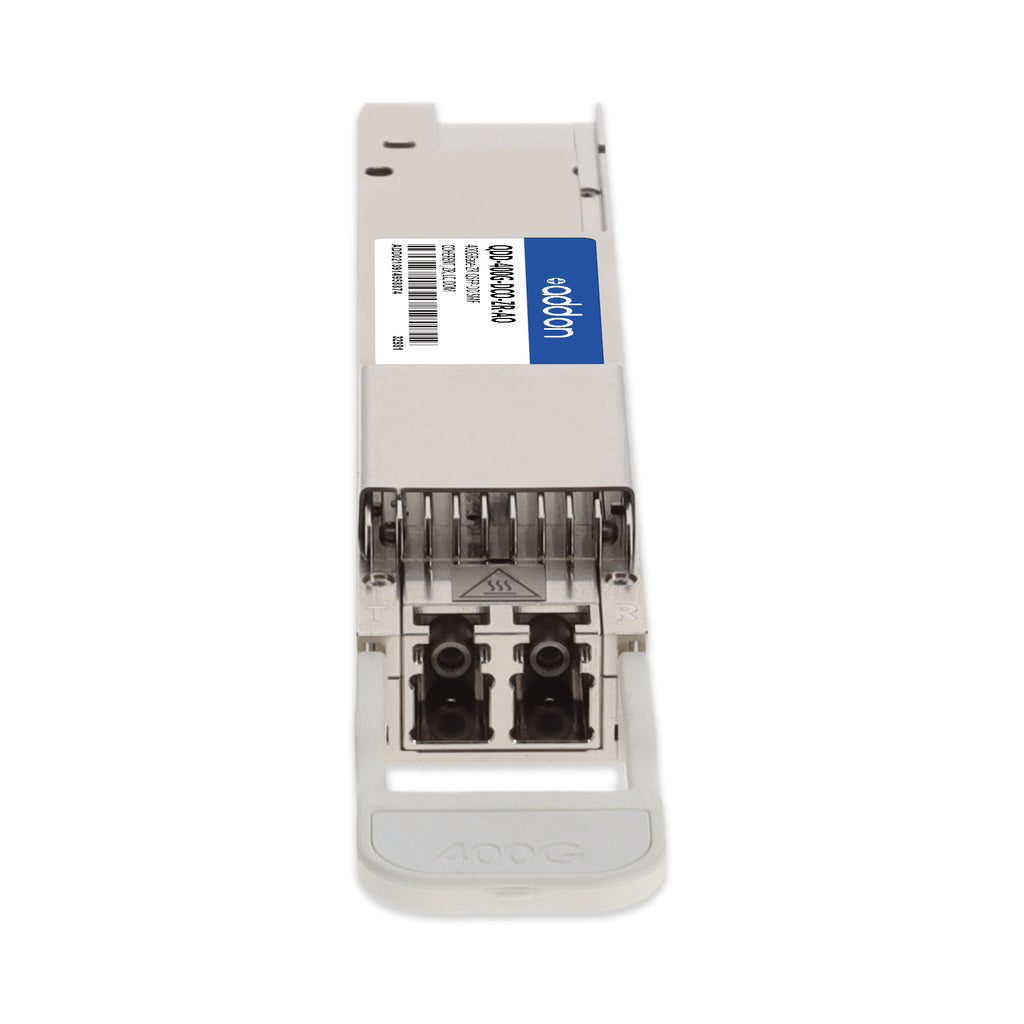

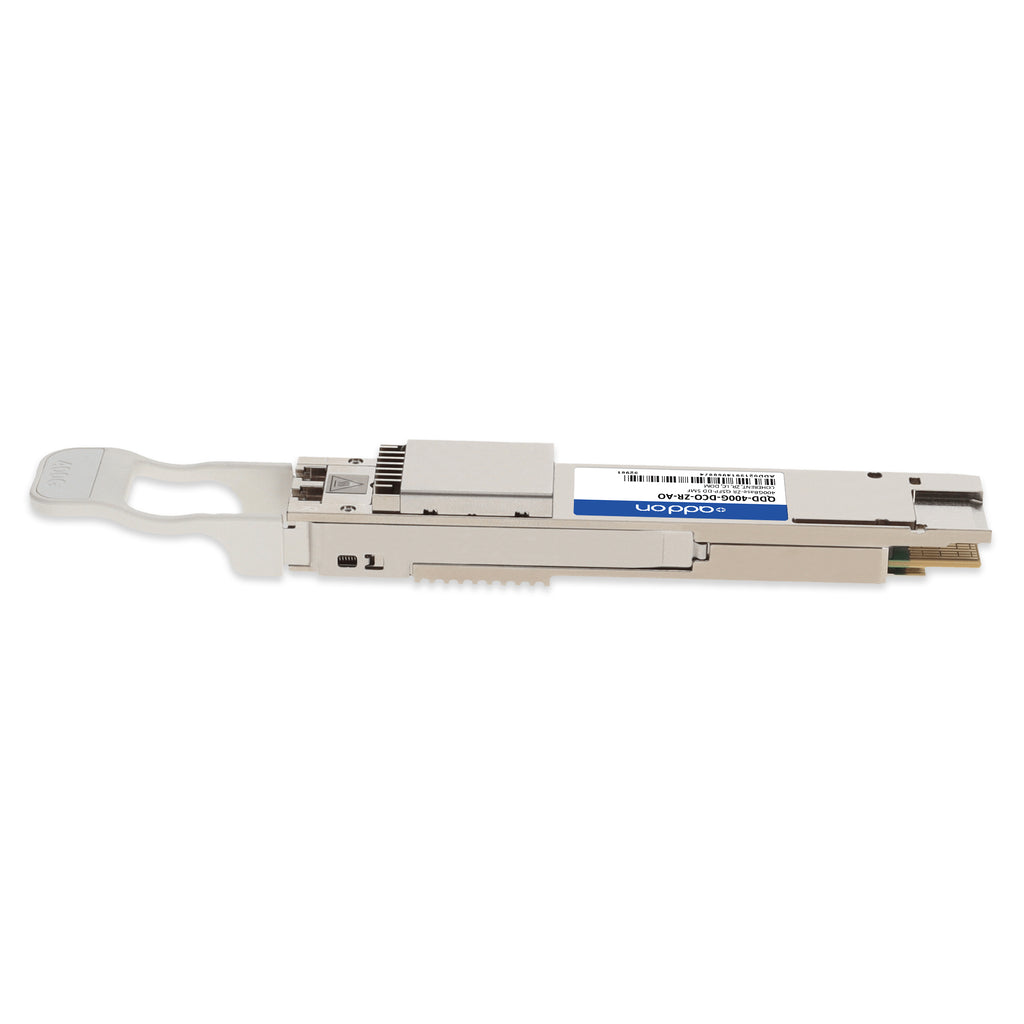

The AddOn QDD-400G-DCO-ZR-AO is a high-performance, MSA-compliant 400GBase-ZR coherent QSFP-DD optical transceiver designed for next-generation long-haul and metro data center interconnects. Featuring a tunable C-band transmitter and coherent receiver technology, this module supports up to 120 km point-to-point transmission over single-mode fiber (SMF) while maintaining exceptional signal integrity and performance.
Operating on the 400GAUI-8 electrical interface with RS(544/514) FEC, this transceiver offers up to 425 Gbps of throughput and seamless integration into existing network infrastructures. Its Digital Optical Monitoring (DOM) enables real-time visibility into key operating parameters, while TAA compliance ensures eligibility for government and enterprise deployments. Built for reliability and efficiency, it consumes less than 18.3 W and supports a wide operating temperature range of –5 °C to 85 °C.
Engineered to deliver maximum performance and interoperability, this transceiver is ideal for long-distance data center interconnect (DCI), metro, and carrier-class optical transport networks.
| Specification | Details |
|---|---|
| SKU | QDD-400G-DCO-ZR-AO |
| Form Factor | QSFP-DD (Type 2A), Hot-Pluggable |
| Data Rate | Up to 425 Gbps |
| Electrical Interface | 8x 26.5625 GBd PAM4 (400GAUI-8) |
| FEC | RS(544/514), C-FEC (15%) with 10.7 dB Net Coding Gain |
| Transmission Distance | Up to 120 km over SMF |
| Wavelength Range | 1528.58 – 1567.34 nm (Tunable C-band) |
| Line Baud Rate | 59.84375 GBd |
| Modulation Format | DP-16QAM |
| Connector Type | Duplex LC |
| Optical Output Power | –10 dBm to –6 dBm |
| Receiver Sensitivity | ≤ –20 dBm |
| Receiver Input Range | –12 dBm to +1 dBm (Extended: –15 dBm to +1 dBm) |
| OSNR Tolerance | 24 – 26 dB |
| Chromatic Dispersion Tolerance | Up to 2400 ps/nm |
| Power Supply Voltage | 3.3 V (3.135 – 3.465 V) |
| Power Consumption | < 18.3 W |
| Operating Temperature | –5 °C to 85 °C |
| Storage Temperature | –40 °C to 85 °C |
| Connector Interface | Duplex LC |
| Compliance | MSA, TAA, RoHS |
| Digital Diagnostics | DOM (Digital Optical Monitoring) |
| Applications | Long-haul, Metro Networks, DCI, Enterprise Backhaul |
| Warranty | Limited Lifetime Warranty |
