Description

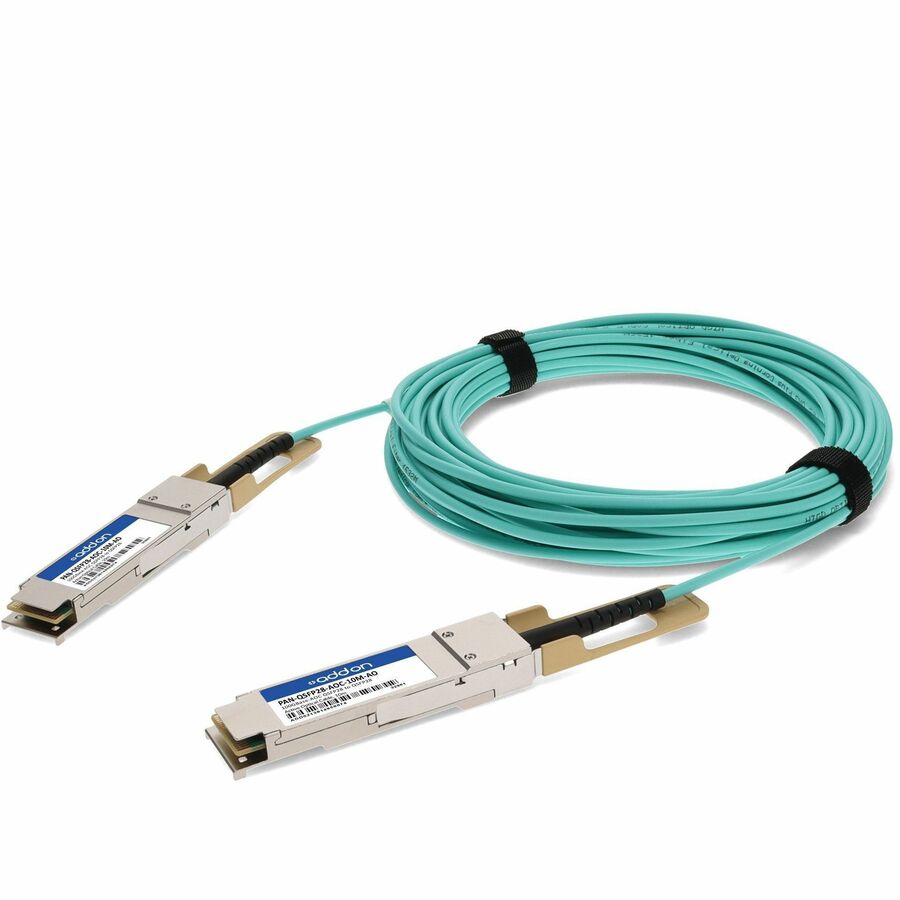

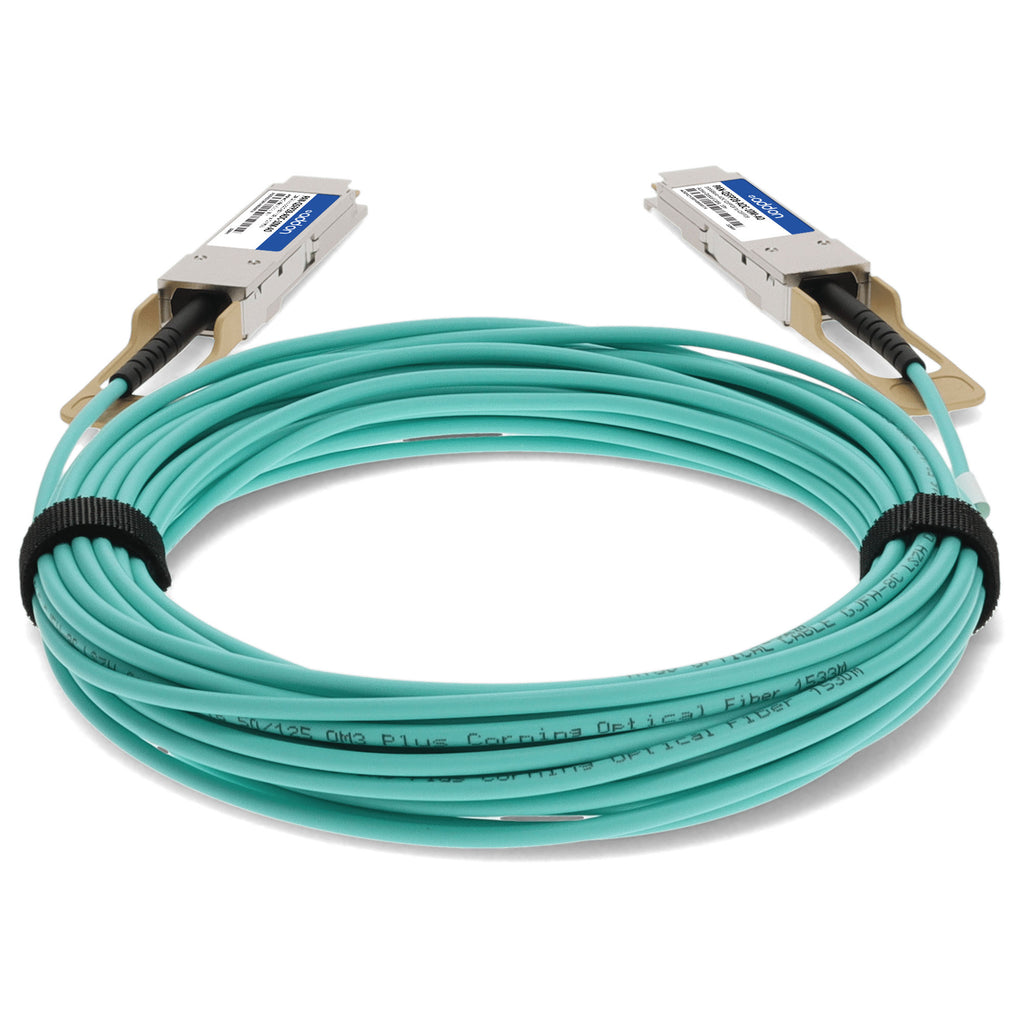

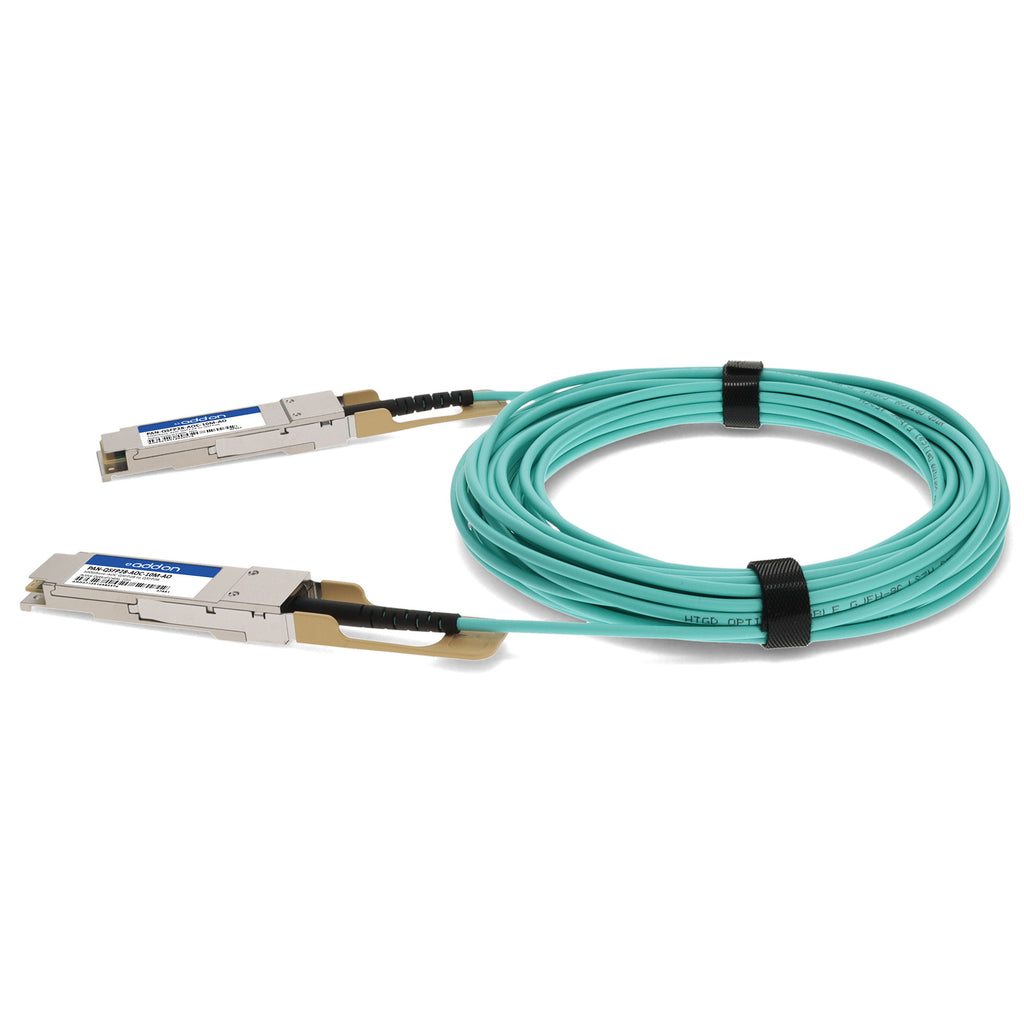

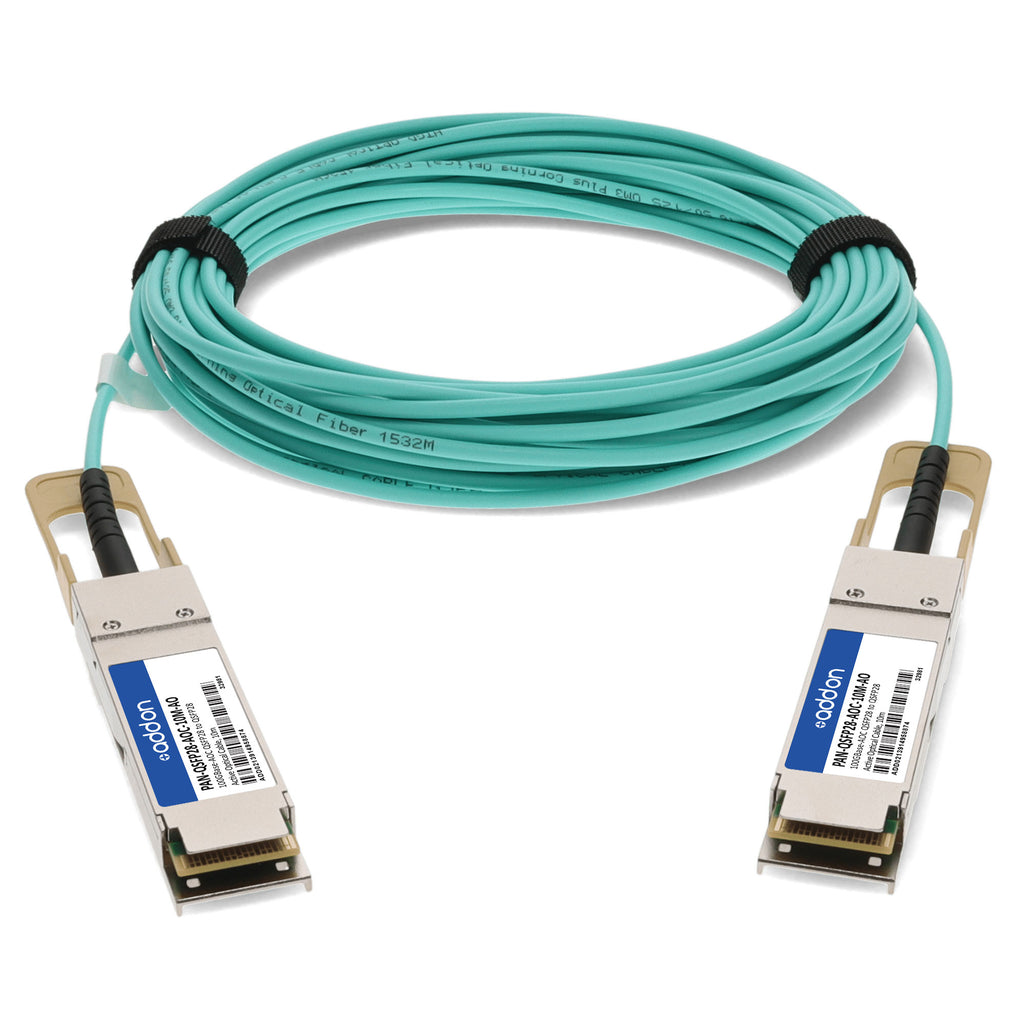

This Palo Alto Networks® PAN-QSFP28-AOC-10M compatible active optical cable from AddOn provides 100GBase-AOC QSFP28 to QSFP28 connectivity over multimode fiber (MMF) with a maximum reach of 10 meters. Engineered to deliver reliable high-speed data transmission, it supports an aggregate bit rate of up to 103.1 Gbps across four independent full-duplex channels, each operating at 25.78125 Gbps.
Compliant with QSFP28 MSA standards, this AOC is fully tested, uniquely serialized, and programmed for seamless integration into existing network infrastructures. It features low power consumption (2.5W per terminal), operates with a single 3.3V power supply, and maintains performance within an operating case temperature range of 0°C to 70°C. Designed for 100GBase Ethernet and InfiniBand EDR applications, this TAA-compliant solution is RoHS-compliant, lead-free, and backed by AddOn’s limited lifetime warranty for guaranteed quality and interoperability.
| Specification | Description |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | PAN-QSFP28-AOC-10M-AO |
| Compatibility | Palo Alto Networks® |
| Form Factor | QSFP28 to QSFP28 Active Optical Cable |
| Data Rate (Aggregate) | Up to 103.1 Gbps |
| Data Rate (Per Lane) | 25.78125 Gbps |
| Wavelength | 850 nm |
| Fiber Type | MMF (Multimode Fiber) |
| Maximum Reach | 10 m |
| Channels | 4 independent full-duplex |
| Electrical Interface | 4x25G (OIF CEI-28G-VSR) |
| Power Supply Voltage | 3.135 – 3.465 V |
| Power Consumption | 2.5 W per terminal |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% – 85% (non-condensing) |
| Compliance | QSFP28 MSA, TAA, RoHS, Lead-Free |
| Applications | 100GBase Ethernet, InfiniBand EDR |
| Warranty | Limited Lifetime Warranty |
