Description
High-Performance Core Switch for Modern Networks

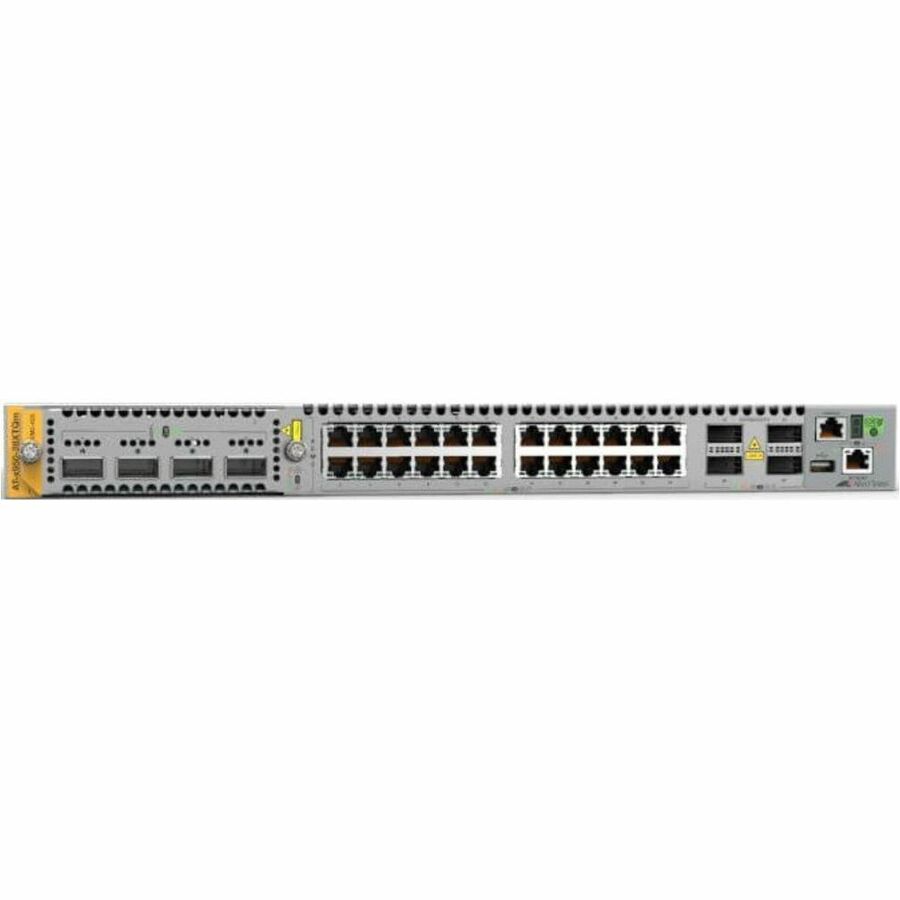

The Allied Telesis x950-28XTQm (AT-X950-28XTQM-B91) is a powerful, stackable Layer 3 managed switch designed for high-capacity network cores and smart city infrastructure. Featuring 24 x 10GBase-T ports and 4 x 100G QSFP28 uplink ports, this switch eliminates bottlenecks with its 1.92 Terabit switching fabric. It supports a broad range of networking standards, offers extensive Layer 3 capabilities, and ensures maximum resiliency with VCStack™ and Ethernet Protection Switched Ring (EPSRing™).
With AlliedWare Plus™, AMF automation, Vista Manager™ EX, and integrated wireless control, the x950-28XTQm simplifies network operations and boosts visibility. Designed to meet the needs of large-scale IoT, cloud, and enterprise environments, it delivers future-proof flexibility with modular expansion and dual-redundant power support—all in a compact 1U rackmount form.
Product Highlights
-
24 Ports total (10G Ethernet)
-
Manageable Layer 3 switch
-
Uplink: 40G and 100G QSFP ports
-
10GBase-T, 40GBase-X, 100GBase-X
-
Modular design with stacking capability
-
Power Consumption: 255.30 W
-
Supports optical fiber and twisted pair
-
1U Rackmountable form factor
-
New and factory fresh unit
-
Shipping weight: 21 lbs
| Specification | Details |
|---|---|
| Manufacturer | Allied Telesis, Inc |
| Part Number | AT-X950-28XTQM-B91 |
| Series / Model | x950 / x950-28XTQm |
| Product Type | Managed Layer 3 Switch |
| Network Ports | 24 x 10GBase-T |
| Uplink Ports | 4 x 100G QSFP28 |
| Expansion Slots | 4 x QSFP+/QSFP28 |
| Stacking Support | Yes, VCStack up to 8 units |
| Modular Expansion | Yes (XEM Bay) |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Ethernet Standards | 10GBase-T, 40GBase-X, 100GBase-X |
| Layer Support | Layer 3 |
| Management | AMF, Vista Manager EX, GUI, CLI, SNMP |

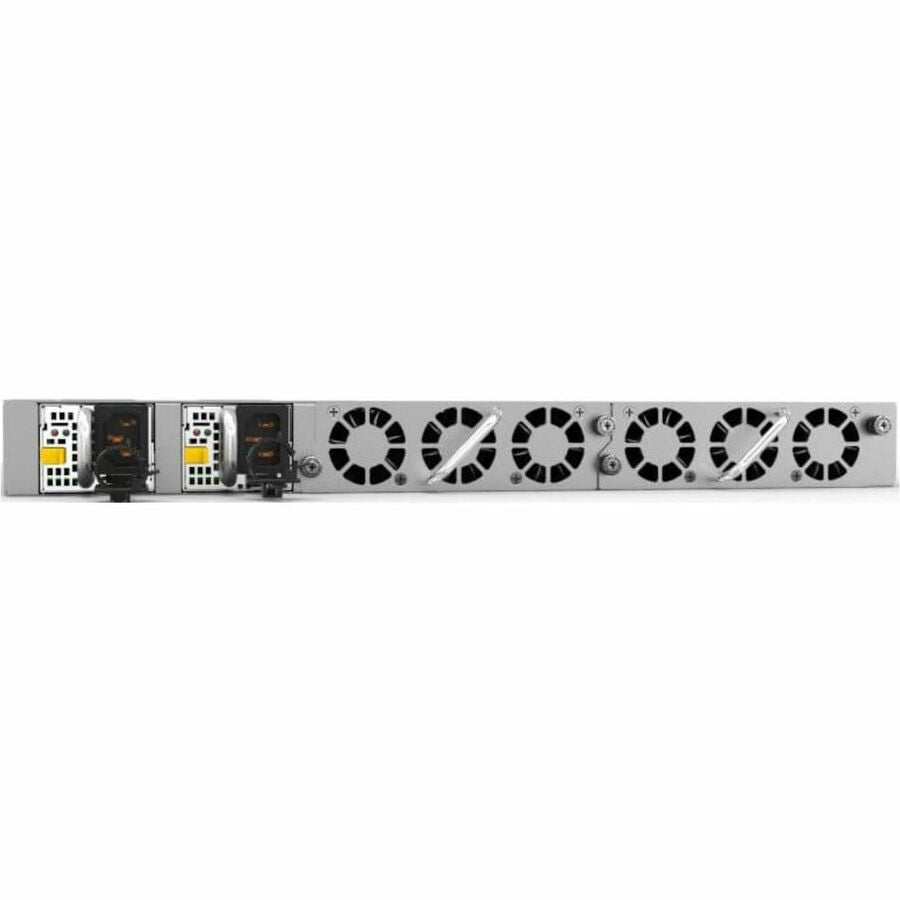

| Power Supply | Dual hot-swappable (redundant supported) |
| Power Consumption | 255.30 W |
| Voltage/Frequency | 120–230V AC / 50–60Hz |
| Form Factor | 1U Rackmount |
| Dimensions (HxWxD) | 1.7" x 17.3" x 17.5" |
| Weight | 16.09 lbs (Shipping Weight: 21 lbs) |
| Environmental Compliance | RoHS, China RoHS |
| Package Includes | x950-28XTQm Switch, Fans |
| Condition | New and Factory Fresh |
