Description

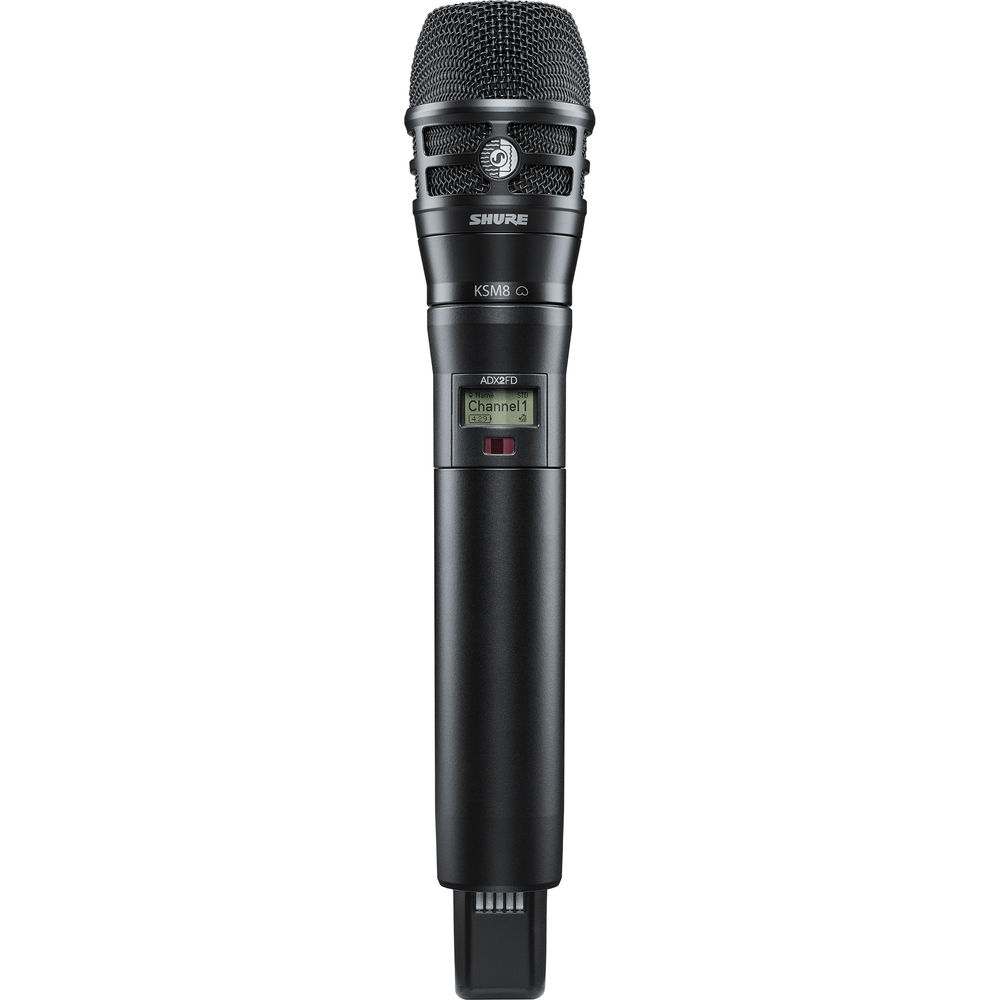

The Shure Axient Digital ADX2FD/K8N is a premium frequency diversity handheld wireless transmitter engineered for mission-critical live sound, broadcast, and touring environments. Designed for unmatched RF stability and audio performance, this transmitter operates within the 470–616 MHz band and supports frequency diversity transmission, allowing it to broadcast on two discrete carriers for superior signal reliability in congested RF environments.
Equipped with the KSM8 Dualdyne dynamic capsule, the ADX2FD/K8N delivers exceptional vocal clarity with minimal proximity effect and consistent tonal balance. Built with rugged, moisture-resistant metal construction, it is optimized for demanding professional use. Advanced ShowLink technology enables real-time remote control and automatic interference avoidance, ensuring uninterrupted performance.
With flexible power options, high-density mode for increased channel count, and encryption for secure transmission, the ADX2FD/K8N is a top-tier solution for professionals requiring flawless wireless audio performance.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| Frequency Range | 470–616 MHz (G57 Band) |
| RF Transmission | Frequency Diversity (Dual Carrier) |
| RF Output Power | 2 mW, 10 mW, 20 mW, up to 50 mW (region dependent) |
| Audio Frequency Response | 20 Hz – 20 kHz |
| Dynamic Range | Up to 130 dB (system dependent) |
| Latency | As low as 2 ms |
| Capsule Type | KSM8 Dualdyne Dynamic (Nickel) |
| Polar Pattern | Cardioid |
| Maximum SPL | 145 dB SPL (typical, capsule dependent) |
| Encryption | AES 256-bit secure transmission |
| ShowLink Technology | Yes, real-time remote control and interference avoidance |
| Transmission Modes | Standard Mode, High Density Mode |
| Battery Type | SB920A Rechargeable Lithium-Ion |
| Battery Runtime | Up to 9 hours (single carrier), up to 6.5 hours (frequency diversity mode) |
| Charging | Docking contacts for networked charging systems |
| Display | OLED interface with intuitive navigation |
| Construction | Rugged cast aluminum housing |
| Finish | Nickel |
| Operating Temperature | -10°C to 50°C |
| Dimensions | Approx. 10.0 × 2.0 in (254 × 51 mm) |
| Weight | Approx. 338 g (without battery) |
| Compatibility | Shure Axient Digital receivers |
| Compliance | TAA Compliant |
