Description

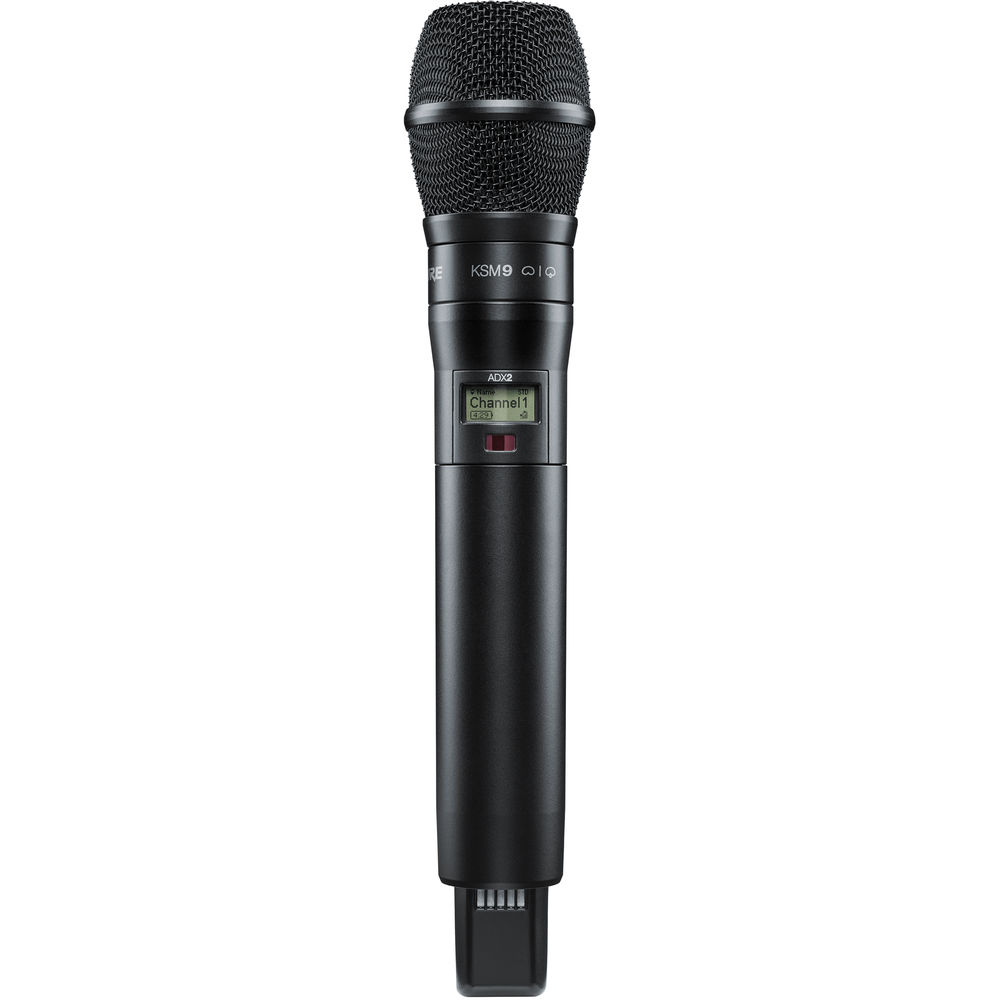

The Shure Axient Digital ADX2 handheld transmitter with KSM9 dual-pattern condenser capsule delivers premium wireless performance for demanding live sound, broadcast, and touring environments. Built on the Axient Digital platform, it provides exceptional RF stability, wide tuning capability, and pristine audio clarity even in congested spectrum conditions.
Designed for professional vocal applications, this transmitter features ShowLink remote control for real-time parameter adjustments, enabling engineers to manage frequency, gain, and interference avoidance directly from the control position. Its rugged, moisture-resistant metal construction ensures reliability on stage, while advanced rechargeable battery technology supports extended operation with precise power monitoring.
With selectable Standard and High Density transmission modes, the ADX2 maximizes both coverage and channel count, making it ideal for large-scale productions. The included KSM9 capsule offers switchable polar patterns and studio-grade sound reproduction, ensuring unmatched vocal detail and flexibility for performers.
| Specification | Details |
|---|---|
| Frequency Band | G57 (470–616 MHz) |
| Transmitter Type | Digital handheld wireless transmitter |
| Microphone Capsule | KSM9 dual-pattern condenser (black) |
| RF Output Power | 2 mW, 10 mW, 40 mW (region dependent) |
| Tuning Range | Wideband up to 184 MHz (platform dependent) |
| Modulation Type | Proprietary digital modulation |
| Encryption | AES 256-bit secure transmission |
| ShowLink Remote Control | Yes, real-time control and interference avoidance |
| Transmission Modes | Standard mode and High Density mode |
| Audio Performance | High dynamic range with low latency and transparent response |
| Frequency Response | Dependent on capsule (KSM9 studio-grade response) |
| Maximum SPL | Up to 145 dB SPL (capsule dependent) |
| Battery Type | SB920A rechargeable lithium-ion battery |
| Battery Runtime | Up to 9 hours (single carrier mode) |
| Charging Options | Dockable charging with external contacts |
| Display | OLED with intuitive navigation |
| Housing | Durable, lightweight cast aluminum |
| Finish | Black |
| Antenna Type | Integrated dual-band helical |
| Operating Range | Up to 100 meters (line-of-sight typical) |
| Operating Temperature | -18°C to 50°C |
| Dimensions | Approx. 10.0 x 2.0 in (254 x 51 mm) |
| Weight | Approx. 338 g (without battery) |
