Description

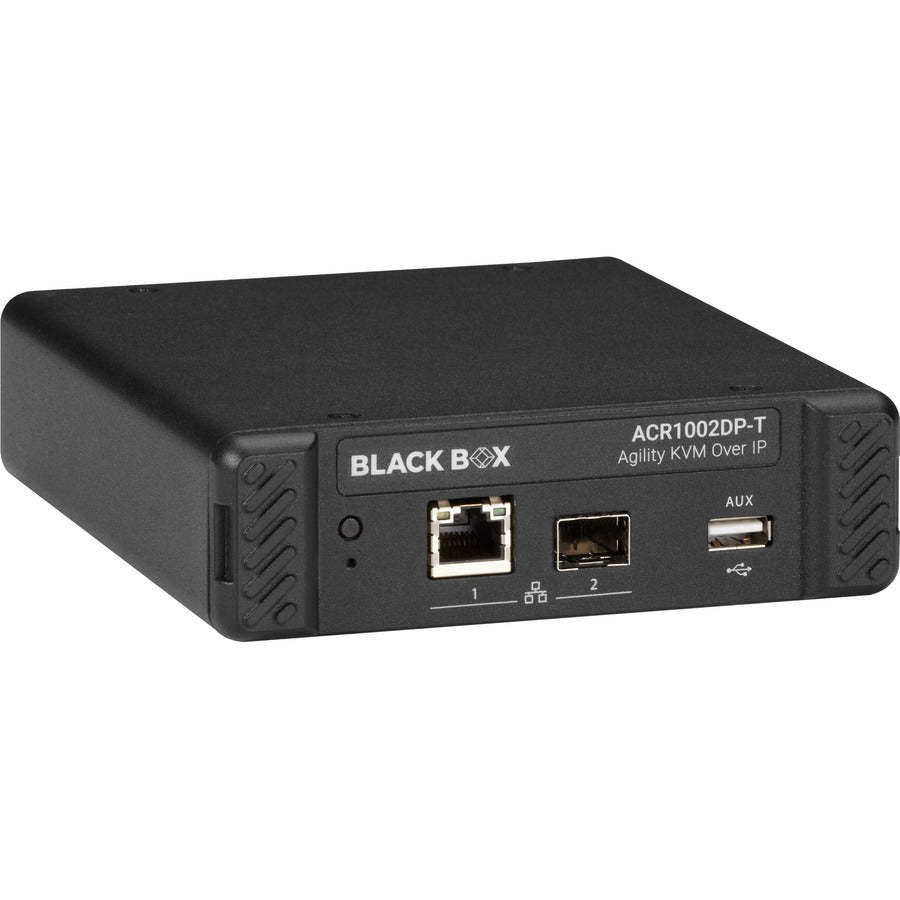

Black Box Agility KVM over IP Extender - Dual-Monitor, DisplayPort, USB 2.0
Locate your critical computing hardware in a secure and temperature-controlled environment away from the user workstations, while maintaining a pixel-perfect desktop experience.
The Black Box Agility high-performance IP KVM (keyboard, video, mouse) extenders drive dual-monitor DisplayPort video, audio, and USB over a single copper connection. The extenders offer ideal color and pixel-perfect picture quality at up to 2560 x 1600 at 60 Hz and USB 2.0 with fast switching.
Plug-and-Play
Works out of the box with no need to install drivers or other software.
Access via Just One Twisted-Pair Cable Using IP Technology
Copper models are now available for your application.
Drive Signals Long Distances
Extends distance up to 328 feet (100 meters) on a single CATx. Using a standard IP network, reach distances up to 656 feet (200 meters) via twisted-pair aided by a 1-Gbps network device.
Enjoy Ideal Digital Video, with Real-Time Control
Delivers DisplayPort video resolutions up to (1) 2560 x 1600 @ 60 Hz or (2) 1920 x 1200 @ 60 Hz. Using a spatially-lossless encoding system, the extenders provide pixel-perfect, color-accurate video with no artifacts in real-time.
Supports USB Mass Storage Devices, Plus Keyboard, Mouse, Tablet, and Touch
Connect a variety of USB devices, ranging from USB-HID devices such as keyboards and mice to USB 2.0 mass storage devices. Disable USB-HID connectivity within the extender if needed for security.
Works with Mac Pro
Supports dithered video, which can significantly increase the normal video data rates. The extender TX uses a feature called Magic Eye that supports dithering without degrading overall link performance.
Redundant Network Operation
If the main network goes down, your extender keeps operating if the second network port is connected to a backup connection.
Offers Dual Touchscreen Support
Includes on-screen keyboard and floating launch button.
- Supports CATx links at speeds up to 1 GbE
- Achieves DisplayPort resolutions of (1) 2560 x 1600 @ 60 Hz or (2) 1920 x 1200 @ 60 Hz
- Provides bi-directional analog audio (with combined headset jack on the receiver)
- Includes USB True Emulation for fast switching
- Works with advanced diagnostic and troubleshooting tools
- Plug-and-play
- DETAILS
